224345: DescriptionD Subminiature Connector, 7 Contact(s), Male, Press Fit Terminal, M3, Receptacle,; CategoryThe connector The connector; File Size280KB，9 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

224345 Overview

D Subminiature Connector, 7 Contact(s), Male, Press Fit Terminal, M3, Receptacle,

224345 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compli
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.579 inch
body length	1.547 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S5C2
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	25 mΩ
Contact style	HYBRID
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	29.8016 N
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Manufacturer's serial number	224345
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation option 1	M3
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	2/A
Termination type	PRESS FIT
Total number of contacts	7
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

D-Sub Connectors

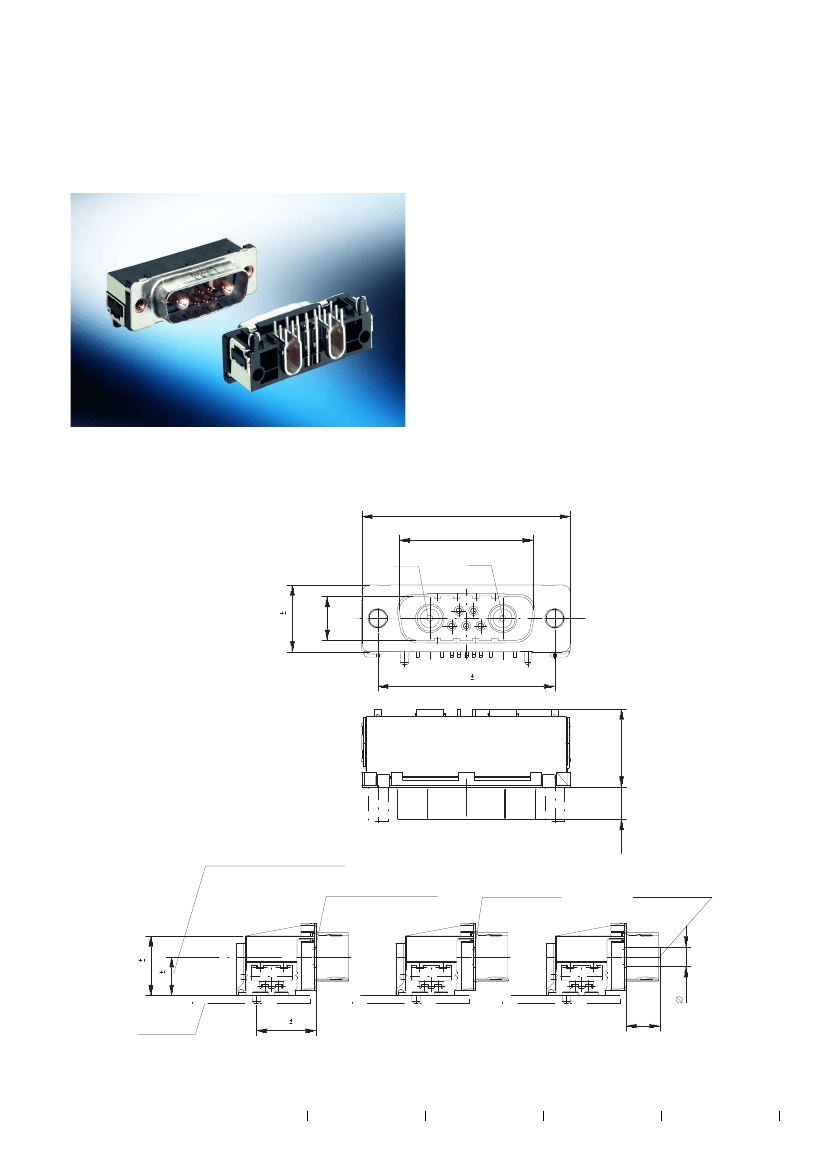

Right Angle Male High Current 7W2, 3W3, 3WK3

Versions with stamped high current contacts

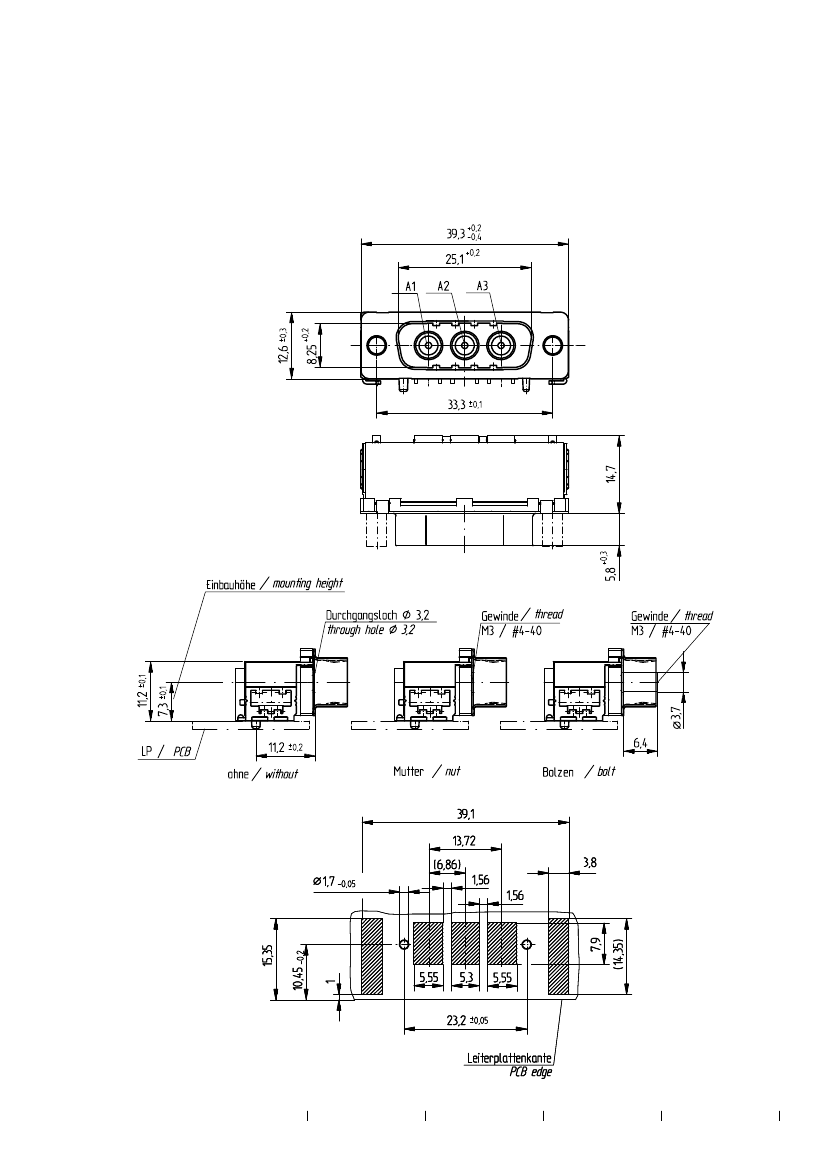

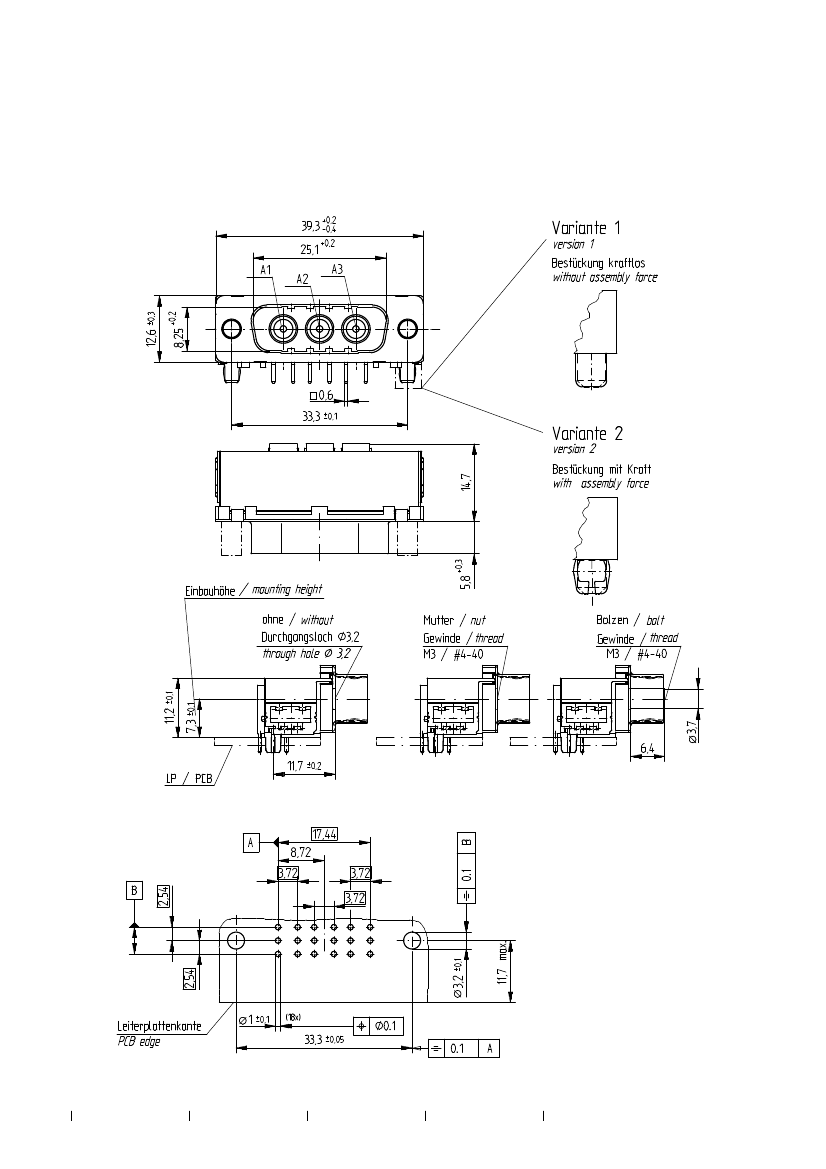

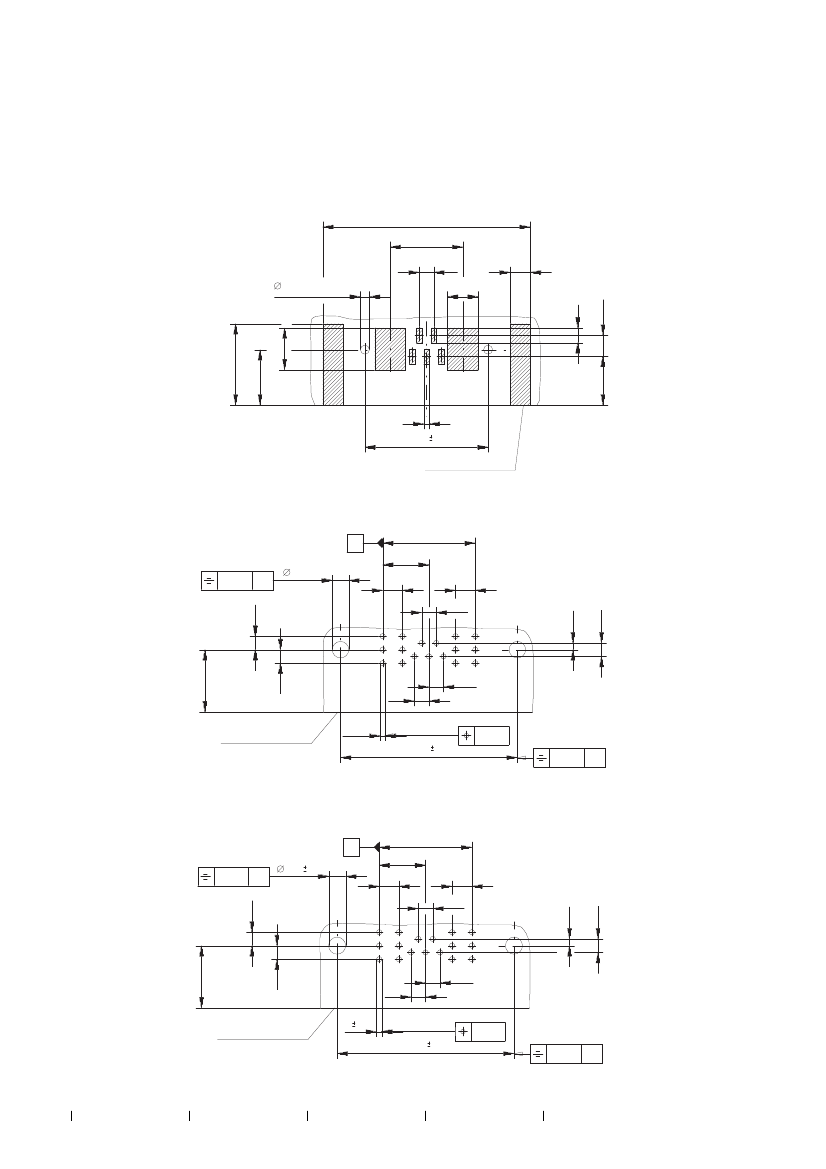

Dimensional Drawing 7W2 SMT, THR and Pressfit Versions,

Assembly Height 7.3 mm

39,3

-0,4

25,1

+0,2

0,3

+0,2

12,6

8,25

33,3

0,1

+0,3

Einbauhöhe / mounting height

Durchgangsloch ø 3,2

through hole ø 3,2

Gewinde / thread

M3 / #4-40

Gewinde / thread

M3 / #4-40

0,1

11,2

7,3

0,1

5,8

14,7

LP /

PCB

11,2

ohne / without

0,2

6,4

Mutter

/ nut

Bolzen

/ bolt

All dimensions in mm

Catalog E 074573

11/08

Edition 2

www.erni.com

3,7
