2N4953J18Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N4953J18Z

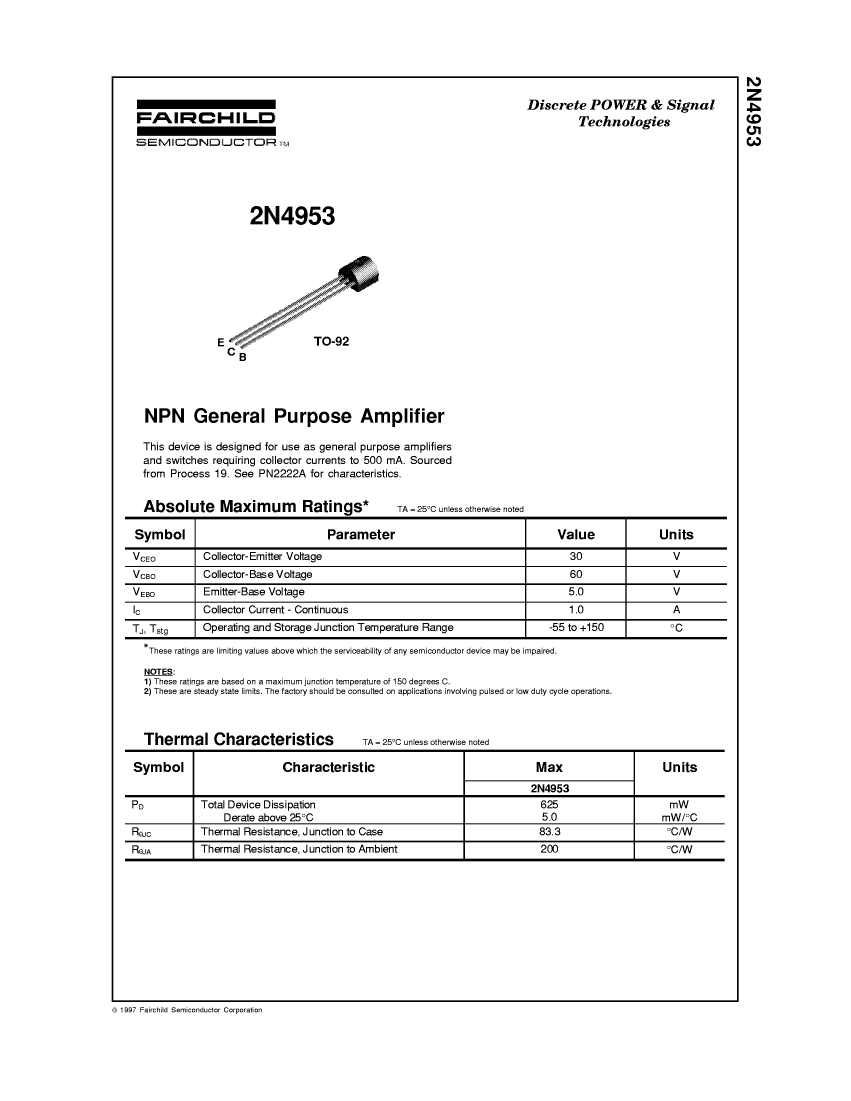

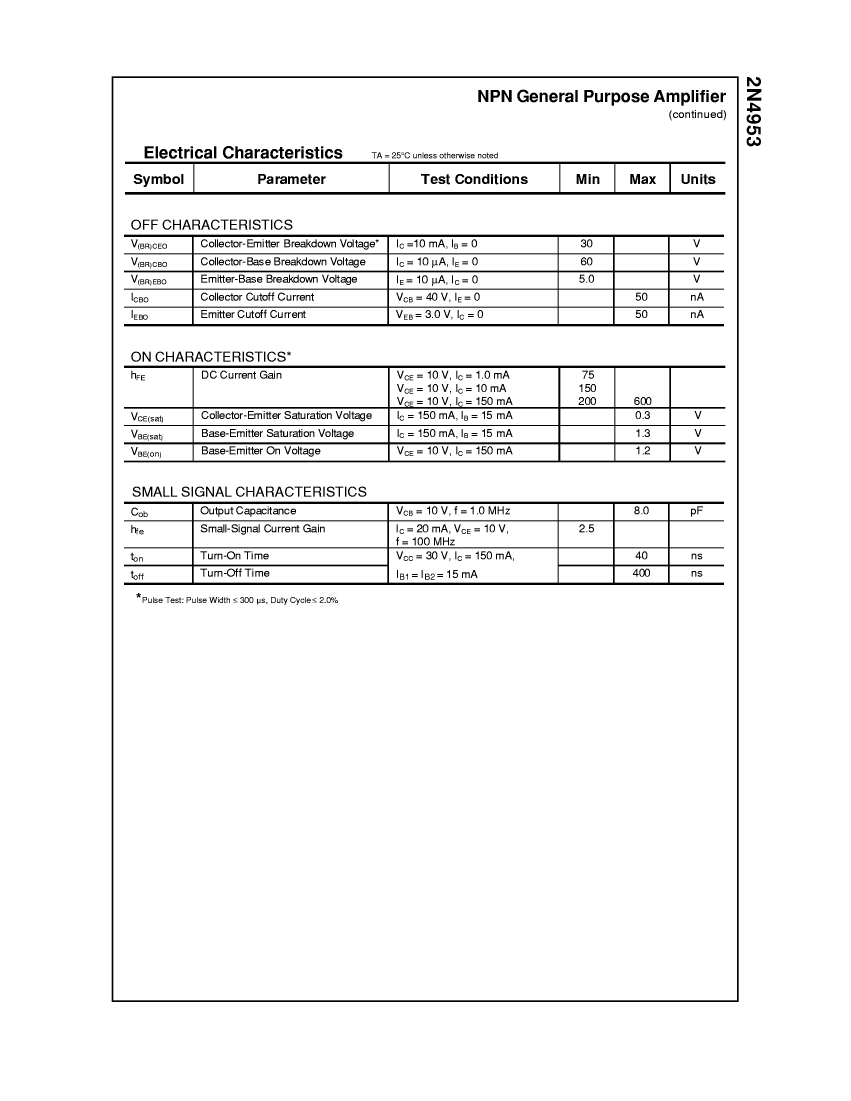

2N4953J18Z: DescriptionSmall Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size44KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

2N4953J18Z Overview

Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN

2N4953J18Z Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	TO-92
package instruction	CYLINDRICAL, O-PBCY-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	1 A
Collector-emitter maximum voltage	30 V
Configuration	SINGLE
Minimum DC current gain (hFE)	200
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Maximum off time (toff)	400 ns
Maximum opening time (tons)	40 ns

Preview

Download Datasheet

View All

2N4953J18Z Related Products

	2N4953J18Z	2N4953D75Z	2N4953D74Z	2N4953D27Z	2N4953J05Z
Description	Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN	Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 1A I(C), 30V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	1 A	1 A	1 A	1 A	1 A
Collector-emitter maximum voltage	30 V	30 V	30 V	30 V	30 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	200	200	200	200	200
JEDEC-95 code	TO-92	TO-92	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Maximum off time (toff)	400 ns	400 ns	400 ns	400 ns	400 ns
Maximum opening time (tons)	40 ns	40 ns	40 ns	40 ns	40 ns
Base Number Matches	-	1	1	1	1
