3130091-02 datasheet, PDF - EEWORLD Datasheet

3130091-02: DescriptionGeneral Purpose Inductor, 8uH, 1 Element; CategoryPassive components inductor; File Size29KB，1 Pages; ManufacturerFRONTIER; Websitehttp://www.frontierusa.com/

Download Datasheet Parametric Compare View All

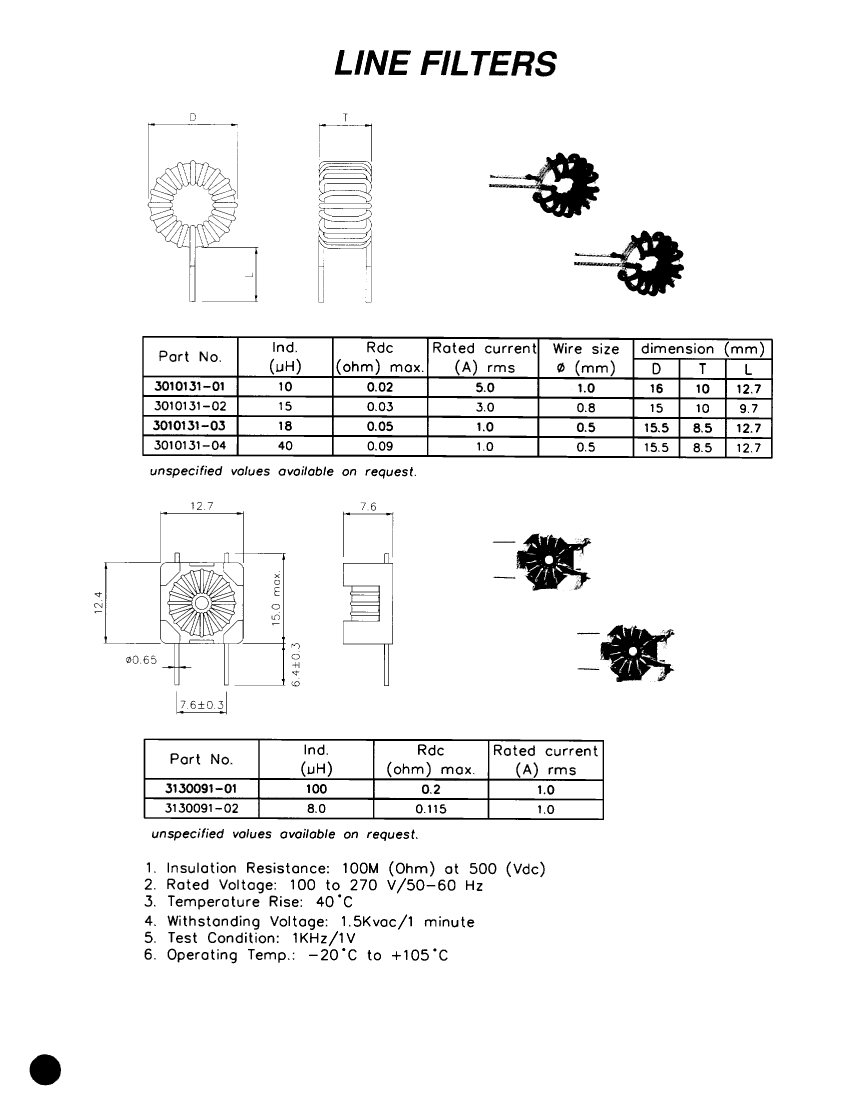

3130091-02 Overview

General Purpose Inductor, 8uH, 1 Element

Parameter Name	Attribute value
Maker	FRONTIER
Reach Compliance Code	unknow
ECCN code	EAR99
DC Resistance	0.115 Ω
Nominal inductance(L)	8 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	PRINTED WIRING PIN
Test frequency	0.001 MHz

	3130091-02	3010131-03	3010131-02	3010131-01	3010131-04	3130091-01
Description	General Purpose Inductor, 8uH, 1 Element	General Purpose Inductor, 18uH, 1 Element	General Purpose Inductor, 15uH, 1 Element	General Purpose Inductor, 10uH, 1 Element	General Purpose Inductor, 40uH, 1 Element	General Purpose Inductor, 100uH, 1 Element
Maker	FRONTIER	FRONTIER	FRONTIER	FRONTIER	FRONTIER	FRONTIER
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.115 Ω	0.05 Ω	0.03 Ω	0.02 Ω	0.09 Ω	0.2 Ω
Nominal inductance(L)	8 µH	18 µH	15 µH	10 µH	40 µH	100 µH
Inductor Applications	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	NO	NO	NO	NO	NO	NO
surface mount	NO	NO	NO	NO	NO	NO
Terminal location	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL	RADIAL
Terminal shape	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN	PRINTED WIRING PIN
Test frequency	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz	0.001 MHz
Base Number Matches	-	1	1	1	1	-
