380HS018M1312DH3 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 380HS018M1312DH3

380HS018M1312DH3: DescriptionConnector Accessory, Backshell, Aluminum Alloy, ROHS COMPLIANT; CategoryThe connector Connector bracket; File Size454KB，5 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

380HS018M1312DH3 Overview

Connector Accessory, Backshell, Aluminum Alloy, ROHS COMPLIANT

380HS018M1312DH3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Glenair
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Connector bracket type	CONNECTOR ACCESSORY
DIN compliance	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	380-018
Material	ALUMINUM ALLOY
Military connector accessories name	BACKSHELL
Housing size	13

Preview

Download Datasheet

View All

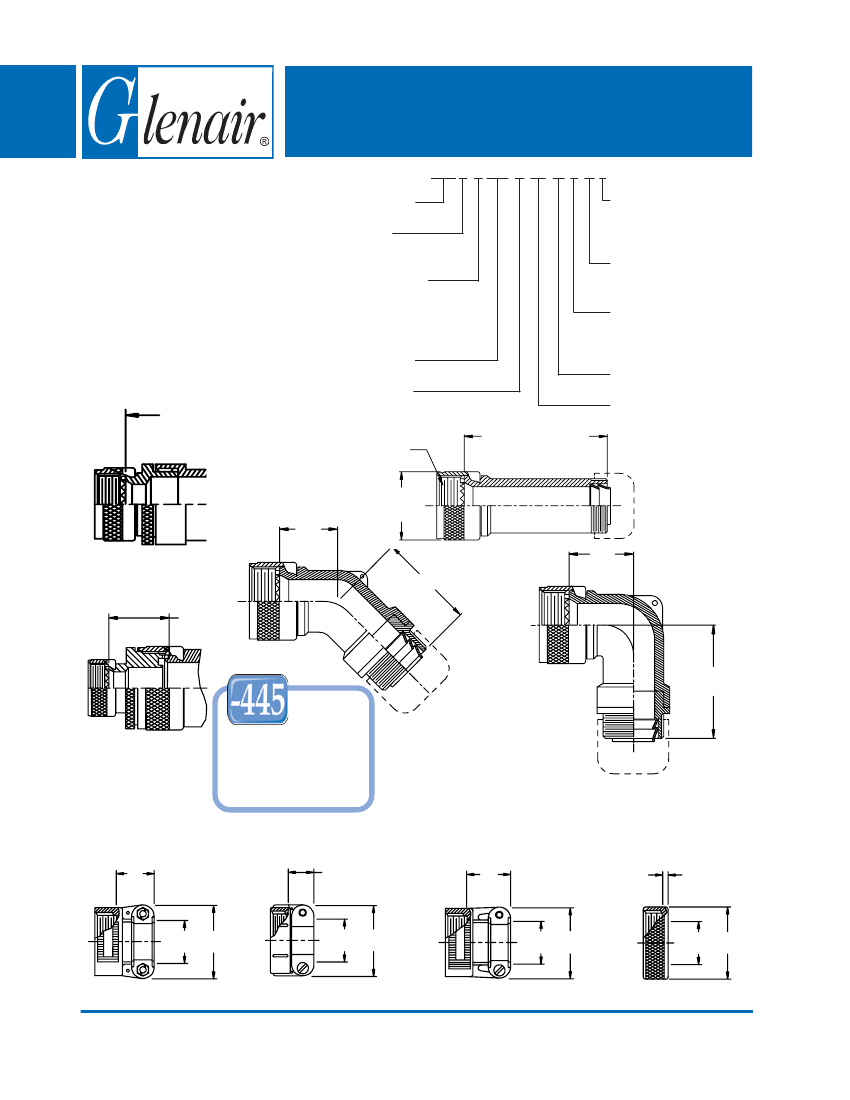

380-018

EMI/RFI Non-Environmental Backshell

with Strain Relief

Type E - Rotatable Coupling - Low Profile

380 F S 018 M 24 12 D A 6

CONNECTOR

DESIGNATORS

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

A-F-H-L-S

ROTATABLE

COUPLING

TYPE E INDIVIDUAL

AND/OR OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

Minimum Order Length 2.0 Inch

(See Note 4)

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style

(H, A, M, D)

Termination (Note 5)

D = 2 Rings

T = 3 Rings

Cable Entry (Table X, XI)

Finish (Table II)

Shell Size (Table I)

A Thread

(Table I)

Length ± .060 (1.52)

Minimum Order

Length 1.5 Inch

(See Note 4)

C Typ.

(Table I)

(Table III)

STYLE 2

(STRAIGHT

See Note 1)

.88 (22.4)

Max

F (Table III)

(Table III)

H (Table III)

Now Available

with the “NESTOR”

STYLE 2

(45° & 90°

See Note 1)

STYLE H

Heavy Duty

(Table X)

Glenair’s Non-Detent, Spring-

Loaded, Self- Locking Coupling.

Add “-445” to Specify This

AS85049 Style “N” Coupling

Interface.

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 84

380HS018M1312DH3 Related Products

	380HS018M1312DH3	380HS018M2504TA3	380HS018M1912DH4	380HS018M1712DM6	380HS018NF2504TA4	380HS018NF1912DH3
Description	Connector Accessory, Backshell, Aluminum Alloy, ROHS COMPLIANT	Connector Accessory, Backshell, Aluminum Alloy, ROHS COMPLIANT	Connector Accessory, Backshell, Aluminum Alloy, ROHS COMPLIANT	Connector Accessory, Backshell, Aluminum Alloy, ROHS COMPLIANT	Connector Accessory, Backshell, Aluminum Alloy	Connector Accessory, Backshell, Aluminum Alloy
Reach Compliance Code	compli	compli	compliant	compli	unknow	_compli
Connector bracket type	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY	CONNECTOR ACCESSORY
DIN compliance	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	YES	YES	YES	YES	YES	YES
Manufacturer's serial number	380-018	380-018	380-018	380-018	380-018	380-018
Material	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY	ALUMINUM ALLOY
Military connector accessories name	BACKSHELL	BACKSHELL	BACKSHELL	BACKSHELL	BACKSHELL	BACKSHELL
Housing size	13	25	19	17	25	19
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	incompatible
Maker	Glenair	-	-	Glenair	Glenair	Glenair
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	-
