477-008

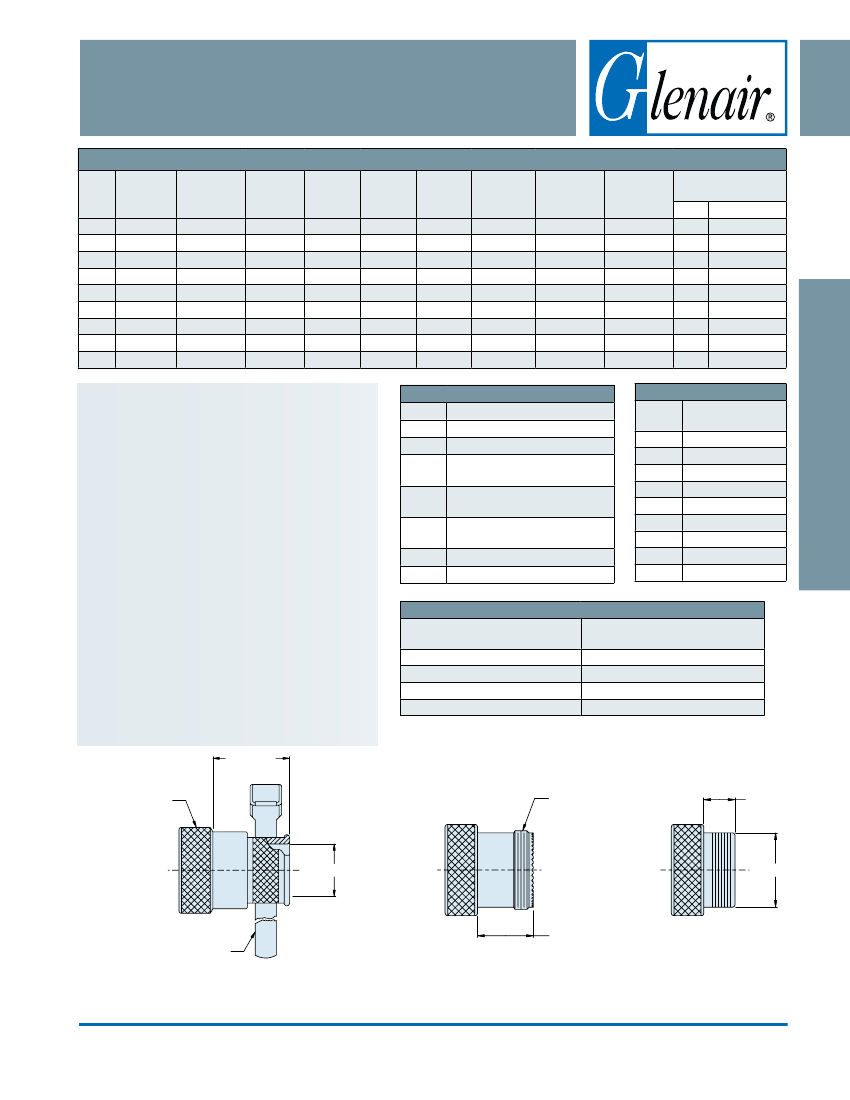

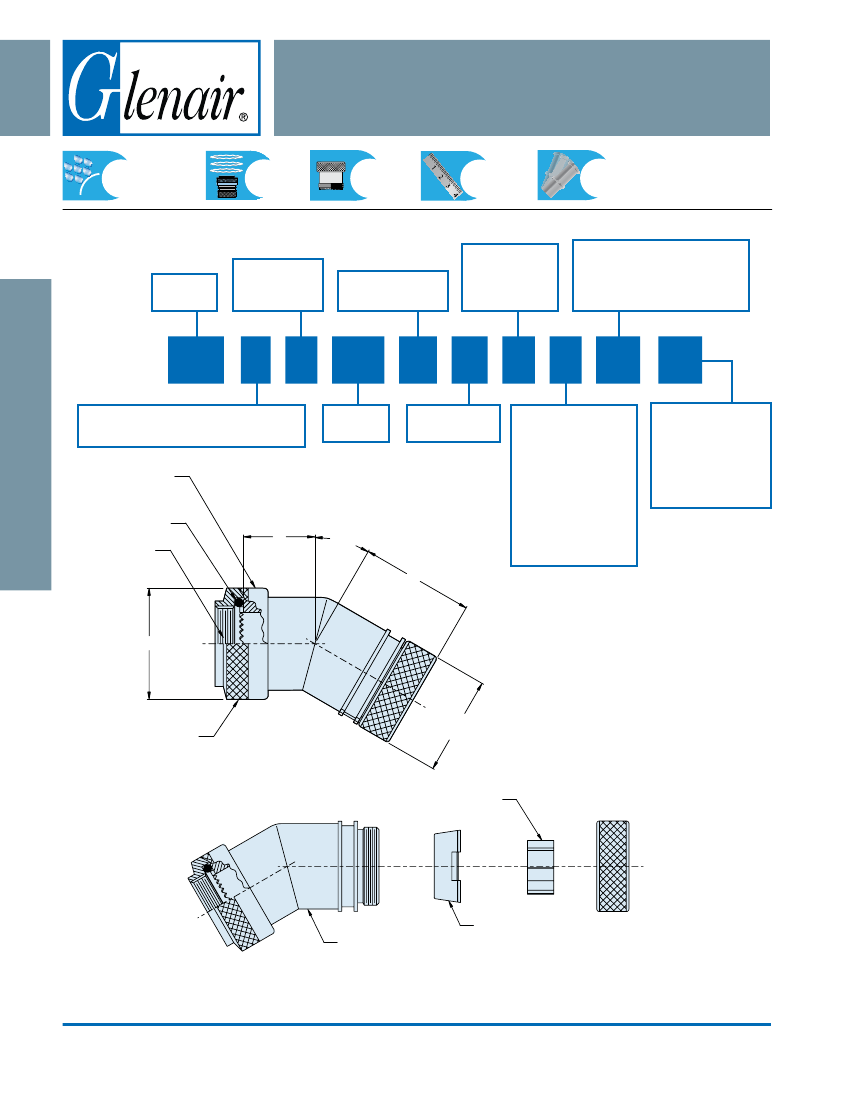

StarShield™ 30˚ Environmental EMI/RFI Shield
Termination Backshell
for MIL-DTL-38999 Series III & IV Connectors
Rear End
Options
Standard
Length
StarShield™
Backshells
Environmental
Self
Nesting
Self
Nestor
High
Ferrule Count
StarShield™ 30˚, environmental, high ferrule count backshell with self-nestor coupling
Product
Series
Angular
Function
Z
- 30̊
Finish Code
(See Table III)
Ferrule
Quantity
Code
(See Table I)
Drilled Star
DS
= Drilled Star - Optional
(Omit If Not Req’D)
(See note 4)
477
H
z
008
Basic
Number
M
17
6
G
DS
-
T
Shrink Boot
Option
T
= Shrink boot
- optional
(Omit for None)
(See Table III)
B
Connector Designator
H
= MIL-DTL-38999 Series III & IV
Over Travel Coupling
(See note 5)
O-ring
A Thread
D
Order No.
(See Table I)
30°
E
Rear End Options
B
= Banding Nut
With Band
C
= Conduit
Adapter
G
= Gland Nut
T
= Tinel Nut With
Tinel Ring for
Single Braid
B Max
Knurl Style Mfr
Option - Typ
SYMBOL Z
30°
C Max
SYMBOL G
Star
(See note 4)
Gland Nut
Elbow Assembly
Compression
Ring Assembly
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
StarShield™ Zero Length Shield Termination Catalog
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
B-30
E-Mail: sales@glenair.com
477-008
StarShield™ 30˚ Environmental EMI/RFI Shield
Termination Backshell
for MIL-DTL-38999 Series III & IV Connectors
Table I: Dimensions
Order
No
09
11
13
15
17
19
21
23
25
Connector
A Thread Iso
Shell Size
Metric
Ref
A/9
B/11
C/13
D/15
E/17
F/19
G/21
H/23
J/25
M12 X 1 - 6H
M15 X 1 - 6H
M18 X 1 - 6H
M22 X 1 - 6H
M25 X 1 - 6H
M28 X 1 - 6H
M31 X 1 - 6H
M34 X 1 - 6H
M37 X 1 - 6H
B Dia Max
.75 (19.0)
.87 (22.0)
1.00 (25.5)
1.20 (30.5)
1.32 (33.5)
1.46 (37.0)
1.52 (38.5)
1.65 (42.0)
1.83 (46.5)
C Dia
Max
.69(17.5)
.85(21.5)
.89(22.5)
1.00(25.5)
1.12(28.5)
1.24(31.5)
1.38(35.0)
1.50(38.0)
1.61(41.0)
D Max
.45(11.5)
.47(12.0)
.49(12.5)
.51(13.0)
.53(13.5)
.55(14.0)
.57(14.5)
.59(15.0)
.61(15.5)
E Max
.94(24.0)
.96(24.5)
.98(25.0)
1.00(25.5)
1.02(26.0)
1.04(26.5)
1.06(27.0)
1.08(27.5)
1.10(28.0)
F ±.003
(.08)
.435 (11.0)
.623 (15.8)
.746 (18.9)
.871 (22.1)
.996 (25.3)
1.121 (28.5)
1.245 (31.6)
1.371 (34.8)
1.371 (34.8)
G Thread
ISO Metric
M12X 1 - 6g
H ±.004
(0.10)
.315 (8.00)
Ferrule Quantity
(See Note 4)
Std.
Optional
1
-
2
3
5
6
7
9
10
12
-
-
-
7
-
11
11,12,13,15
13,14,15,17,18
M15X 1 - 6g .531 (13.50)
M18 X 1 - 6g .591 (15.00)
M22 X 1 - 6g .709 (18.00)
M25 X 1 - 6g .827 (21.00)
M28 X 1 - 6g .945 (24.00)
M31 X 1 - 6g 1.063 (27.00)
M34 X 1 - 6g 1.181 (30.00)
M37 X 1 - 6g 1.299 (33.00)
Notes:
Table II: Material and Finish Options
Code
M
MT
NF
ZN
ZR
Z1
ZM
Material; Finish Description
Aluminum; electroless nickel
Aluminum; nickel - PTFE
Aluminum; CAD/O. D. over
electroless nickel
Aluminum; zinc nickel/O. D. over
electroless nickel
Aluminum; zinc nickel/black over
electroless nickel (RoHS)
Stainless steel; passivate
Stainless steel; electroless nickel
Material/Finish
Backshell, elbows, gland nut,
compression ring, star
Coupling nut
O-ring
Tinel ring-nickel
Band
1. Assembly identified with manufacturer’s
name and P/N, space permitting.
2. For effective grounding, connector with
conductive finish should be used.
3. Glenair 600 series backshell assembly
tools are recommended for assembly and
installation.
4. Star not supplied with order number 09.
Drilled star is available on order numbers
15-25 only. If optional ferrule qty per Table 1
is selected, one split and one solid star will be
supplied
5. Over-travel coupling design provides
self-seating & self-locking functionality
eliminating lock-wire requirements.
6. Ferrule kit sold separately.
687-764 ferrule and HST device kit
687-809 ferrule and sealing device kit
687-748 solder ferrule
687-841-01 HST flex device
1.17 (29.7)
Max
Banding Nut
Table III: Shrink Boots
Shell
Shrink Boot Ref.
Size
Part No.
09
770-001S1 04
11
770-001S1 06
13
770-001S1 06
15
770-001S1 07
17
770-001S1 07
19
770-001S1 08
21
23
25
770-001S1 08
770-001S1 08
770-001S1 09
Aluminum alloy or CRES/Table III
Stainless steel/passivate
Silicone/n.a.
Titanium alloy/n.a.
CRES/passivate
G Thread
.33 (8.4)
Max
SYMBOL B
Banding Nut
with Band
SYMBOL C
H Dia
Conduit
Adapter
SYMBOL T
Tinel Nut
F
Band
(601-040)
.94 (23.9)
Max
© 2012 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
StarShield™ Zero Length Shield Termination Catalog
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com
B-31
E-Mail: sales@glenair.com
