M80-5S20405M3-00-000-00-000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> M80-5S20405M3-00-000-00-000

M80-5S20405M3-00-000-00-000: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle; CategoryThe connector The connector; File Size574KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M80-5S20405M3-00-000-00-000 Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle

M80-5S20405M3-00-000-00-000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.238 inch
subject depth	0.398 inch
body length	0.551 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	M80-5S2
Plug contact pitch	0.079 inch
Mixed contacts	NO
Installation option 1	M2
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.4892 mm
Plating thickness	12u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

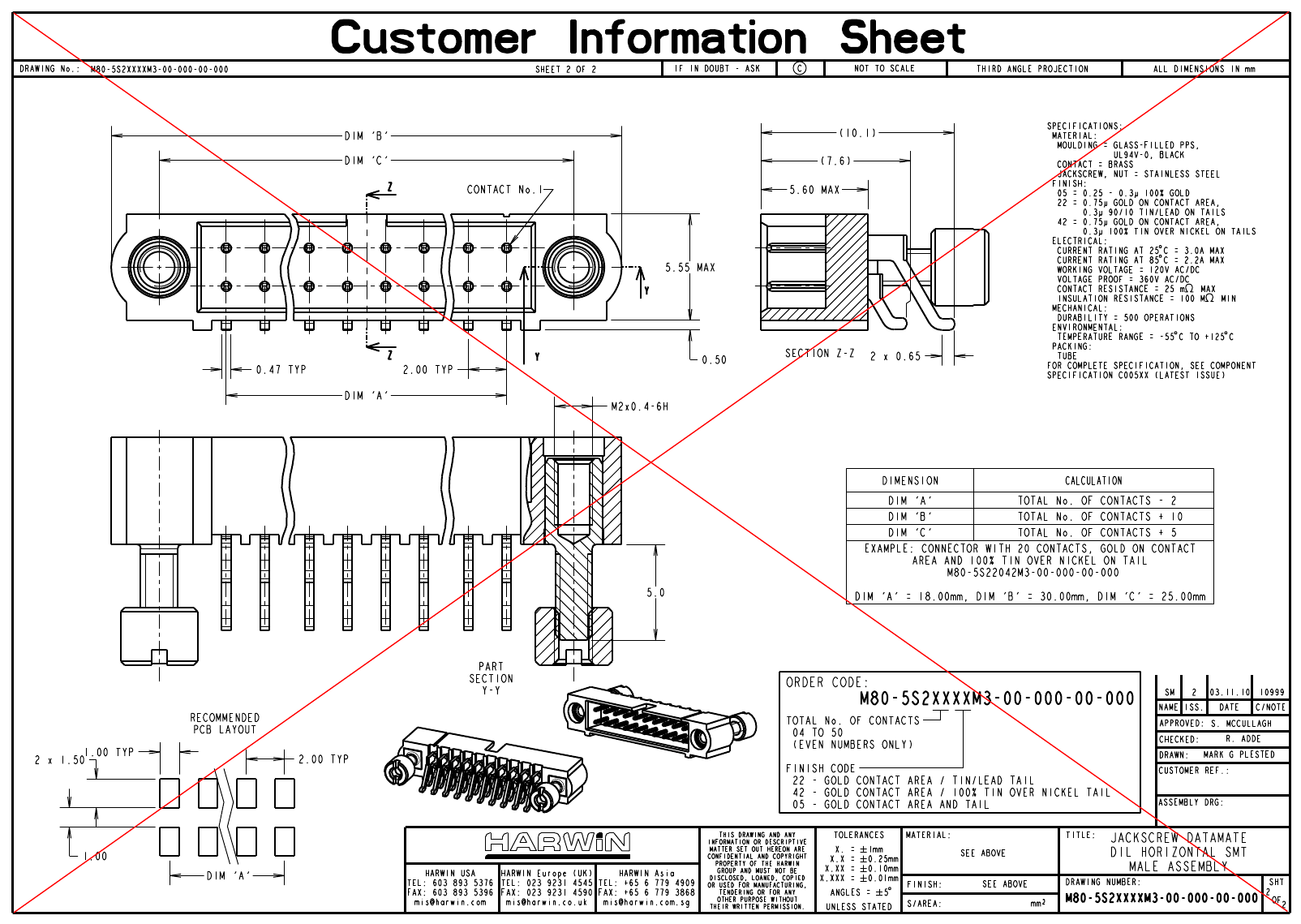

Preview

Download Datasheet

View All

OBSOLETE

M80-5S20405M3-00-000-00-000 Related Products

	M80-5S20405M3-00-000-00-000	M80-5S21405M3-00-000-00-000	M80-5S23605M3-00-000-00-000	M80-5S24605M3-00-000-00-000	M80-5S24805M3-00-000-00-000	M80-5S21605M3-00-000-00-000	M80-5S25005M3-00-000-00-000	M80-5S24405M3-00-000-00-000	M80-5S22622M3-00-000-00-000
Description	Board Connector, 4 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle	Board Connector, 36 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle	Board Connector, 46 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle	Board Connector, 48 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle	Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle	Board Connector, 44 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle	Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	incompatible
Reach Compliance Code	unknow	unknown	unknow	unknow	unknow	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.238 inch	0.238 inch	0.238 inch	0.238 inch	0.238 inch	0.238 inch	0.238 inch	0.238 inch	0.238 inch
subject depth	0.398 inch	0.398 inch	0.398 inch	0.398 inch	0.398 inch	0.398 inch	0.398 inch	0.398 inch	0.398 inch
body length	0.551 inch	0.945 inch	1.811 inch	2.205 inch	2.283 inch	1.024 inch	2.362 inch	2.126 inch	1.417 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (12)	GOLD (12)	GOLD (12)	GOLD (12)	GOLD (12)	GOLD (12)	GOLD (12)	GOLD (12)	GOLD (30)
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Tin/Lead (Sn/Pb)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N	2.78 N
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4	e0
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	M80-5S2	M80-5S2	M80-5S2	M80-5S2	M80-5S2	M80-5S2	M80-5S2	M80-5S2	M80-5S2
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	M2	M2	M2	M2	M2	M2	M2	M2	M2
Installation option 2	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW	JACKSCREW
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm	2.4892 mm
Plating thickness	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	12u inch	30u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	14	36	46	48	16	50	44	26
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N
Maker	Harwin	-	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	-
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
