HN624316F-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> HN624316F-12

HN624316F-12: DescriptionMASK ROM, 2MX8, 120ns, CMOS, PDSO48, PLASTIC, SOP-48; Categorystorage storage; File Size134KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HN624316F-12 Overview

MASK ROM, 2MX8, 120ns, CMOS, PDSO48, PLASTIC, SOP-48

HN624316F-12 Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SSOP,
Contacts	48
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	120 ns
Spare memory width	16
JESD-30 code	R-PDSO-G48
length	20 mm
memory density	16777216 bi
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	48
word count	2097152 words
character code	2000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	2MX8
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	3 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
width	14 mm

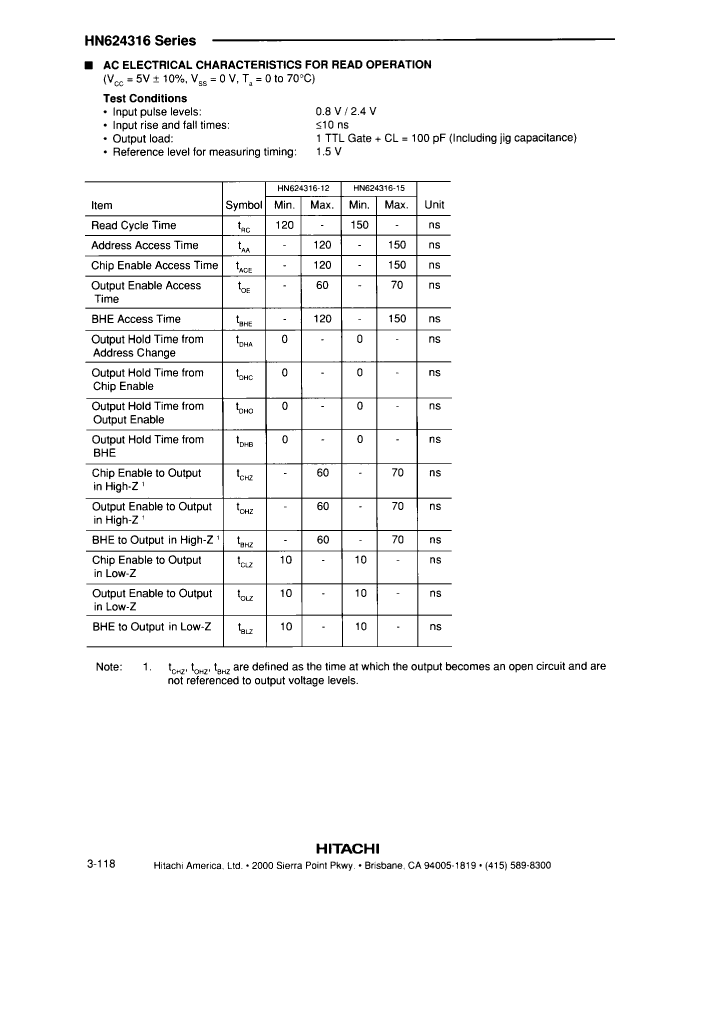

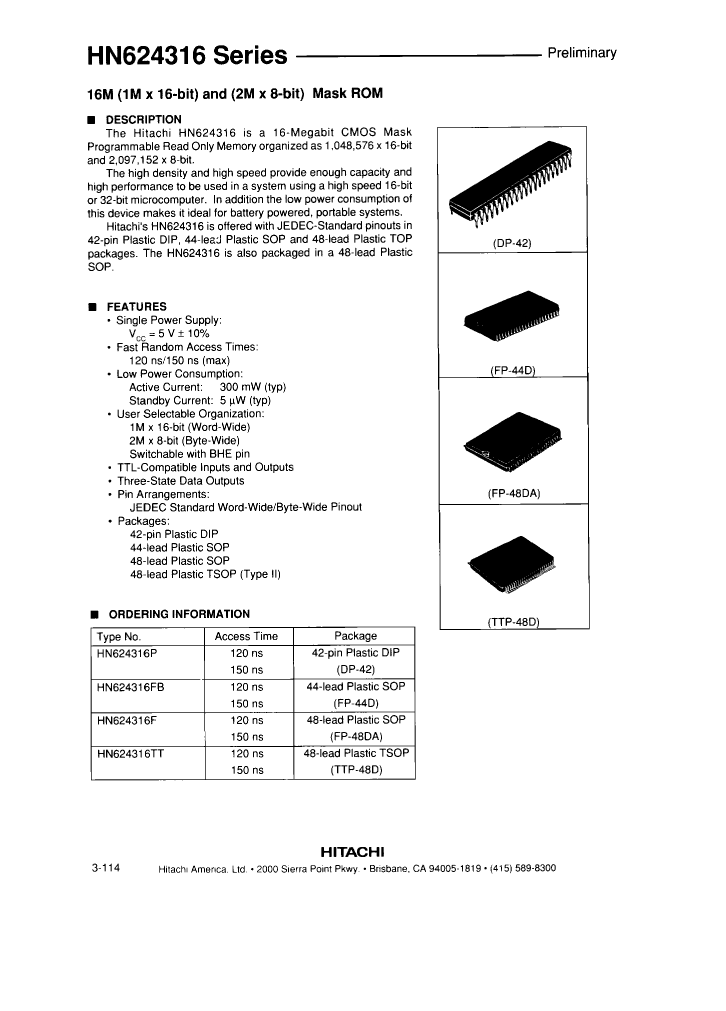

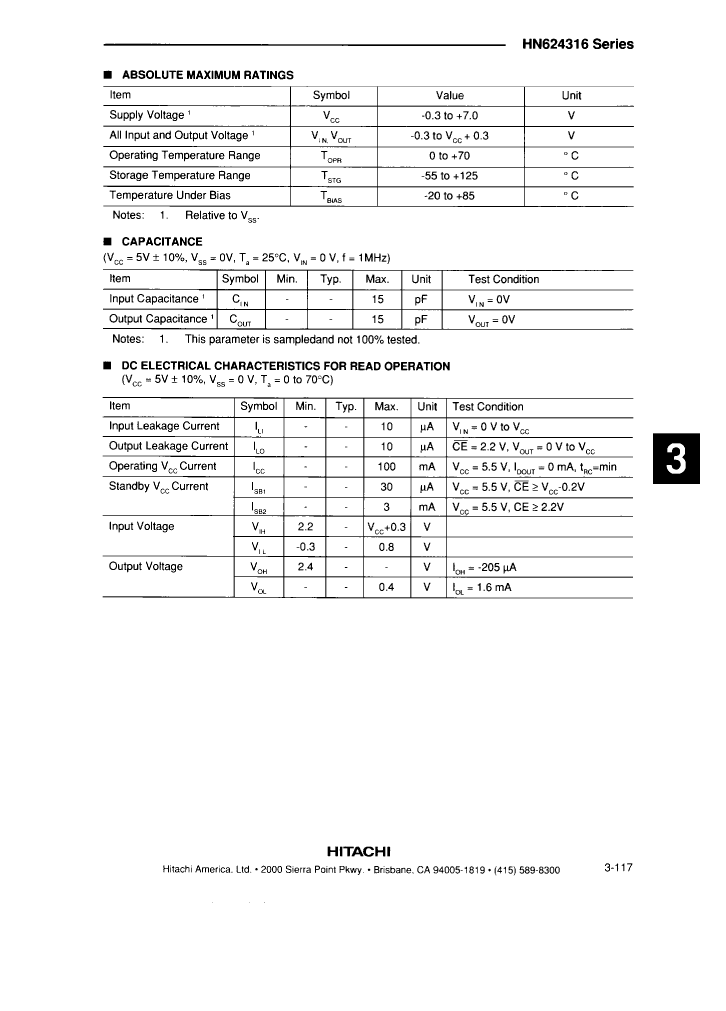

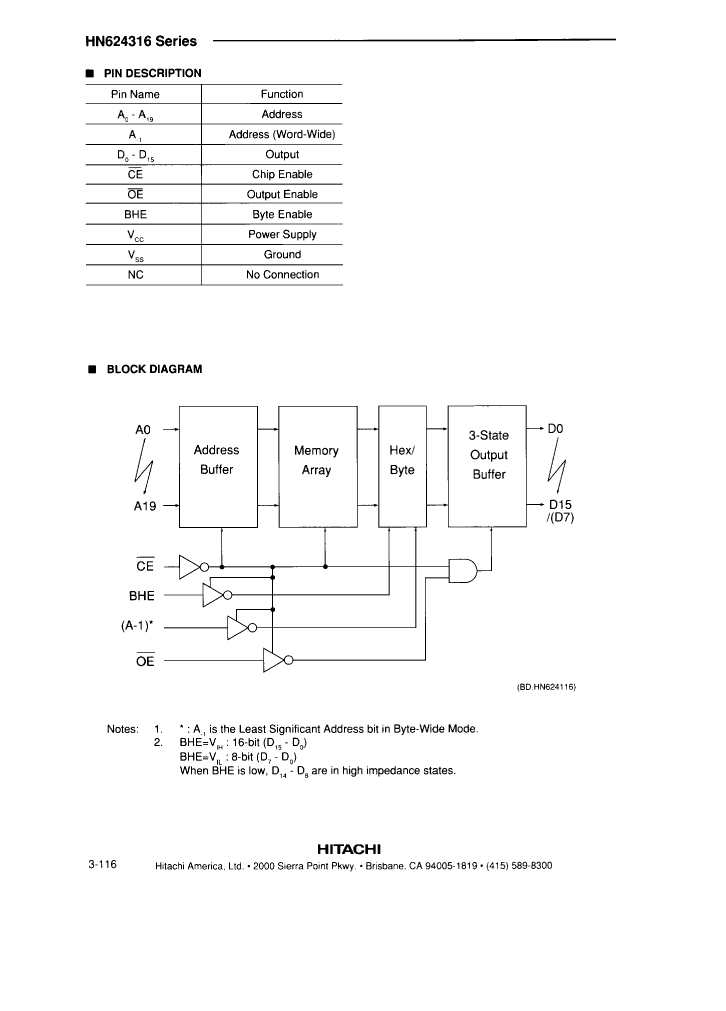

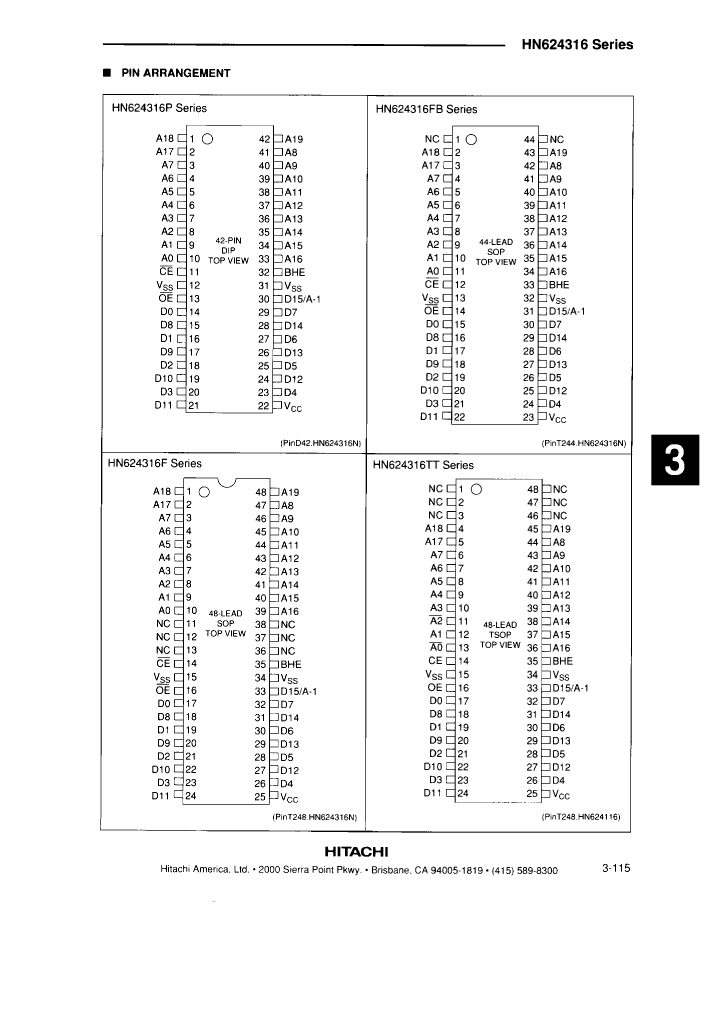

Preview

Download Datasheet

View All

HN624316F-12 Related Products

	HN624316F-12	HN624316F-15	HN624316TT-15	HN624316TT-12
Description	MASK ROM, 2MX8, 120ns, CMOS, PDSO48, PLASTIC, SOP-48	MASK ROM, 2MX8, 150ns, CMOS, PDSO48, PLASTIC, SOP-48	MASK ROM, 2MX8, 150ns, CMOS, PDSO48, PLASTIC, TSOP2-48	MASK ROM, 2MX8, 120ns, CMOS, PDSO48, PLASTIC, TSOP2-48
Parts packaging code	SOIC	SOIC	TSOP2	TSOP2
package instruction	SSOP,	SSOP,	TSOP2,	TSOP2,
Contacts	48	48	48	48
Reach Compliance Code	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	120 ns	150 ns	150 ns	120 ns
Spare memory width	16	16	16	16
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
length	20 mm	20 mm	19.68 mm	19.68 mm
memory density	16777216 bi	16777216 bi	16777216 bit	16777216 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of terminals	48	48	48	48
word count	2097152 words	2097152 words	2097152 words	2097152 words
character code	2000000	2000000	2000000	2000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	2MX8	2MX8	2MX8	2MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	TSOP2	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	3 mm	3 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	14 mm	14 mm	13.97 mm	13.97 mm
Maker	Hitachi （Renesas ）	-	Hitachi （Renesas ）	Hitachi （Renesas ）
