HCOF-2264BH-0.010 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> HCOF-2264BH-0.010

HCOF-2264BH-0.010: DescriptionOscillator,; CategoryPassive components oscillator; File Size58KB，1 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

HCOF-2264BH-0.010 Overview

Oscillator,

HCOF-2264BH-0.010 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ILSI
Reach Compliance Code	compli
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	0.01 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	ACMOS
physical size	20.7mm x 12.6mm x 5.46mm
Maximum supply voltage	2.835 V
Minimum supply voltage	2.565 V
Nominal supply voltage	2.7 V
surface mount	NO
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

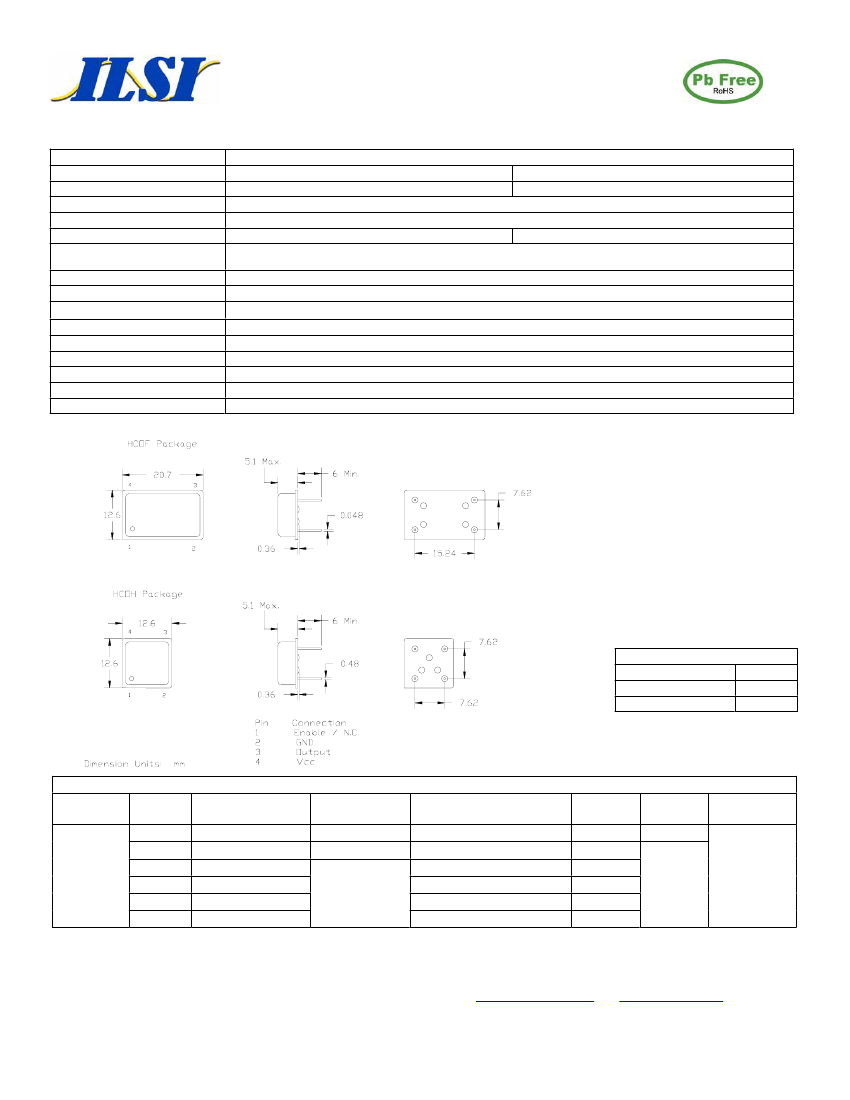

Leaded Oscillator, TTL / HC-MOS

Metal Package, Full Size DIP and Half DIP

Frequency

Output Level

Level

Duty Cycle

Rise / Fall Time

Output Load

Frequency Stability

Start-up Time

Enable / Disable Time

Supply Voltage

10 KHz to 160.000 MHz

HCOF / HCOH Series

TTL

HC-MOS

‘0’ = 0.4 VDC Max., ‘1’ = 2.4 VDC Min.

‘0’ = 0.1 Vcc Max., ‘1’ = 0.9 Vcc Min.

Specify 50% 10% or 5% See Table

5 nS Max. @ Vcc = +3.3 VDC, 10 nS Max. @ Vcc = +5.0 VDC **

Fo < 50 MHz = 10 TTL, Fo > 50 MHz = 5 LSTTL

See Table

See Frequency Stability Table

(Includes room temperature tolerance and stability over operating temperature)

10 mS Max.

100 nS Max.

See Input Voltage Table, tolerance 5 %

40 mA Max. @ 3.3 VDC, 85 mA Max. @ 5.0 VDC **

Current

Temperature

See Operating Temperature Table

Operating

Storage

-55 C to +125 C

See Appendix B for information

Environmental

MSL = N.A., Termination = e1

Package Information

Programmable version is available for quick delivery, part numbers HCPF and HCPH.

Tri-State Function

Pin 1 Open

Enable

Pin 1 70% Vdd

Enable

Pin 1 30% Vdd

Disable

Part Number Guide

Package

Input

Voltage

5 = 5.0 V

3 = 3.3 V

HCOF -

HCOH -

7 = 3.0 V

2 = 2.7 V

6 = 2.5 V

Sample Part Number:

Operating

Temperature

7 = 0 C to +50 C

1 = 0 C to +70 C

6 = -10 C to +70 C

3 = -20 C to +70 C

4 = -30 C to +75 C

Symmetry

(Duty Cycle)

5 = 45 / 55 Max.

6 = 40 / 60 Max.

HCOF - 3153BH - 20.000

Output

1 = 10TTL / 15 pF HC-MOS

3 = 15 pF HC-MOS

6 = 30 pF

5 = 50 pF HC-MOS (<40 MHz)

4 = AC-MOS

Stability

(in ppm)

*E = 10

*D = 15

A = 25

B = 50

- 20.000 MHz

Enable /

Disable

H = Enable

Frequency

2 = -40 C to +85 C

C = 100

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and Gnd (pin 2) to minimize power supply noise.

* Not available for all temperature ranges. ** Frequency, supply, and load related parameters.

12/06

ILSI America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

e-mail@ilsiamerica.com

•

www.ilsiamerica.com

Specifications subject to change without notice

D12
