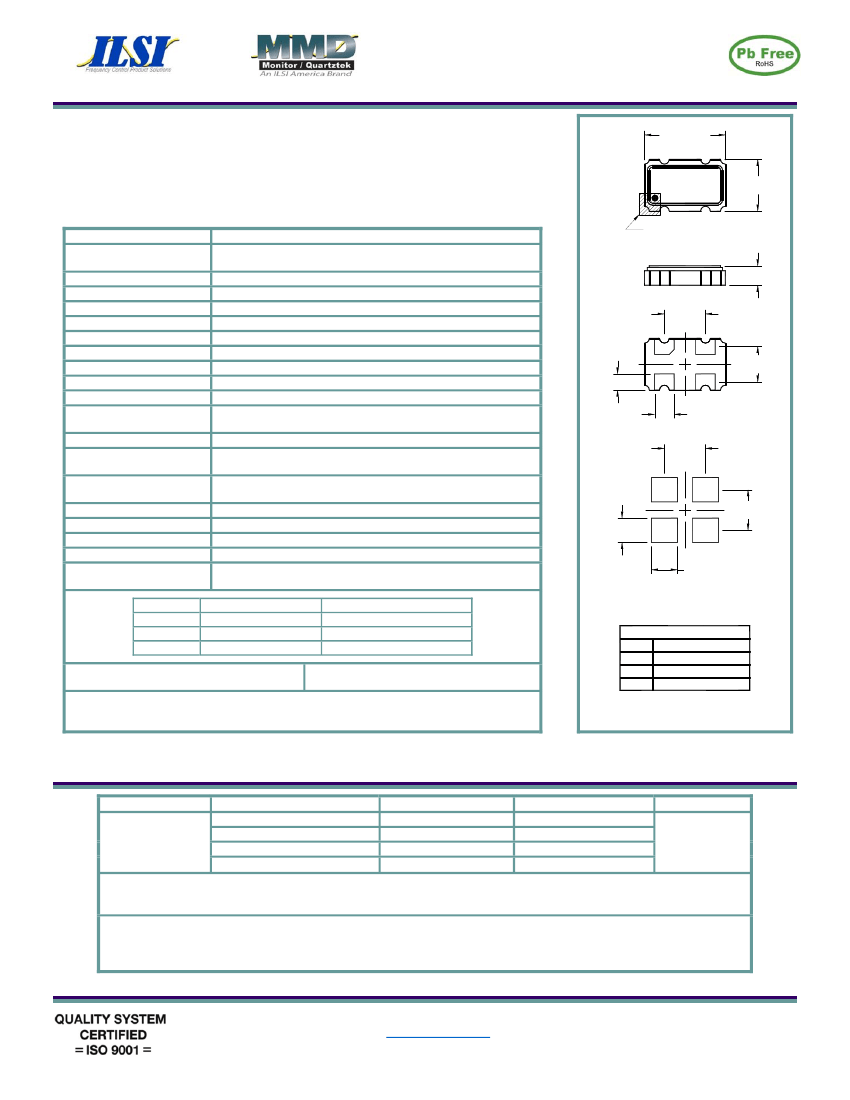

Ultra-Low Noise 3.2 x 5.0 SMD Oscillator
Product Features:
Freq. Range: 5.000 MHz to 50.000 MHz
Supply Voltage: +1.80 VDC to +3.30 VDC
Tri-State Function on Pin 1
Ultra-Low Phase Jitter and Phase Noise
LVCMOS Compatible
Applications:
SD/HD Video
Wireless Base Stations
Sonet/SDH
T1/E1, T3/E3
5.00±0.10
ISM42 Series
MARKING
(TOP VIEW)
3.20±0.10
Frequency Range
Frequency Tolerance at
+25°C ±2°C
vs Temperature
vs Supply Voltage (Vcc)
Output Waveform
Logic “0”
Logic “1”
Rise / Fall Time
Duty Cycle
Start-up Time
Load
Aging
Tri-State Function (Pin 1)
Tri-State Operation
Enable / Disable Time
Disable Current
Temperature Ranges
Operating
Storage
Supply Voltage / Supply
Current
Option
1
6
3
5.000 MHz to 50.000MHz
See Part Number Guide Below
See Part Number Guide Below
±1.0 ppm max
LVCMOS
10% of Vcc max
90% of Vcc min
10 nSec max for 10% to 90% of waveform
50% ± 5% at 50% of waveform
0.8 mSec typ. , 5.0 mSec max
15 pF
±3 ppm max first year
±2 ppm max per year thereafter
Voh = 70% of Vcc min or no connection to Enable Output
Vol = 30% of Vcc or grounded to Disable Out (High Impedance)
Enable: 1.0 mSec max
Disable: 200 nSec max
20 µA max
See Part Number Guide Below
-50°C to +100°C
1.50
PIN 1 INDICATOR LOCATED
IN THIS AREA.
1.20 MAX
2.54
1
4
2
2.20
3
1.00
1.20
2.54
2.50
1.60
SUGGESTED
LAND PATTERN
Pin Connections
Enable / Disable
Ground
Output
Supply Voltage (Vcc)
Supply Voltage (Vcc)
+1.80 VDC
+2.50 VDC
+3.30 VDC
Current
3.0 mA typ., 5.0 mA max.
4.7 mA typ., 7.0 mA max.
7.0 mA typ., 10.0 mA max.

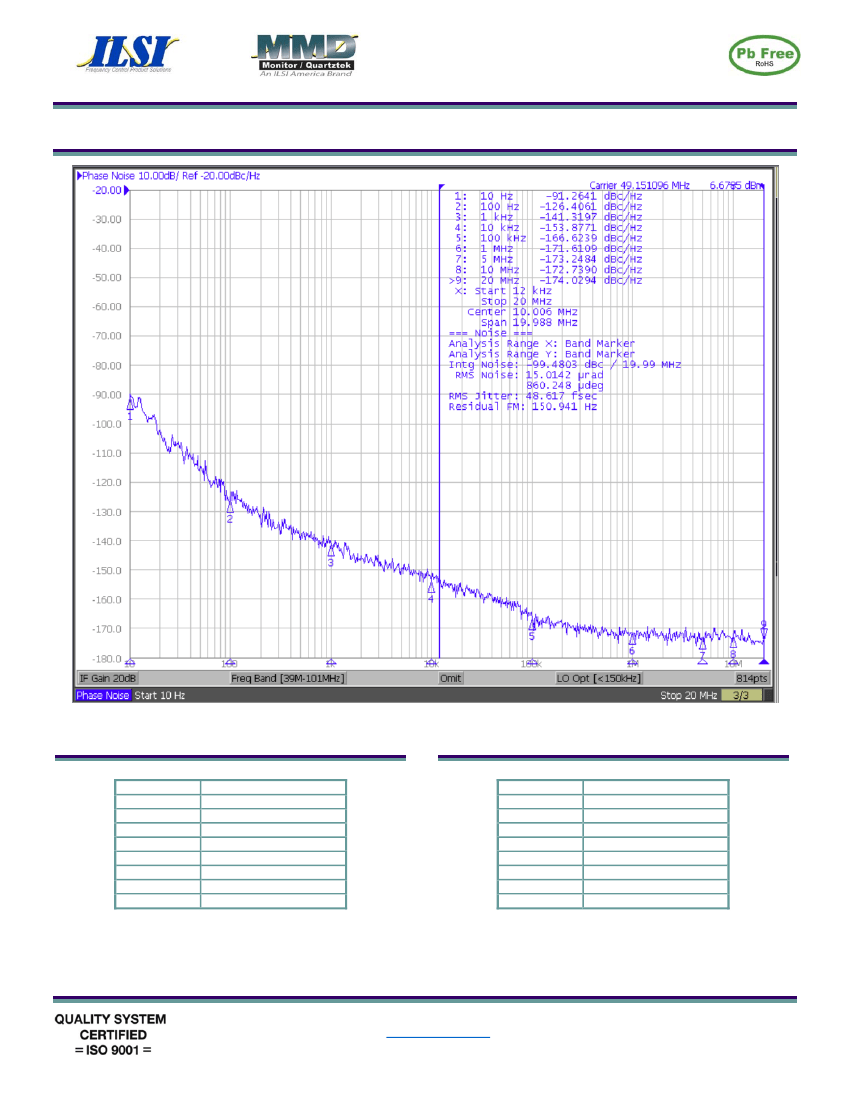

RMS Phase Jitter at 49.152 MHz
48 fSec typ. At +3.30 VDC
(12 kHz to 20.0 MHz)
118 fSec typ. At +1.80 VDC
Notes:
1. It is recommended that a 0.01
μF
bypass capacitor be connected between Vdd (Pin 4)
and Ground (Pin 2) to minimize power supply noise
Pin 1
Pin 2
Pin 3
Pin 4
DIMENSION IN mm
Part Number Guide
Operating Temperature
Temperature Stability
1 = 0ºC to +70ºC
A = ±25 ppm
6 = -10ºC to +70ºC
B = ±50 ppm
ISM42-
3 = -20ºC to +70ºC
C = ±100 ppm
2 = -40ºC to +85ºC
Sample Part Number:
ISM42-2B3-32.000000MHz
This a 3.2 X 5.0 SMD Oscillator with an operating frequency of 32.000000 MHz with
a temperature range of -40°C to +85°C . The supply voltage is +3.30VDC.
Notes:
1. Not all options are available at all frequencies and temperature ranges.
2. Please consult with sales department for any other parameters or options.
3. Oscillator specification subject to change without notice.
Package
Supply Voltage
1 = +1.80 VDC
6 = +2.50 VDC
3 = +3.30 VDC
Frequency
-Frequency
a temperature stability of ±50 ppm thru
ILSI America Phone 775-851-8880
●
Fax 775-851-8882
●email:
e-mail@ilsiamerica.com
●
www.ilsiamerica.com
Specifications subject to change without notice
Rev: 11/30/16_A
Page 1 of 3

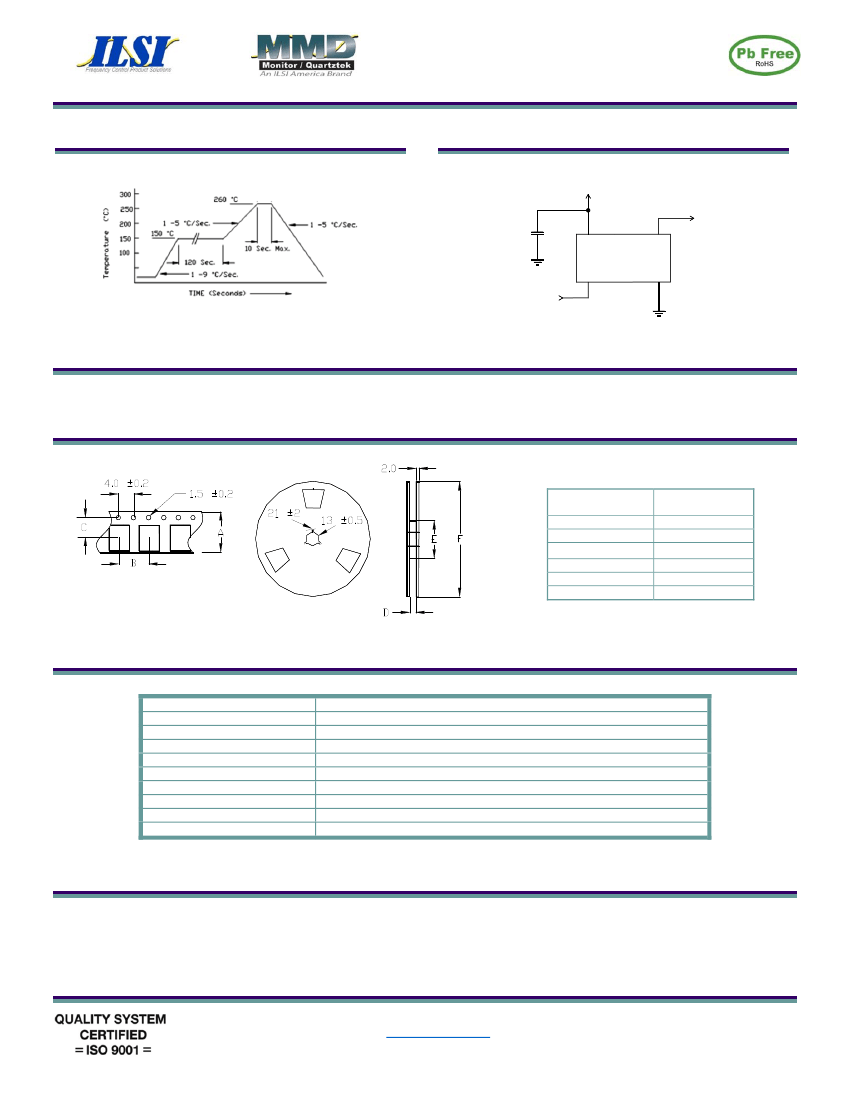

Ultra-Low Noise 3.2 x 5.0 SMD Oscillator
Pb Free Solder Reflow Profile:
Typical Application:
ISM42 Series
Vcc
C1
.01uF
Output
4
Oscillator
1
Enable /
Disable
Units are backward compatible with 240C reflow processes
3
2
Package Information:
MSL = N.A. (package does not contain plastic; storage life is unlimited under normal room conditions).
Termination = e4 (Au over Ni over W base metallization).
Tape and Reel Information:
Quantity per
Reel
A
B
C
D
E
F
1000
8.0 ±0.3
4.0 ±0.2
3.5 ±0.2
9.0 ±0.1
60 / 80
180
Environmental Specifications:
Thermal Shock
Moisture Resistance
Mechanical Shock
Mechanical Vibration
Resistance to Soldering Heat
Hazardous Substance
Solderability
Gross Leak
Fine Leak
Solvent Resistance
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2007, Condition A
J-STD-020C, Table 5-2 Pb-free devices (except 2 cycles max)
Pb-Free / RoHS / Green Compliant
JESD22-B102-D Method 2 (Preconditioning E)
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 1014, Condition A2, R1=2x10-8 atm cc/s
MIL-STD-202, Method 215
Marking
:
Line 1: I-Date Code (yww)
Line 2: Frequency
