2.5mm x 2.0mm Ceramic SMD Package Oscillator, CMOS

Product Features:

●

ISM95 Series

Typical Applications:

●

Low Jitter, Non-PLL Based Output

Compatible with Lead free Processing

Pb-free, Halogen-free, and Antimony-free

RoHS and REACH compliant

Fibre Channel

Server & Storage

Sonet / SDH

802.11 / WiFi

T1/E1, T3/E3

System Clock

ELECTRICAL SPECIFICATIONS

Frequency Range

1.000MHz to 156.250MHz

±10ppm Maximum

±15ppm Maximum

±20ppm Maximum

±25ppm Maximum

±50ppm Maximum

±100ppm Maximum

0°C to +70°C, -10°C to +60°C, -10°C to +70°C, -20°C to

+70°C, -30°C to +75°C, or -40°C to +85°C

1.8V, 2.5V, 2.7V, 3.0V, 3.3V, 1.62V - 3.63V

20mA Maximum

CMOS

15pF Maximum

30pF Maximum

±3ppm/year Maximum

50 ±5(%) or 50 ±10(%)

6nSec Maximum

90% of Vdd Minimum

10% of Vdd Maximum

Tri-State (High Impedance)

70% of Vdd Minimum or No Connect to Enable Output

30% of Vdd Maximum to Disable Output (High Impedance)

10µA Maximum

10mSec Maximum

1pSec Maximum

5pSec Maximum

50pSec Maximum

12kHz to 20MHz offset frequency

20k adjacent periods

100k adjacent periods

Disabled Output, High Impedance

at +25°C

Measured at 50% of waveform

Measured from 20% to 80% of waveform

±5%

Inclusive of Calibration Tolerance at 25°C,

Frequency Stability over Operating Temperature

Range, Supply Voltage Change, Output Load

Change, and First Year Aging at 25°C.

Frequency Stability

Operating Temperature Range

Supply Voltage (Vdd)

Input Current

Output Logic Type

Output Drive Capability

Aging

Duty Cycle

Rise / Fall Time

Output Voltage Logic High

Output Voltage Logic Low

Pin 1 Connection

Input Voltage Logic High

Input Voltage Logic Low

Standby Current

Startup Time

RMS Phase Jitter

Period Jitter (RMS)

Period Jitter (pk-pk)

NOTES:

●

All minimum and maximum limits are specified over temperature and rated operating voltage with 15pF output unless otherwise stated.

●

A 0.1µF bypass capacitor is recommended between Vdd (pad 4) and GND (pad 2) to minimize power supply noise.

ABSOLUTE MAXIMUM LIMITS

Storage Temperature Range

Supply Voltage Range

Electrostatic Discharge

Solder Temperature

Junction Temperature

-55°C to +125°C

-0.3Vdc to Vdd +0.3Vdc

2000V Maximum

260°C Maximum

150°C Maximum

NOTE:

If the part is used beyond absolute maximum ratings, it may cause internal destruction. The part should be used under the recommended

operating conditions or the reliability of this part may be damaged if those conditions are exceeded.

ILSI America Phone 775-851-8880 ● Fax 775-851-8882 ●email: e-mail@ilsiamerica.com ●

www.ilsiamerica.com

Specifications subject to change without notice

Rev: 08/16/18_C

Page 1 of 4

2.5mm x 2.0mm Ceramic SMD Package Oscillator, CMOS

ENVIRONMENTAL SPECIFICATIONS

Mechanical Shock

Mechanical Vibration

Resistance to Soldering Heat

Solderability

Gross Leak

Fine Leak

Moisture Sensitivity Level

MIL-STD-202, Method 213

MIL-STD-202, Method 204

MIL-STD-202, Method 210

J-STD-002

MIL-STD-883, Method 1014

MSL 1 (+260°C)

ISM95 Series

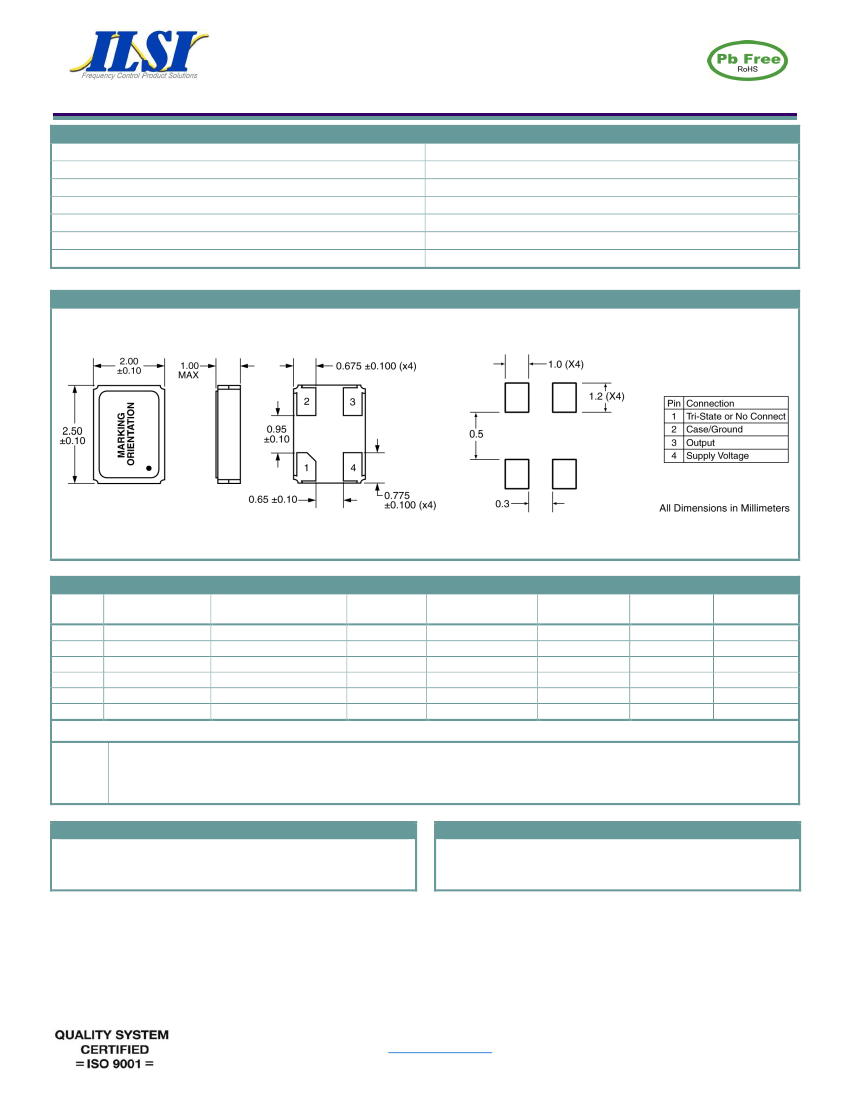

MECHANICAL & SOLDER PAD LAYOUT DIMENSIONS

PART NUMBER GUIDE

Series

ISM95-

Supply

Voltage

3 = 3.3V

7 = 3.0V

2 = 2.7V

6 = 2.5V

1 = 1.8V

8 = 1.62V - 3.63V

Operating

Temperature Range

1 = 0°C to +70°C

8 = -10°C to +60°C

6 = -10°C to +70°C

3 = -20°C to +70°C

4 = -30°C to +75°C

2 = -40°C to +85°C

Duty

Cycle

5 = 50 ±5%

6 = 50 ±10%

Output

Drive Capability

1 = 15pF

6 = 30pF

Frequency

Stability

E = ±10ppm

D = ±15ppm

F = ±20ppm

A = ±25ppm

B = ±50ppm

C = ±100ppm

Pin 1

Connection

H = Tri-State

O = N/C

Frequency

-25.000 MHz

Sample Part Number: ISM95-3251BH-20.000 MHz

NOTES:

●

Not all Frequency Stability options are available at all frequencies and Operating Temperature Ranges.

Not all Output Drive Capability options are available at all frequencies.

Not all Supply Voltage options are available at all frequencies.

Please consult with Sales Department any other parameters or options.

MARKING

Line 1:

ILSI, Date Code (YWW)

Line 2:

Frequency

Pin 1 Dot

PACKAGE INFORMATION

Termination =

e4 (Au over Ni over W base metallization)

Terminal Plating Thickness:

Gold (0.3µm to 1.0µm), Nickel (1.27µm to 8.89µm)

ILSI America Phone 775-851-8880 ● Fax 775-851-8882 ●email: e-mail@ilsiamerica.com ●

www.ilsiamerica.com

Specifications subject to change without notice

Rev: 08/16/18_C

Page 2 of 4

2.5mm x 2.0mm Ceramic SMD Package Oscillator, CMOS

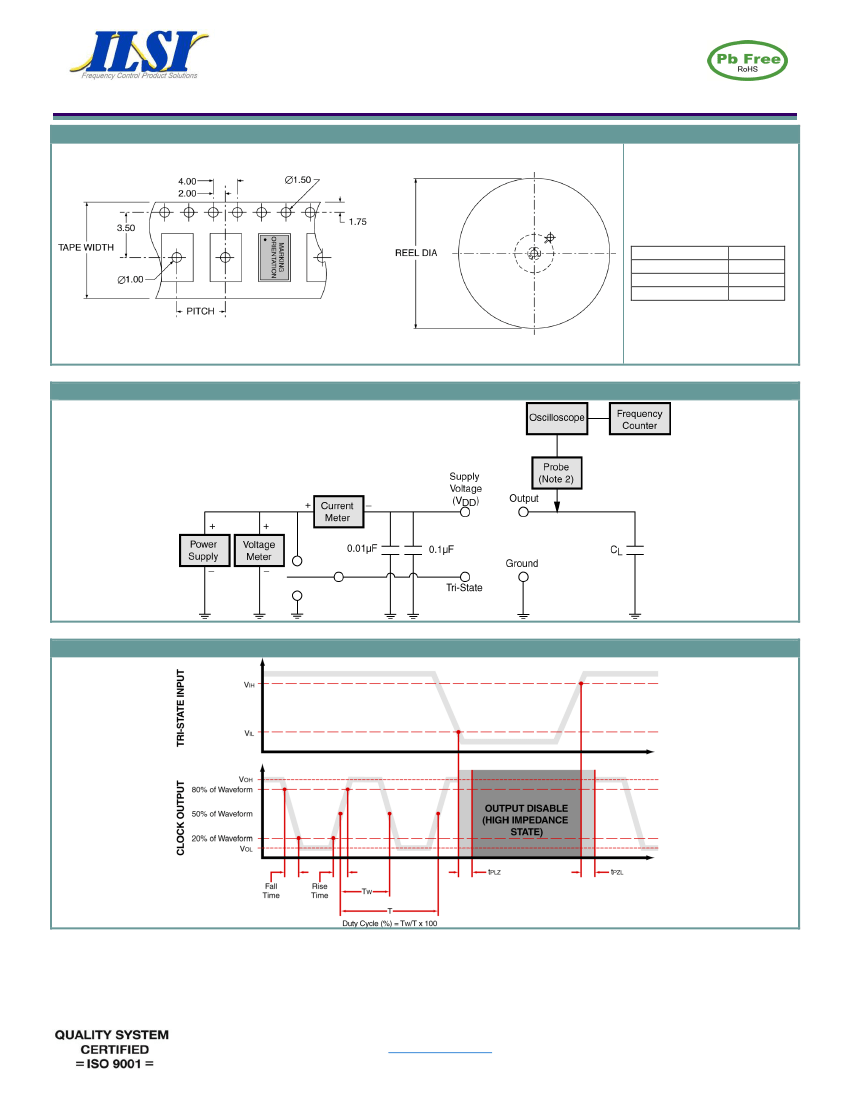

TAPE & REEL DIMENSIONS

ISM95 Series

PITCH

TAPE WIDTH

REEL DIA

QTY PER REEL

4.00

8.00

180

3,000

All Dimensions in Millimeters

TEST CIRCUIT: Enable/Disable Option

WAVEFORM: Enable/Disable Option

ILSI America Phone 775-851-8880 ● Fax 775-851-8882 ●email: e-mail@ilsiamerica.com ●

www.ilsiamerica.com

Specifications subject to change without notice

Rev: 08/16/18_C

Page 3 of 4

2.5mm x 2.0mm Ceramic SMD Package Oscillator, CMOS

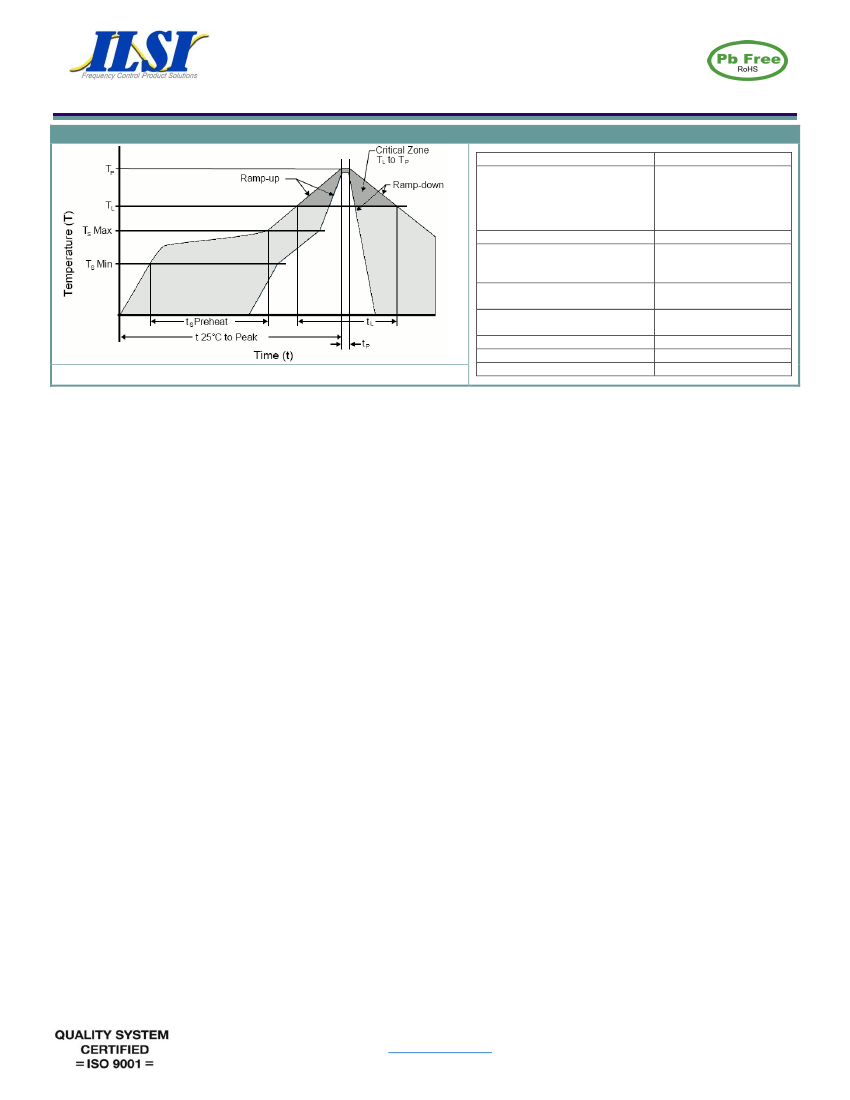

SOLDER REFLOW PROFILE

Ts max to T

(Ramp-up Rate)

Preheat

Temperature min (Ts min)

Temperature typ (Ts typ)

Temperature max (Ts max)

Time (Ts)

Ramp-up Tate (T

to Tp

Time Maintained Above

Temperature (T

)

Time (T

Peak Temperature (Tp)

Time within 5ºC to Peak

Temperature (Tp)

Ramp-down Rate

Tune 25ºC to Peak Temperature

Moisture Sensitivity Level (MSL)

ISM95 Series

3ºC / second max

150ºC

175ºC

200ºC

60 to180 seconds

3ºC / second max

217ºC

60 to 150 seconds

260ºC max for 10

seconds

20 to 40 seconds

6ºC / second max

8 minute max

Level 1

Units are backward compatible with +240°C reflow process

PROPRIETARY AND CONFIDENTIAL

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION, AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY

PURPOSE NOR USED FOR MANUFACTURING PURPOSES WITHOUT WRITTEN PERMISSION FROM ILSI America.

ILSI America Phone 775-851-8880 ● Fax 775-851-8882 ●email: e-mail@ilsiamerica.com ●

www.ilsiamerica.com

Specifications subject to change without notice

Rev: 08/16/18_C

Page 4 of 4
