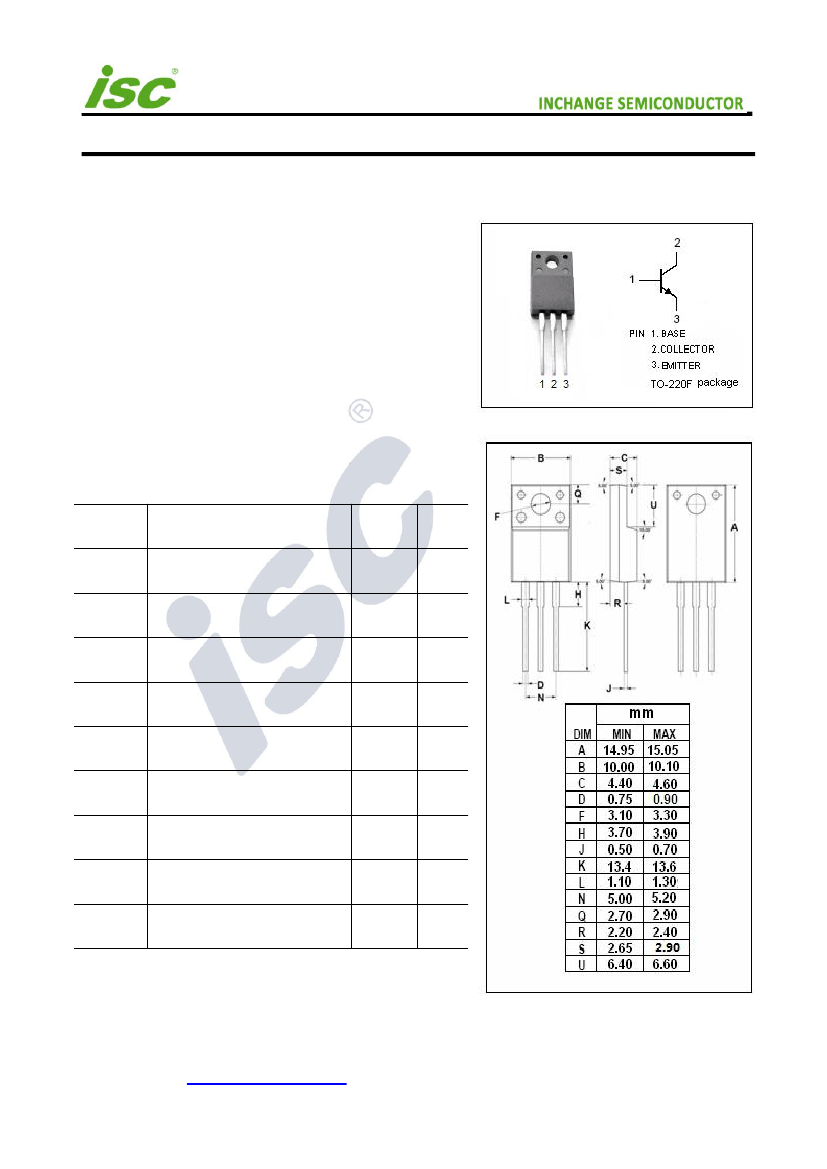

Silicon NPN Power Transistor
2SC4073
DESCRIPTION
·Collector-Emitter
Breakdown Voltage-
: V
(BR)CEO
= 400V(Min)
·High
Switching Speed
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Designed
for switching regulator and general purpose
applications.
ABSOLUTE MAXIMUM RATINGS(T
a
=25℃)
SYMBOL
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
P
C
T
J
T
stg
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current-Continuous
Collector Current-Peak
Base Current-Continuous
Collector Power Dissipation
@T
C
=25℃
Junction Temperature
Storage Temperature
VALUE
500
400
10
5
10
2
30
150
-55~150
UNIT
V
V
V
A
A
A
W
℃
℃
isc website
：
www.iscsemi.com
1
isc & iscsemi
is registered trademark
isc
Silicon NPN Power Transistor
ELECTRICAL CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL
V
(BR)CEO
V
CE
(sat)
V
BE
(sat)
I
CBO
I
EBO
h
FE
C
OB
f
T
PARAMETER
Collector-Emitter Breakdown Voltage
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Output Capacitance
Current-Gain—Bandwidth Product
CONDITIONS
I
C
= 25mA; I
B
= 0
I
C
= 2A; I
B
= 0.4A
I
C
= 2A; I
B
= 0.4A
V
CB
= 500V; I
E
= 0
V
EB
= 10V; I
C
= 0
I
C
= 2A; V
CE
= 4V
I
E
= 0; V
CB
= 10V; f= 1MHz
I
E
= -0.3A; V
CE
= 12V
10
MIN
400
2SC4073
TYP.
MAX
UNIT
V
0.5
1.3
100
100
30
30
10
V
V
μA
μA
pF
MHz
Switching Times
t
on
t
stg
t
f
Turn-On Time
Storage Time
Fall Time
I
C
= 2A; I
B1
= 0.2A; I
B2
= -0.4A;
V
CC
= 200V; R
L
= 100Ω
1.0
3.0
0.5
μs
μs
μs
NOTICE：
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not designed
for use in equipment which require specialized quality and/or reliability, or in equipment which
could have applications in hazardous environments, aerospace industry, or medical field. Please
contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
isc website
：
www.iscsemi.com
2
isc & iscsemi
is registered trademark
