PD - 93753A
RADIATION HARDENED
POWER MOSFET
SURFACE MOUNT (SMD-0.5)
Product Summary
Part Number Radiation Level
IRHNJ57230 100K Rads (Si)
IRHNJ53230 300K Rads (Si)
IRHNJ54230
600K Rads (Si)
IRHNJ58230 1000K Rads (Si)
R
DS(on)
0.20Ω
0.20Ω
0.20Ω
0.25Ω
I
D
13A
13A
13A
13A
IRHNJ57230
200V, N-CHANNEL
4
#
TECHNOLOGY
c
SMD-0.5
International Rectifier’s R5
TM
technology provides
high performance power MOSFETs for space appli-
cations. These devices have been characterized for
Single Event Effects (SEE) with useful performance
up to an LET of 80 (MeV/(mg/cm
2
)). The combination
of low Rdson and low gate charge reduces the power
losses in switching applications such as DC to DC
converters and motor control. These devices retain
all of the well established advantages of MOSFETs
such as voltage control, fast switching, ease of paral-
leling and temperature stability of electrical param-
eters.
Features:
n
n
n
n
n
n
n
n
n
n
Single Event Effect (SEE) Hardened
Ultra low R
DS(on)
Low Total Gate Charge
Proton Tolerant
Simple Drive Requirements
Ease of Paralleling
Hermetically Sealed
Surface Mount
Ceramic Package
Light Weight
Absolute Maximum Ratings
Parameter
ID @ VGS = 12V, TC = 25°C
ID @ VGS = 12V, TC = 100°C
IDM
PD @ TC = 25°C
VGS
EAS
IAR
EAR
dv/dt
TJ
T STG
Continuous Drain Current
Continuous Drain Current
Pulsed Drain Current
➀
Max. Power Dissipation
Linear Derating Factor
Gate-to-Source Voltage
Single Pulse Avalanche Energy
➁
Avalanche Current
➀
Repetitive Avalanche Energy
➀
Peak Diode Recovery dv/dt
➂
Operating Junction
Storage Temperature Range
Pckg. Mounting Surface Temp.
Weight
For footnotes refer to the last page
300 ( for 5s )
1.0 ( Typical )
13
8.2
52
75
0.6
±20
60
13
7.5
4.4
-55 to 150
Pre-Irradiation
Units
A
W
W/°C
V
mJ
A
mJ
V/ns
o
C
g
www.irf.com
1
07/22/02
IRHNJ57230
Pre-Irradiation
Electrical Characteristics
@ Tj = 25°C (Unless Otherwise Specified)
Parameter
BVDSS
Drain-to-Source Breakdown Voltage
∆BV
DSS/∆T J Temperature Coefficient of Breakdown
Voltage
RDS(on)
Static Drain-to-Source On-State
Resistance
VGS(th)
Gate Threshold Voltage
gfs
Forward Transconductance
IDSS
Zero Gate Voltage Drain Current
Min
200
—
—
2.0
10
—
—
—
—
—
—
—
—
—
—
—
—
Typ Max Units
—
0.26
—
—
—
—
—
—
—
—
—
—
—
—
—
—
4.0
—
—
0.2
4.0
—
10
25
100
-100
50
7.4
20
25
100
35
30
—
V
V/°C
Ω
V
S( )
µA
Ω
Test Conditions
VGS = 0V, ID = 1.0mA
Reference to 25°C, ID = 1.0mA
VGS = 12V, ID = 8.2A
➃
VDS = VGS, ID = 1.0mA
VDS > 15V, IDS = 8.2A
➃
VDS= 160V ,VGS=0V
VDS = 160V,
VGS = 0V, TJ = 125°C
VGS = 20V
VGS = -20V
VGS =12V, ID = 13A
VDS = 100V
VDD = 100V, ID = 13A,
VGS =12V, RG = 7.5Ω
IGSS
IGSS
Qg
Q gs
Q gd
td
(on)
tr
td
(off)
tf
LS + LD
Gate-to-Source Leakage Forward
Gate-to-Source Leakage Reverse
Total Gate Charge
Gate-to-Source Charge
Gate-to-Drain (‘Miller’) Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Total Inductance
nA
nC
ns
nH
Measured from the center of
drain pad to center of source pad
VGS = 0V, VDS = 25V
f = 1.0MHz
Ciss
C oss
C rss
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
—
—
—
1043
190
20
—
—
—
pF
Source-Drain Diode Ratings and Characteristics
Parameter
IS
ISM
VSD
t rr
Q RR
ton
Continuous Source Current (Body Diode)
Pulse Source Current (Body Diode)
➀
Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
Forward Turn-On Time
Min Typ Max Units
—
—
—
—
—
—
—
—
—
—
13
52
1.2
343
2.25
Test Conditions
A
V
ns
µC
T
j
= 25°C, IS = 13A, VGS = 0V
➃
Tj = 25°C, IF = 13A, di/dt
≤100A/µs
VDD
≤
25V
➃
Intrinsic turn-on time is negligible. Turn-on speed is substantially controlled by LS + LD.
Thermal Resistance
Parameter
RthJC
RthJ-PCB
Junction-to-Case
Junction-to-PC board
Min Typ Max Units
—
—
—
6.9
1.67
—
°C/W
Test Conditions
soldered to a 2” square copper-clad board
Note: Corresponding Spice and Saber models are available on the G&S Website.
For footnotes refer to the last page
2
www.irf.com
Radiation Characteristics
Pre-Irradiation
IRHNJ57230
International Rectifier Radiation Hardened MOSFETs are tested to verify their radiation hardness capability.
The hardness assurance program at International Rectifier is comprised of two radiation environments.
Every manufacturing lot is tested for total ionizing dose (per notes 5 and 6) using the TO-3 package. Both
pre- and post-irradiation performance are tested and specified using the same drive circuitry and test
conditions in order to provide a direct comparison.
Table 1. Electrical Characteristics @ Tj = 25°C, Post Total Dose Irradiation
➄➅
Parameter
BV
DSS
V
GS(th)
I
GSS
I
GSS
I
DSS
R
DS(on)
R
DS(on)
V
SD
Drain-to-Source Breakdown Voltage
Gate Threshold Voltage
Gate-to-Source Leakage Forward
Gate-to-Source Leakage Reverse
Zero Gate Voltage Drain Current
Static Drain-to-Source
➃
On-State Resistance (TO-3)
Static Drain-to-Source
➃
On-State Resistance (SMD-.5)
Diode Forward Voltage
➃
Up to 600K Rads(Si)
1
1000K Rads (Si)
2
Units
Min
Max
Min
Max
200
2.0
—
—
—
—
—
—
—
4.0
100
-100
10
0.204
0.2
1.2
200
1.5
—
—
—
—
—
—
—
4.0
100
-100
25
0.255
0.25
1.2
V
nA
µA
Ω
Ω
V
Test Conditions
V
GS
= 0V, I
D
= 1.0mA
V
GS
= V
DS
, I
D
= 1.0mA
V
GS
= 20V
V
GS
= -20 V
V
DS
=160V, V
GS
=0V
V
GS
= 12V, I
D
= 8.2A
V
GS
= 12V, I
D
= 8.2A
V
GS
= 0V, IS = 13A
1. Part numbers IRHNJ57230, IRHNJ53230 and IRHNJ54230
2. Part number IRHNJ58230
International Rectifier radiation hardened MOSFETs have been characterized in heavy ion environment for
Single Event Effects (SEE). Single Event Effects characterization is illustrated in Fig. a and Table 2.
Table 2. Single Event Effect Safe Operating Area
Ion
Br
I
Au
LET
MeV/(mg/cm
2
))
36.7
59.4
82.3
Energy
(MeV)
309
341
350
V
DS
(V)
Range
(µm)
@V
GS
=0V @V
GS
=-5V @V
GS
=-10V @V
GS
=-15V @V
GS
=-20V
39.5
200
200
150
150
50
32.5
200
200
40
35
30
28.4
50
35
25
—
—
250
200
VDS
150
100
50
0
0
-5
-10
VGS
-15
-20
Br
I
Au
Fig a.
Single Event Effect, Safe Operating Area
For footnotes refer to the last page
www.irf.com
3
IRHNJ57230
Pre-Irradiation
100
10
I
D
, Drain-to-Source Current (A)
I
D
, Drain-to-Source Current (A)
VGS
TOP
15V
12V
10V
9.0V
8.0V
7.0V
6.0V
BOTTOM 5.0V
100
10
VGS
15V
12V
10V
9.0V
8.0V
7.0V
6.0V
BOTTOM 5.0V
TOP
5.0V
5.0V
1
1
0.1
0.1
20µs PULSE WIDTH
T = 25 C
J
°
1
10
100
0.1
0.1
20µs PULSE WIDTH
T = 150 C
J
°
1
10
100
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)
Fig 1.
Typical Output Characteristics
Fig 2.
Typical Output Characteristics
100
2.5
R
DS(on)
, Drain-to-Source On Resistance
(Normalized)
I
D
, Drain-to-Source Current (A)
T
J
= 25
°
C
T
J
= 150
°
C
I
D
= 13A
2.0
1.5
10
1.0
0.5
1
5.0
15
V DS = 50V
20µs PULSE WIDTH
8.0
9.0
6.0
7.0
10.0
0.0
-60 -40 -20
V
GS
= 12V
0
20
40
60
80 100 120 140 160
V
GS
, Gate-to-Source Voltage (V)
T
J
, Junction Temperature(
°
C)
Fig 3.
Typical Transfer Characteristics
Fig 4.
Normalized On-Resistance
Vs. Temperature
4
www.irf.com
Pre-Irradiation
IRHNJ57230
2000
1600
V
GS
, Gate-to-Source Voltage (V)
V
GS
= 0V,
f = 1MHz
C
iss
= C
gs
+ C
gd ,
C
ds
SHORTED
C
rss
= C
gd
C
oss
= C
ds
+ C
gd
20
I
D
= 13A
16
V
DS
= 160V
V
DS
= 100V
V
DS
= 40V
C, Capacitance (pF)
1200
Ciss
12
800
C
oss
8
400
C
rss
1
10
100
4
0
0
0
10
20
FOR TEST CIRCUIT
SEE FIGURE 13
30
40
50
V
DS
, Drain-to-Source Voltage (V)
Q
G
, Total Gate Charge (nC)
Fig 5.
Typical Capacitance Vs.
Drain-to-Source Voltage
Fig 6.
Typical Gate Charge Vs.
Gate-to-Source Voltage
100
1000
I
SD
, Reverse Drain Current (A)
OPERATION IN THIS AREA LIMITED
BY R
DS(on)
10
I
D
, Drain Current (A)
T
J
= 150
°
C
100
10us
10
T
J
= 25
°
C
1
100us
1ms
1
0.1
0.4
V
GS
= 0 V
0.6
0.8
1.0
1.2
0.1
T
C
= 25 ° C
T
J
= 150 ° C
Single Pulse
1
10
100
10ms
1000
V
SD
,Source-to-Drain Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

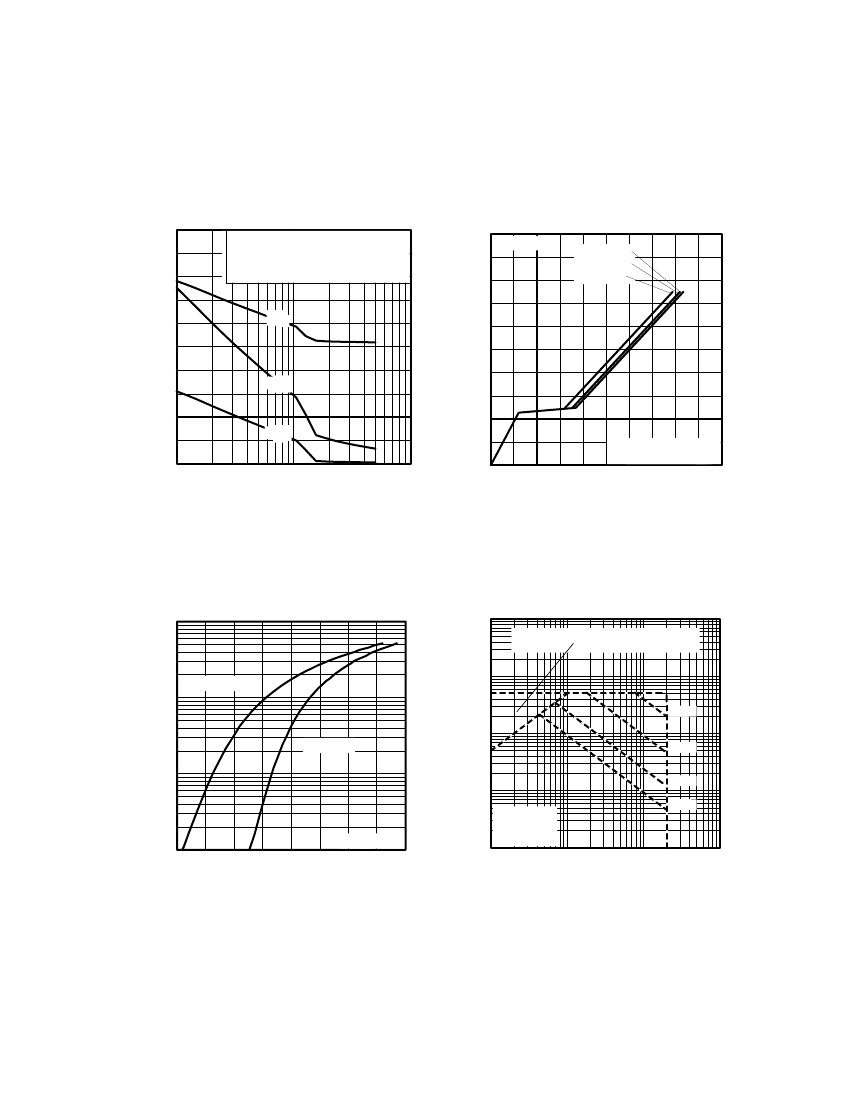

Fig 7.
Typical Source-Drain Diode
Forward Voltage
Fig 8.
Maximum Safe Operating Area
www.irf.com
5
