PRODUCT INFORMATION

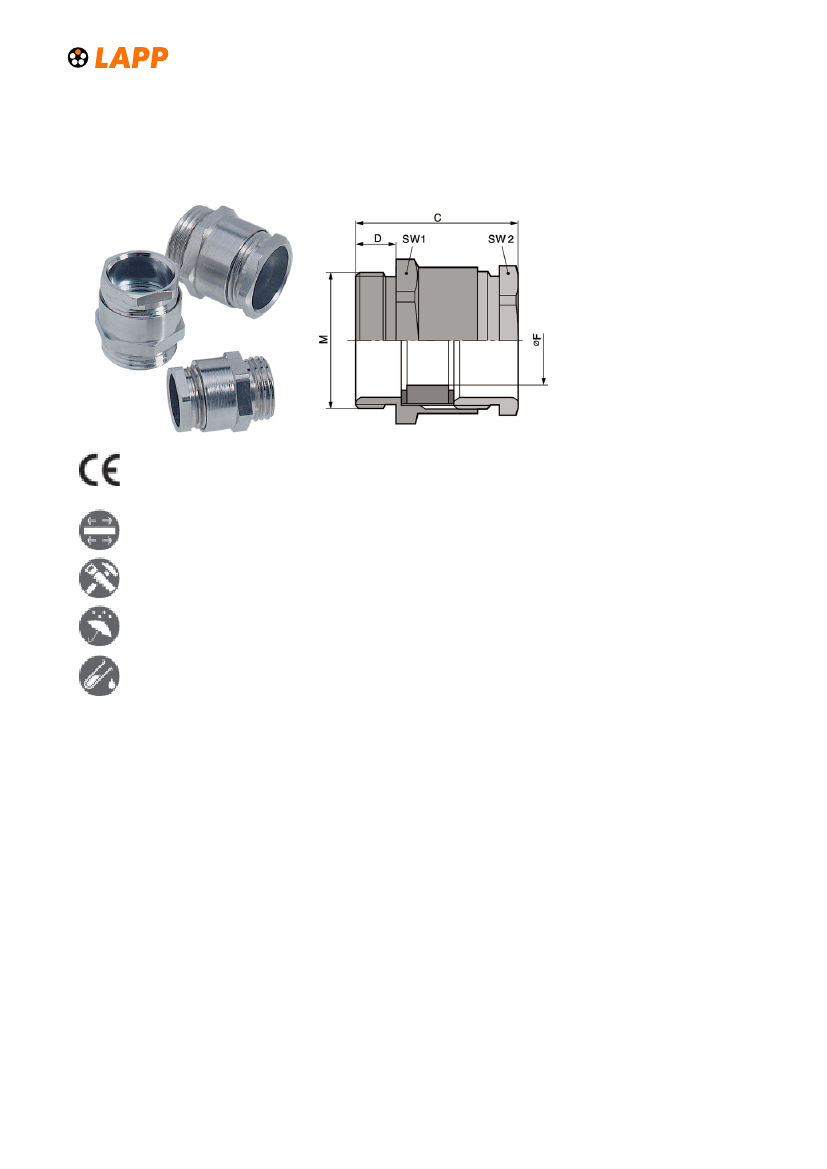

SKINDICHT® SVRN-M
SKINDICHT® SVRN-M, metric cable gland with high mechanical stability and optimal strain relief, with hexagonal fitting
Optimum strain relief
Mechanical resistance
Corrosion-resistant
Good chemical resistance
Benefits
High mechanical stability
Optimum strain relief
Application range
Brass cable gland with hexagonal fitting, for fast assembly with a flat spanner.
Product Make-up
Metric connection thread acc. to DIN EN 60423
Basis for technical information DIN IEC 62444
Note
Counter nut to be used: SKINDICHT® SM-M
Example order identification:
SVRN-M 12 / 7 / 5
12 = Connection thread metric
7 = Function thread PG
5 = Clear width F
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
SKINDICHT® SVRN-M
Technical Data
Classification ETIM 5:
Classification ETIM 6:
Caution:
On request:
Material:
Protection rating:
Temperature range:
ETIM 5.0 Class-ID: EC000441
ETIM 5.0 Class-Description: Cable screw gland
ETIM 6.0 Class-ID: EC000441
ETIM 6.0 Class-Description: Cable screw gland
The installation dimensions
can be found in appendix T21
Available with long connection thread
Body: nickel-plated brass
Sealing ring: CR/NBR
IP 54
-20°C to +100°C
Note
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
Powered by TCPDF (www.tcpdf.org)
SKINDICHT® SVRN-M
Article number
Article designation /
size
M 12 x 1,5
M 12 x 1,5
M 12 x 1,5
M 16 x 1,5
M 16 x 1,5
M 16 x 1,5
M 20 x 1,5
M 20 x 1,5
M 20 x 1,5
M 20 x 1,5
M 20 x 1,5
M 25 x 1,5
M 32 x 1,5
M 40 x 1,5
Function thread PG
SW1/SW2 mm
Overall length C mm
Thread length D mm
Clear opening F
(mm)
5.0
6.0
7.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
14.0
18.0
27.0
34.0
Pieces / PU
Last Update (24.05.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
SKINDICHT® SVRN-M
52104800
52104810
52104820
52104830
52104840
52104850
52104860
52104870
52104890
52104900
52104910
52104920
52104930
52104940
7
7
7
9
9
9
11
11
13.5
16
16
21
29
36
14.0 / 13.0
14.0 / 13.0
14.0 / 13.0
18.0 / 15.0
18.0 / 15.0
18.0 / 15.0
22.0 / 18.0
22.0 / 18.0
22.0 / 20.0
24.0 / 22.0
24.0 / 22.0
30.0 / 28.0
40.0 / 37.0
50.0 / 47.0
20.6
20.6
20.6
21.6
21.6
21.6
23.6
23.6
25.6
26.6
26.6
29.6
32.6
37.6
5
5
5
5
5
5
6
6
6
6
6
7
8
8
100
100
100
100
100
100
50
50
50
50
50
50
50
20
