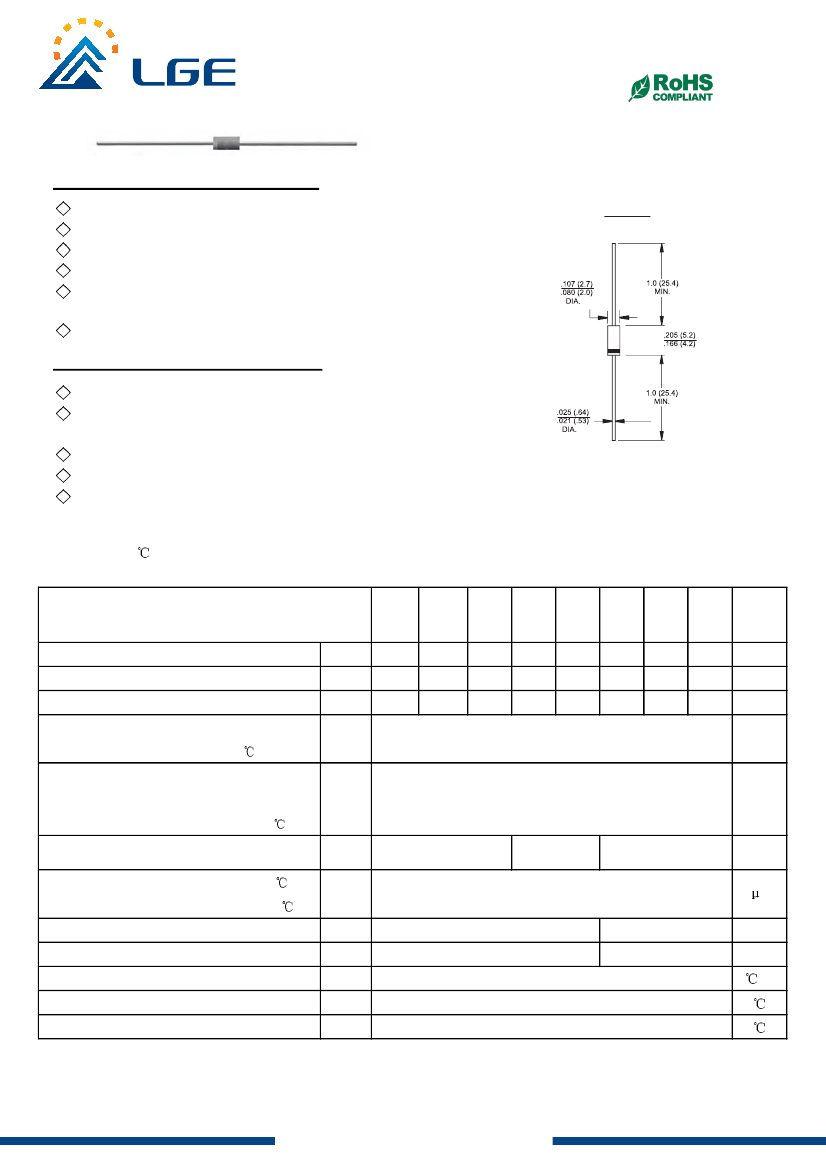

HER101L-HER108L
High Efficiency Rectifiers
Features
Low cost
Low leakage
Low forward voltage drop
High current capability
Easily cleaned with Alcohol,Isopropanol
and similar solvents
The plastic material carries U/L recognition 94V-0
VOLTAGE RANGE: 50 --- 1000 V
CURRENT: 1.0 A
A-405
Mechanical Data
Case:JEDEC
A-405,molded plastic
Terminals: Axial lead ,solderable per
MIL- STD-202,Method 208
Polarity: Color band denotes cathode
Weight:
0.008 ounces,0.23 grams
Mounting position: Any
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
ambient temperature unless otherwise specified.
Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%.
HER
101L
Maximum recurrent peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forw ard rectified current
9.5mm lead length,
@T
A
=75
HER HER HER HER HER HER HER
UNITS
102L 103L 104L 105L 106L 107L 108L
100
70
100
200
140
200
300
210
300
1.0
400
280
400
600
420
600
800
560
800
1000
700
1000
V
V
V
A
V
RRM
V
RMS
V
DC
I
F(AV)
50
35
50
Peak forw ard surge current
8.3ms single half-sine-w ave
superimposed on rated load
@T
J
=125
I
FSM
30.0
A
Maximum instantaneous forw ard voltage
@ 1.0 A
Maximum reverse current
at rated DC blocking voltage
Typical reverse recovery time
Typical junction capacitance
Typical thermal resistance
@T
A
=25
@T
A
=100
(Note1)
(Note2)
(Note3)
V
F
I
R
t
rr
C
J
R
θ
JA
T
J
T
STG
1.0
1.3
5.0
100.0
50
20
60
- 55 ---- + 150
- 55 ---- + 150
1.7
V
A
75
15
ns
pF
/W
Operating junction temperature range
Storage temperature range
NOTE: 1. Measured with I
F
=0.5A, I
R
=1A, I
rr
=0.25A.
2. Measured at 1.0MH
Z
and applied rev erse v oltage of 4.0V DC.
3.Thermal resistance junction to ambient.
ht
t
p
:
//
Revision:20170701-P1
www.lgesemi
.c
o
m
mail:lge@lgesemi.com
HER101L-HER108L
High Efficiency Rectifiers

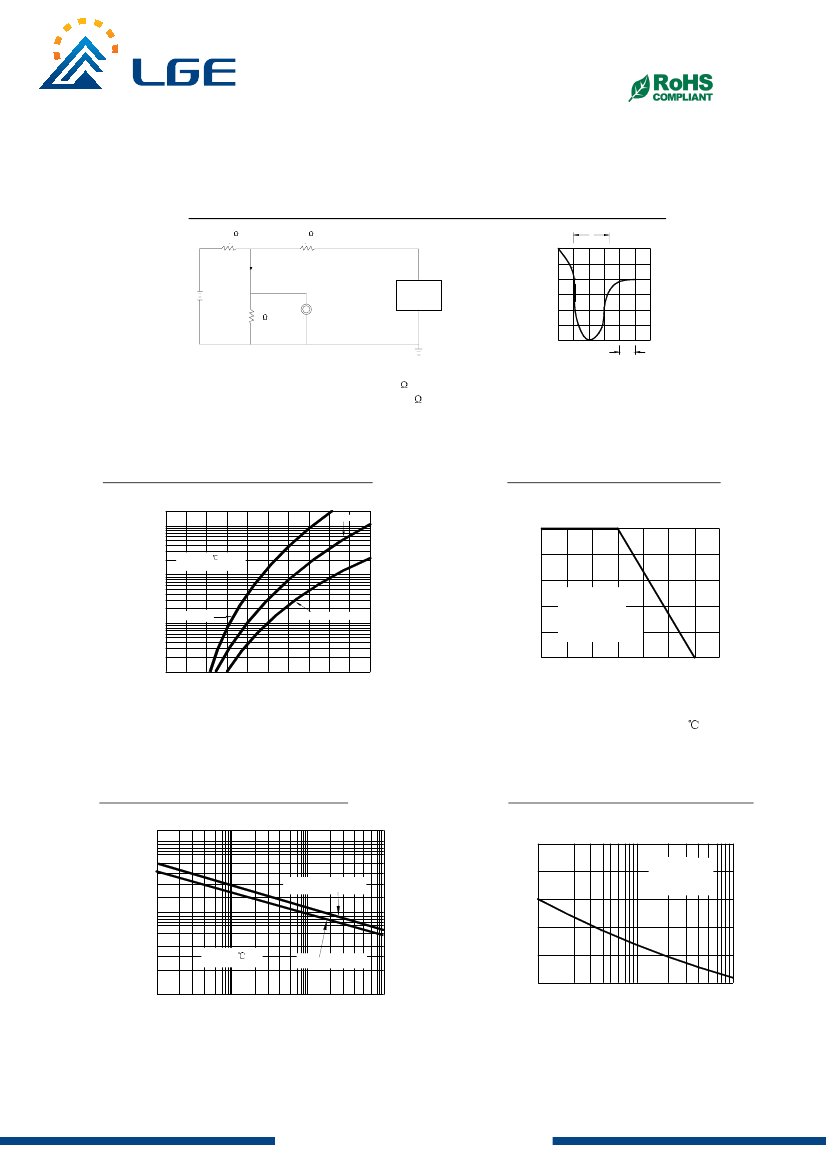

Ratings AND Charactieristic Curves
FIG.1 -- TEST CIRCUIT DIAGRAM AND REVERSE RECOVERY TIME CHARACTERISTIC
50
N 1.
10
N 1.
t
rr
+0.5A
D.U.T.
0
(+)
25VDC
(approx)
(-)
1
NONIN-
DUCTIVE
PULSE
GENERATOR
(NOTE2)
OSCILLOSCOPE
(NOTE 1)
-0.25A
-1.0A
1cm
NOTES:1.RISE TIME = 7ns MAX.INPUT IMPEDANCE = 1M .22pF.
JJJJJ2.RISE
TIME =10ns MAX.SOURCE IMPEDANCE=50 .
SET TIME BASE FOR 20/35 ns/cm
FIG.2 -- TYPICAL FORWARD CHARACTERISTIC
INSTANTANEOUS FORWARD CURRENT
100
10
FIG.3 -- FORWARD DERATING CURVE
z
3 0 0 \4 0 0 V
AVERAGE FORWARD CURRENT
1.0
0.8
0.6
T
J
=25
P u ls e W id t h = 3 0 0
µ
S
1.0
AMPERES
AMPERES
0.4
0.2
0
0
5 0 \1 0 0 \ 2 0 0 V
6 0 0 \8 0 0 \1 0 0 0 V
0.1
Single Phase
Half Wave 60H
Z
Resistive or
Inductive Load
0.375''(9.5mm)Lead Length
0.01
25
50
75
100
125
150
175
0
0 .2 0 .4 0 .6 0 .8
1
1 .2 1.4
1.6
1.8
2
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
AMBIENT TEMPERATURE,
FIG.4 -- TYPICAL JUNCTION CAPACITANCE
PEAK FORWARD SURGE CURRENT
200
100
FIG.5 -- PEAK FORWARD SURGE CURRENT
50
40
30
JUNCTION CAPACITANCE,pF
60
40
HER101L-HER105L
8.3ms Single Half
Sine-Wave
20
10
6
4
T
J
=25
HER107L-HER108L
AMPERES
20
10
0
1
2
1
0.1 0.2
0.4
1
2
5
10
50
100
4
10
20
40
100
REVERSE VOLTAGE,VOLTS
NUMBER OF CYCLES AT 60Hz
ht
t
p
:
//
Revision:20170701-P1
www.lgesemi
.c
o
m
mail:lge@lgesemi.com
