Extractor Tool for Mini-Fit® TPA 2.0 Series Terminals
Extractor Tool
Application Tooling
Specification Sheet
Order No. 63824-6210
FEATURES
This tool is designed for the removal of Mini- Fit® TPA 2.0 crimped terminals from their housings.
SCOPE
Products: Mini-Fit® TPA 2.0 Crimp Terminal, 16-24 AWG.
Housing
Series No.
172708
Terminal
Series No
172718
172718-1111
172718-2121
172718-4111
172718-5121
172762-1121
172762-4121
172718-1112
172718-2122
172718-4112
172718-5122
172762-1122
172762-4122
Terminal Order No.
172718-1121
172718-3111
172718-4121
172718-6111
172762-2121
172762-5121
172718-1122
172718-3112
172718-4122
172718-6112
172762-2122
172762-5122
172718-2111
172718-3121
172718-5111
172718-6121
172762-3121
172762-6121
172718-2112
172718-3122
172718-5112
172718-6122
172762-3122
172762-6122
172762
172765

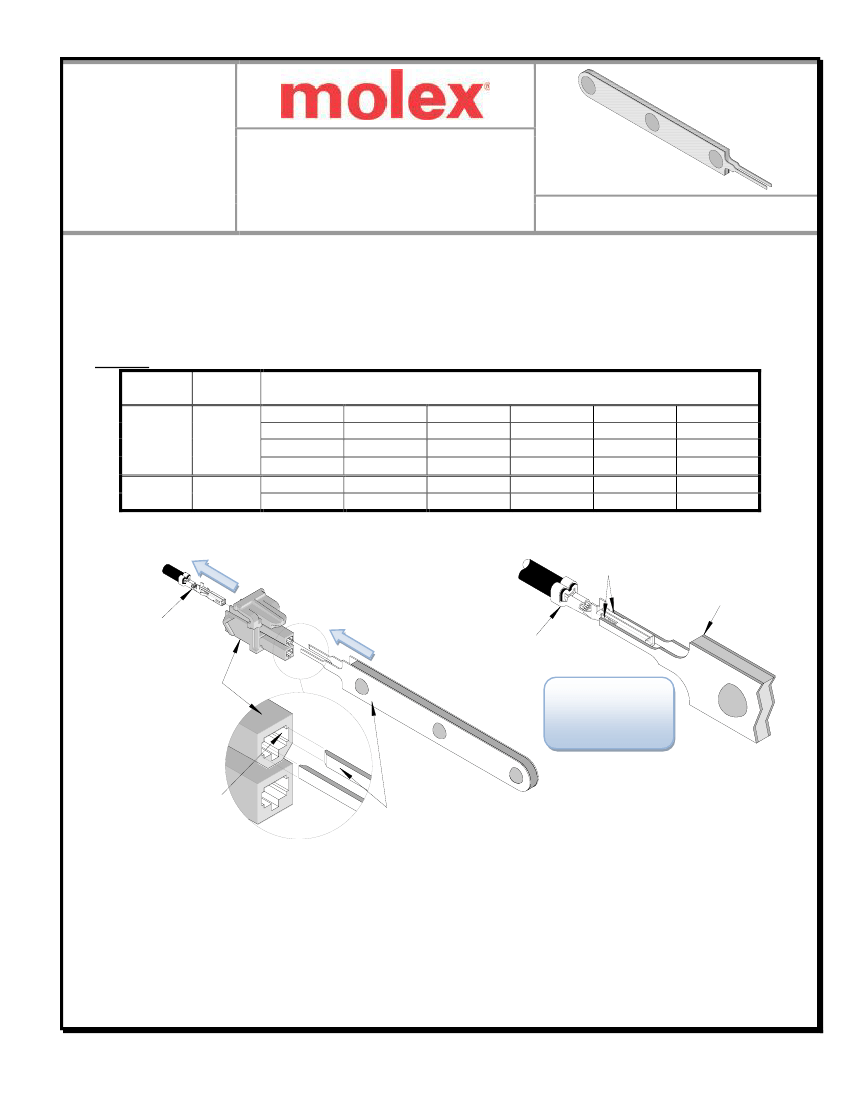

OPERATION:
PULL WIRE AND
TERMINAL
LOCKING TABS
DEPRESSED
EXTRACTOR
TOOL
TERMINAL
172718
TERMINAL
172708
HOUSING
Figure 1
SLOTS FOR
EXTRACTOR TOOL
Extractor Tool
Fingers Must Be On
The Outside Of The
Terminal Contacts
Figure 2
(HOUSING REMOVED)
EXTRACTOR TOOL
For 172718 Terminal
1. Insert the extractor tool into the housing as shown in See Figure 1.
2. Use the slots located on the inside of the housing to guide the extraction tool blades into the housing until
contact is made with terminal.
3. Continue to insert the tool always checking to see that the blades of extraction tool are on the outside of the
contact as shown in Figure 2.
Doc No: ATS-638246210
Revision: A
Release Date: 01-26-16
Revision Date: 01-26-16
UNCONTROLLED COPY
Page 1 of 2
Extractor Tool for Mini-Fit® TPA 2.0 Series Terminals
4. Continue to insert extraction tool into housing until the locking tangs have snapped out of their locked position.
If the terminal locking tabs are still not totally depressed, hold on tight to the wire and push it towards the
extractor tool, this will completely depress the locking tabs. See Figure 2.
5. Gently pull the terminal wire out from the housing.

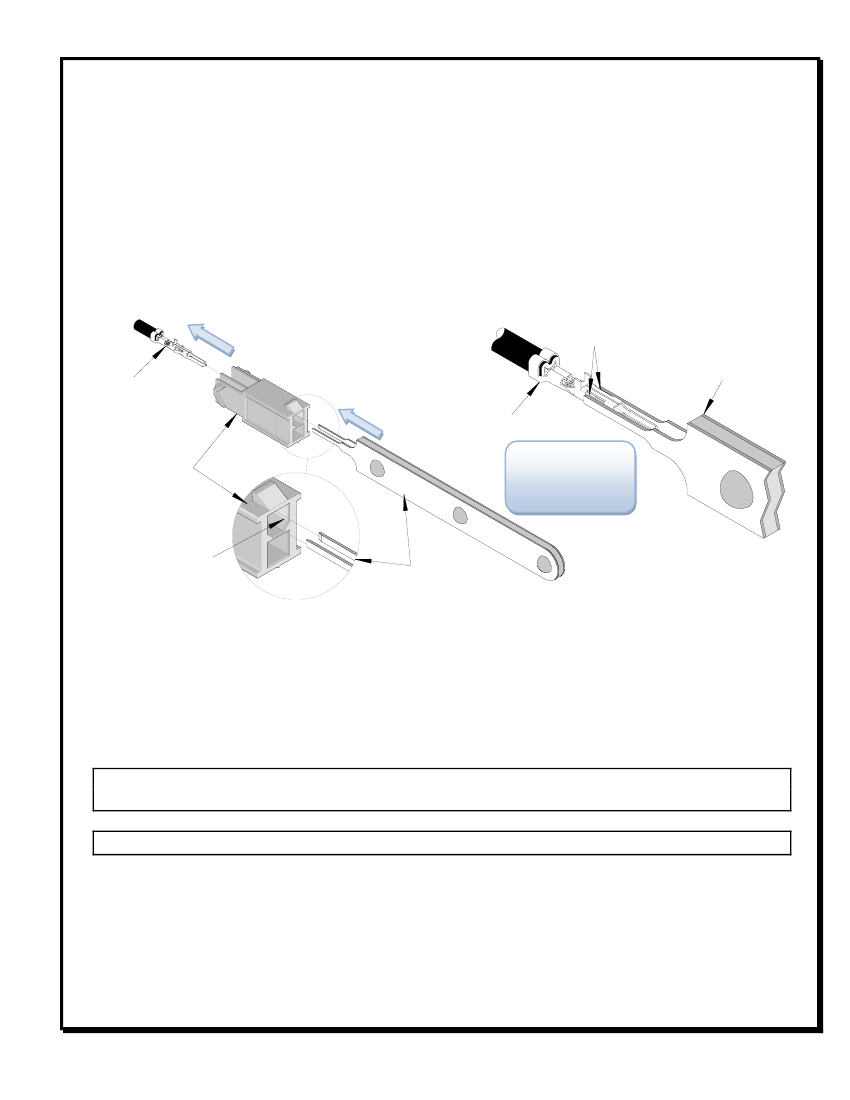

For 172765 Terminal
1. Insert the extractor tool into the housing as shown in See Figure 3.
2. Use the slots located on the inside of the housing to guide the extraction tool blades into the housing until they
make contact with terminal.
3. Continue to insert the tool always checking to see that the blades of extraction tool are centered on the
terminal nose and on the outside of the contact as shown in Figure 4.
PULL WIRE AND
TERMINAL
172765
TERMINAL
TERMINAL
172762
HOUSING
Figure 3
SLOTS FOR
EXTRACTOR TOOL
Extractor Tool
Fingers Must Be On
The Outside Of The
Terminal Contacts
Figure 4
(HOUSING REMOVED)
EXTRACTOR TOOL
LOCKING TABS
DEPRESSED
EXTRACTOR
TOOL
4. Continue to insert extraction tool into housing until the locking tangs have snapped out of their locked position.
If the terminal locking tabs are still not totally depressed, hold on tight to the wire and push it towards the
extractor tool, this will completely depress the locking tabs. See Figure 2.
5. Gently pull the terminal wire out from the housing.
NOTE:
When a terminal is removed in this manner the locking tangs are damaged and the terminal is not
reusable.
CAUTION:
This extractor tool should be used to extract the terminal only. Using it for unintended purposes may
cause injury or damage to parts. Be careful not to deform the end of the terminal.
CAUTION:
Molex specifications are valid only when used with Molex terminals, applicators and tooling.
Molex does not offer repair parts for Extractor Tools due to the inexpensive nature of these tools.
Contact Information
For more information on Molex application tooling please contact Molex at 1-800-786-6539.
Visit our Web site at http://www.molex.com
Doc No: ATS-638246210
Revision: A
Release Date: 01-26-16
Revision Date: 01-26-16
UNCONTROLLED COPY
Page 2 of 2
