I525-1J5-20.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> I525-1J5-20.000

I525-1J5-20.000: DescriptionClipped Sine Output Oscillator,; CategoryPassive components oscillator; File Size36KB，1 Pages; ManufacturerILSI; Websitehttp://www.ilsiamerica.com; Environmental Compliance

Download Datasheet Parametric View All

I525-1J5-20.000 Overview

Clipped Sine Output Oscillator,

I525-1J5-20.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1295100219
Reach Compliance Code	compliant
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	5%
JESD-609 code	e1
Installation features	SURFACE MOUNT
Number of terminals	6
Nominal operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	CLIPPED SINE
Output impedance	20000 Ω
Output level	1 V
Package body material	METAL
physical size	11.4mm x 9.6mm x 3.8mm
Maximum slew rate	3 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)

Preview

Download Datasheet

View All

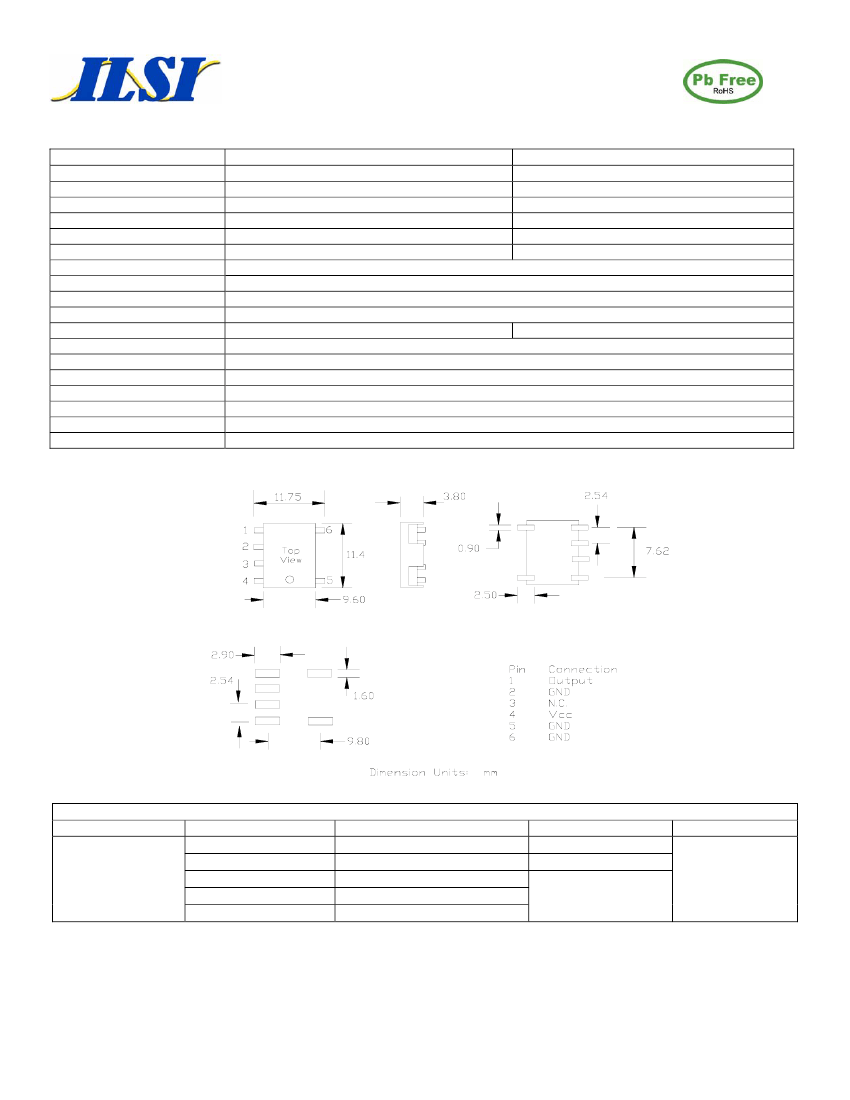

Surface Mount Oscillator, TCXO, TCVCXO

Metal Package, 9 mm x 11 mm

Frequency

Output Level

Level

Duty Cycle

Rise / Fall Time

Output Load

Frequency Stability

Frequency Stability at +25° C

Aging

Supply Voltage

Current

Control Voltage (I725 / I726)

Slope

Temperature

Operating

Storage

Environmental

Package Information

I525 / I526 / I725 / I726 Series *

I526 / I726

I525 / I725

1.000 MHz to 40.000 MHz

10.000 MHz to 40.000 MHz

HC-MOS / TTL

Clipped Sine

‘0’ = 0.1 Vcc Max., ‘1’= 0.9 Vcc Min.

1.0 V p-p Min.

50%

10%

10 nS Max.

15 pF, Fo < 50 MHz = 10 TTL, Fo > 50 MHz = 5 LSTTL

20K Ohms / 10 pF

See Frequency Stability Table

1 ppm (I525 and I526)

1 ppm / Year Max.

See Supply Voltage Table, tolerance

±5

50 mA Max. ***

3 mA Max.

1.65 VDC

1.5 VDC,

±5

ppm Min. for Vcc = 3.3 VDC, 2.5 VDC

2.0 VDC,

±5

ppm Min. for Vcc = 5.0 VDC

Positive

See Operating Temperature Table

-40° C to +85° C

See Appendix B for information

MSL = 2a, Termination = e1

* I526 = HC-MOS TCXO, I525 = Clipped Sine TCXO, I726 = HC-MOS TCVCXO, I725 = Clipped Sine TCVCXO

Pad Layout

Part Number Guide

Package and Output

I525 -

I526 -

I725 -

I726 -

Sample Part Number:

Operating Temperature

7 = 0° C to +50° C

1 = 0° C to +70° C

3 = -20° C to +70 C

2 = -40° C to +85° C

I525 - 1Q3 - 20.000

Supply Voltage

5 = 5.0 VDC

3 = 3.3 VDC

- 20.000 MHz

Frequency

Frequency Stability vs. Temperature

**O =

±1.5

ppm

**P =

±2.0

ppm

Q =

±2.5

ppm

R =

±3.0

ppm

J =

±5.0

ppm

NOTE: A 0.01 µF bypass capacitor is recommended between Vcc (pin 4) and Gnd (pin 2) to minimize power supply noise.

** Not available for all temperature ranges. *** Frequency, supply, and load related parameters.

7/07

ILSI America

Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com

Specifications subject to change without notice
