KRL3216E-C-R220-F-T5 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> KRL3216E-C-R220-F-T5

KRL3216E-C-R220-F-T5: DescriptionFixed Resistor, Metal Foil, 1.5W, 0.22ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP; CategoryPassive components The resistor; File Size213KB，2 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric Compare View All

KRL3216E-C-R220-F-T5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KRL3216E-C-R220-F-T5	-	-	View	Buy Now

KRL3216E-C-R220-F-T5 Overview

Fixed Resistor, Metal Foil, 1.5W, 0.22ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP

KRL3216E-C-R220-F-T5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SUSUMU
package instruction	CHIP
Reach Compliance Code	compli
ECCN code	EAR99
structure	Rectangul
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	3.2 mm
Package form	SMT
Package width	1.6 mm
method of packing	TR, EMBOSSED, 7 INCH
Rated power dissipation(P)	1.5 W
Guideline	AEC-Q200
resistance	0.22 Ω
Resistor type	FIXED RESISTOR
size code	1206
surface mount	YES
technology	METAL FOIL
Temperature Coefficient	50 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	1%

Preview

Download Datasheet

View All

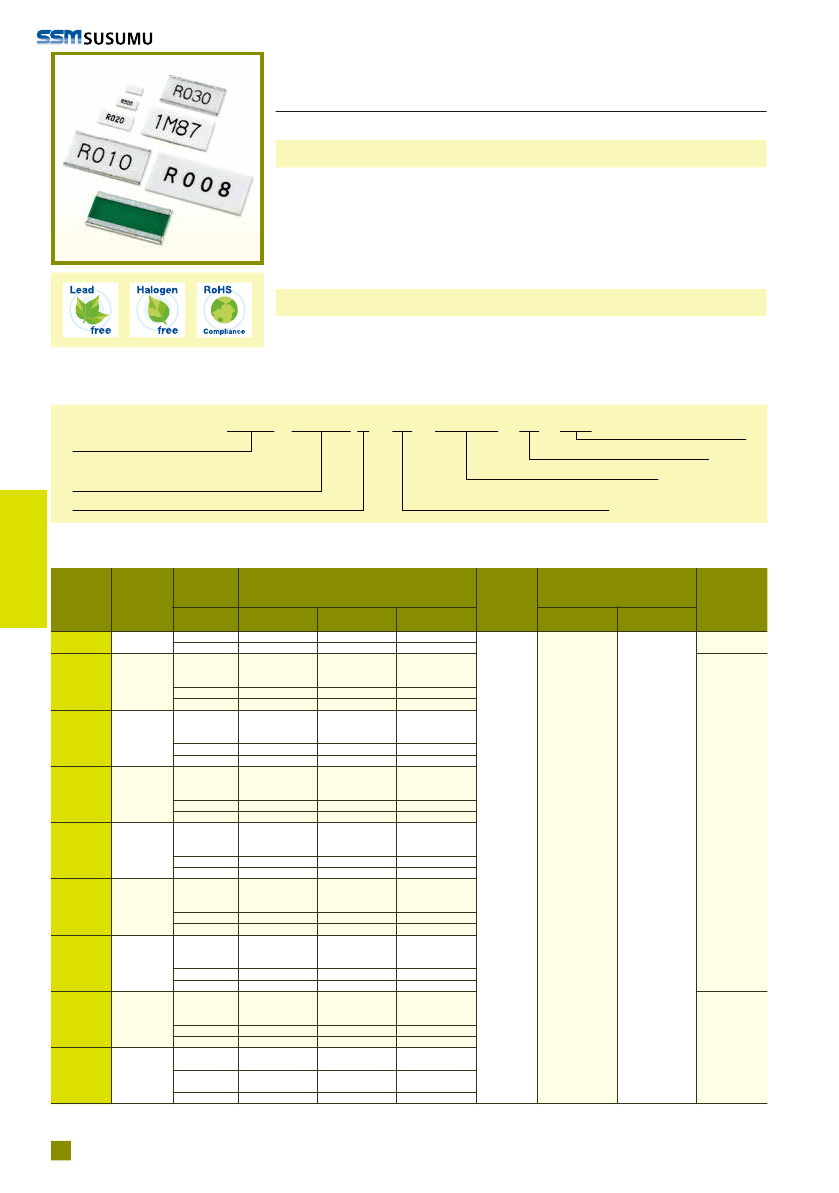

Metal foil low resistance chip resistors

(long-side terminal)

■KRL

series

Features

・

High current sensing long side terminal low resistance chip resistor

・

Two types available: high temperature (operating temperature up to 175°C), low emf

type (operating temperature up to 155°C)

・

High current handling capability and wide range of power ratings

・

Size: 1608 ~ 15075, power ratings: 0.5W ~ 10W, resistance value range: 1m ~ 500mΩ

・

Face down construction. Choice between bottom only or wrap around terminal.

AEC-Q200 Compliant

Applications

・

Automotive electronics

・

Power source devises, ACDC converters, DCDC converters

・

Motors, inverters, office automation equipment

◆Part

numbering system

KRL 2012E - C - R010 - F - T1

Series code

Size: KRL1608, KRL2012, KRL3216, KRL5025

KRL6432, KRL7638, KRL9045, KRL11050

KRL15075

Current sensing surface mount resistors

Terminal type: D (bottom terminal), E (wrap around terminal)

Packaging quantity:

T1(1,000pcs), T5(5,000pcs)

Resistance tolerance

Nominal resistance value

Temperature characteristics type:

C (high operating temperature), M (low EMF)

◆Electrical

Specification

Type

Power

ratings

0.5W

Temperature

coefficient

of resistance

Resistance range(Ω) Resistance tolerance

±1% (F)

10m≦R≦100m

ー

3m≦R≦9m

(1m step)

10m≦R≦500m

ー

3m≦R≦9m

(1m step)

10m≦R≦500m

ー

3m≦R≦9m

(1m step)

10m≦R≦500m

ー

3m≦R≦9m

(1m step)

10m≦R≦500m

ー

3m≦R≦9m

(1m step)

10m≦R≦500m

ー

3m≦R≦9m

(1m step)

10m≦R≦500m

ー

3m≦R≦9m

(1m step)

10m≦R≦500m

ー

10m≦R≦500m

3m≦R≦9m

(1m step)

ー

Resistance

value series

Operating temperature

Packaging

quantity

(ppm/°C)

±2% (G)

ー

5m≦R≦9m

ー

R=2m

ー

R=2m

ー

R=2m

ー

R=2m

ー

R=2m

ー

R=2m

ー

R=2m

ー

R=2m

ー

±5% (J)

ー

R=1m

ー

R=1m

ー

R=1m

ー

R=1m

ー

R=1m

ー

R=1m

ー

R=1m

ー

R=1m

ー

E-6

KRL series

KRL1608

KRL2012

±50

±100

±50

±100

±150

±50

±100

±150

±50

±100

±150

±50

±100

±150

±50

±100

±150

±50

±100

±150

±50

±100

±150

±50

KRL3216

1.5W

KRL5025

KRL6432

-55℃ ~ 175℃

-55℃ ~ 155℃

KRL7638

KRL9045

KRL11050

KRL15075

10W

±100

±150

We can meet your requirement of less than 1mΩ. Please contact our sales office.

We can meet your requirement of resistance value outside of E-6 series. Please contact our sales office.

KRL3216E-C-R220-F-T5 Related Products

	KRL3216E-C-R220-F-T5	KRL6432D-M-R100-F-T1	KRL2012D-M-R005-F-T5	KRL3216D-C-R005-F-T5	KRL5025D-C-R015-F-T1	KRL5025D-M-R150-F-T1	KRL5025E-C-R004-F-T5
Description	Fixed Resistor, Metal Foil, 1.5W, 0.22ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP	RES 0.1 OHM 1% 3W 2512 WIDE	Fixed Resistor, Metal Foil, 1W, 0.005ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 0805, CHIP	Fixed Resistor, Metal Foil, 1.5W, 0.005ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 1206, CHIP	Fixed Resistor, Metal Foil, 2W, 0.015ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2010, CHIP	Fixed Resistor, Metal Foil, 2W, 0.15ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2010, CHIP	Fixed Resistor, Metal Foil, 2W, 0.004ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2010, CHIP
Number of terminals	2	2	2	2	2	2	2
resistance	0.22 Ω	100 mOhms	0.005 Ω	0.005 Ω	0.015 Ω	0.15 Ω	0.004 Ω
Temperature Coefficient	50 ppm/°C	±50ppm/°C	50 ppm/°C	50 ppm/°C	50 ppm/°C	50 ppm/°C	50 ppm/°C
Tolerance	1%	±1%	1%	1%	1%	1%	1%
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to
Maker	SUSUMU	-	SUSUMU	SUSUMU	SUSUMU	SUSUMU	-
package instruction	CHIP	-	CHIP	CHIP	CHIP	CHIP	CHIP
Reach Compliance Code	compli	-	compli	compli	compli	compli	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Rectangul	-	Rectangul	Rectangul	Rectangul	Rectangul	Rectangular
Installation features	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	175 °C	-	155 °C	175 °C	175 °C	155 °C	175 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package height	0.5 mm	-	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Package length	3.2 mm	-	2 mm	3.2 mm	5 mm	5 mm	5 mm
Package form	SMT	-	SMT	SMT	SMT	SMT	SMT
Package width	1.6 mm	-	1.25 mm	1.6 mm	2.5 mm	2.5 mm	2.5 mm
method of packing	TR, EMBOSSED, 7 INCH	-	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 7 INCH	TR, EMBOSSED, 10 INCH
Rated power dissipation(P)	1.5 W	-	1 W	1.5 W	2 W	2 W	2 W
Guideline	AEC-Q200	-	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200	AEC-Q200
Resistor type	FIXED RESISTOR	-	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
size code	1206	-	0805	1206	2010	2010	2010
surface mount	YES	-	YES	YES	YES	YES	YES
technology	METAL FOIL	-	METAL FOIL	METAL FOIL	METAL FOIL	METAL FOIL	METAL FOIL
Terminal shape	WRAPAROUND	-	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	WRAPAROUND
