TTC0001(F)

Description
TRANSISTOR,BJT,NPN,160V V(BR)CEO,18A I(C),TO-247VAR
CategoryDiscrete semiconductor    The transistor
File Size180KB,5 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Environmental Compliance
Download Datasheet Parametric View All

TTC0001(F) Overview

TRANSISTOR,BJT,NPN,160V V(BR)CEO,18A I(C),TO-247VAR

TTC0001(F) Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerToshiba Semiconductor
package instruction,
Reach Compliance Codeunknow
ECCN codeEAR99
Maximum collector current (IC)18 A
ConfigurationSingle
Minimum DC current gain (hFE)80
Maximum operating temperature150 °C
Polarity/channel typeNPN
Maximum power dissipation(Abs)150 W
surface mountNO

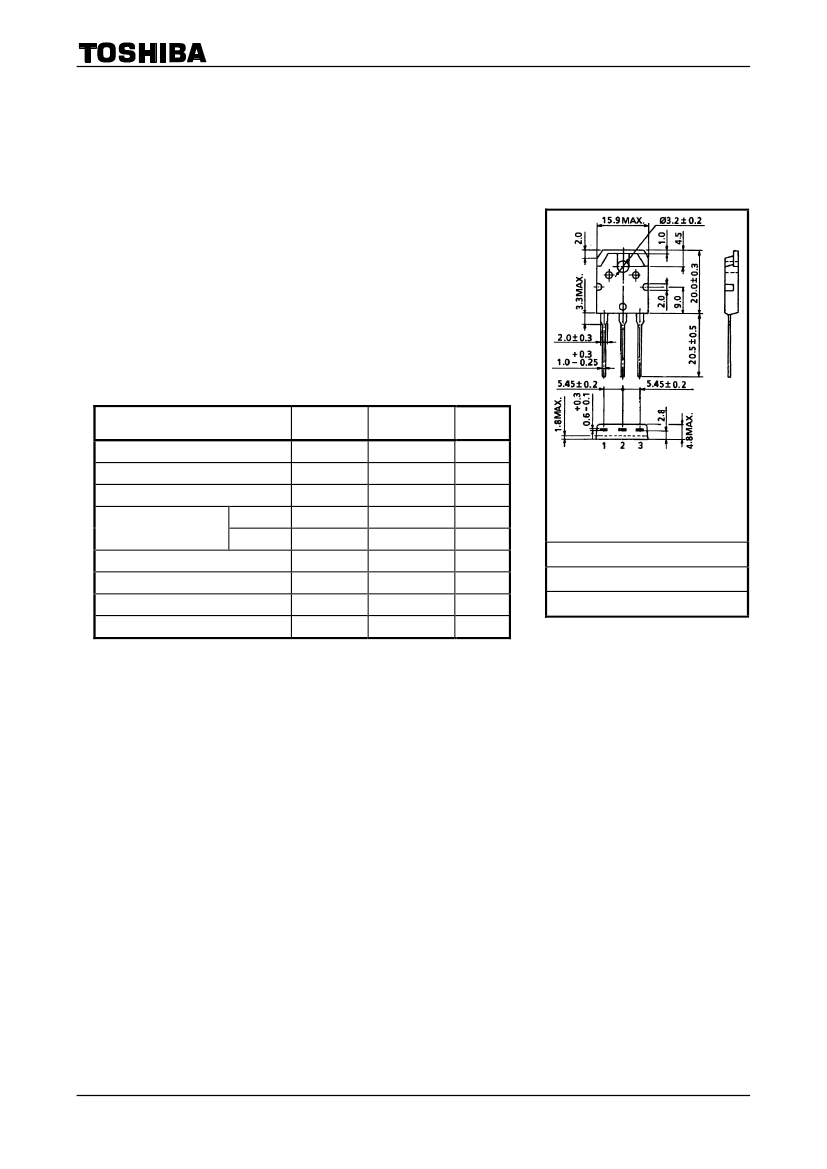

TTC0001
TOSHIBA Transistor
Silicon NPN Triple Diffused Type
TTC0001
Power Amplifier Applications
High collector voltage: V
CEO
= 160 V (min)
Complementary to TTA0001
Recommended for 100-W high-fidelity audio frequency amplifier output
stage.
Unit: mm
Absolute Maximum Ratings
(Tc = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Base current
Collector power dissipation
Junction temperature
Storage temperature range
DC
Pulse
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
I
B
P
C
T
j
T
stg
Rating
160
160
5
18
35
9
150
150
−55
to 150
Unit
V
V
V
A
A
A
W
°C
°C
1.BASE
2.COLLECTOR(HEAT SINK)
3.EMITTER
JEDEC
JEITA
TOSHIBA
Weight : 4.7 g
2-16C1A
(typ.)
Note : Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report
and estimated failure rate, etc).
1

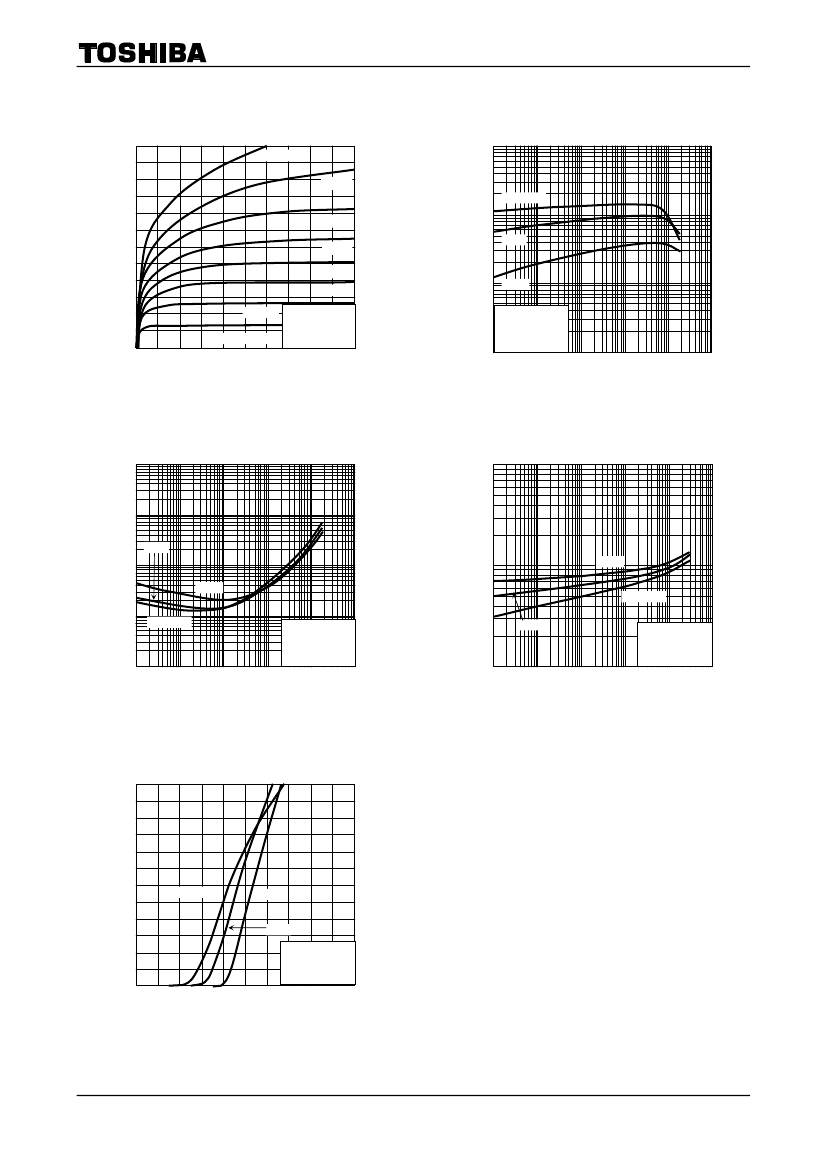

2009-06-11
