Data sheet | Item number: 805-370

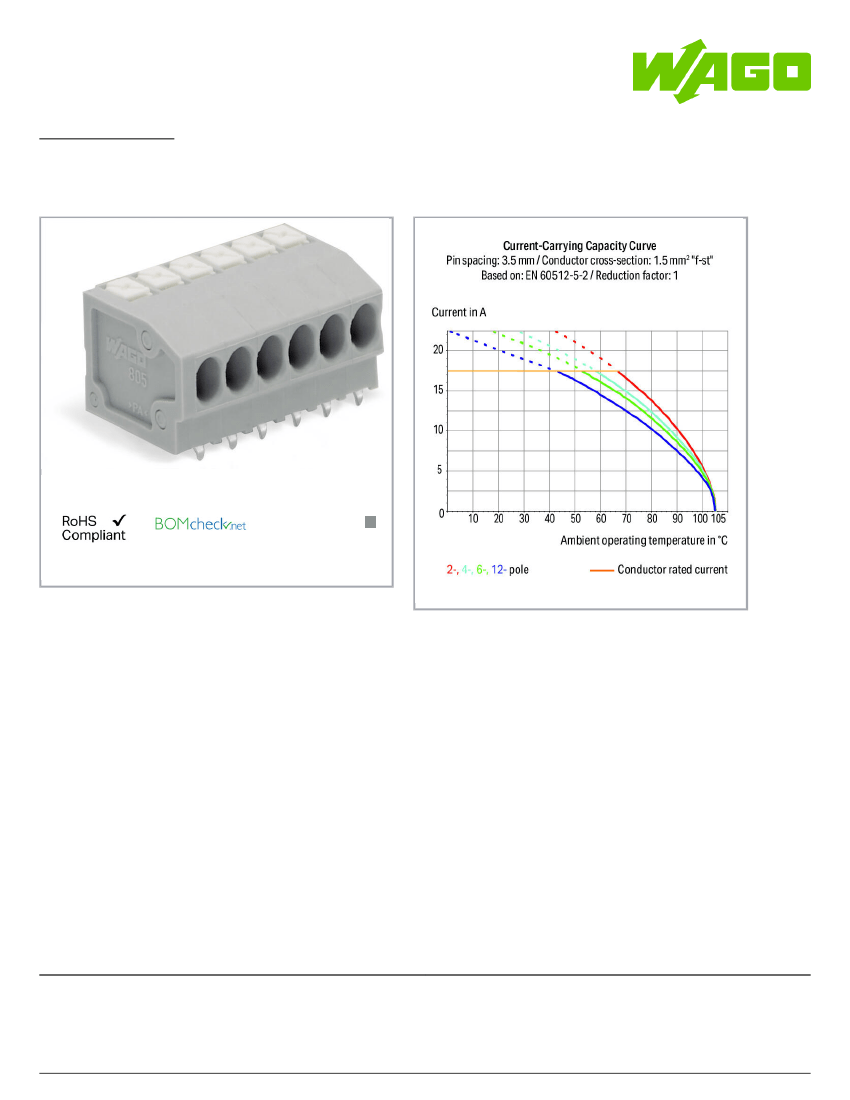

PCB terminal block; push-button; 1.5 mm²; Pin spacing 3.5 mm; 20-pole;
Push-in CAGE CLAMP®; 1,50 mm²; gray
www.wago.com/805-370
Color:
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 1/9
Data sheet | Item number: 805-370
www.wago.com/805-370

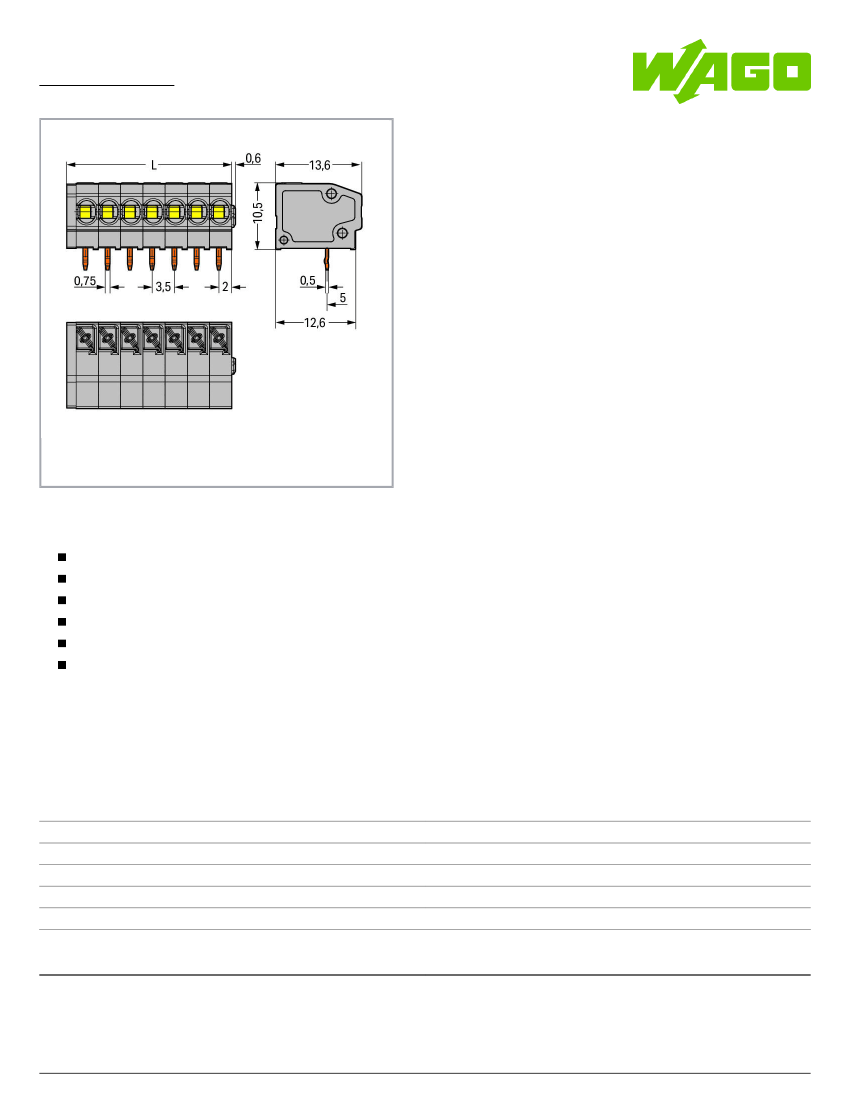

L = (pole no. x pin spacing) + 1.5 mm
Item description
PCB terminal strips with push-buttons and Push-in CAGE CLAMP
®
connection
Push-in termination of solid and ferruled conductors
Flush-mount push-buttons that close with minimal force for convenient termination/removal of fine-stranded conductors
Convenient, tool-free operation
Versions with/without test slots and spacers
Versions available with custom internal commoning (factory assembly), e.g., commoning ground conductor
Data
Electrical data
Ratings per IEC/EN 60664-1
Ratings per
Nominal voltage (III/3)
Rated surge voltage (III/3)
Rated voltage (III/2)
Rated surge voltage (III/2)
Nominal voltage (II/2)
IEC/EN 60664-1
160
V
2.5
kV
160
V
2.5
kV
320
V
Rated surge voltage (II/2)
2.5
kV
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 2/9
Data sheet | Item number: 805-370
www.wago.com/805-370
Rated surge voltage (II/2)
Rated current
Legend (ratings)
2.5
kV
17.5
A
(III / 2) ≙ Overvoltage category III / Pollution degree 2
Approvals per UL 1059
Rated voltage UL (Use Group B)
Rated current UL (Use Group B)
Rated voltage UL (Use Group C)
Rated current UL (Use Group C)
Rated voltage UL (Use Group D)
Rated current UL (Use Group D)
300
V
10
A
150
V
10
A
300
V
10
A
Connection data
Connection technology
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor; with insulated ferrule
Fine-stranded conductor; with uninsulated ferrule
Strip length
Conductor connection direction to PCB
Pole No.
Total number of connection points
Total number of potentials
Number of connection types
Number of levels
Push-in CAGE CLAMP
®
Push-button
0,2 … 1,5 mm² / 24 … 16 AWG
0,2 … 1,5 mm² / 24 … 16 AWG
0,25 … 1 mm²
0,25 … 1 mm²
9 … 10 mm / 0.35 … 0.39 inch
0
°
20
20
20
1
1
Geometrical Data
Pin spacing
Width
Height
Height from the surface
Depth
Solder pin length
Solder pin dimensions
Drilled hole diameter with tolerance
3,5 mm / 0.138 inch
71,5 mm / 2.815 inch
13,7 mm / 0.539 inch
10,5 mm / 0.413 inch
13,6 mm / 0.535 inch
3.2
mm
0,5 x 0,75 mm
1,1
(+0,1)
mm
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 3/9
Data sheet | Item number: 805-370
www.wago.com/805-370
PCB contact
PCB contact
Solder pin arrangement
Number of solder pins per potential
THT
over the entire terminal strip (in-line)
1
Material Data
Color
Material group
Insulation material
Flammability class per UL94
Clamping spring material
Contact material
Contact plating
Weight
gray
I
Polyamide 66 (PA 66)
V0
Chrome nickel spring steel (CrNi)
Electrolytic copper (E
Cu
)
tin-plated
9.4
g
Environmental Requirements
Limit temperature range
-60 … +105 °C
Commercial data
Packaging type
Country of origin
GTIN
Customs tariff number
BOX
PL
4055143388214
85369010000
Approvals / Certificates
UL-Approvals
Logo
Approval
UR
Underwriters Laboratories Inc.
Additional Approval Text
UL 1059
Certificate
name
E45172,
sec. 6
Counterpart
Compatible products
also observe the further product documentation!
Subject to changes. Please
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
29.05.2020 Page 4/9
Data sheet | Item number: 805-370
www.wago.com/805-370
Compatible products
ferrule
Item no.: 216-101
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
Item no.: 216-102
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
Item no.: 216-103
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
Item no.: 216-121
Ferrule; Sleeve for 0.5 mm² / AWG 22; uninsulated; electro-tin plated
Item no.: 216-122
Ferrule; Sleeve for 0.75 mm² / AWG 20; uninsulated; electro-tin plated
Item no.: 216-123
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated
Item no.: 216-131
Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated
Item no.: 216-132
Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated
Item no.: 216-141
Ferrule; Sleeve for 0.5 mm² / 20 AWG; uninsulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 1/08.92
Item no.: 216-142
Ferrule; Sleeve for 0.75 mm² / 18 AWG; uninsulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 1/08.92
Item no.: 216-143
Ferrule; Sleeve for 1 mm² / AWG 18; uninsulated; electro-tin plated; electrolytic copper; gastight
crimped; acc. to DIN 46228, Part 1/08.92
Item no.: 216-151
Ferrule; Sleeve for 0.25 mm² / AWG 24; uninsulated; electro-tin plated
Item no.: 216-152
Ferrule; Sleeve for 0.34 mm² / AWG 24; uninsulated; electro-tin plated
Item no.: 216-201
Ferrule; Sleeve for 0.5 mm² / 20 AWG; insulated; electro-tin plated; white
Item no.: 216-202
Ferrule; Sleeve for 0.75 mm² / 18 AWG; insulated; electro-tin plated; gray
Item no.: 216-203
Ferrule; Sleeve for 1 mm² / AWG 18; insulated; electro-tin plated; red
Subject to changes. Please also observe the further product documentation!
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Phone: +49571 887-0 | Fax: +49571 887-169
Email: info.de@wago.com | Web: www.wago.com
Do you have any questions about our products?
We are always happy to take your call at +49 (571) 887-44222.
www.wago.com/216-101
www.wago.com/216-102
www.wago.com/216-103
www.wago.com/216-121
www.wago.com/216-122
www.wago.com/216-123
www.wago.com/216-131
www.wago.com/216-132
www.wago.com/216-141
www.wago.com/216-142
www.wago.com/216-143
www.wago.com/216-151
www.wago.com/216-152
www.wago.com/216-201
www.wago.com/216-202
www.wago.com/216-203
29.05.2020 Page 5/9
