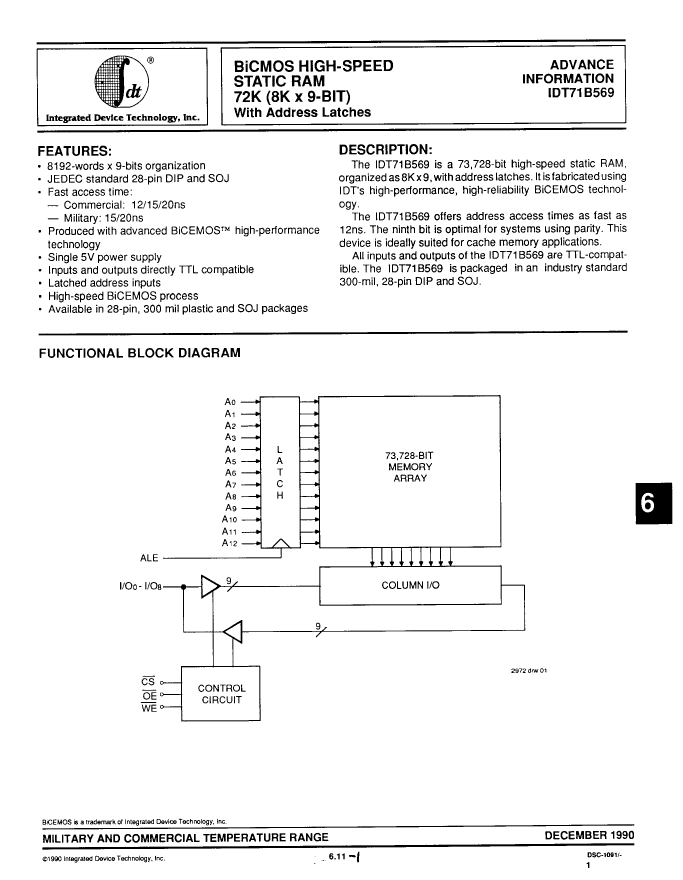

Standard SRAM, 8KX9, 12ns, BICMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28

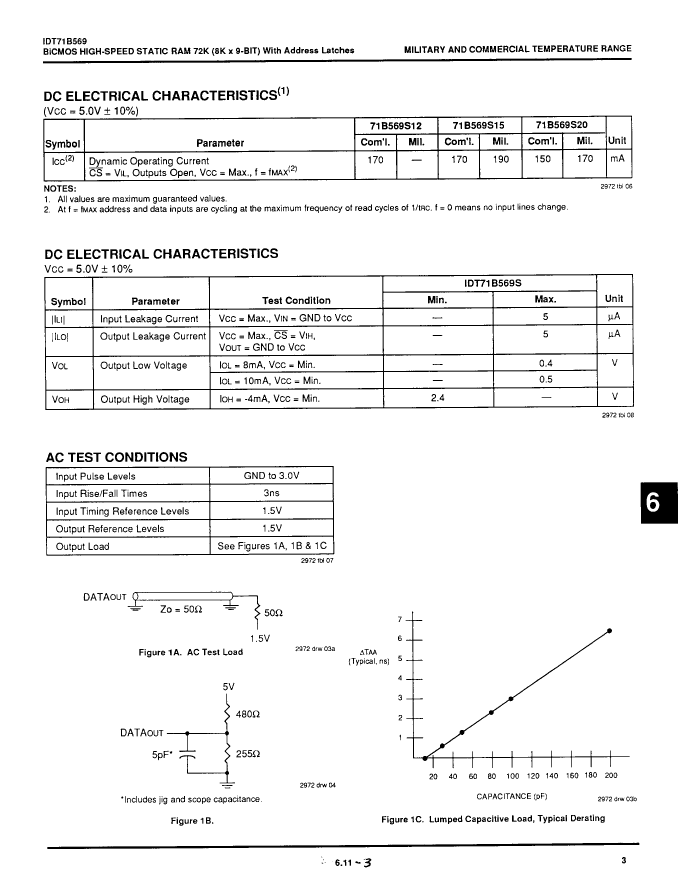

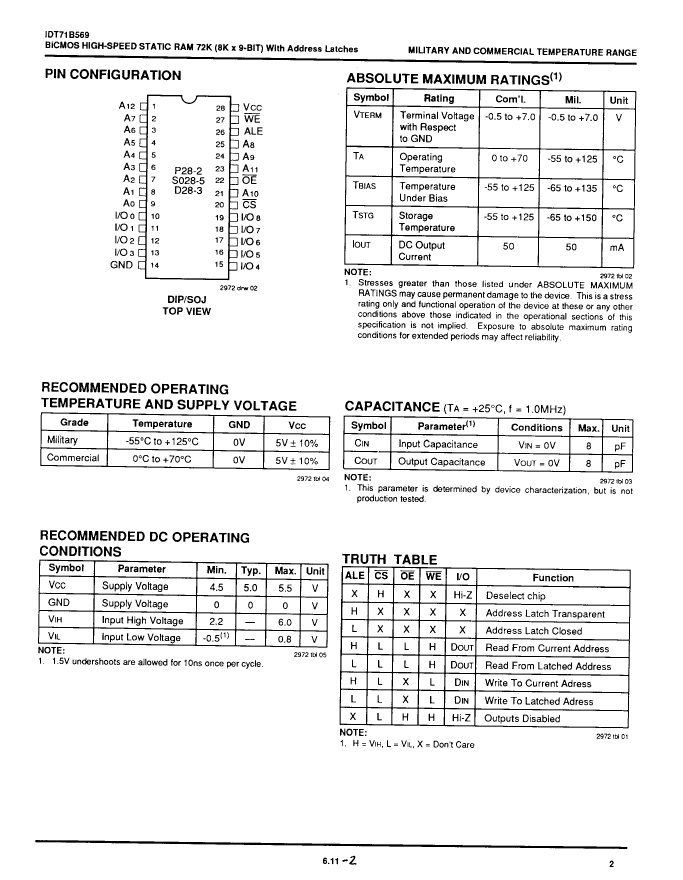

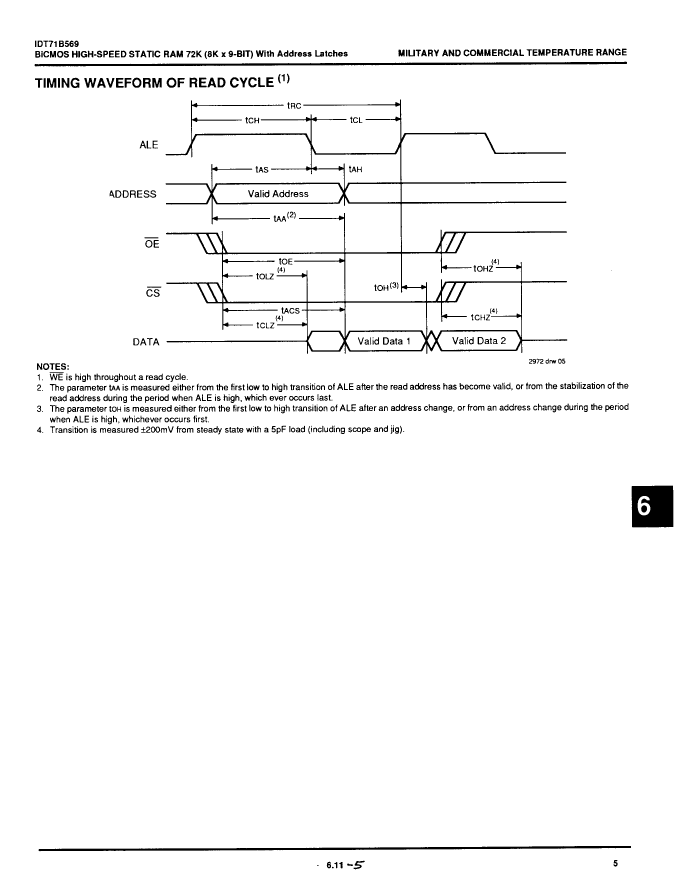

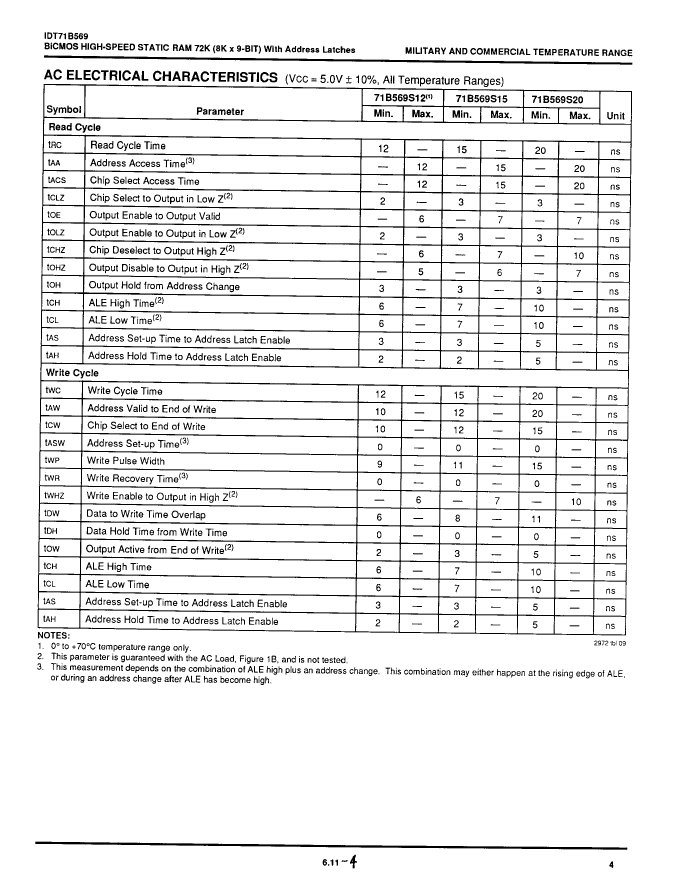

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | IDT (Integrated Device Technology) |
| package instruction | DIP, DIP28,.3 |
| Reach Compliance Code | _compli |
| ECCN code | EAR99 |
| Maximum access time | 12 ns |
| I/O type | COMMON |
| JESD-30 code | R-PDIP-T28 |
| JESD-609 code | e0 |
| memory density | 73728 bi |
| Memory IC Type | STANDARD SRAM |
| memory width | 9 |
| Number of functions | 1 |
| Number of terminals | 28 |
| word count | 8192 words |
| character code | 8000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| organize | 8KX9 |
| Output characteristics | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP28,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Celsius) | 225 |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum slew rate | 0.17 mA |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | BICMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn85Pb15) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| 71B569S12TP | 71B569S12TD | 71B569S15TD | 71B569S15TP | 71B569S20TD | 71B569S20TP | |
|---|---|---|---|---|---|---|
| Description | Standard SRAM, 8KX9, 12ns, BICMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28 | Standard SRAM, 8KX9, 12ns, BICMOS, CDIP28, 0.300 INCH, CERAMIC, DIP-28 | Standard SRAM, 8KX9, 15ns, BICMOS, CDIP28, 0.300 INCH, CERAMIC, DIP-28 | Standard SRAM, 8KX9, 15ns, BICMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28 | Standard SRAM, 8KX9, 20ns, BICMOS, CDIP28, 0.300 INCH, CERAMIC, DIP-28 | Standard SRAM, 8KX9, 20ns, BICMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28 |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | DIP, DIP28,.3 | DIP, DIP28,.3 | DIP, DIP28,.3 | DIP, DIP28,.3 | DIP, DIP28,.3 | DIP, DIP28,.3 |
| Reach Compliance Code | _compli | not_compliant | not_compliant | not_compliant | not_compliant | not_compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Maximum access time | 12 ns | 12 ns | 15 ns | 15 ns | 20 ns | 20 ns |
| I/O type | COMMON | COMMON | COMMON | COMMON | COMMON | COMMON |
| JESD-30 code | R-PDIP-T28 | R-CDIP-T28 | R-CDIP-T28 | R-PDIP-T28 | R-CDIP-T28 | R-PDIP-T28 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| memory density | 73728 bi | 73728 bit | 73728 bit | 73728 bit | 73728 bit | 73728 bit |
| Memory IC Type | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM | STANDARD SRAM |
| memory width | 9 | 9 | 9 | 9 | 9 | 9 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 28 | 28 | 28 | 28 | 28 | 28 |
| word count | 8192 words | 8192 words | 8192 words | 8192 words | 8192 words | 8192 words |
| character code | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| organize | 8KX9 | 8KX9 | 8KX9 | 8KX9 | 8KX9 | 8KX9 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY | CERAMIC, METAL-SEALED COFIRED | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP28,.3 | DIP28,.3 | DIP28,.3 | DIP28,.3 | DIP28,.3 | DIP28,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Parallel/Serial | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL |
| Peak Reflow Temperature (Celsius) | 225 | 225 | 225 | 225 | 225 | 225 |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum slew rate | 0.17 mA | 0.17 mA | 0.17 mA | 0.17 mA | 0.15 mA | 0.15 mA |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | NO | NO | NO |
| technology | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn85Pb15) | Tin/Lead (Sn85Pb15) | Tin/Lead (Sn85Pb15) | Tin/Lead (Sn85Pb15) | Tin/Lead (Sn85Pb15) | Tin/Lead (Sn85Pb15) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | 30 | 30 | 30 | 30 | 30 | 30 |
| Objectid | - | 1164070513 | 1164070516 | 1164070517 | 1164070520 | 1164070521 |
