HCMOS OUTPUT SMD TCXO
ASTX-H12

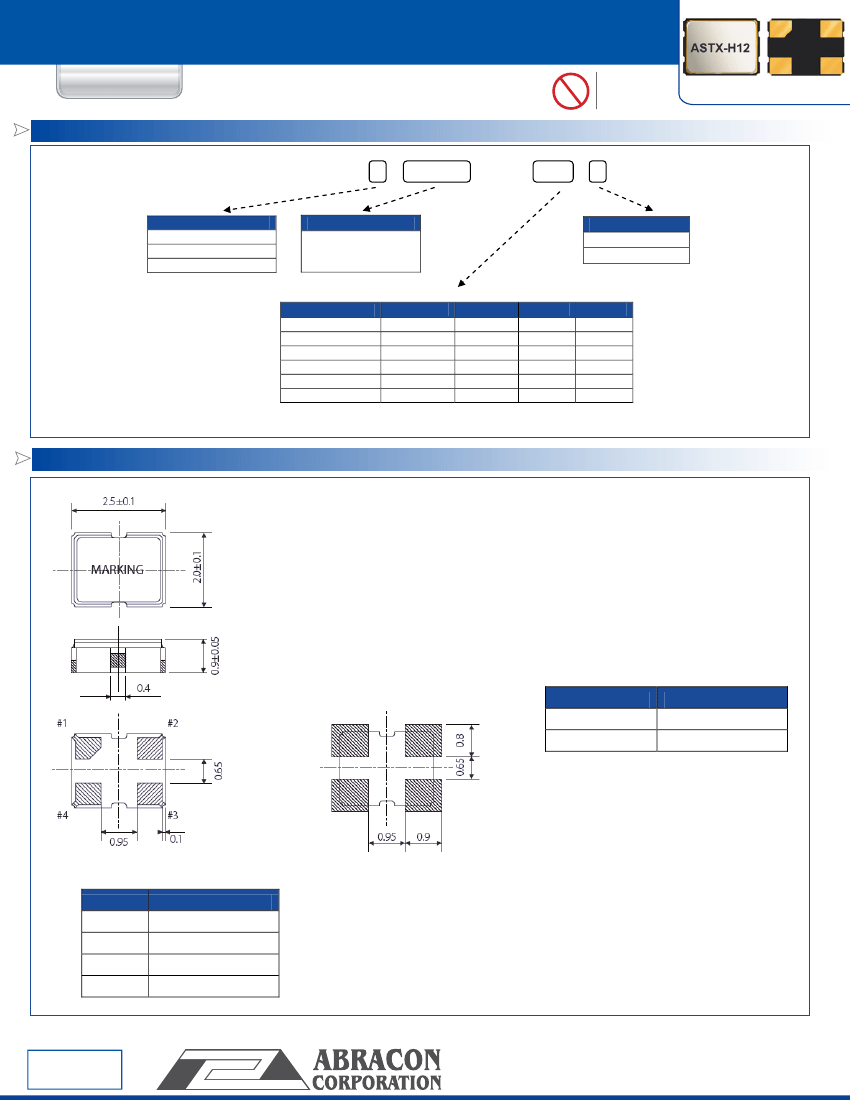

OPTIONS & PART IDENTIFICATION:
(Left blank if standard)
Pb
RoHS
Compliant
ASTX-H12-
-
MHz
-
-
Packaging
Blank: Bulk
T: 1000pcs/reel
2.5 x 2.0 x 0.9mm
| | | | | | | | | | | | | | |
Vdd (V)
Blank: 3.3V±10%
A: 2.8V±10%
B: 2.5V±10%
Frequency in MHz
Please
specify the
frequency
in MHz.
e.g.
19.200MHz
±2.5ppm
D25
E25
F25
G25
Blank(STD)
I25
±3.0ppm
D30
E30
F30
G30
H30
I30
±4ppm
D40
E40
F40
G40
H40
I40
0°C ~
+50°C
-10°C
~
+60°C
-0°C
~
+70°C
-20°C
~
+75°C
-30°C
~
+75°C
-40°C
~
+85°C
±5ppm
D50
E50
F50
G50
H50
I50
Table 1
OUTLINE DIMENSIONS:
Recommended Land
Pattern
Tri-state pin
High or
floating
Low
Output
Active
Hi-impedance
Note: Recommend using an approximately 0.01µF
bypass capacitor between
Pin 2
and 4.
PIN
1
2
3
4
FUNCTION
Tri-state
GND
Output
Vdd
Dimensions: mm
REVISED: 07.18.12
ABRACON IS
ISO 9001 : 2008
ISO 9001 / QS 9000
CERTIFIED
Visit www.abracon.com for Terms & Conditions of Sale
30332 Esperanza, Rancho
Santa
Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
HCMOS OUTPUT SMD TCXO
ASTX-H12

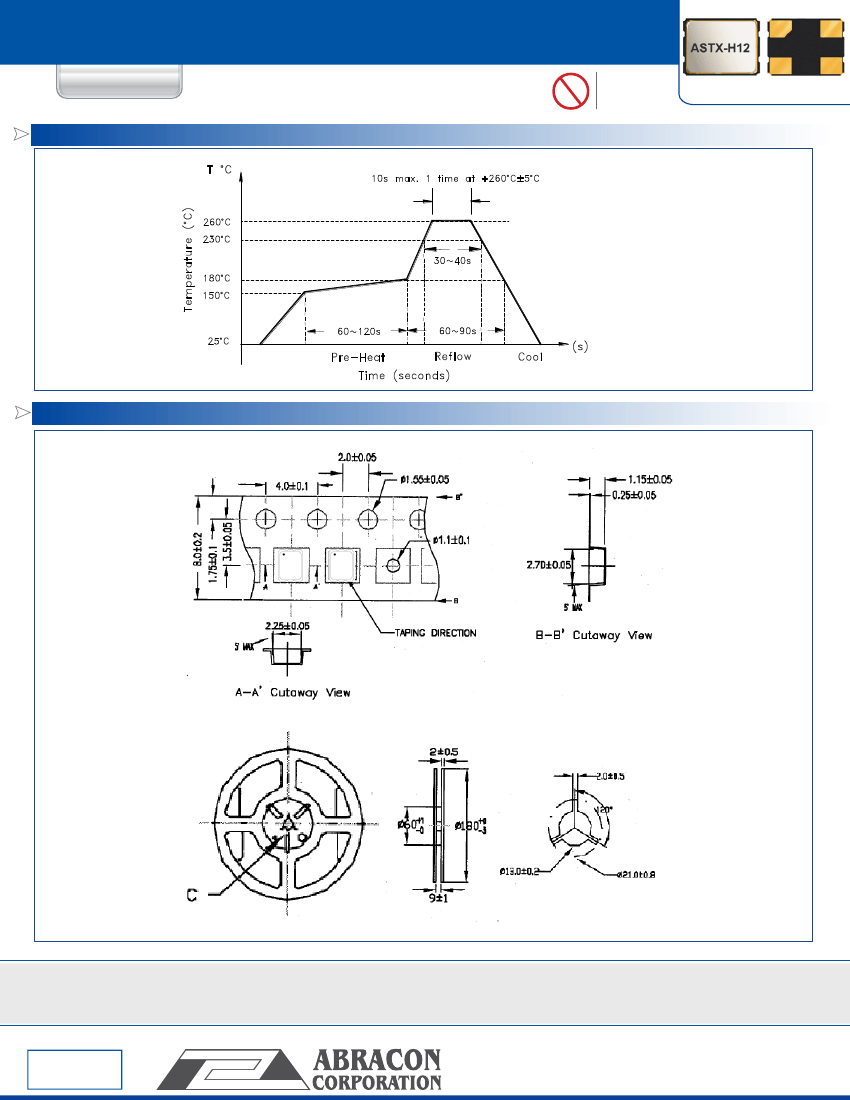

REFLOW PROFILE:
Pb
RoHS
Compliant
2.5 x 2.0 x 0.9mm
| | | | | | | | | | | | | | |
TAPE & REEL:
T: 1,000pcs/reel
Dimensions: mm
ATTENTION:
Abracon
Corporation’s products are COTS
–
Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and,
where
designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military,
Aviation, Aerospace,
Life-dependant Medical applications or any application requiring high reliability
where
component
failure
could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from
Abracon
Corporation is required. Please contact Abracon Corporation for more information.
