MC010200 Overview

Fixed Resistor,

MC010200 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerSPC Multicomp
Reach Compliance Codeunknow
ECCN codeEAR99
Number of terminals2
Resistor typeFIXED RESISTOR

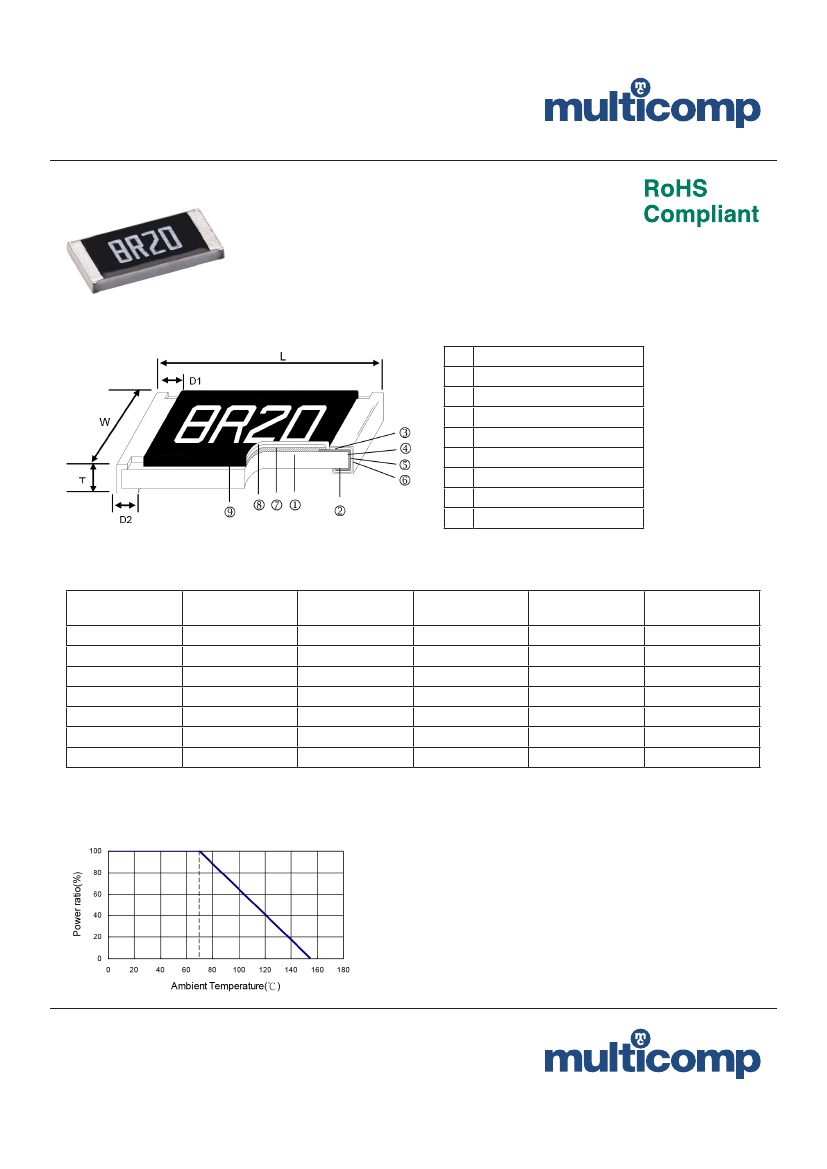

Thin Film Precision Chip Resistor
Features
Advanced thin film technology
Very tight tolerance 0.1%
Low TCR
Construction
1
2
3
4
5
6
7
8
9
Alumina Substrate
Bottom Electrode
Top Electrode
Edge Electrode
Barrier Layer
External Electrode
Resistor Layer
Overcoat
Marking
Dimensions
Size
(Inch)
0402
0603
0805
1206
1210
2010
2512
L
1 ±0.05
1.55 ±0.1
2 ±0.15
3.05 ±0.15
3.1 ±0.15
4.9 ±0.15
6.3 ±0.15
W
0.5 ±0.05
0.8 ±0.1
1.25 ±0.15
1.55 ±0.15
2.4 ±0.15
2.4 ±0.15
3.1 ±0.15
T
0.3 ±0.05
0.45 ±0.1
0.55 ±0.1
0.55 ±0.1
0.55 ±0.1
0.55 ±0.1
0.55 ±0.1
D1
0.2 ±0.1
0.3 ±0.2
0.3 ±0.2
0.42 ±0.2
0.4 ±0.2
0.6 ±0.3
0.6 ±0.3
D2
0.2 ±0.1
0.3 ±0.2
0.4 ±0.2
0.35 ±0.25
0.55 ±0.25
0.5 ±0.25
0.5 ±0.25
Dimensions : Millimetres
Derating Curve
www.element14.com
www.farnell.com
www.newark.com
Page <1>
06/11/18
V1.0
