XE41-N21G-H-100.100MHZ

Description
LVHCMOS Output Clock Oscillator, 100.1MHz Nom,
CategoryPassive components    oscillator
File Size202KB,4 Pages
ManufacturerXsis Electronics Inc.
Download Datasheet Parametric View All

XE41-N21G-H-100.100MHZ Overview

LVHCMOS Output Clock Oscillator, 100.1MHz Nom,

XE41-N21G-H-100.100MHZ Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerXsis Electronics Inc.
package instructionSMDIP4,.31,200
Reach Compliance Codecompli
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time3 ns
Frequency Adjustment - MechanicalNO
frequency stability500%
JESD-609 codee0
Installation featuresSURFACE MOUNT
Number of terminals4
Nominal operating frequency100.1 MHz
Maximum operating temperature70 °C
Minimum operating temperature
Oscillator typeLVHCMOS
Output load10 KOHM, 15 pF
Package body materialCERAMIC
Encapsulate equivalent codeSMDIP4,.31,200
physical size8.89mm X 7.4mm X 4.19mm
longest rise time3 ns
Filter levelMIL-PRF-55310 Class S
Maximum slew rate30 mA
Maximum supply voltage2.75 V
Minimum supply voltage2.25 V
Nominal supply voltage2.5 V
surface mountYES
maximum symmetry60/40 %
Terminal surfaceTin/Lead (Sn/Pb)
XE41 - N00 Series (LVHCMOS), 2.5 V
High Reliability Hybrid Microcircuit Crystal Oscillators
( Similar to M55310/39 )
Features
Drop in replacement for a 5x7mm COTS Oscillator
Ruggedized 4 Point Crystal Mount
Tristate Output Option
Radiation Tolerant to 10K Rads
Low Profile Surface Mount, 0.165” Max. Height
Low Phase Noise
Hermetically Sealed, Ceramic Package
ECCN: EAR99
#4
#3
Marking
#1
.200 + .005
(5.08 + .13)
#2
.055
( 1.4 )
Typ.
.165 Max
(4.19)
.290 + .005
(7.4 + .13)
Applications
High Shock & Vibration Applications
Navigation Systems
Aerospace Instrumentation
Benign Space Applications
Gun Launched Munitions
.130
(3.3)
.018 + .003
(.46 + .08)
.350 + .005
(8.89 + .13)
.070
(1.78)
.110
(2.8)
Typ.
.008 + .001
(.20 + .03)
Dimensions: Inches (mm)
LEAD#
1
FUNCTION
E/D (Optional)
GND/CASE
OUTPUT
VDD

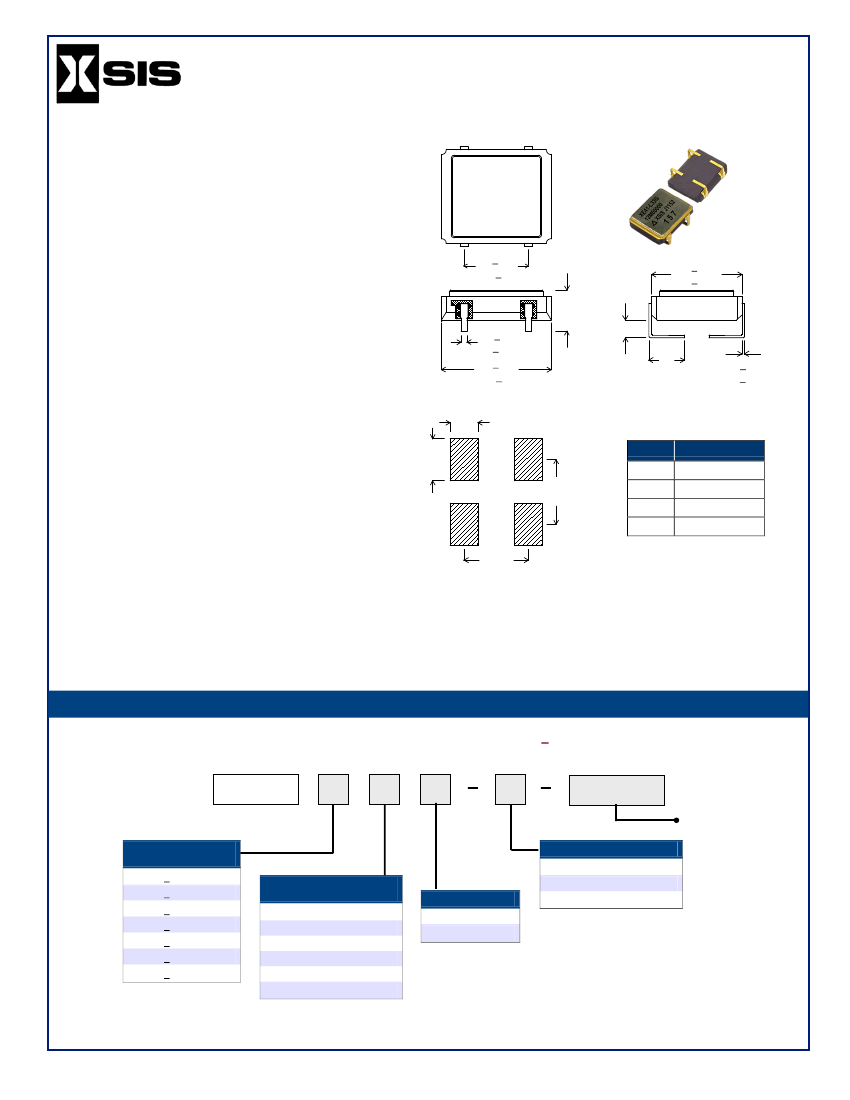

Package Specifications & Outline:
Package : Ceramic 90% AL
2
O
3
Seal: Hermetic – Resistance Welded
Weight: 0.5 Gms typical, 0.6 Gms Max.
o
Thermal Resistance, Junction to Case
( θ
JC
): 30 C / Watt
o
Solder Reflow, Temp./Time: 260 C, 10 Secs. Max.
Lead Material & Finish: Kovar, 50 to 80 μ inches gold
over 100 to 250 μ inches Nickel
Typical PCB
Layout
.200
(5.08)
2
3
4
.200
E/D ( Enable/Disable ) Input:
A “Low”
level at the input disables the Output
into a high impedance state.
E/D
Input has internal pull-up. It can
be left floating or connected to Vdd.
Hot Solder Tinning per MIL-PRF-55310 is optional at additional cost.
Contact Xsis Electronics
at xsis@xsis.com for any special requirements.
ORDERING INFORMATION
( Please build your part number from options below ) :
P/N EXAMPLE:
2.5 V LVHCMOS, + 50 PPM over -55 C to +125 C,
XE41 - N43G - M - 24.000 MHz =
Tristate Output, 883B Screening and 24.000 MHz
o
o
XE41 ‒ N
Model #
4
3
G
M
24.000 MHz
Output Frequency
Frequency Stability
Options
1 = + 0.1%
2 = + 500 PPM
3
4
5
6
7
=
=
=
=
=
+ 100 PPM
+ 50 PPM
+ 20 PPM *
+ 10 PPM *
+ 25 PPM *
100% Screening Options
Operating Temp. Range
Options
1
2
3
4
5
6
=
=
=
=
=
=
0 C
- 40
o
C
- 55
o
C
- 55
o
C
- 40
o
C
- 20
o
C
o
to + 70 C
to + 85
o
C
to +125
o
C
to +105
o
C
to + 95
o
C
to + 70
o
C
o
Tristate Options
G
= Tristate
Blank = No Tristate
M
= 883B Screening
H
= HI-REL Screening
Blank = No Screening
883B Screening
is same as
MIL-PRF-55310 Class B Screening
HI-REL Screening
is similar to
MIL-PRF-55310 Class S Screening
Rev 09 /15
* Frequency Stability Options 5, 6 & 7 are not
available for all operating temperature ranges.
Page 1 of 4
Xsis Electronics, Inc.,
12620 W. 63rd St., Shawnee, KS 66216
Tel. 913-631-0448 Fax. 913-631-1170, www.xsis.com, email xsis@xsis.com
