0832-2-04-12: DescriptionBoard Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size102KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

0832-2-04-12 Overview

Board Connector, 4 Contact(s), 1 Row(s), Female, Right Angle, 0.031 inch Pitch, Surface Mount Terminal, Locking, Receptacle

0832-2-04-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.067 inch
subject depth	0.108 inch
body length	0.213 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BLADE PIN-SKT
Dielectric withstand voltage	200VAC V
Durability	25 Cycles
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYAMIDE
Manufacturer's serial number	0832
Plug contact pitch	0.031 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	4

Preview

Download Datasheet

View All

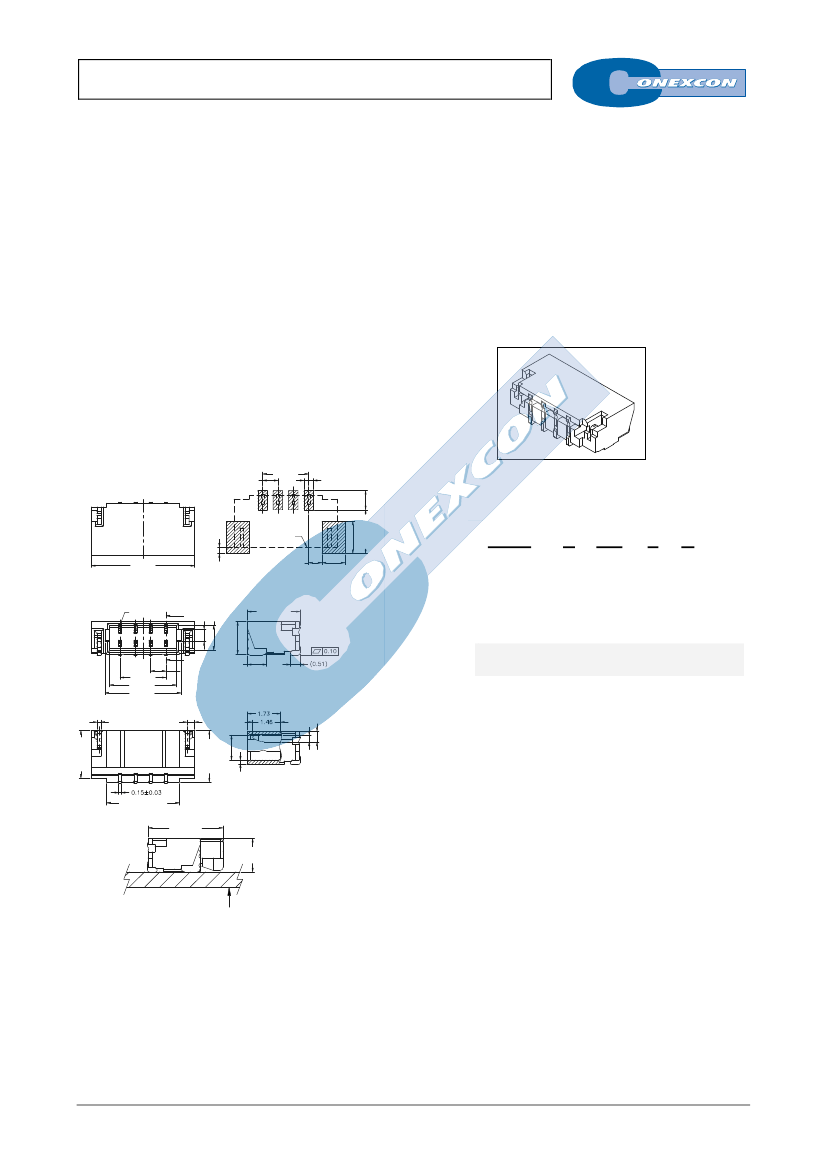

SINGLE ROW SMT SIDE ENTRY CONNECTOR

0832 SERIES.

0.80 mm. (0.032”) Pitch.

General Features

Electrical Features



Available in 2 through 20 circuits

Mates with 0,80 mm pitch female connector 0830 series

Shrouded tin plated contacts

Soldering tabs to fix to PCB

Very low profile.



Voltage rating: < 30 V

Current rating: < 0,5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 200 V AC/minute

Insulation resistance: >100 MΩ

Materials

Insulator: PA 9T+30% GF UL 94 V-0

Contact: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features

Durability: 25 cycles

Dimension Information

A±0.10

0.80±0.10

0.50±0.10

1 00±0 10

1.70±0.10

2.30±0.10

0.35±0.10

Conn. profile

0832 -

T- XX- 1

B±0.20

(TOP VIEW)

0.65±0.05

1.30±0.10

0.70±0.10

1.20±0.10

PCB LAYOUT

(TOP VIEW)

Circuit 1

2.75±0.20

1.70±0.20

1. Connector Serie

2. (T) Contacts Plating



T =

Tin plated

RECOMMENDED FINISH

(1.00)

0.80±0.05

A±0.10

C±0.15

D±0.15

3. (XX) Number of circuits



2.70±0.15

1.30±0.15

0.20±0.03

0.40±0.10

Available in 2 through 20 circuits

2.50±0.15

4. (E) Packing Options

0.37

0.56



E =

Reel

0.20

SEC: A-A

(B-1.60)±0.15

Dimensions:

3.90 REF.

= 0.80 x (XX-1)

= 0.80 x (XX)+2.20

= 0.80 x (XX)+0.30

= 0.80 x (XX)+0.78

(Number of circuits)

MATED CONDITION

PCB

A-6

1.75

FULL LINE CATALOGUE
