BTSW-203-01-T-D: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size756KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BTSW-203-01-T-D Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

BTSW-203-01-T-D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	BTSW
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

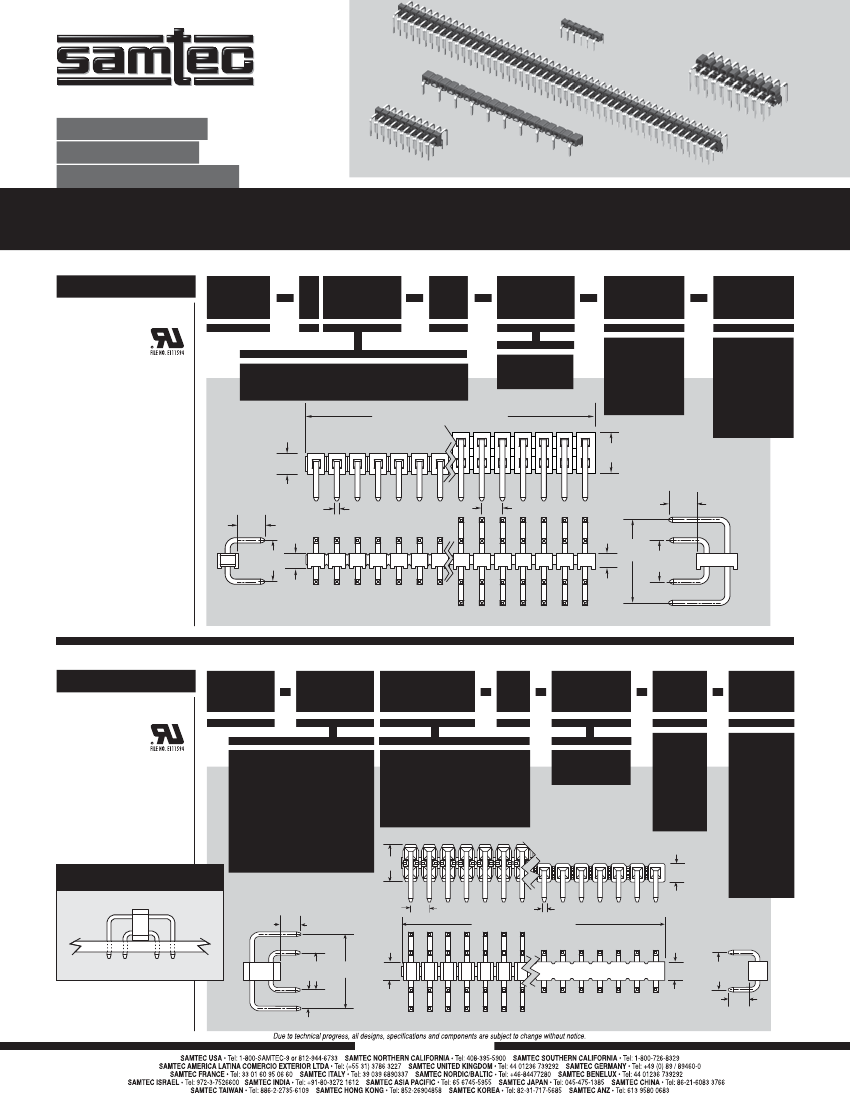

F-213 SUPPLEMENT

BTMM–106–01–T–S

BTSW–110–01–T–D

(2,00 mm) .0787"

(2,54 mm) .100"

BTMM, BTSW SERIES

BTMM–110–01–T–D

BTSW–210–01–T–S

BTMM–150–01–T–D

LOW PROFILE SQUARE POST JUMPER

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?BTMM

Insulator Material:

Black Liquid

Crystal Polymer

Terminal Material:

Phosphor Bronze

Plating:

Sn over 50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +105°C

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

BTMM

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

–T

01 thru 50

No. of positions x (2,00) .0787

–S

= Single Row

“XXX”

= Polarized

Position

(Specify position

of omitted pin)

(Leave blank for

no option)

= Matte Tin

–D

= Double Row

(2,00)

.0787

(3,94)

.155

(0,50) .020 SQ

(2,57)

.101

(1,50)

.059

(2,00) .0787

(1,50)

.059

(2,60)

.102

(4,00)

.157

(8,00)

.315 (4,00)

.157

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

–S

SINGLE ROW

DOUBLE ROW

–D

SPECIFICATIONS

For complete speciﬁcations

see www.samtec.com?BTSW

Insulator Material:

Black Glass Filled

Polyester

Terminal Material:

Phosphor Bronze

Plating:

Sn over 50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +105°C

RoHS Compliant:

Yes

Lead–Free Solderable:

Wave Only

BTSW

CENTERS

NO. PINS

PER ROW

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

–S

–1

= (2,54 mm) .100"

(All positions ﬁlled)

01 thru 50

= (2,54 mm) .100" Pin Center

–T

= Matte Tin

= Single

Row

–LL

= Locking

Lead

–2

= (5,08 mm) .200"

(Every other position ﬁlled

starting at –01 and ending

in last position)

02 thru 25

= (5,08 mm) .200" Pin Center

–D

= Double

Row

“XXX”

= Polarized

Position

(Specify

position of

omitted pin)

(Leave blank

for no option)

(5,08)

.200

APPLICATION

(2,80)

.110

(2,54)

.100

(2,54) .100

(0,64) .025 SQ

No. of Positions x (2,54) .100

(5,08) (10,16)

.400

.200

(2,54)

.100

(2,54)

.100

(2,54)

.100

(5,08)

.200

(2,69)

.106

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

SINGLE ROW

DOUBLE ROW

–D

–S

WWW.SAMTEC.COM
