LS215-400 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> LS215-400

LS215-400: DescriptionPower Supply Module, Hybrid; CategoryPower/power management The power supply circuit; File Size100KB，3 Pages; ManufacturerWall Industries,Inc.; Websitehttps://www.wallindustries.com/

Download Datasheet Parametric Compare View All

LS215-400 Overview

Power Supply Module, Hybrid

LS215-400 Parametric

Parameter Name	Attribute value
Maker	Wall Industries,Inc.
package instruction	DIP, DIP18,.8
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SEATED HGT-NOM
Maximum input voltage	13.2 V
Minimum input voltage	10.8 V
Nominal input voltage	12 V
JESD-30 code	S-MDMA-P5
length	50.8 mm
Number of functions	1
Output times	1
Number of terminals	5
Maximum operating temperature	55 °C
Maximum output current	0.4 A
Maximum output voltage	15.75 V
Minimum output voltage	14.25 V
Nominal output voltage	15 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP18,.8
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Maximum seat height	10.16 mm
surface mount	NO
technology	HYBRID
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum total power output	6 W
Fine-tuning/adjustable output	NO
width	50.8 mm

Preview

Download Datasheet

View All

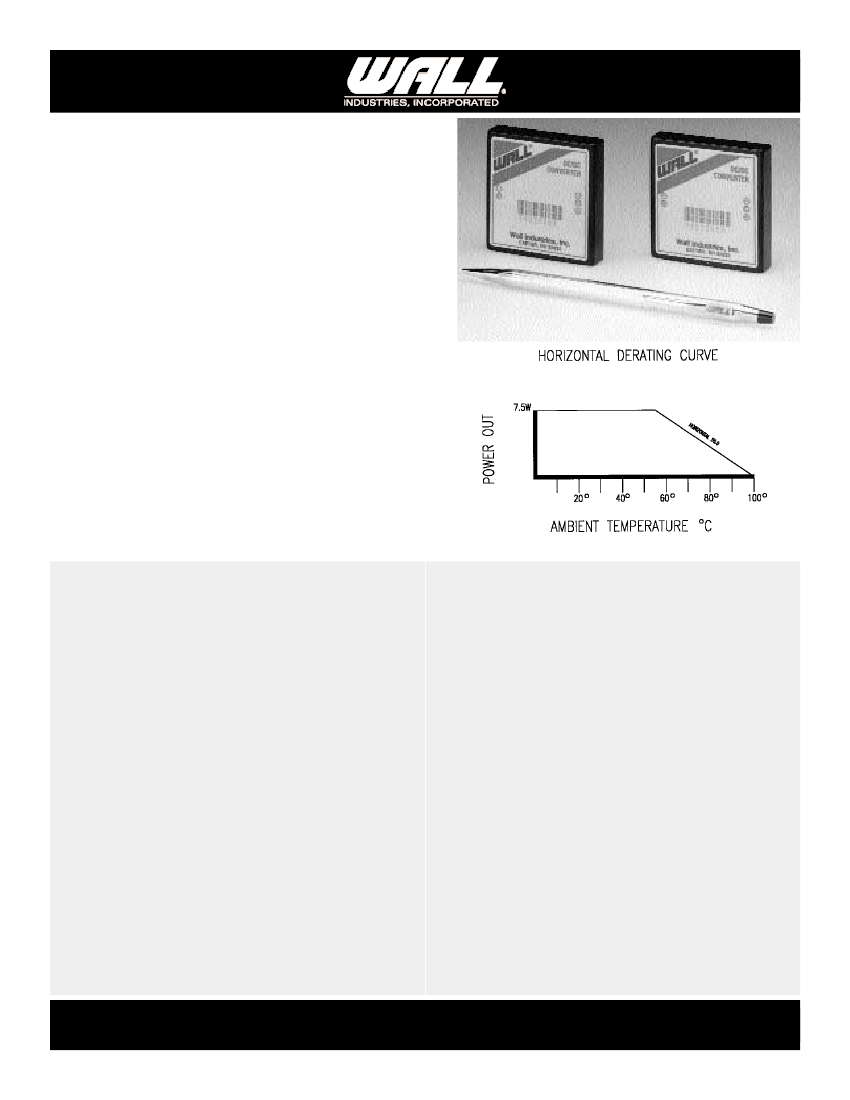

L SERIES

PRODUCT FEATURES

Low Ripple, Regulated, Single and Dual Output

•

Up to 7.5Watts Output Power

High Input/Output Isolation

Low Output Ripple

Continuous Short Circuit Protection

Pi-Input Filter

Low Profile Package

Ten Year Warranty

T O 7.5 WATTS

THE L SERIES FROM WALL INDUSTRIES

The L Series features a low profile package of 2.0 x 2.0 x

0.40” with output power to 7.5watts. This series has excellent

line and load regulation, input filtering, and low output ripple,

as well as low input reflected ripple. Specifications include

high I/O isolation (500VDC), low output ripple (<50mV P-P)

and current limiting/thermal shutdown.

SPECIFICATIONS: L SERIES

All specifications apply @ +25 C ambient unless otherwise

noted.

INPUT SPECIFICATIONS

Input Voltage Range...............5, 12, 24, 28, 28VDC ±10%

Nominal Input........................................5, 12, 24, 28 VDC

Input Filter......................................................Pi-Input Filter

GENERAL SPECIFICATIONS

Efficiency...........................................................65% typical

Isolation Voltage (input to output)......................500VDC min.

Isolation Resistance (input to output).................100 MOhms

Switching Frequency.......................................50kHz typical

OUTPUT SPECIFICATIONS

Output Current....................................................see table

Voltage Tolerance....(7.5W).........................................±1%

..................................................................3 & 5W ±5.0%

Thermal Shutdownapprox. +100°C case (7.5W units only)

Line Regulation .....................................................±0.05%

....................................................................3 & 5W 0.3%

Load Regulation .....................................................±0.5%

Short Circuit Protection.......................linear current limiting

Ripple/Noise (20MHz BW).................................50mV p-p

Over Voltage Protection.......................................see table

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature..........................-25 to +85°C (case)

Storage Temperature.....................................-55 to +100°C

Humidity (non-condensing).............................20 - 95% R.H.

PHYSICAL SPECIFICATIONS

Weight......................................................................2.3 oz.

Case Material........................................Black coated metal,

...................................................non-conductive baseplate

Shielding connections....................Six-Sided Shielded case

Due to advances in technology, specifications subject to

change without notice.

603 778 2300

W W W

WALLINDUSTRIES

C O M

LS215-400 Related Products

	LS215-400	LD215-250	LS812-250	LD212-125	LD512-125	LD512-250	LD512-310	LS25-1500	LS415-500
Description	Power Supply Module, Hybrid	Power Supply Module, Hybrid	Power Supply Module, Hybrid	Power Supply Module, Hybrid	Power Supply Module, Hybrid	Power Supply Module, Hybrid	Power Supply Module, Hybrid	Power Supply Module, Hybrid	Power Supply Module, Hybrid
package instruction	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8	DIP, DIP18,.8
Reach Compliance Code	compli	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	SEATED HGT-NOM	SEATED HGT-NOM	SEATED HGT-NOM	SEATED HGT-NOM	SEATED HGT-NOM	SEATED HGT-NOM	SEATED HGT-NOM	SEATED HGT-NOM	SEATED HGT-NOM
Maximum input voltage	13.2 V	13.2 V	30.8 V	13.2 V	5.5 V	5.5 V	5.5 V	13.2 V	26.4 V
Minimum input voltage	10.8 V	10.8 V	25.2 V	10.8 V	4.5 V	4.5 V	4.5 V	10.8 V	21.6 V
Nominal input voltage	12 V	12 V	28 V	12 V	5 V	5 V	5 V	12 V	24 V
JESD-30 code	S-MDMA-P5	S-MDMA-P5	S-MDMA-P5	S-MDMA-P5	S-MDMA-P5	S-MDMA-P5	S-MDMA-P5	S-MDMA-P5	S-MDMA-P5
length	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm
Number of functions	1	1	1	1	1	1	1	1	1
Output times	1	2	1	2	2	2	2	1	1
Number of terminals	5	5	5	5	5	5	5	5	5
Maximum operating temperature	55 °C	55 °C	55 °C	55 °C	55 °C	55 °C	55 °C	55 °C	55 °C
Maximum output current	0.4 A	0.25 A	0.25 A	0.125 A	0.125 A	0.25 A	0.31 A	1.5 A	0.5 A
Maximum output voltage	15.75 V	15.75 V	12.6 V	12.6 V	12.6 V	12.6 V	12.6 V	5.25 V	15.75 V
Minimum output voltage	14.25 V	14.25 V	11.4 V	11.4 V	11.4 V	11.4 V	11.4 V	4.75 V	14.25 V
Nominal output voltage	15 V	15 V	12 V	12 V	12 V	12 V	12 V	5 V	15 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8	DIP18,.8
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum total power output	6 W	7.5 W	3 W	3 W	3 W	6 W	7.5 W	7.5 W	7.5 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO	NO
width	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm	50.8 mm
Maker	Wall Industries,Inc.	-	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.	Wall Industries,Inc.
