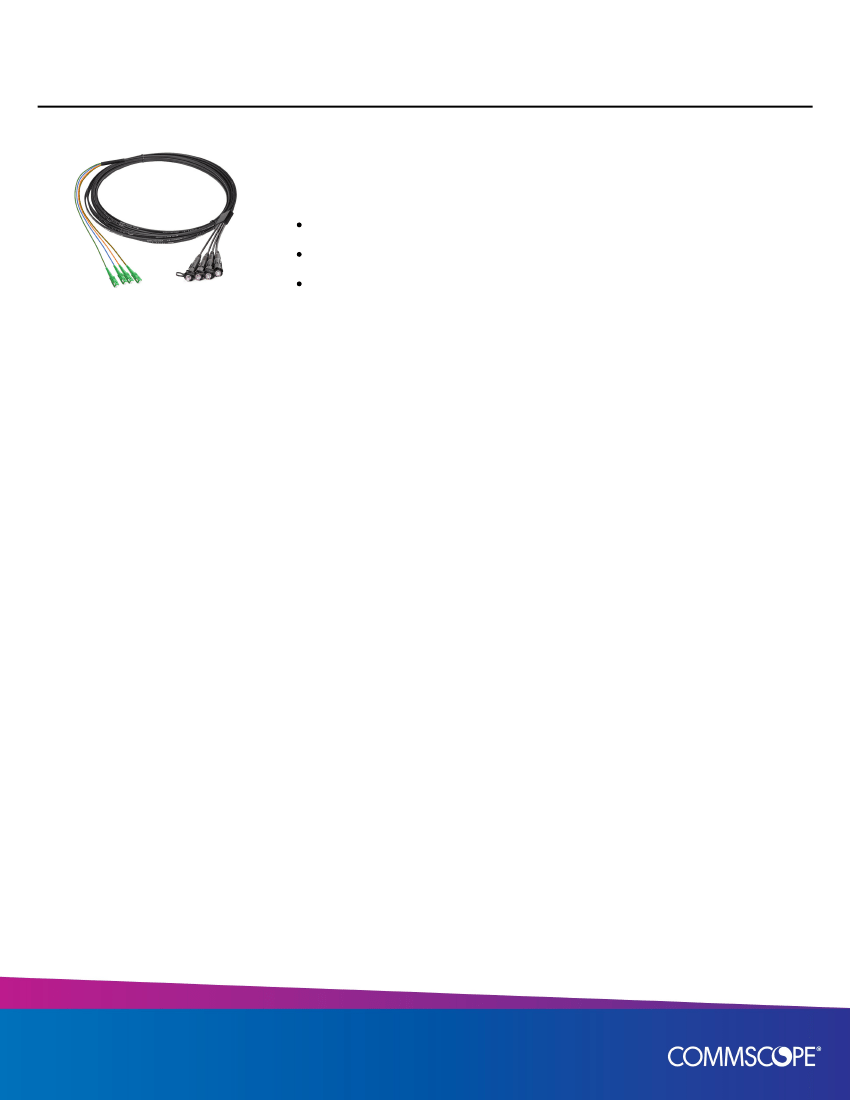

760239495 | FHBD-H04J084A-0800F
RealFlex® Fiber Optic Drop Cable, 4 Fiber, Hardened SC/APC to SC
/APC with 4 ft Breakout at hardened SC/APC side, 800 ft
Hardened connectors are factory-terminated and environmentally sealed for use in optical
drop cable deployments
Hardened drop cables incorporate hardened connector technology that is designed to
withstand the rugged outside plant environment
Hardened drop cables simplify installation and maintenance by reducing splicing
requirements in the distribution portion of the network
Product Classification
Regional Availability
Product Type
Product Series
Asia | Australia/New Zealand | EMEA | Latin America | North America
Fiber drop cable assembly
FHBD
General Specifications
Color, boot A
Color, boot B
Color, connector A
Color, connector B
Connector A, quantity
Connector B, quantity
Interface, Connector A
Interface, Connector B
Jacket Color
Total Fibers, quantity
Transmission Standards
Black
Black
Green
Green
4
4
Hardened full-size SC/APC
SC/APC
Black
4
IEC 61753-1 | IEC 61754-4 | IEC 61755
Dimensions
Height Over Jacket
Width Over Jacket
Breakout Length, connector A
Breakout Length, connector B
Cord Length
5 mm | 0.197 in
8 mm | 0.315 in
1,219.2 mm | 48 in
2,438.4 mm | 96 in
243.84 m | 800 ft
Page 1 of 3
©2020 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: May 9, 2020
760239495 | FHBD-H04J084A-0800F

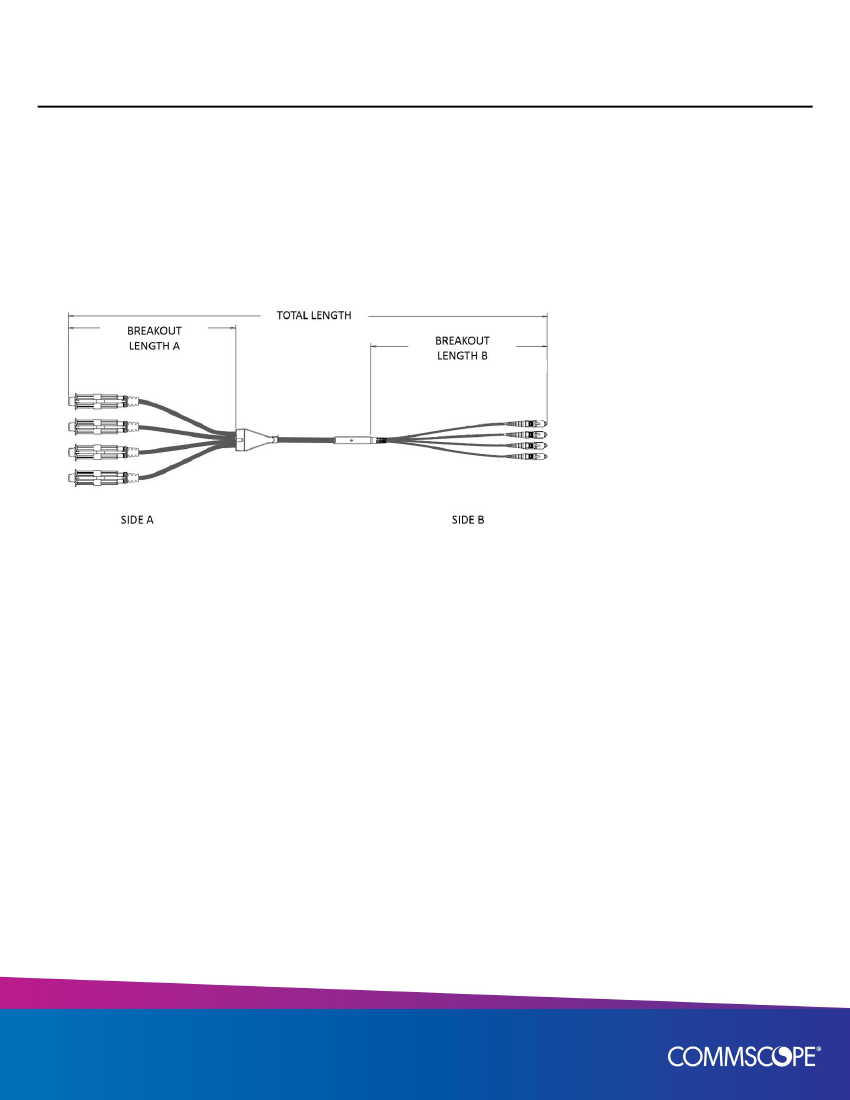

Outline Drawing
Material Specifications
Jacket Material
Dielectric - Flat
Mechanical Specifications
Minimum Bend Radius, loaded
Minimum Bend Radius, unloaded
Tensile Load, long term, maximum
Tensile Load, short term, maximum
150 mm | 5.906 in
100 mm | 3.937 in
450 N | 101.164 lbf
1300 N | 292.252 lbf
Optical Specifications
Fiber Mode
Singlemode
Page 2 of 3
©2020 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope. All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: May 9, 2020
760239495 | FHBD-H04J084A-0800F
Fiber Type
Insertion Loss, maximum, connector A
Insertion Loss, maximum, connector B
Return Loss, minimum, connector A
Return Loss, minimum, connector B
G.652.D
0.4 dB
0.4 dB
60 dB
60 dB
Environmental Specifications
Operating Temperature
Storage Temperature
Environmental Space
Jacket UV Resistance
Qualification Standards
-40 °C to +70 °C (-40 °F to +158 °F)
-40 °C to +70 °C (-40 °F to +158 °F)
Outdoor
UV stabilized
NEMA type 6, 10 ft waterhead | Telcordia GR-20 | Telcordia GR-
3120 | Telcordia GR-326
Packaging and Weights
Cable weight
Packaging quantity
38.7 kg/km | 26.005 lb/kft
1
Regulatory Compliance/Certifications
Agency
CHINA-ROHS
ROHS
Classification
Below maximum concentration value
Compliant
Page 3 of 3
