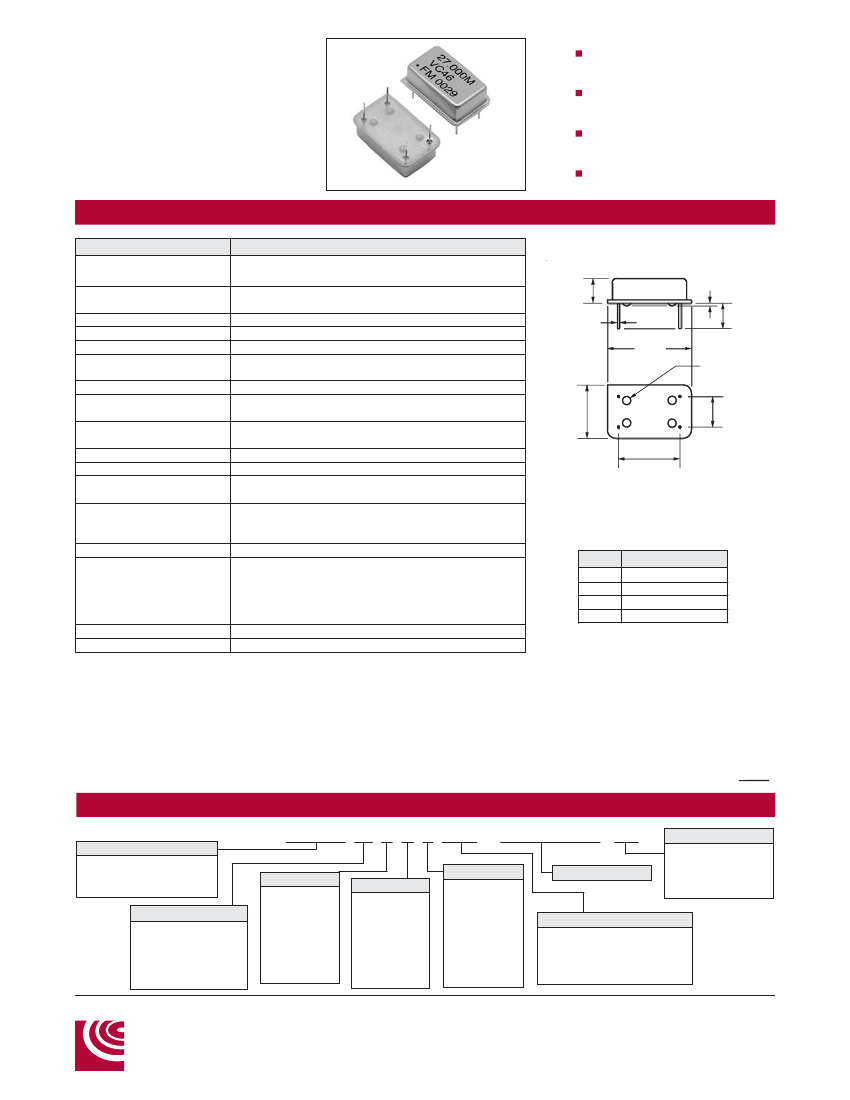

FMVC46
SERIES
5.0 Vdc VCXO
5.0 Vdc Supply Voltage
HCMOS/TTL Compatible
Wide Pullability Available
High Frequency
14 PIN DIP
SPECIFICATIONS
Parameter
Frequency Range
Overall Frequency Tolerance
Operating Temperature Range
Storage Temperature
Supply Voltage (Vdd)
Supply Current (Icc)
Symmetry (Duty Cycle)
Output “0” Level (V
OL
)
Output “1” Level (V
OH
)
Rise and Fall Time
Linearity
Output Load
Pullability
Specification
500.0 kHz to 54.9 MHz (Std.)
55.0MHz to 155.52 MHz (Inverted Mesa)
±20 ppm to ±100 ppm (±50 ppm STD)
(Inclusive of Operating Temp., Supply Voltage, & Load.)
0 to +70°C Std.
-55 to +125°C
+5.0 Vdc (±0.5 Vdc)
30 mA max. @ 500.0 kHz to 23.9 MHz
50 mA max. @ 24.0 to 60.0 MHz
40/60% Std., 45/55% Available (See Spec. Option S).
0.4 Vdc max. (TTL)
0.5 Vdc max. (HCMOS)
2.4 Vdc min. (TTL)
4.5 Vdc min. (HCMOS)
10 ns max. < 5 ns typical
±20% max. Std. , ±10% Available (See Spec. Option L)
10 TTL / 15 pF HCMOS < 40.0 MHz
15 pF HCMOS
±100 to ±150 ppm typical, ±75 to ±300 ppm Available.
(Select a min. and max. pullability from part number.)
Voltage Control Pin 1 Nom. 2.5 Vdc, Range 0.5 to 4.5 Vdc
< 10 pico seconds, one sigma
10 Hz
-75dBc/Hz
100 Hz
-110dBc/Hz
1kHz
-125dBc/Hz
10kHz
-130dBc/Hz
100kHz
-140dBc/Hz
Nominal 2.5 Vdc, Range 0.5-4.5 Vdc, Positive Transfer
±3 ppm max first year
FULL SIZE 14 PIN DIP
0.031
(0.76)
MAX.
0.250
(6.35)
MAX.
0.800
(20.3)
MAX.
1
0.510
(12.95)
MAX.
14
0.600
(15.24)
8
7
0.240
(6.1)
MAX.
0.020
(0.55)
Insulated
Stand-Offs
0.300
(7.62)
PIN FUNCTION TABLE
Pin
1
7
8
14
Function
Control Voltage (Vc)
Case Ground
Output
Supply Voltage (Vdd)
Jitter (typical)
Phase Noise (typical)
Control Voltage (Vc)
Aging @ 25°C
All specifications subject to change without notice.
NOTE: Waveforms & Test Circuits on pages 48, 49
Standard Specifications for product indicated in
color
Dimensions:
Inches
(mm)
PART NUMBERING SYSTEM
Product Family
HCMOS/TTL Compatible
5.0 Vdc VCXO
Full-Size 14 Pin DIP
Overall Frequency Tol.
00 - ± 100 ppm
50 - ± 50 ppm
25 - ± 25 ppm
20 - ± 20 ppm
nn - ± Custom Value
MARKING: See Page 57, Format G
Options
GW- Gull Wing
PD - Parameter Data
CM - Custom Mark
BLANK - None Req’d.
FMVC46 50 C G A S / L - XX.XXXXXXM - CM
Min. Pullability
A - ± 50 ppm
B - ± 75 ppm
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
X - Custom
Z - No Spec.
Max. Pullability
C - ± 100 ppm
D - ± 125 ppm
E - ± 150 ppm
F - ± 175 ppm
G - ± 200 ppm
X - Custom
Z - No Spec.
Temp. Range
A 0 to 70 °C
B -20 to 70 °C
C -40 to 85 °C
D -10 to 50 °C
E -10 to 60 °C
F -30 to 60 °C
J 0 to 50 °C
X - Custom
Frequency (MHz)
Spec. Options
S - Tight Symmetry
(45/55%) Duty Cycle
L - Linearity ±10% Max.
BLANK- None Required (Std.)
FREQUENCY MANAGEMENT |
INTERNATIONAL
15302 Bolsa Chica Street
Huntington Beach, CA 92649
ph (714) 373-8100 | fx (714) 373-8700
34
1-800-800-XTAL
[9825]
www.fmi-inc.com
