PRODUCT INFORMATION
SKINDICHT® SVFK

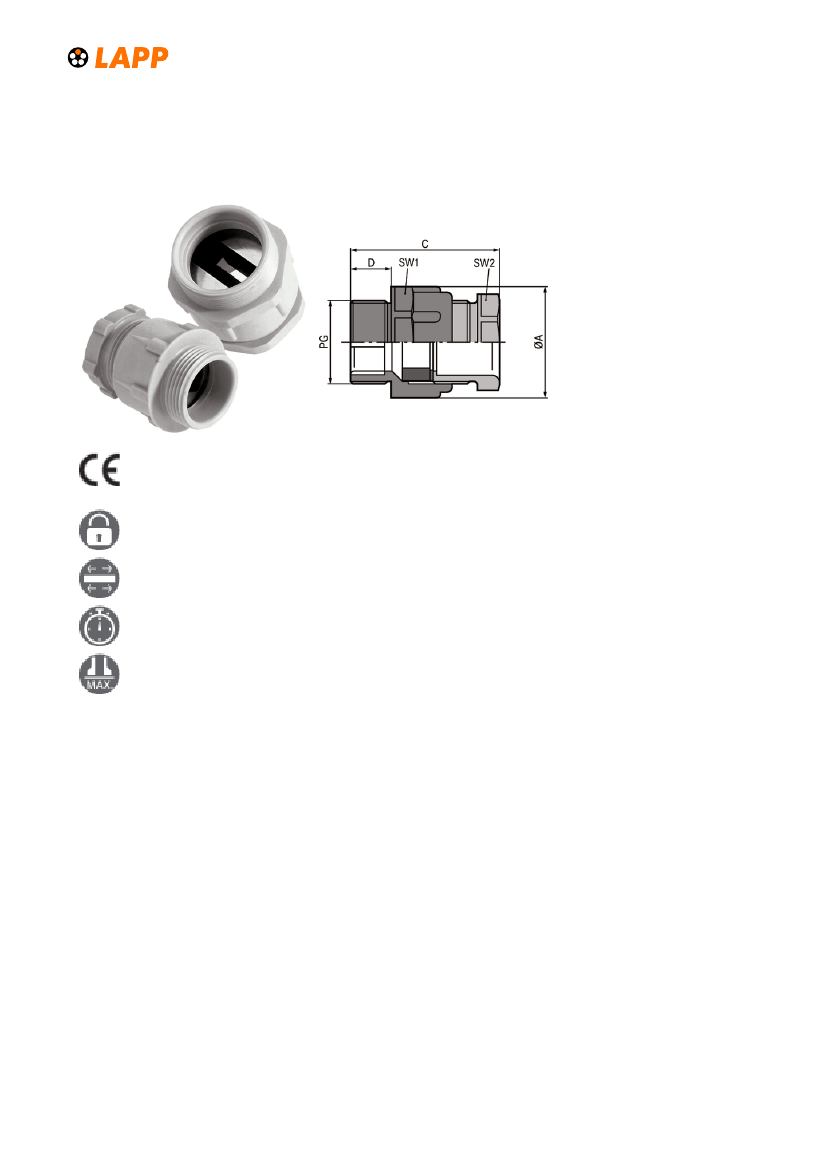

SKINDICHT® SVFK, PG plastic flat cable gland, with automatically fitting lateral sealing lips
Reliability
Optimum strain relief
Assembly time
Wide clamping range
Benefits
Economical type
Lateral sealing lips fit automatically around various cable dimensions
Cable-specific seal dimensions are no longer necessary
Tolerance
Large opening allows clamping of up to two flat cables
Application range
For inserting flat cables
Conveyor systems
Pumps
Lifts
Control cabinet manufacturing
Product Make-up
PG connection thread
Note
Counter nut to be used: SKINDICHT® GMK
Last Update (03.06.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
SKINDICHT® SVFK
For suitable flat cables, refer to ÖLFLEX® LIFT F for indoor applications or ÖLFLEX® CRANE F for outdoor applications
Technical Data
Classification ETIM 5:
Classification ETIM 6:
Caution:
Colour delivered:
Material:
Protection rating:
Temperature range:
ETIM 5.0 Class-ID: EC000441
ETIM 5.0 Class-Description: Cable screw gland
ETIM 6.0 Class-ID: EC000441
ETIM 6.0 Class-Description: Cable screw gland
The installation dimensions
can be found in appendix T21
Light grey (RAL 7035)
Body: Polystyrene
Special sealing insert: CR
IP 54
-20°C to +60°C
Note
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (03.06.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
Powered by TCPDF (www.tcpdf.org)
SKINDICHT® SVFK
Article number
SKINDICHT® SVFK
52005470
52005680
52005690
52005700
52005710
52005720
Article designation /
size
PG 16
PG 21
PG 29
PG 36
PG 42
PG 48
Min./max. flat cable
width
- - 15.0
10.0 - 20.5
15.0 - 27.0
25.0 - 34.0
30.0 - 40.0
35.0 - 45.0
PL_DYN_DICKEKAB SW1/SW2 mm
EL
- - 5.0
3.0 - 8.0
4.0 - 11.5
4.0 - 11.5
5.0 - 12.0
5.0 - 12.0
27.0 / 23.0
32.0 / 30.0
42.0 / 41.0
53.0 / 50.0
60.0 / 55.0
65.0 / 60.0
Overall length C mm
Thread length D mm
Pieces / PU
Last Update (03.06.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
39.5
43.0
45.0
51.0
54.0
55.0
10
11
11
13
13
15
25
25
25
10
5
5
