BD105-08A-1-0300-0460-0450-ND datasheet, PDF

Datasheet> All Categories > The connector> The connector> BD105-08A-1-0300-0460-0450-ND

BD105-08A-1-0300-0460-0450-ND: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD105-08A-1-0300-0460-0450-ND Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle

BD105-08A-1-0300-0460-0450-ND Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.098 inch
subject depth	0.181 inch
body length	0.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e4
Manufacturer's serial number	BD105
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.6924 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	8

Preview

Download Datasheet

View All

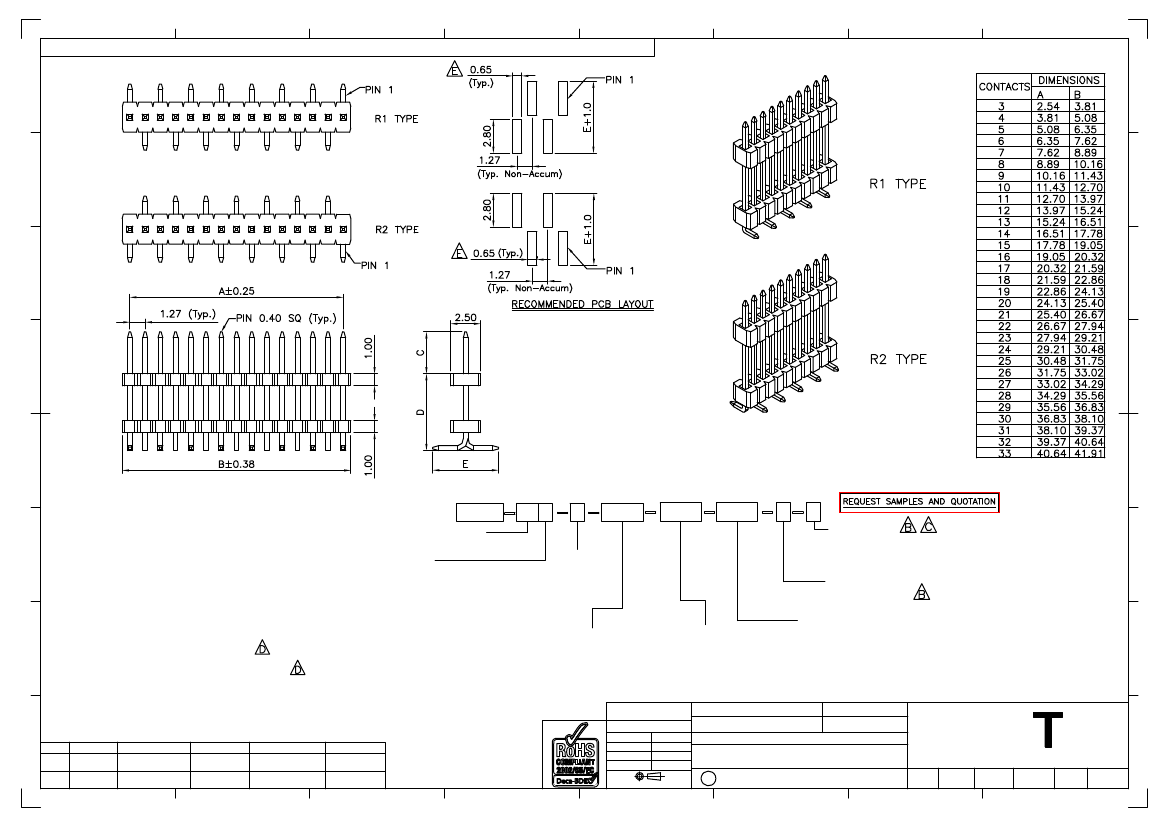

Global Connector Technology Ltd. - BD105: 1.27mm PITCH ELEVATED PIN HEADER, SINGLE ROW, SURFACE MOUNT, VERTICAL

Ordering Grid

SPECIFICATIONS

规格:

BD105

XX X

XXXX

Packing Options

B = Tape and Reel with Cap (Standard)

D = Tube (Standard - where height exceeds 25mm)

E = Tube with Cap

Insulator Material

L = LCP (Standard)

N = Nylon 6T

CURRENT RATING

电流额定值：

1 AMP

No. of Contacts

INSULATOR RESISTANCE

绝缘电阻值：

1000 MEGOHMS MIN.

03 to 33

DIELECTRIC WITHSTANDING

耐电压：

AC 300 V

Contact Plating

CONTACT RESISTANCE

接触电阻值：

20m

Ω

Max.

A = Gold Flash All Over

OPERATING TEMPERATURE

工½温度：

-40°C TO +105°C

B = Selective Gold Flash Contact Area/

CONTACT MATERIAL

端子物料：

COPPER ALLOY

Tin On Tail

INSULATOR MATERIAL

绝缘½物料

C = Tin All Over

STANDARD

标准物料

: POLYESTER

聚酯

, LCP, UL 94-V0

G = 10µ" Gold Contact Area/Tin On Tail

OPTIONS

可选物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

I = 30µ" Gold Contact Area/Tin On Tail

SOLDERING PROCESS

可焊性

Standard = Gold Flash All Over

LCP (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

NYLON 6T (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BD074

BD075

BD080

BD090

Type

1 = R1 Type

2 = R2 Type

Dimension C (1/100mm)

(Post Height)

Standard - 3.00mm = 0300

or specify Dimension C

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Dimension D (1/100mm)

(Stack Height)

Standard - 4.60mm = 0460

Please Specify Dimension D

e.g. 2.5mm = 0250

Tol +/- 0.2mm

Part Number:-

Dimension E (1/100mm)

(Footprint Width)

Standard - 4.50mm = 0450

or specify Dimension E

e.g. 2.50mm = 0250

Tol +/- 0.2mm

Tolerances

(Except as noted)

Date:-

Dimensions in mm

X.°±5°

.X°±2°

X.X ± 0.20

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

Third Angle Projection

BD105

Description:-

28 DEC 07

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

28/12/07

STANDARD INSULATOR

MATERIAL & PACKING

OPTIONS CHANGED

PACKING OPTIONS SOLDER TEMP & MATES

WITH INFO. UPDATED

CHANGED

27/04/09

20/05/09

27/07/09

DIMENSION

AMMENDED

27/08/09

1.27mm PITCH E LEVATED PIN HEADER, SINGLE ROW,

SURFACE MOUNT, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

LYH

E & OE

Sheet No.

1/1
