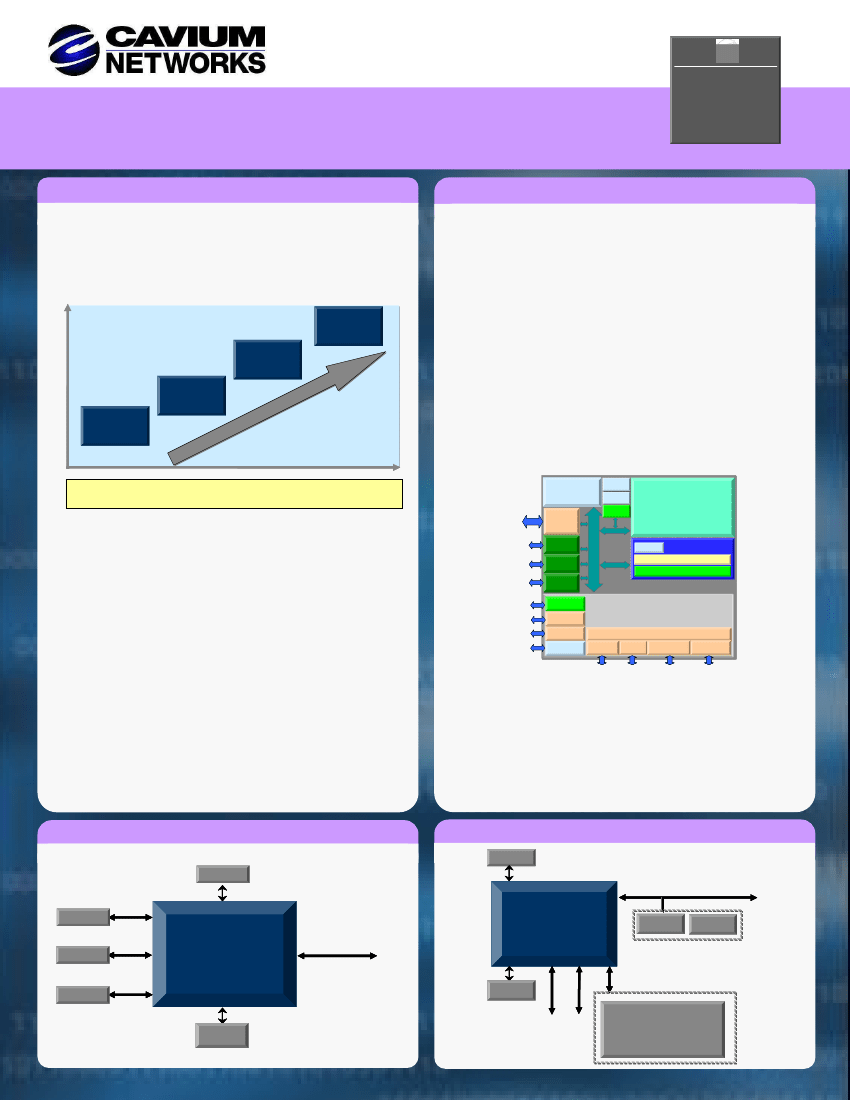

CAVIUM NETWORKS

NITROX™Soho

CN201 & CN210

Secure Communication Processor

Product Brief

NITROX

Soho

CN201 & CN210 DESCRIPTION

The NITROX

Soho

CN201 & CN210 belongs to a full family of

Secure Communication Processors™ designed to meet the

packet processing performance requirements of a wide range

of SOHO and Small and Medium-size Business (SME) secure

gateways.

NITROX

Soho

™

CN210-200BG276

0501

Taiwan

PRODUCT FEATURES & BENEFITS

The CN201 & CN210 Secure Communication Processor

offers the following advantages:

•

Industry leading price/performance for VPN & firewall

applications

•

On-board scratchpad memory for improved routing and

NAT performance

•

High performance on-chip IPSec engine

•

Small footprint solution through the integration of multiple

processors and interfaces on a single chip

•

Low power solution

•

Versatile PCI & ELB Buses provide seamless integration

to current & upcoming 802.11 chipsets

•

ICSA and VPNc certification ready

•

Integrated True Random Number Generator

•

Enables FIPS 140-2 compliance

•

Available in lead-free package

MS BUS

Manager

Data

Cache 16KB

Instruction

Cache 16KB

Scratchpad

Memory 16KB

CN22x

Performance/Functionality

166/200 MHz

150Mbps IPsec perf

>100 IKE/s

CN210

166/200 MHz

50/60 Mbps IPsec

CN201

166/200 MHz

40 Mbps IPsec

CN201A

166 Mhz

Wire speed L3 Fwd

are

ftw

Price

rf o

Hig

Comprehensive Product Line

Highly Scalable: Software Reuse, Broad Performance Range & Optimal Price Points

133MHz

MIPS32 4KM

SYSTEM

PROCESSOR

As shown on the right, the NITROX

Soho

is a highly integrated

system on a chip, designed for simplicity of design and

economical network solutions. The NITROX

Soho

CN201 &

CN210 include a powerful MIPS32 processor, integrated

interfaces: Ethernet MACs, PCI and External Local Bus and a

IPSec VPN security engine.

The NITROX

Soho

CN201 & CN210 have a unique system

architecture that provides wire speed performance. This

architecture includes a 4.25 Gbps bus, 16KB cache (I/D and

Scratchpad), and intelligent context aware DMA engines. The

on-chip IPSec engine supports ESP, HMAC, 3DES and AES

providing a complete solution for VPN/Firewall and Secure

Broadband Gateway designs.

Cavium Networks enables fast time to market with the NITROX

Soho

CDK, a Development Kit that includes a development

system board and support for Linux and VxWorks.

SDRAM

MII/RMII

10/100 MAC

MII/RMII

10/100 MAC

MII/RMII

10/100 MAC

MULTI-

MULTI

-SERVICE BUS

MEMORY

CONTROLLER

TRNG

SECURITY ENGINE

DES, 3DES, SHA-1, MD5

AES

802.11

PCI

32b /33MHz

EXTERNAL BUS

CONTROLLER

SYSTEM LOGIC &

PERIPHERALS MODULE

SYSTEM PERIPHERAL SUB-SYSTEM

TMR/

CNTR

SPI

Two Wire

GPIO

(55 PIN)

RS-232

2 x UART

EJTAG

Sample Applications for the CN201 & CN210:

•

High Performance SOHO/ SME IPSec and SSL VPN,

NAT/Firewall Broadband Gateways

Wireless Secure Gateways

Secure Ethernet-Ethernet Rou

ters

Wireless Access Points

•

Example CN201 & CN210 VPN/FW Broadband Router

(up to 32MB)

FLASH

10/100

MII/RMII

PHY

10/100

MII/RMII

PHY

10/100

MII/RMII

PHY

Example CN201 & CN210 Wireless VPN Gateway

FLASH

(up to 32MB)

32/33 PCI

NITROX

Soho

MAC/

Baseband

Radio

NITROX

Soho

CN201, CN210

32/33PCI

CN201, CN210

802.11a/b/g/n

WLAN MAC, Baseband, radio

Optional

Ethernet Switch

SDRAM

(up to 256 MB)

10/100 WAN

DMZ

MII

SDRAM

(up to 256 MB)

5-8 Port

FE Switch
