SW/SC001/003 Series DC-DC Converter Power Modules:
18-36V & 36-75Vdc Input; 3.3V-15Vdc Output; 1-3.5A Output Current
Features
Data Sheet
Compliant to RoHS II EU Directive 2011/65/EC (-Z versions)
Compliant to ROHS EU Directive 2002/95/EC with lead solder
exemption (non-Z versions)
Delivers up to 3.5A Output current
15V (1A), 12V (1.25A), 5.0V (3A) and 3.3V (3.5A)

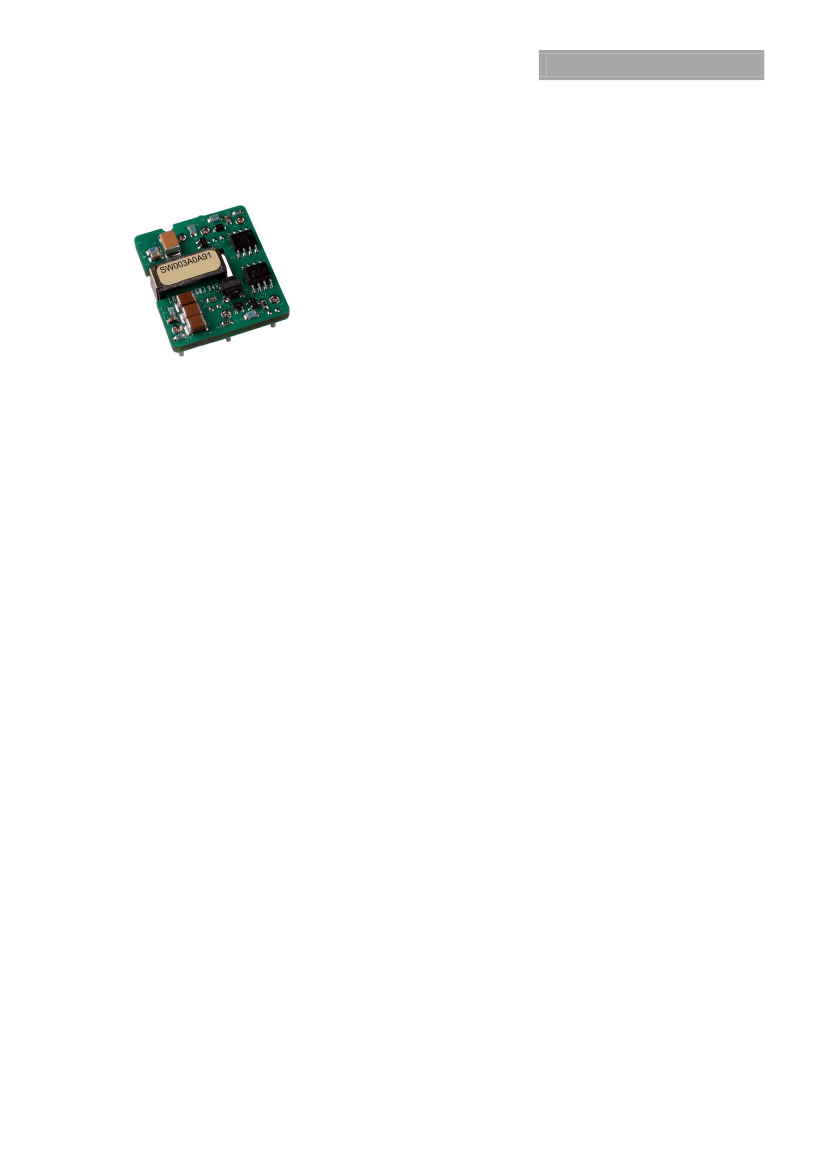

Representative Photo.
Actual product may vary.
High efficiency – 86% at 5.0V full load (V
IN
=54 Vdc)
Low output ripple and noise
Small Size and low profile
27.94mm x 24.38mm x 8.5mm
(1.10 x 0.96 x 0.335 in)
RoHS Compliant
Applications
Wireless Networks
Distributed power architectures
Optical and Access Network Equipment
Enterprise Networks
Latest generation IC’s (DSP, FPGA, ASIC) and
Microprocessor powered applications
Industry Standard pin-out:
TH version is LW series compatible
Surface mount (SMT) or Through hole (TH)
Remote On/Off (optional pin on TH version)
Output overcurrent/voltage protection
Single Tightly regulated output
Output voltage adjustment trim
10%
Wide operating temperature range (-40°C to 85°C)
Meets the voltage insulation requirements for ETSI 300-132-2
and complies with and is Licensed for Basic Insulation rating per
EN 60950
CE mark meets the 2006/95/EC directive
§
UL*
60950-1Recognized,
CSA
†
C22.2 No. 60950-1-03 Certified,
and
VDE
‡
0805: (IEC60950, 3
rd
Edition) Licensed
ISO** 9001 and ISO 14001 certified manufacturing facilities
Approved for Basic Insulation
Options
Remote On/Off logic (positive or negative), pin
optional for TH version (Suffix 1 or 4)
Output voltage adjustment-Trim, pin optional for
TH version (Suffix 9)
Surface Mount/Tape and Reel (-SR Suffix)
Description
The SW/SC series power modules are isolated dc-dc converters that operate over a wide range of input voltage (V
IN
= 18 - 36Vdc
for SC modules and V
IN
= 36 – 75Vdc for SW modules) and provide a single precisely regulated output. This series is a low cost,
smaller size alternative to the existing LW/LAW/LC with enhanced performance parameters. The output is fully isolated from the
input, allowing versatile polarity configurations and grounding connections. The modules exhibit high efficiency, typical efficiency
of 86% for 5.0V/3A. Built-in filtering for both input and output minimizes the need for external filtering.
§ This product is intended for integration into end-use equipment. All of the required procedures of end-use equipment should be followed.
*
UL
is a registered trademark of Underwriters Laboratories, Inc.
†
CSA
is a registered trademark of Canadian Standards Association.
‡
VDE
is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
October 14, 2013
©2013 General Electric Company. All rights reserved.
Page 1
GE
SW/SC001/003 Series DC-DC Power Module
Absolute Maximum Ratings
18-36Vdc & 36-75Vdc Input; 3.3-15Vdc Output; 1-3.5A Output Current
Data Sheet
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings
only, functional operation of the device is not implied at these or any other conditions in excess of those given in the operations
sections of the data sheet. Exposure to absolute maximum ratings for extended periods can adversely affect the device reliability.
Parameter
Input Voltage (Continuous)
Transient (100ms)
Operating Ambient Temperature
(see Thermal Considerations section)
Storage Temperature
I/O Isolation Voltage (100% factory Hi-Pot tested)
All
All
T
stg
-55
125
2250
°C
Vdc
Device
SW
SC
All
All
Symbol
V
IN
V
IN
V
IN, trans
T
A
Min
-0.3
-0.3
-0.3
-40
Max
80
50
100
85
Vdc
°C
Unit
Vdc
Electrical Specifications
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature conditions.
Parameter
Operating Input Voltage
Maximum Input Current (V
IN
=0V to 75V, I
O
=I
O, max
)
(V
IN
=0V to 36V, I
O
=I
O, max
)
Inrush Transient
Input Reflected Ripple Current, peak-to-peak
(5Hz to 20MHz, 12μH source impedance; V
IN
=0V to 75V, I
O
=
I
Omax
; see Test configuration section)
Input Ripple Rejection (120Hz)
EMC, EN55022
Device
SW
SC
SW
SC
All
All
All
Symbol
V
IN
V
IN
I
IN,max
I
IN,max
I
2
t
30
50
See EMC Considerations section
Min
36
18
Typ
54
27
Max
75
36
0.6
1.2
0.05
Unit
Vdc
Vdc
Adc
Adc
A
2
s
mAp-p
dB
CAUTION: This power module is not internally fused. An input line fuse must always be used.
This power module can be used in a wide variety of applications, ranging from simple standalone operation to being part of
complex power architecture. To preserve maximum flexibility, internal fusing is not included; however, to achieve maximum safety
and system protection, always use an input line fuse. The safety agencies require a fast-acting fuse with a maximum rating of 3A
(see Safety Considerations section). Based on the information provided in this data sheet on inrush energy and maximum dc input
current, the same type of fuse with a lower rating can be used. Refer to the fuse manufacturer’s data sheet for further information.
October 14, 2013
©2013 General Electric Company. All rights reserved.
Page 2
GE
SW/SC001/003 Series DC-DC Power Module
Electrical Specifications
(continued)
Parameter
Output Voltage Set-point
(V
IN
=V
IN,nom
, I
O
=I
O, max
, T
A
=25°C)
Output Voltage
(Over all operating input voltage, resistive load, and
temperature conditions until end of life)
Adjustment Range
Selected by external resistor
Output Regulation
Line (V
IN
=V
IN, min
to V
IN, max
) (relative to actual V
O, set
at 50% load)
Load (I
O
=I
O, min
to I
O, max
) (relative to actual V
O, set
at Typical V
IN
)
Temperature (T
ref
=T
A, min
to T
A, max
)
Output Ripple and Noise on nominal output
Measured with 10uF Tantalum and 1uF ceramic
(V
IN
=V
IN, nom
I
O
=80%I
O, max
T
A
=25°C)
RMS (5Hz to 20MHz bandwidth)
Peak-to-Peak (5Hz to 20MHz bandwidth)
RMS (5Hz to 20MHz bandwidth)
Peak-to-Peak (5Hz to 20MHz bandwidth)
External Capacitance
Output Current
5V, 3.3V
5V, 3.3V
15V, 12V
15V, 12V
3.3V, 5V
12V, 15V
15V
12V
5V
3.3V
Output Current Limit Inception
(Hiccup Mode)
15V
12V
5V
3.3V
Output Short-Circuit Current
V
O
≤ 250 mV @ 25
o
C
15V
12V
5V
3.3V
Efficiency
V
IN
=V
IN, nom
, T
A
=25°C
I
O
=I
O, max,
V
O
= V
O, set
SW (15V)
SW (12V)
SW (5.0V)
SW (3.3V)
SC (12V)
SC (5.0V)
SC (3.3V)
Switching Frequency (Variable with Line & Load)
V
IN
=V
IN, nom
and I
O
= I
O, max
V
IN
=V
IN, nom
and I
O
= 0.5 x I
O, max
All
All
f
sw
f
sw
300
440
C
O, max
C
O, max
I
o
I
o
I
o
I
o
I
O, lim
I
O, lim
I
O, lim
I
O, lim
I
O, s/c
I
O, s/c
I
O, s/c
I
O, s/c
η
η
η
η
η
η
η
0
0
0
0
0
0
1.1
1.4
3.2
3.7
83.0
4.2
88.0
87.0
86.0
85.0
85.0
85.5
85.5
All
All
All
0.05
0.05
V
O
-3.0
Device
All
Symbol
V
O, set
Min
-1.5
Typ
Data Sheet
18-36Vdc & 36-75Vdc Input; 3.3-15Vdc Output; 1-3.5A Output Current
Max
+1.5
Unit
% V
O, set
+3.0
% V
O, set
All
V
O, adj
-10.0
+10.0
% V
O, set
0.3
0.2
1.00
% V
O, set
% V
O, set
% V
O, set
25
75
35
100
1000
220
1.0
1.25
3.0
3.5
0.8
1.2
0.7
1.5
mV
rms
mV
pk-pk
mV
rms
mV
pk-pk
μF
μF
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Adc
Arms
Arms
Arms
Arms
%
%
%
%
%
%
%
kHz
kHz
October 14, 2013
©2013 General Electric Company. All rights reserved.
Page 3
GE
SW/SC001/003 Series DC-DC Power Module
Electrical Specifications
(continued)
Parameter
Dynamic Load Response
(Io/t=0.1A/s, V
IN
=V
IN, nom,
T
A
=25°C)
Load Change from Io= 50% to 75% or 25% to 50% of
Io,max:
Peak Deviation
Settling Time (Vo<10% peak deviation)
All
All
V
pk
t
s
1.5
800
Device
Symbol
Min
Typ
Data Sheet
18-36Vdc & 36-75Vdc Input; 3.3-15Vdc Output; 1-3.5A Output Current
Max
Unit
% V
O, set
s
Isolation Specifications
Parameter
Isolation Capacitance
Isolation Resistance
I/O Isolation Voltage
Symbol
C
iso
R
iso
All
Min
10
Typ
65
Max
2250
Unit
pF
MΩ
Vdc
General Specifications
Parameter
Calculated MTBF (for SW003A0A91 in accordance with Lineage Power RIN: I
O
=80% of I
O, max
,
T
A
=25°C, airflow=1m/s)
Weight
Min
Typ
8,200,000
7.9 (0.28)
Max
Unit
Hours
g (oz.)
October 14, 2013
©2013 General Electric Company. All rights reserved.
Page 4
GE
SW/SC001/003 Series DC-DC Power Module
Feature Specifications
18-36Vdc & 36-75Vdc Input; 3.3-15Vdc Output; 1-3.5A Output Current
Data Sheet
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature conditions. See
Feature Descriptions for additional information.
Parameter
Remote On/Off Signal Interface
(V
IN
=V
IN, min
to V
IN, max
; open collector or equivalent,
Signal referenced to V
IN-
terminal)
Negative Logic: device code suffix “1”
Logic Low = module On, Logic High = module Off
Positive Logic: No device code suffix required
Logic Low = module Off, Logic High = module On
Logic Low - Remote On/Off Current
Logic Low - On/Off Voltage
Logic High Voltage – (Typ = Open Collector)
Logic High maximum allowable leakage current
Turn-On Delay and Rise Times
(I
O
=80% of I
O, max
, T
A
=25°C)
Case 1: On/Off input is set ON and then input power is
applied (T
delay
= from instant at which V
IN
=V
IN, min
until V
O
=
10% of V
O, set
).
Case 2: Input power is applied for at least 1 second and
then On/Off input is set from OFF to ON (T
delay
= from instant
at which V
IN
=V
IN, min
until V
O
= 10% of V
O, set
).
T
rise
= time for V
O
to rise from 10% of V
O, set
to 90% of V
O, set
.
T
rise
= time for V
O
to rise from 10% of V
O, set
to 90% of V
O, set
with max ext capacitance
Output Voltage Overshoot
(I
O
=80% of I
O, max
, V
IN
= 54V, T
A
=25°C)
Output Overvoltage Protection
15V
12V
5.0V
3.3V
Input Undervoltage Lockout
Turn-on Threshold
Turn-off Threshold
Hysterisis
Turn-on Threshold
Turn-off Threshold
Hystersis
SW
SW
SW
SC
SC
SC
V
uv/on
V
uv/off
V
hyst
V
uv/on
V
uv/off
V
hyst
27.5
13.5
33
30.5
2.5
17
14.5
3.0
36
18
V
V
V
V
V
V
V
O, limit
V
O, limit
V
O, limit
V
O, limit
16.6
13.3
5.6
3.7
All
T
delay
Case1
Device
Symbol
Min
Typ
Max
Unit
All
All
All
All
I
on/off
V
on/off
V
on/off
I
on/off
-0.7
5.8
1.0
1.2
15
50
mA
V
V
μA
20
50
ms
All
T
delay
Case2
20
50
ms
All
All
T
rise
T
rise
0.1
1.5
1
3
21.0
16.0
7.0
5.4
ms
ms
% V
O, set
V
V
V
V
October 14, 2013
©2013 General Electric Company. All rights reserved.
Page 5
京公网安备 11010802033920号
EEWORLD
