UFP-14A-02-4 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> UFP-14A-02-4

Preview

UFP-14A-02-4: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size32KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

UFP-14A-02-4 Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Plug

UFP-14A-02-4 Parametric

Parameter Name	Attribute value
Maker	Yamaichi Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.157 inch
subject depth	0.118 inch
body length	1.4 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	UFP
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14

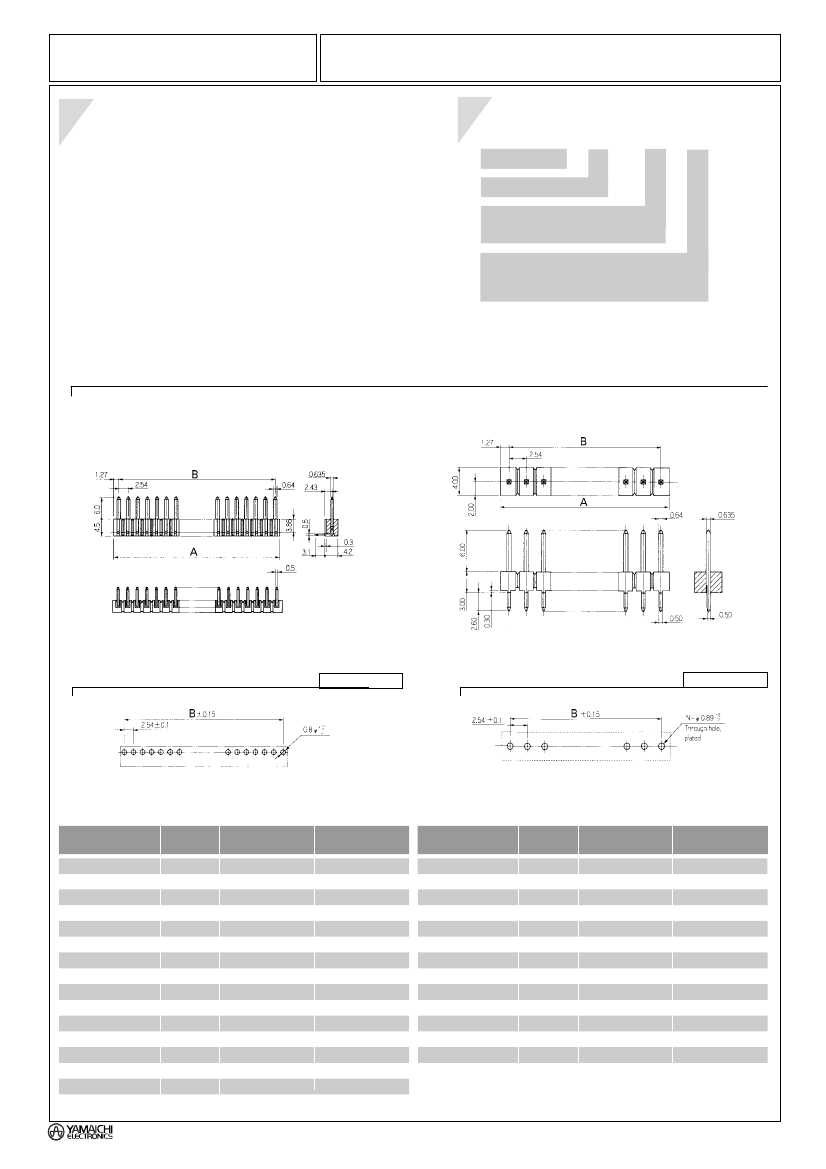

UFP-14A-02-4 Preview

UF Series

Specifications

Pin Header Connector

(Single Row)

Part Number

(Details)

UFP

- 40A - 02 - *

Series (plug)

No. of Leads

Connector Type:

02 = Single Row

Terminal Type:

2 = Right Angle Solder Dip

4 = Straight Solder Dip

Inulation Resistance:

1,000MΩ min. at 500 V DC

Withstanding Voltage: 1,000 V AC rms for 1 minute

Contact Resistance:

30mΩ max. at 10mA

Current Rating:

3A

Operating Temp. Range: –55°C to +125°C

Materials and Finish

Housing: PBT

Contacts: Copper Alloy, Gold plating over Nickel

Features

µ

General purpose pin header connectors for mating

with flat cable connectors and crimp-on connectors

µ

Exposed contact area protected by insulator

Applicable Dimensions

(Reference Only)

Terminal Type 2 - Right Angle Solder Dip

Terminal Type Type 4 - Straight Solder Dip

Recommended PCB Layout

Top View

Recommended PCB Layout

Top View

Notes:

1) 3-, 6-, 8- and 40-lead right angle connectors (4 types) and 8- and 40-lead straight connectors (2 types) are molded; all others are cut to necessary sizes

2) 17-, 18-, 31-and 34-lead connectors (4 types) are available only in the right angle type

3) 23- and 33-lead connectors (2 types) are available only in straight solder dip type

Part No.

YAMAICHI ELECTRONICS - Munich 089 / 45109-0

UFP-02A-02-*

1)

UFP-03A-02-*

No. of

Leads

2

3

4

5

6

7

8

9

10

11

12

14

15

16

17

A

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

35.56

38.10

40.64

43.18

B

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

33.02

35.56

38.10

40.64

Part No.

2)

UFP-18A-02-2

No. of

Leads

18

19

20

23

24

25

26

30

31

32

33

34

36

40

A

45.72

48.26

50.80

58.42

60.96

63.50

66.04

76.20

78.74

81.28

83.82

86.36

91.44

101.60

B

43.18

45.72

48.26

55.88

58.42

60.96

63.50

73.66

76.20

78.74

81.28

83.82

88.90

99.06

UFP-04A-02-*

UFP-05A-02-*

1)

UFP-06A-02-*

UFP-07A-02-*

1)

UFP-08A-02-*

UFP-09A-02-*

UFP-10A-02-*

UFP-11A-02-*

UFP-12A-02-*

UFP-14A-02-*

UFP-15A-02-*

UFP-16A-02-*

2)

UFP-17A-02-2

UFP-19A-02-*

UFP-20A-02-*

3)

UFP-23A-02-4

UFP-24A-02-*

UFP-25A-02-*

UFP-26A-02-*

UFP-30A-02-*

2)

UFP-31A-02-2

UFP-32A-02-*

3)

UFP-33A-02-4

2)

UFP-34A-02-2

UFP-36A-02-*

1)

UFP-40A-02-*

SPECIFICATIONS
