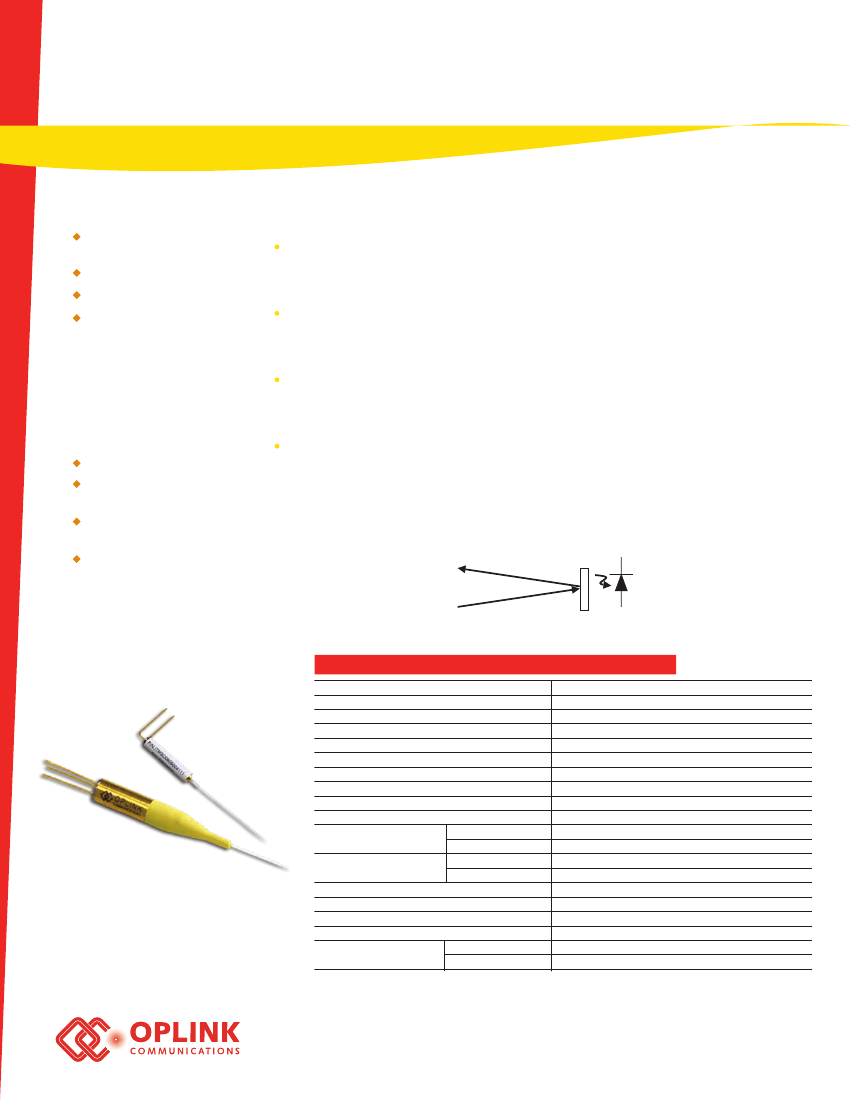

Single Channel Integrated WDM
Monitors
IWMS Series
Features
Wide Operating Wavelength
Range
Low Insertion Loss and PDL
Low Dark Current
High Temperature Stability
Single Channel Integrated WDM Monitors
Oplink's single channel Integrated WDM Monitor (IWMS) is acompact, WDM power
monitoring device. It allows power monitoring at one or more wavelengths while transmit-
ting all other wavelengths.
The IWMS integrates the functionality of a WDMfilter and a photodiode while delivering
low insertionloss and low dark current with high temperaturestability over a wide wave-
length range. It increasesmodule design flexibility and efficiency byfacilitating fiber
management. It is compact and easyto mount on a PCB board for module and system
use.Applications include DWDM channel power monitoring,optical network
switching/protection monitoring, re-configurable optical add/dropmultiplexers, and
gain/attenuation monitoring in amplifier systems.
Oplink can provide customized designs to meet specialized feature applications. Also,
Oplink offers modular assemblies that integrate other components to form a full function
module or subsystem.
Functional Diagram
B
2
(B
1
) Output (Reflecton)
B
1
(B
2
) Photocurrent
Applications
DWDM Channel Monitoring
Optical Network Switch/
Protection Monitoring
Re-configurable Optical
Add/drop Multiplexers
Gain/Attenuation Monitoring
in Amplifier Systems
B
1
+ B
2
Input
Performance Specifications
Parameter
Min
Typical
Max
Units
B
I
Wavelength Range
B
2
Wavelength Range
Insertion Loss for Transmitted Signal
1
Polarization Dependent Loss
B
2
Output Isolation at B
1
B
1
Output Isolation at B
2
Return Loss
1
PD Responsivity
Input Optical Power
PD Bandwidth =0.5G
Dark Current@ -5V bias, 70°C
PD Bandwidth =1.0G
PD Bandwidth =0.5G
Capacitance@-5V bias (1MHz)
PD Bandwidth =1.0G
Operating Temperature
Storage temperature
Soldering Temperature (10s)
Fiber Type
Standard
Package Dimension
Miniature
1. Excluding connectors
2. Bare fiber L=17mm; With 900 µm loose tube L =22 mm
1260 ~ 1360
1525 ~ 1570 or 1570 ~ 1620
0.6
0.03
0.05
15
35
40
0.7
-20
-5
-40
SMF-28
ø 5.6 x 27.0
ø 3.3 x L
2
10
10
5
20
5
70
85
260
nm
nm
dB
dB
dB
dB
dB
A/W
dBm
nA
nA
pF
pF
°C
°C
°C
mm
mm
Oplink Communications, Inc.
R3.20070830
Single Channel Integrated WDM Monitors
IWMS Series

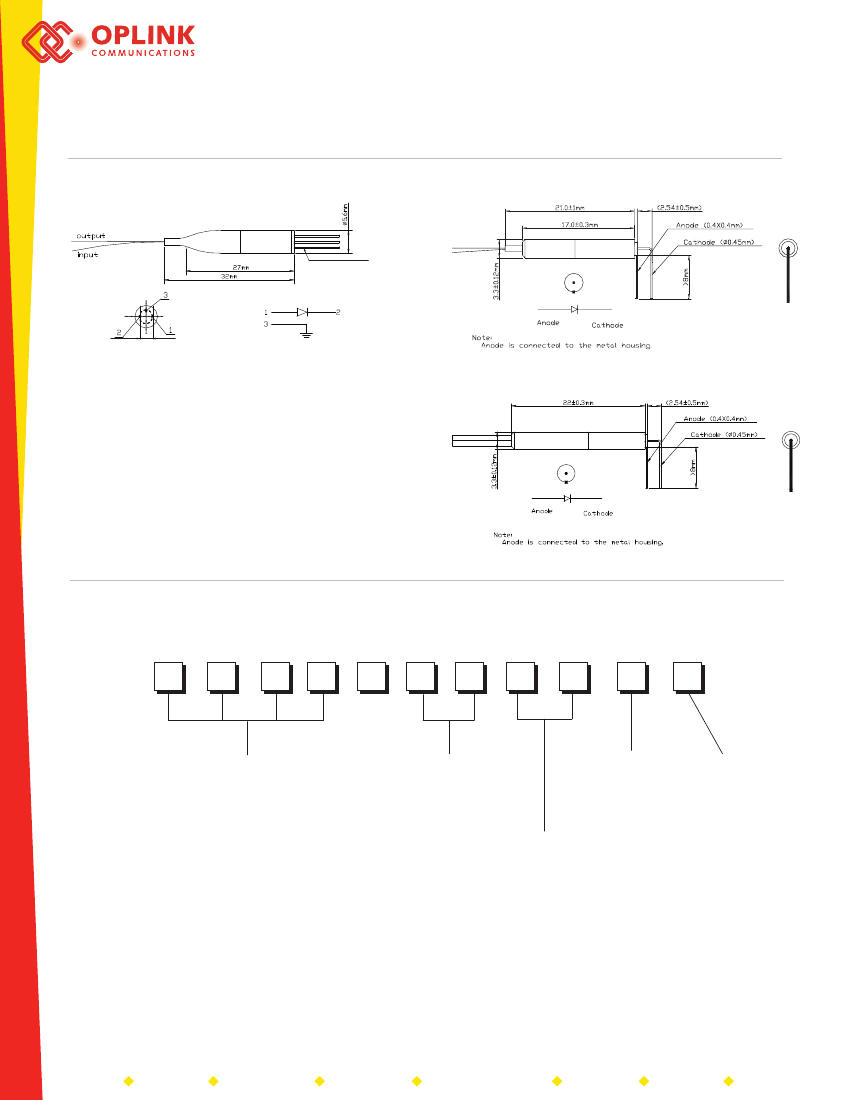

Mechanical Drawing / Package Dimensions
(dimension in mm)
Standard Package (P1, Bare Fiber or Loose Tube)
Miniature Package (P4, Bare Fiber)
Input(Black)
ф0.45 mm Lead, ≥12mm
ф2.
5 mm
Standard
Package Pin Assignment
Pin 1:
Pin
2:
Pin
3:
Anode
Cathode
Case Ground
Miniature Package (P5, Loose Tube)
Input(Blue)
Output(White)
46335 Landing Parkway Fremont, CA 94538-6407 Tel: (510 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink's OEM design team
or account manager for your requirements and ordering information (510) 933-7200.
IWMS
0
Detection Wavelength
1310nm= 1310
1550nm= 1550
1600nm= 1600
Bandwidth
0.5G= 05
1.0G= 10
Fiber Length
0.5 meter= H
1.0 meter= 1
1.5 meter= 5
2.0 meter= 2
Fiber Type
P1+250µm bare fiber= 11
P1+900µm loose tube=12
P2+250µm bare fiber= 41
P5+900µm loose tube=52
RoHS:
1) Add “G” to the end of the above PN for RoHS 6.
Connector
Type
None= 1
FC/PC= 2
FC/SPC= 3
FC/APC= 4
SC/PC= 5
SC/SPC= 6
SC/APC= 7
ST= 8
LC= 9
MU= A
R3.20070830
Product Lines
Mux/Demux
Switching/Routing
Coupling/Splitting
Monitoring/Conditioning
Amplification
Interconnect
RGB Laser Modules
Embedded System
