BDPH-2-34-CSL-SG30 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> BDPH-2-34-CSL-SG30

Preview

BDPH-2-34-CSL-SG30: DescriptionBoard Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BDPH-2-34-CSL-SG30 Overview

Board Connector, 34 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle

BDPH-2-34-CSL-SG30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.157 inch
body length	1.339 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Manufacturer's serial number	BDPH-2-XX-CSL
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	34

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

SPECIFICATIONS

Current Rating:

Contact Material:

Contact Resistance:

Contact Plating:

Insulator Material:

Insulator Resistance:

Withstanding:

Operating Temperature:

2 Amps

Brass

30 m ohms max.

Full Gold, Full Tin, Selective Plating

UL 94V-0

1000 Megohms min.

AC 500V

-40ºC ~ +105ºC

A

B

C

D

E

Series

Rows

BDPH

X

2mm dual insulator 2, 3, 4

pinheader

Type

XX

Blank=Thru Hole

SM=Surface

Mount

Date

08/10/99

08/10/99 Part No.:

Positions

XX

2 Rows=04-80

3 Rows=06-120

4 Rows=08-160

Dimensions

CSL (A/B/E)

See drawing

Plating

XX

TN=Tin

SGXX=Selective Gold

GDXX=Gold

XX=Flash if blank, 10,

15, 30u”

E

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BDPH-2-XX-CSL-XX

G

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

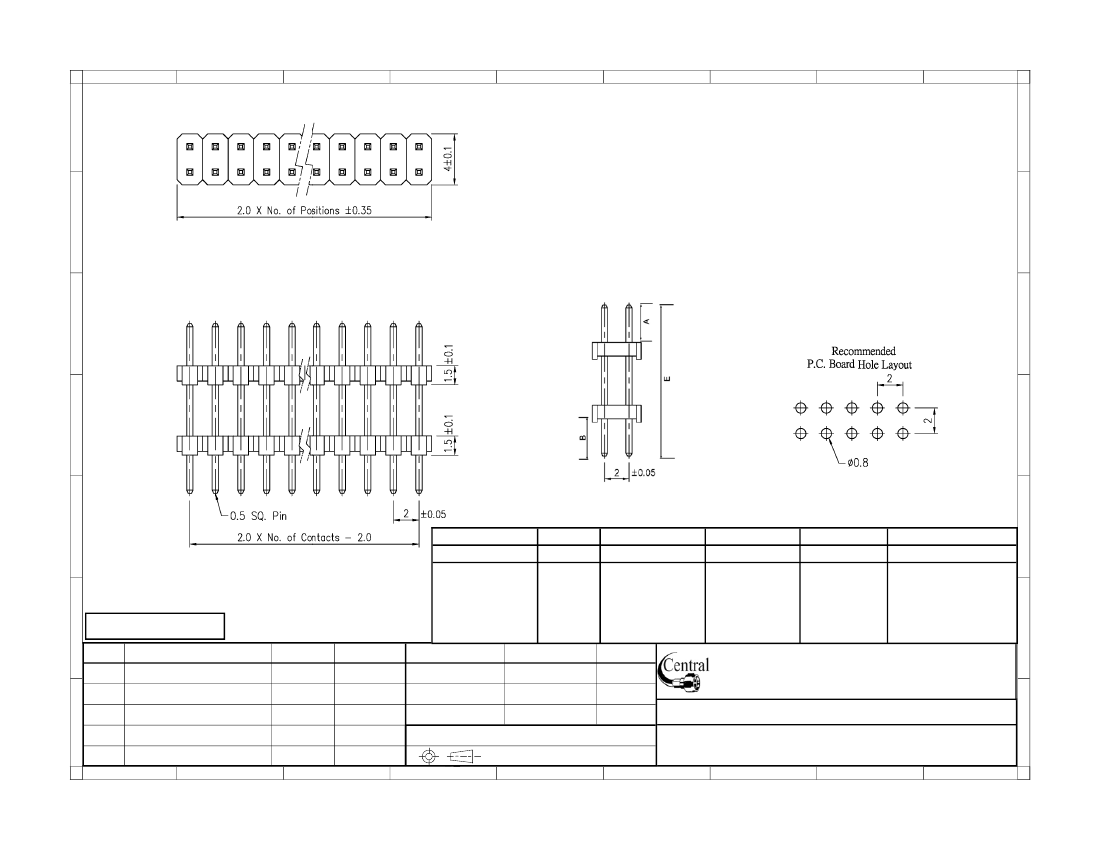

Description: 2mm x 2mm Dual Insulator (Board Stacker) Pin Header
