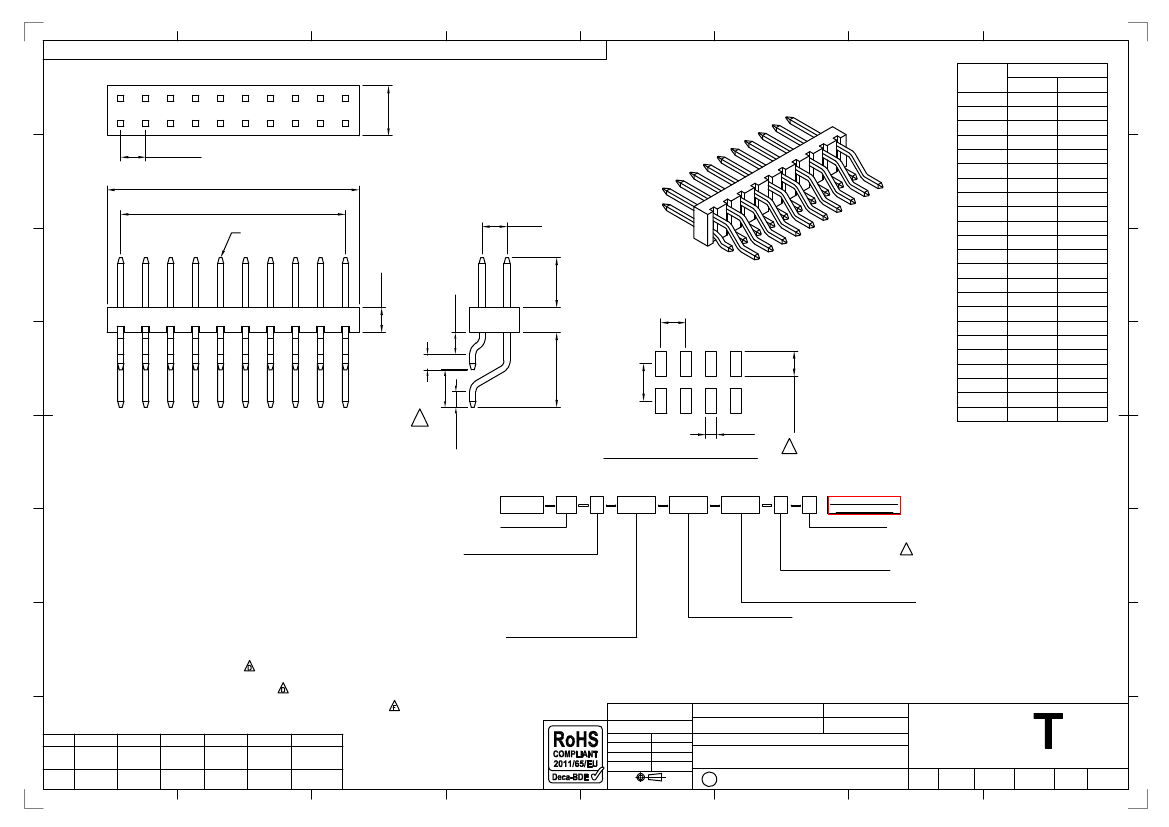

Global Connector Technology Ltd. - BF135: 2.0mm PITCH PIN HEADER, DUAL ROW, SURFACE MOUNT, HORIZONTAL
A
4.00
5
6
7
8
DIMENSIONS
A
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
40.0
42.0
44.0
46.0
48.0
B
6.2
8.2
10.2
12.2
14.2
16.2
18.2
20.2
22.2
24.2
26.2
28.2
30.2
32.2
34.2
36.2
38.2
40.2
42.2
44.2
46.2
48.2
50.2
CONTACTS
6
8
10
12
14
16
A
2.00 Typ.
B
B±0.35
A±0.20
2.00
PIN 0.50 SQ (Typ.)
18
20
22
24
26
28
30
32
34
36
38
40
42
44
B
2.00
1.73
C±0.2
C
C
2.00
Typ. (Non-Accum)
D
1.27
E±0.2
D±0.2
D
E
46
2.00 Typ.
48
50
E
1.27
E
SPECIFICATIONS
规格
CURRENT RATING
电流额定值：
2.0 AMP
INSULATION RESISTANCE
绝缘电阻值：
1000 MΩ Min.
CONTACT RESISTANCE
接触电阻值：
20 mΩ Max.
DIELECTRIC WITHSTANDING
耐电压：
500 V AC
OPERATING TEMPERATURE
工½温度：
-40°C TO +105°C
CONTACT MATERIAL
端子物料：
COPPER ALLOY
INSULATOR MATERIAL
绝缘½物料
:
STANDARD
标准物料
: POLYAMIDE
聚醯胺
, NYLON 6T, UL 94V-0
OPTIONS
可选物料
: POLYESTER
聚酯
, LCP, UL 94V-0
SOLDERING PROCESS
可焊性
:
NYLON 6T (STANDARD
标准物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
:230°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
LCP (OPTION
可选物料
) -
IR REFLOW
回流焊
: 260°C for 10 sec.
WAVE
波峰焊
:250°C for 5-10 sec.
MANUAL SOLDER
人工焊接
: 350°C for 3-5 sec
MATES WITH
配套之母座
(SUBJECT TO PIN LENGTH
在端子长度适合的条件下
):
BF065
BF080
BF095
BF100
BF115
BF120
By
DETAIL
REV
DATE
LYH
DRAWING
RELEASE
A
31/10/07
PN
PCB
LAYOUT
B
20/04/09
CB
PACKING
OPTIONS
C
23/04/09
DR
SOLDER
TEMP.
D
05/08/09
SA
DIM.
POSITION
E
09/10/09
AJO
MATES WITH
UPDATED
F
18/06/13
0.90
RECOMMENDED PCB LAYOUT
B
E
Ordering Grid
BF135
XX
X
XXXX
XXXX
XXXX
X
X
REQUEST SAMPLES
AND QUOTATION
No. of Contacts
02 to 50
Contact Plating
A = Gold Flash All Over
(Standard)
B = Selective Gold Flash Contact Area/
Tin On Tail
C = Tin All Over
G = 10µ" Gold Contact Area/Tin On Tail
I = 30µ" Gold Contact Area/Tin On Tail
Dimension C (1/100mm)
(Post Length)
0400
=
4.00mm
(Standard)
Or specify Dimension C
eg 0250 = 2.50mm
F
G
Dimension D (1/100mm)
(Insulator to End of Pin)
0700 = 7.00mm
(Standard)
Or specify Dimension D
eg 0250 = 2.50mm
Packing Options
C = Tape and Reel with Cap
(Standard)
D = Tube
F = Tube with Cap
C
Insulator Material
N = Nylon 6T
(Standard)
L = LCP
Dimension E (1/100mm)
(Pin Curve to End of Pin)
0400
=
4.00mm
(Standard)
Or specify Dimension E
eg 0250 = 2.50mm
(Dimension E should be
equivalent to dim D minus 3.00mm)
F
G
Tolerances
(Except as noted)
Part Number:-
Date:-
Dimensions in mm
BF135
Description:-
31 OCT 07
H
X.°±5°
X.X ± 0.20
.X°±2°
X.XX ± 0.15 .XX°±1°
X.XXX ± 0.10 .XXX°±0.5°
Third Angle Projection
X. ± 0.30
2.0mm PITCH PIN HEADER, DUAL ROW,
SURFACE MOUNT, HORIZONTAL
GC
Scale
NTS
H
Sheet No.
E & OE
1/1
www.gct.co
Material
Drawn by
LYH
C
THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE
COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT
Revision
F
See Note
1
2
3
4
5
6
7
8
