8
7
6
5
4
3
2
1
SINGLE
ROW
DOUBLE
ROW
F
F
Resommended P.C. Board Layout
SCALE 4:1
DOUBLE ROW
SINGLE ROW
Pin 1
.100
[2.54]
Pin 1
.100[2.54]
.040
[1.02]
.040
[1.02]
.100
[2.54]
Pin 1
E
Pin 1
.200
[5.08]
.200
[5.08]
JUMP
MIDDLE
ROW
TRIPLE
ROW
E
.040
[1.02]
JUMP MIDDLE ROW
.100
[2.54]
.040
[1.02]
.100
[2.54]
TRIPLE ROW
LTSHR-1 XX - X - XX - X - XX - XX - XXX - X - LF
(A) (B) (C ) (D) (E) (F) (G) (H) (I)
A. Pins Per Row
- 1 through 40
B. Row Specification
- S= Single Row
- D= Double Row
- J= Jump Middle Row
- T= Triple Row
C. Pin Options
- See Pin Options below
D. Desired Post Height
- A= .230[5.84]
- B= .318[8.08]
E. Plating Options
- See Plating Options below
F. Lock Tight “LT” (Optional)
- Leave blank if not needed
- LT= With
G. Polarized Position
- Leave blank if not needed
- If required, specify empty pin position
- e.g. 012 for Pin 12
H. Every Other Pin Filled (.200 Centers)
- Leave blank if not needed
- E= Filled
I. Lead Free
G
T
GT
H
F
FT
Plating options
-10µ Gold on Contact Area/ Flash on Tail
-Matte Tin all Over
-10µ Gold on Contact Area/ Matte Tin on Tail
-30µ Gold on Contact Area/ Matte Tin on Tail
-Gold Flash over Entire Pin
- Gold Flash on Contact Area/ Matte Tin on Tail
D
POST
.100[2.54]X No. of Positions
APPLICATION
40
.100
[2.54]
.050
[1.27]
C
01
.098[2.50]
Mates with:
BCSS.
BSSH.
BSSHC.
BSSQ.
BSSQC.
BSSQM.
LBCSS.
LSMBC.
LSWSS.
SMBC.
SSHQ.
SSHQR.
SSHR.
SSHS.
SSHSM.
D
TAIL
.060
[1.52]
.100[2.54]
.025[0.64] Sq.
SINGLE ROW
.100[2.54]X No. of Spaces
C
02
80
.100[2.54]
.197
[5.00]
01
79
.100[2.54]
DOUBLE ROW
03
B
120
.200
[5.08]
Pin Options
Specifications:
Current Rating: 3.0 Ampere
Tail With .230 Post Tail With .318 Post
Insulation Resistance: 1000M Ohms Min.
.110[2.79mm]
N/A
Dielectric Withstanding: 600V AC
.210[5.33mm]
.122[3.10mm]
Contact Resistance: 20M Ohms Max.
.310[7.87mm]
.222[5.64mm]
Operation Temperature: -40°C to +105°C
Max. Process Temperature
.410[10.42mm]
.322[8.18mm]
Peak: 260°C up to 20 secs.
.510[12.95mm]
.422[10.71mm]
Process: 230°C up to 60 secs.
.610[15.49mm]
.522[13.26mm]
Wave: 260°C up to 6 secs.
Manual Solder: 350°C up to 5 secs.
.710[18.03mm]
.622[15.80mm]
01
119
.200[5.08]
JUMP MIDDLE ROW
03
120
.100[2.54]
.295
[7.50]
Materials:
Contact Material: Phosphor Bronze
Insulator Material: Nylon 6T
Plating: Au or Sn over 50 ” (1.27) Ni
.810[20.57mm]
.910[23.61mm]
1.010[25.65mm]
1.110[28.19mm]
.722[18.34mm]
.822[20.88mm]
.922[23.42mm]
1.022[25.96mm]
02
04
06
08
10
12
14
16
18
20
22
B
Tails may be clipped to acheive specific dimensions.
Products cut to specific sizes are uncancellable/ nonreturnable.
Parts are subject to change without notice.
UNLESS OTHERWISE SPECIFIED:
NAME
DRAWN
CHECKED
ENG APPR.
MFG APPR.
INTERPRET GEOMETRIC
TOLERANCING PER:
MATERIAL
FINISH
DATE
A
01
119
PROPRIETARY AND CONFIDENTIAL
.100[2.54]
.100[2.54]
8
7
6
TRIPLE ROW
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
Major League Electronics. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
Major League Electronics IS
PROHIBITED.
DIMENSIONS ARE IN
INCHES
TOLERENCES:
ONE DECIMALS ±.100
TWO DECIMAL ±.100
THREE DECIMAL ±.005
FOUR DECIMAL ±.002
NEXT ASSY
APPLICATION
USED ON
EOW
GWE
01/16/14
01/16/14
A
Q.A.
ADDRESS:
4 2 3 5 E a rn in g s W a y
N e w A lb a n y , I N 4 7 1 5 0
P h o n e : 8 1 2 -9 4 4 -7 2 4 4 F a x : 8 1 2 -
94 4 -7 26 8
e -M a i l:
m le @ m l e l e c tr o n ic s . c o m
TITLE:

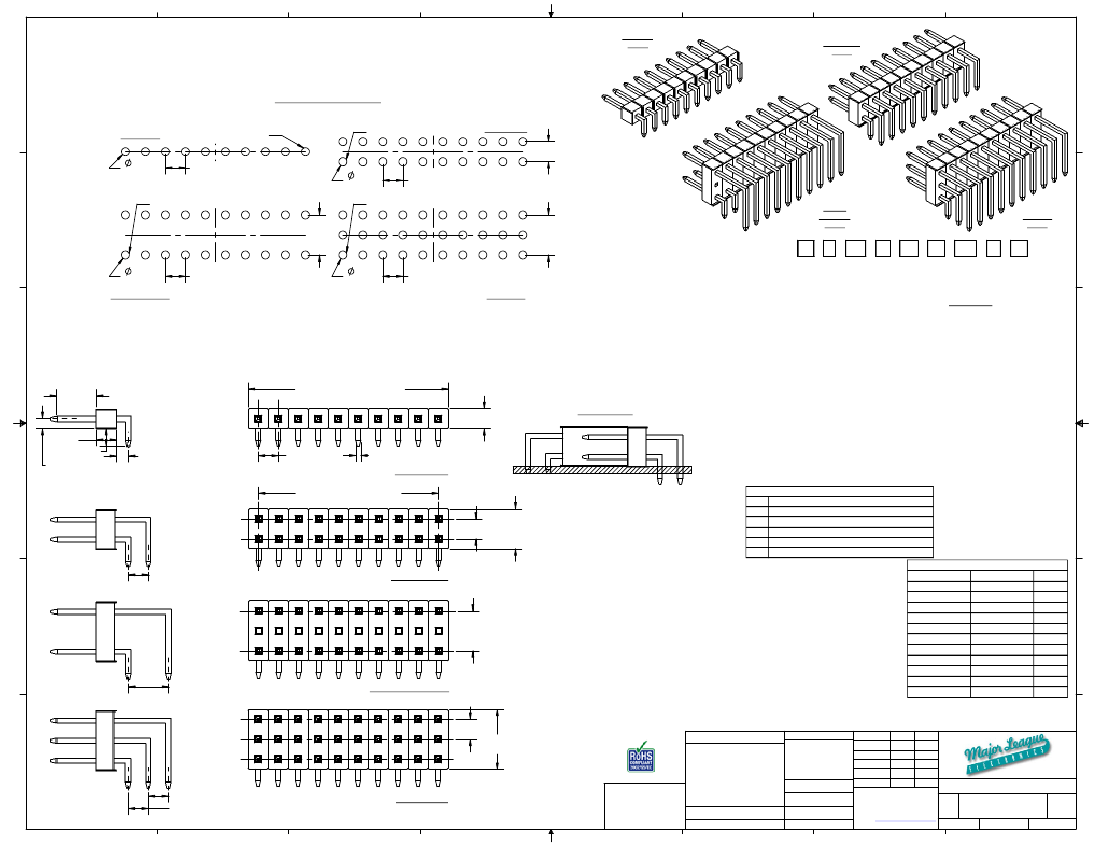

LTSHR-1 SERIES
REV
SIZE DWG. NO.
C
SCALE: 4:1
1
A
SHEET 1 OF 1
DO NOT SCALE DRAWING
