10108777-11523Y Overview

Card Edge Connector, 164 Contact(s), 2 Row(s), Female, Straight, Solder Terminal,

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	164
UL Flammability Code	94V-0

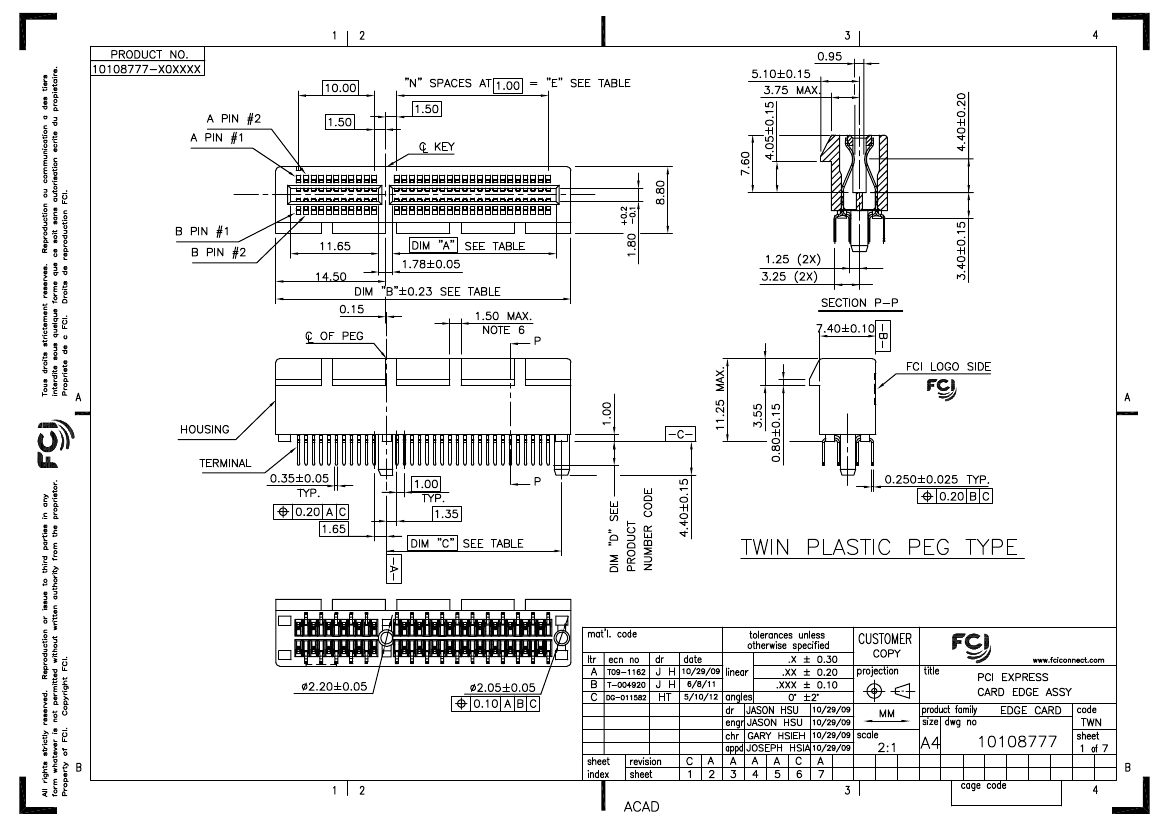

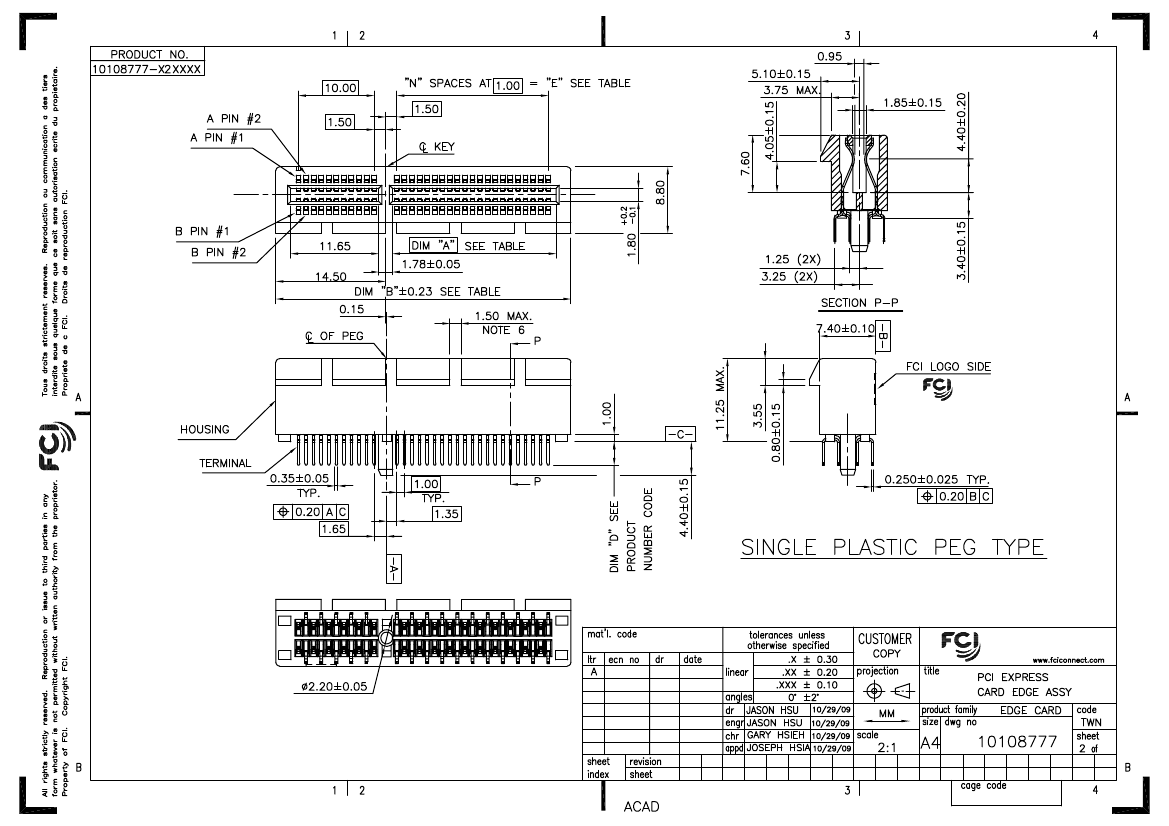

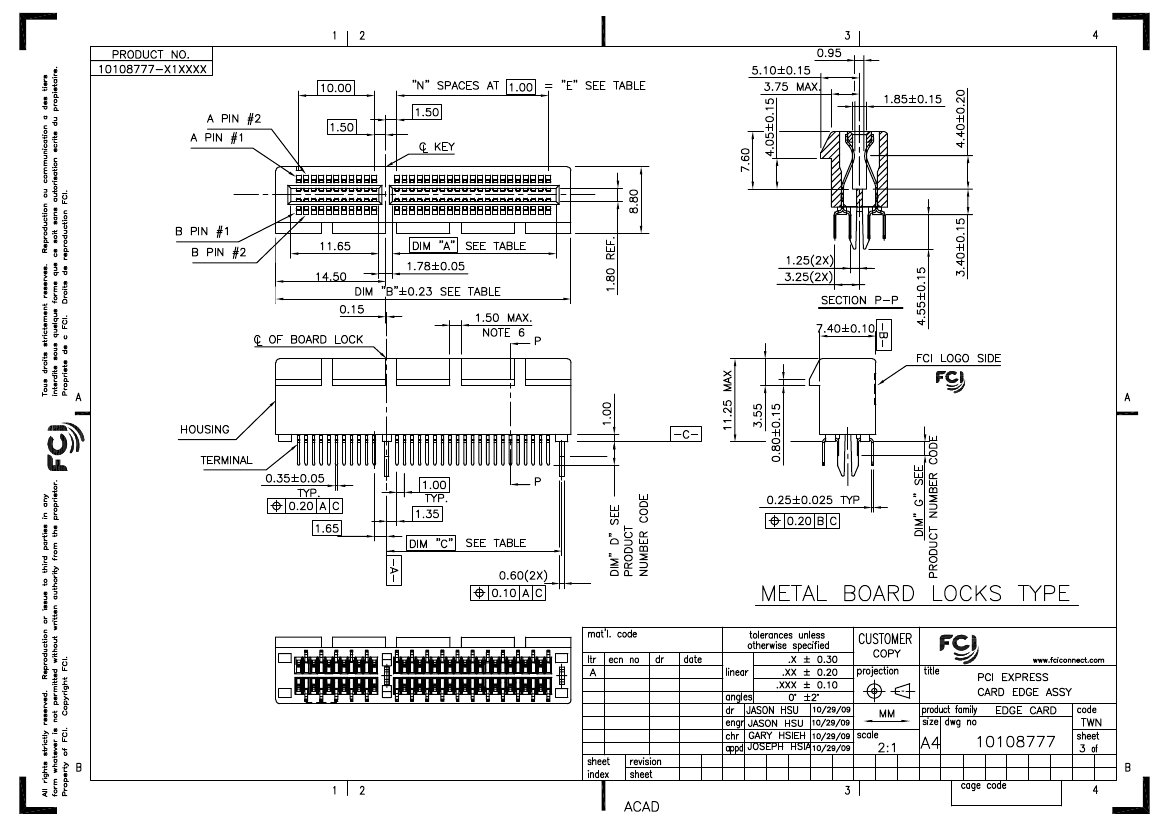

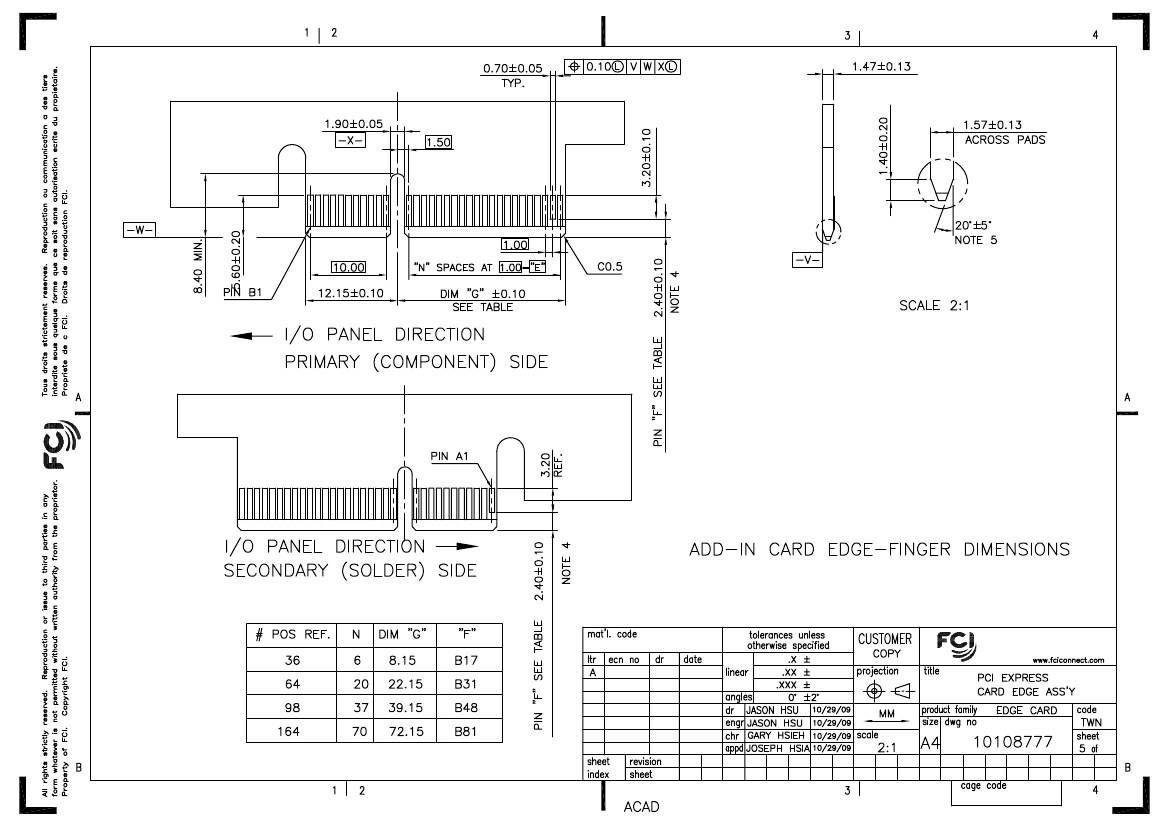

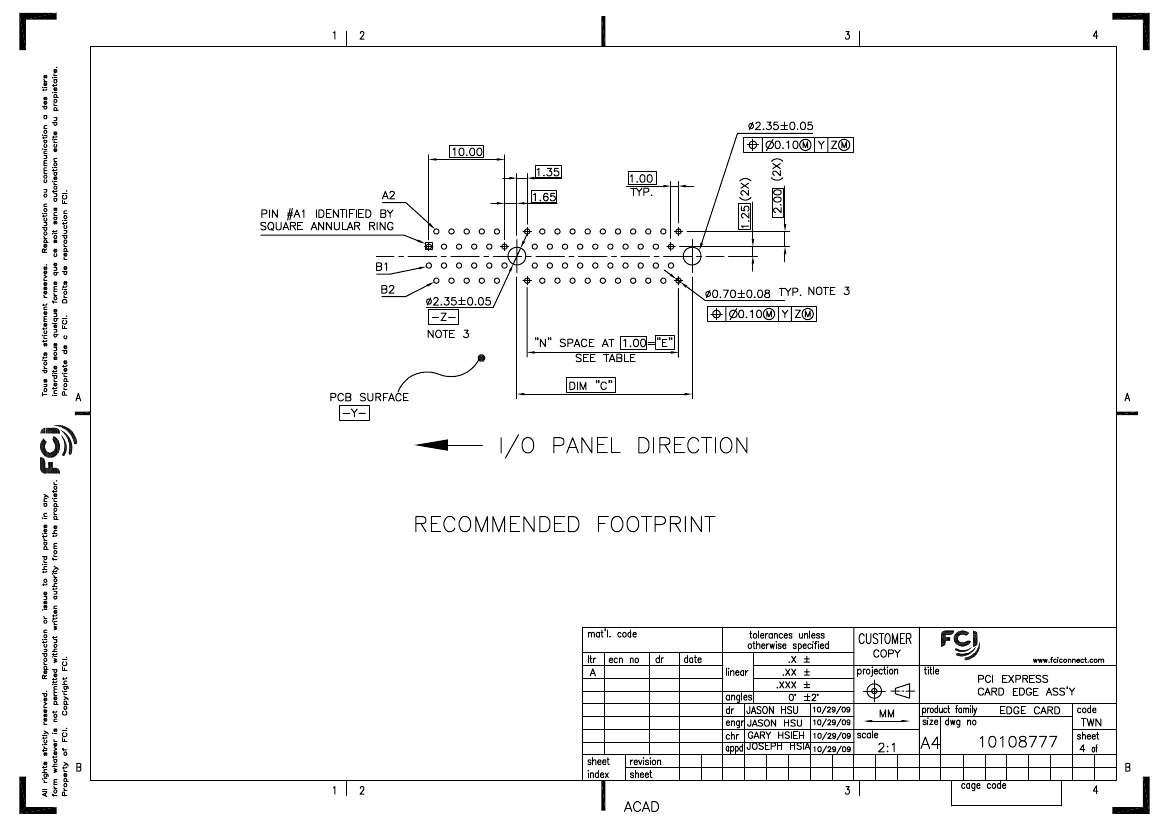

PDS: Rev :C

STATUS:Released

Printed: May 10, 2012
