Memory Module Specification
KVR400X64C3A/512
512MB 64M x 64-Bit DDR400
CL3 184-Pin DIMM
DESCRIPTION:
This document describes ValueRAM's 64M x 64-bit (512MB) DDR400 CL3 SDRAM
(Synchronous
DRAM)
memory module. The components on this module include sixteen
32M x 8-bit (8M x 8-bit x 4 Bank) DDR400 SDRAM in TSOP packages. This 184-pin DIMM
uses gold contact fingers and requires +2.6V. The electrical and mechanical specifications
are as follows:
FEATURES:
Clock Cycle Time (tCK)
Row Cycle Time (t
RC
)
Refresh Row Cycle Time (tRFC)
Row Active Time (tRAS)
Single Power Supply of
Power
UL Rating
5ns (min.) / 10ns (max.)
55ns (min.)
70ns (min.)
40ns (min.) / 70,000ns (max.)
+2.6V (+/- .1V)
3.224 W (operating)
94 V - 0
Note:
The module defined in this data sheet is one of several configurations available under this part number. While
all configurations are compatible, the DRAM combination and/or the module height may vary from what is described
here. However, in no configuration will the module height exceed 1.250" (31.75mm).
1.250
(31.75)
(17.80)
0.700
0.393
(10.00)
0.000
(00.00)
1
Units : Inches (Millimeters)
(2.50 )
0.26
(6.62)
0.100
0.250
(6.350)
0.157
(4.00)
0.1496
(3.80)
0.039
±
0.002
(1.000
±
0.050)
0.0787
(2.00)
0.0078 ±0.006
(0.20
±0.15)
0.050
(1.270)
0.1575
(4.00)
0.118
(3.00)
2.175
0.071
(1.80)

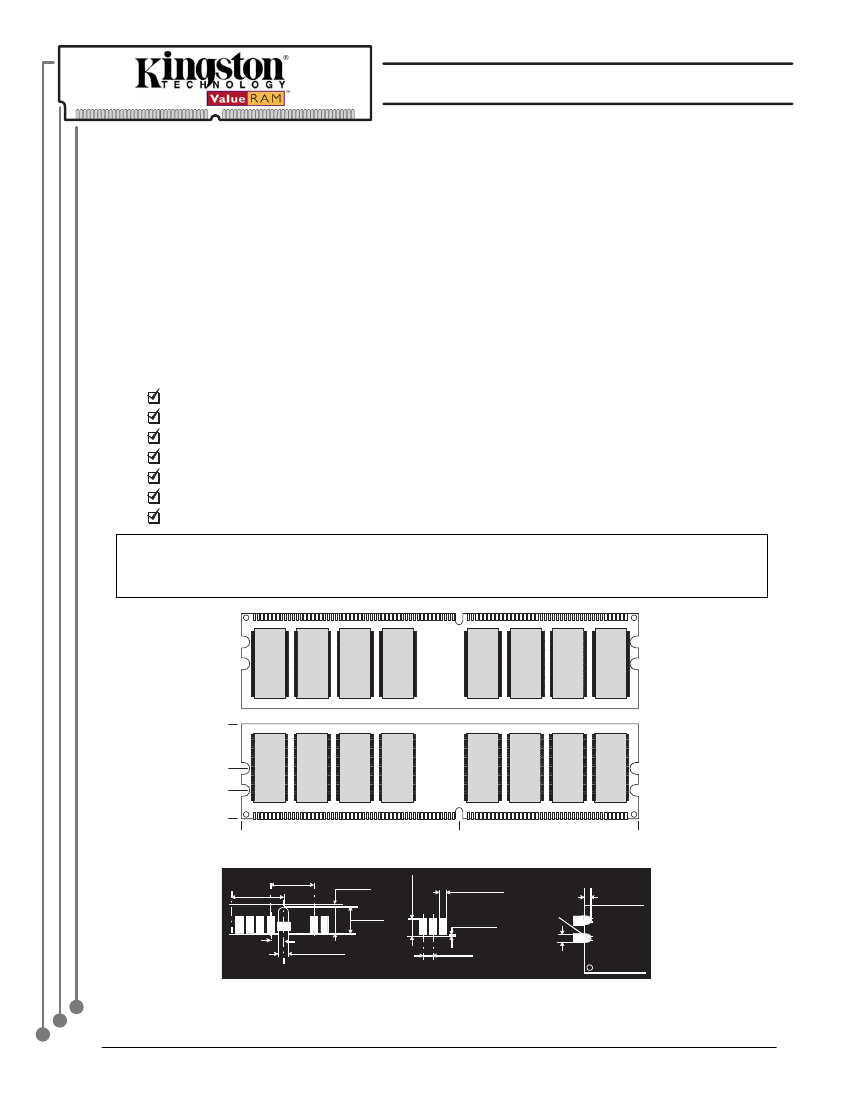

Figure 1: KVR400X64C3A/512 184-Pin DIMM
Document No. VALUERAM0295-001.B00
02/10/04
5.250
(133.35)
0.000
(00.00)
2.886
(73.30)
