ST62T20B6/SWD datasheet, PDF - EEWORLD Datasheet

ST62T20B6/SWD: Description8-BIT OTP/EPROM MCUs WITH A/D CONVERTER; CategoryThe embedded processor and controller Microcontrollers and processors; File Size5MB，67 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

ST62T20B6/SWD Overview

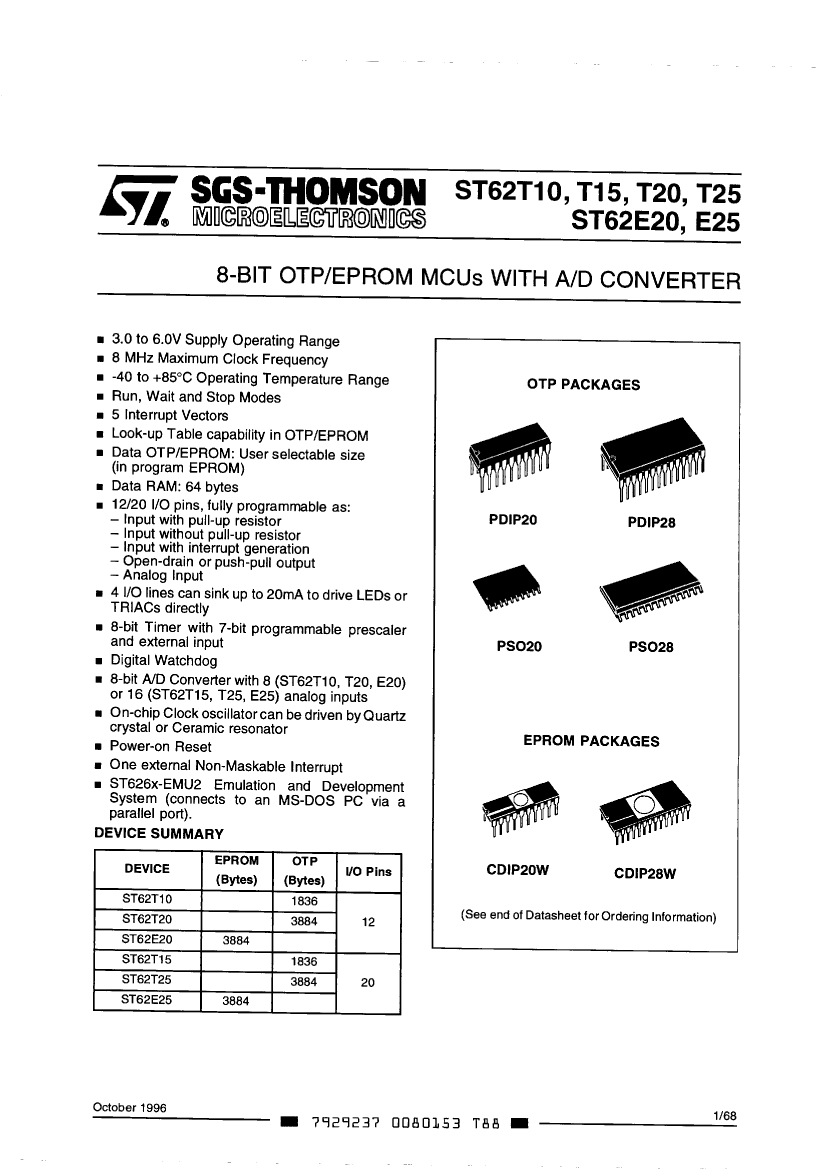

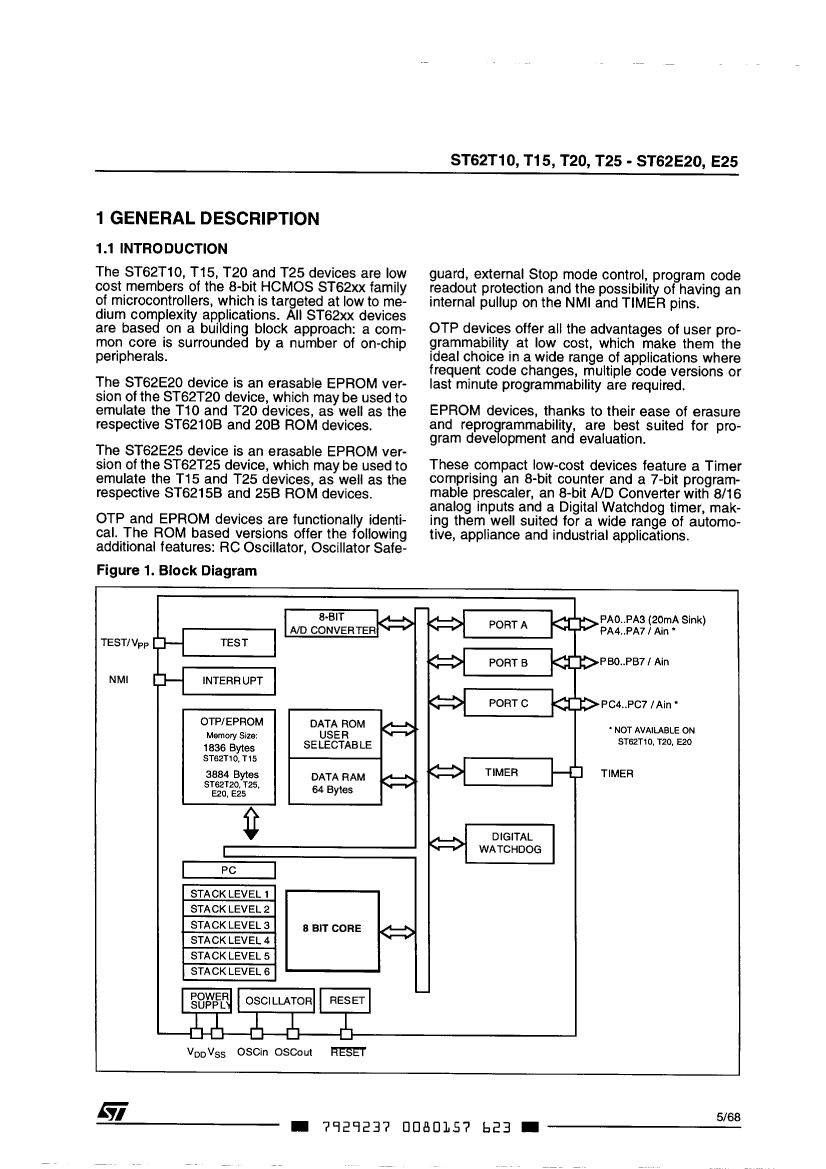

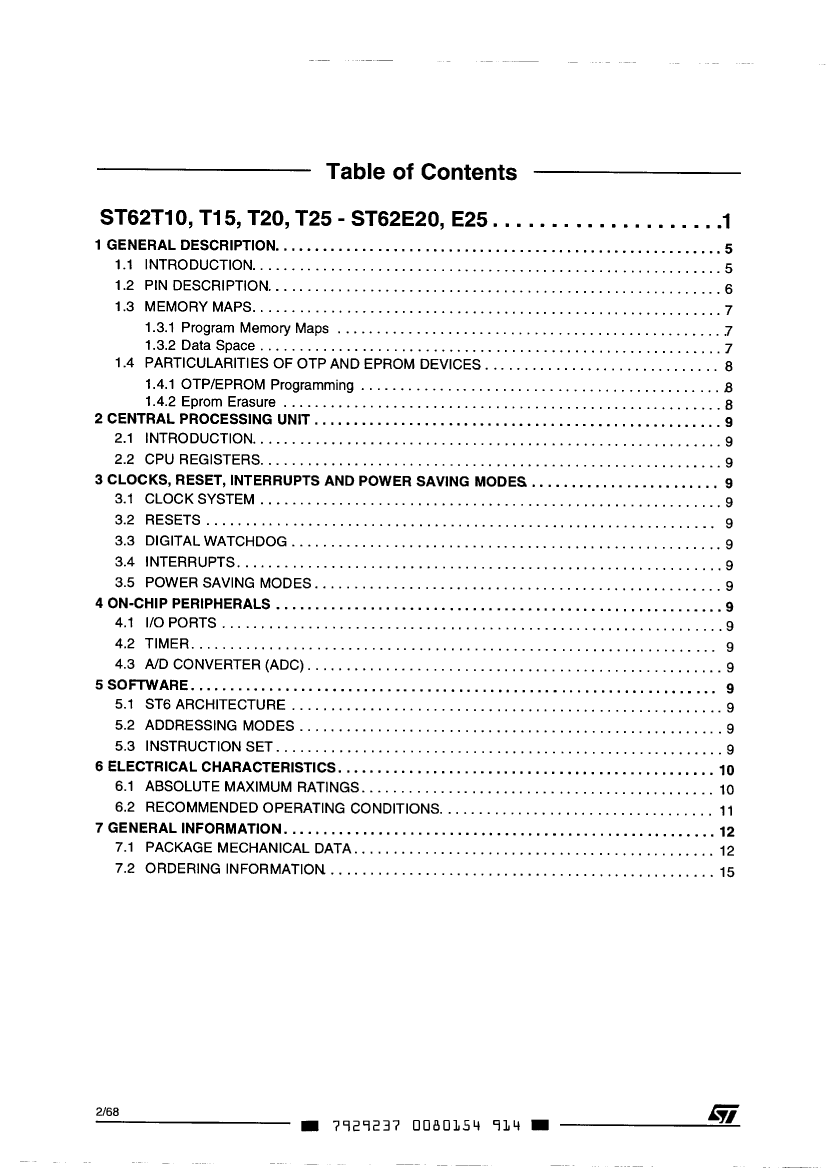

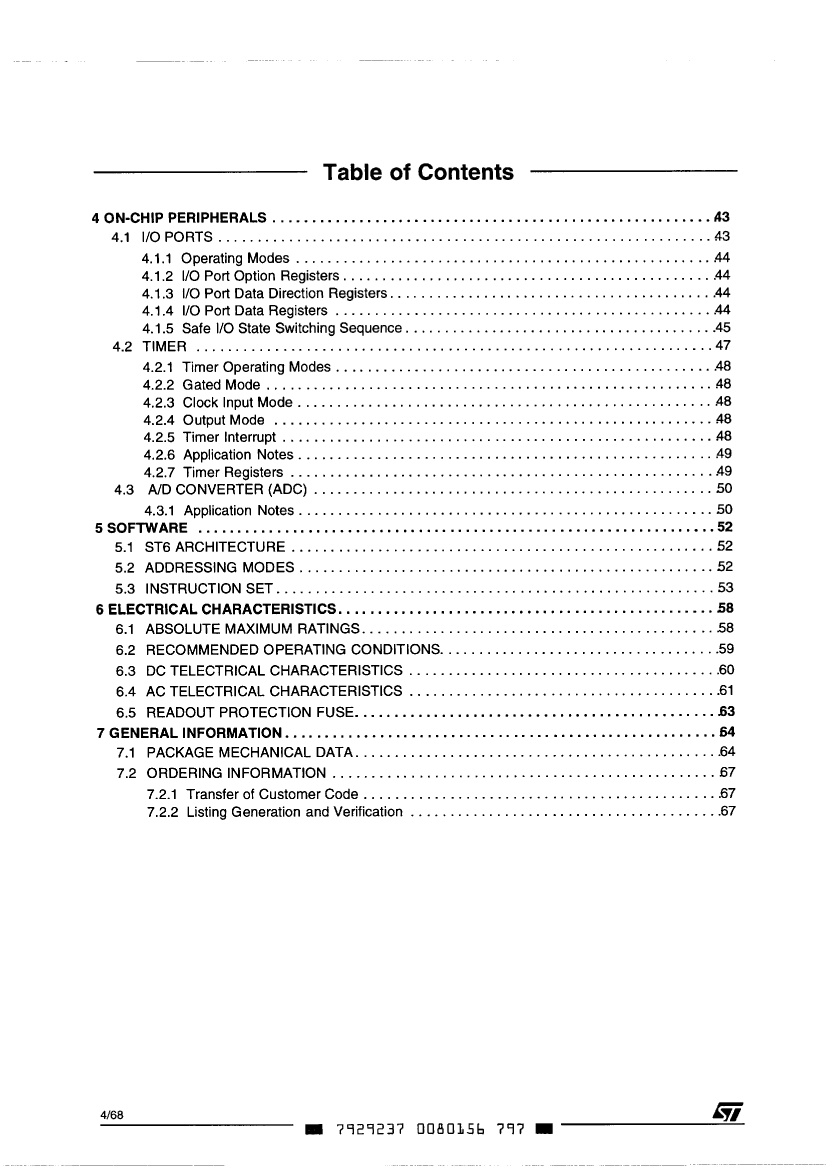

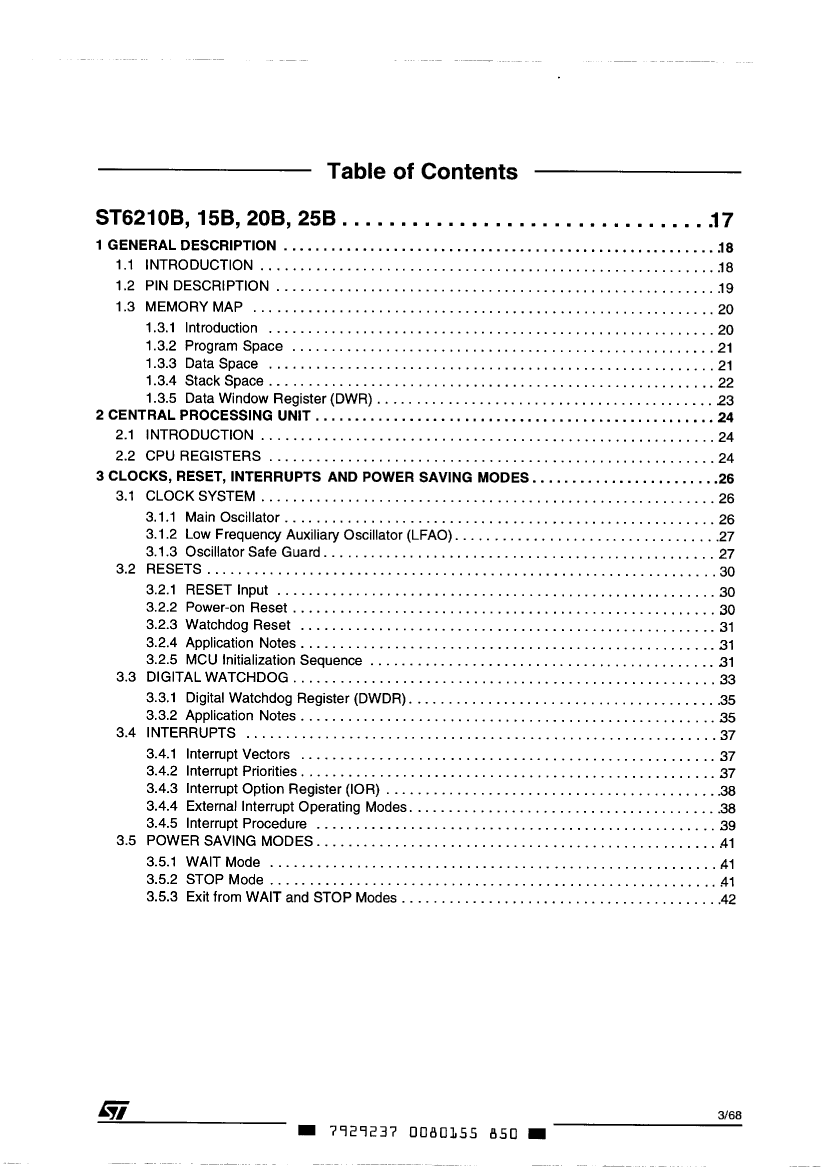

8-BIT OTP/EPROM MCUs WITH A/D CONVERTER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	0.300 INCH, PLASTIC, DIP-20
Contacts	20
Reach Compliance Code	_compli
Has ADC	YES
Other features	3 V @ 2 MHZ; USER SELECTABLE DATA ROM
Address bus width
bit size	8
boundary scan	NO
CPU series	ST6200
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
low power mode	YES
Number of DMA channels
Number of external interrupt devices	1
Number of I/O lines	12
Number of serial I/Os
Number of terminals	20
Number of timers	1
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	64
RAM (number of words)	64
rom(word)	4000
ROM programmability	OTPROM
Maximum seat height	3.93 mm
speed	0.615 MHz
Maximum slew rate	3.5 mA
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
