254171MR006T100NU datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 254171MR006T100NU

Preview

254171MR006T100NU: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, White Insulator, Receptacle; CategoryThe connector The connector; File Size221KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

254171MR006T100NU Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, White Insulator, Receptacle

254171MR006T100NU Parametric

Parameter Name	Attribute value
Maker	SUYIN-USA
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TUBE PACKAGE WITHOUT CAP
body width	0.228 inch
subject depth	0.551 inch
body length	0.612 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	WHITE
Manufacturer's serial number	254171MR
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	80u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

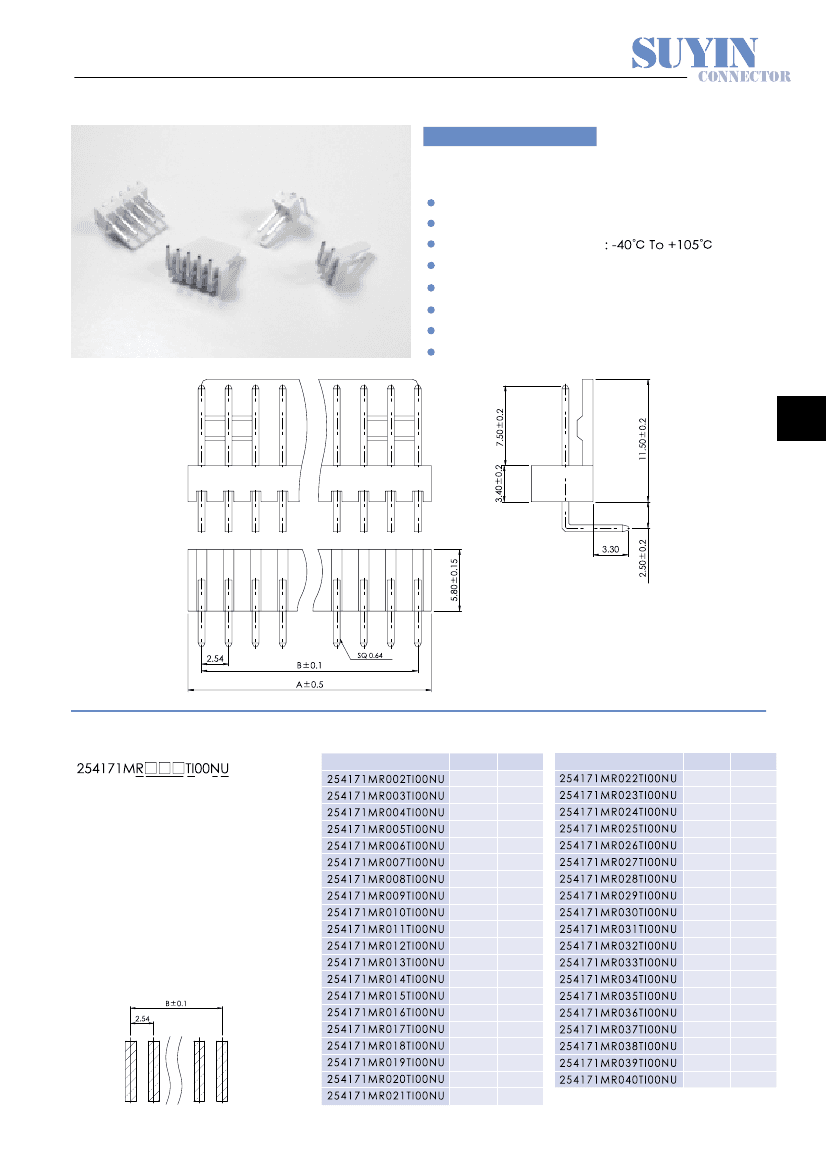

2.54mm CENTER PIN WAFER

WITH LOCK

254171MR Series

Specifications:

2~40 Circuits

Insulator Material

Operating Temp. Range

Terminal Material

Plating

Max. Current Rating

Max. Voltage Rating

Dielectric Strength

: Brass 65/35

: Tin Plated

: 1.5A

: 250V AC

: 500V AC For 60 Seconds

: White High Temp. Plastic

2.54

mm

Order Information

1

2

3

45

Dimension Information

SUYIN P/NO.

DIM.A

5.38

7.92

10.46

13.00

15.54

18.08

20.62

23.16

25.70

28.24

30.78

33.32

35.86

38.40

40.94

43.48

46.02

48.56

51.10

53.64

DIM.B

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

27.94

30.48

33.02

35.56

38.10

40.64

43.18

45.72

48.26

50.80

SUYIN P/NO.

DIM.A

56.18

58.72

61.26

63.80

66.34

68.88

71.42

73.96

76.50

79.04

81.58

84.12

86.66

89.20

91.74

96.82

99.36

101.9

DIM.B

53.34

55.42

58.42

60.96

63.50

66.04

68.58

71.12

73.66

76.20

78.74

81.28

83.82

86.36

88.90

91.44

93.98

96.52

99.06

1. 'R'

:

Right Angle DIP Type

2. No. of Pins

3. Plating 'TI'

:

Indicate Tin Plated

4. Color 'N'

:

White

5. Package

'U'

:

Tube Package Without CAP

Reference Page 11
