470HJ013M2111TDS datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 470HJ013M2111TDS

470HJ013M2111TDS: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size932KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

470HJ013M2111TDS Overview

Connector Accessory

470HJ013M2111TDS Parametric

Parameter Name	Attribute value
Objectid	2034311007
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	470-013

470HJ013M2111TDS Preview

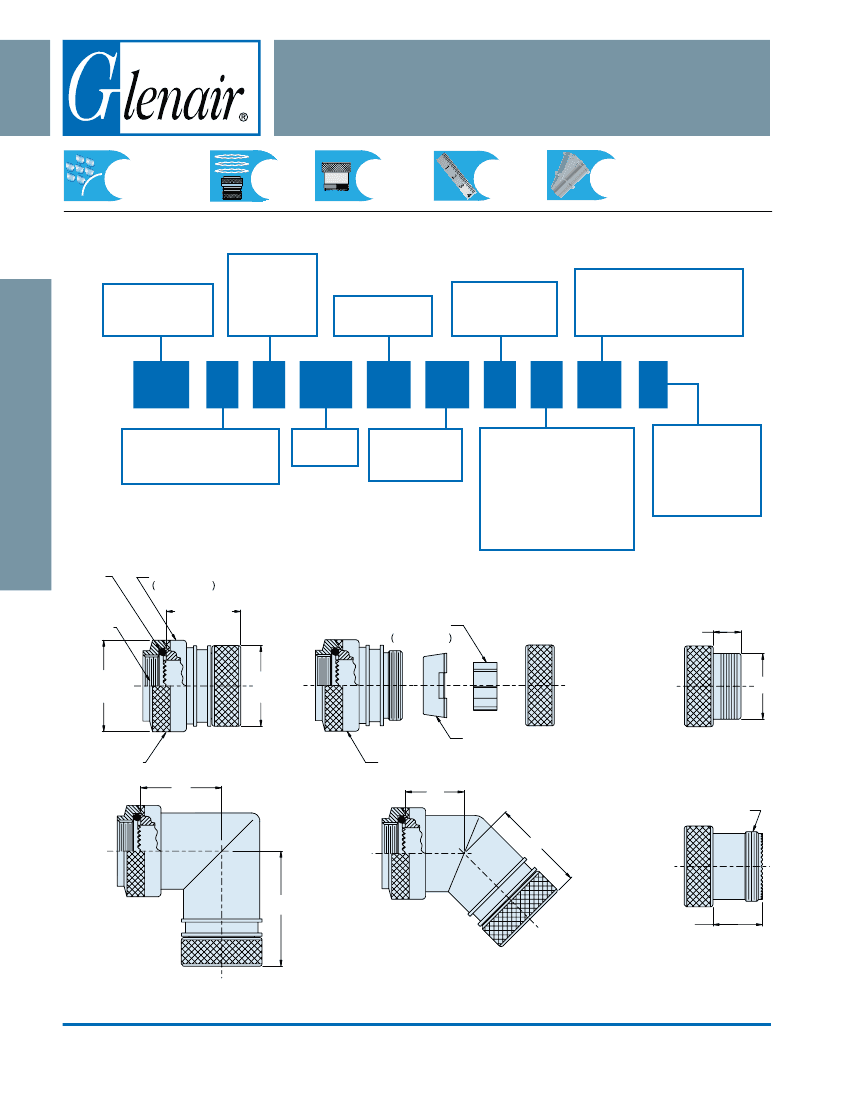

470-013

StarShield™ EMI/RFI Shield Termination Backshell

for MIL-DTL-38999 Series III and IV Connectors

Rear End

Options

High

Ferrule Count

StarShield™

Backshells

Environmental

Self

Nesting

Self

Nestor

Standard

Length

StarShield™ environmental backshell with self-nestor coupling and rear end options

Angular

Function

- Straight

- 45°

- 90°

Ferrule

Quantity Code

(See Table I)

Drilled Star

- Drilled Star - Optional

(Omit if Not Required)

(See Note 4)

Product Series

470

StarShield™

Finish Code

(See Table II)

470

013

Basic

Number

Shrink Boot

= Shrink boot

optional

(Omit for None)

(See Table III)

Connector Designator

- MIL-DTL-38999

Series III and IV

Order

Number

(See Table I)

Rear End Options

- Compression Nut

with Band

- Conduit Adapter

- Gland Nut

- Tinel Nut with Tinel

Ring for Single Braid

O-Ring

Typ

A Thread

Typ

Over Travel Coupling

See Note 5

.980 (25.0)

Max

Star

See Note 4

C Max

Typ

SYMBOL G

Gland Nut

.330 (8.4) Max

B Max

Typ

SYMBOL T

Tinel Nut

Knurl Style Mfr

Option - Typ

SYMBOL S

Straight

Compression

Ring Assembly

Adapter Assembly

J Thread

SYMBOL C

Conduit

Adapter

SYMBOL J

90°

SYMBOL H

45°

.940 (23.9) Max

Dimensions in inches (millimeters) and are subject to change without notice.

StarShield™ Zero Length Shield Termination Catalog

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

B-10

E-Mail: sales@glenair.com

for MIL-DTL-38999 Series III and IV Connectors

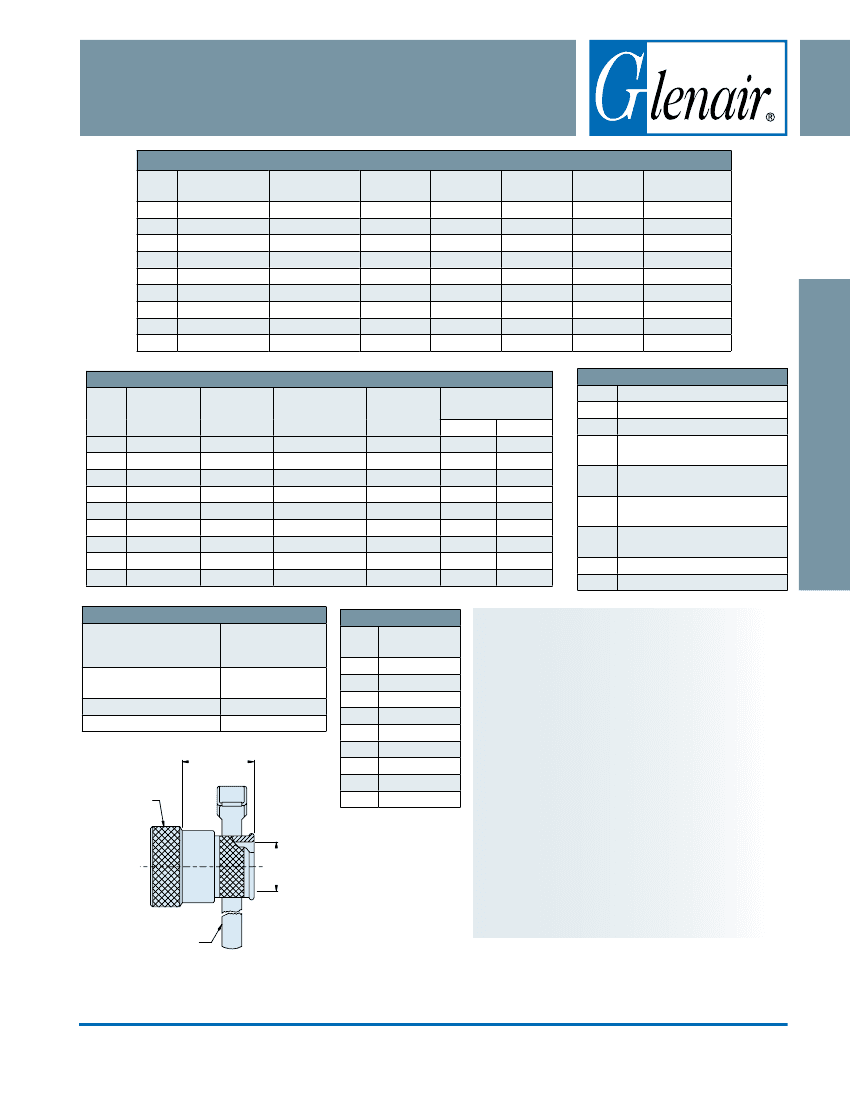

Table I Dimensions

Order

No.

Connector Shell

Size Ref

A/9

B/11

C/13

D/15

E/17

F/19

G/21

H/23

J/25

A Thread

ISO Metric

M12 X 1 - 6H

M15 X 1 - 6H

M18 X 1 - 6H

M22 X 1 - 6H

M25 X 1 - 6H

M28 X 1 - 6H

M31 X 1 - 6H

M34 X 1 - 6H

M37 X 1 - 6H

B Dia

Max

.75 (19.0)

.870 (22.0)

1.000 (25.4)

1.200 (30.5)

1.320 (33.5)

1.460 (37.0)

1.520 (38.5)

1.650 (42.0)

1.830 (46.5)

C Dia

Max

.690 (17.5)

.850 (21.5)

.890 (22.5)

1.000 (25.4)

1.120 (28.5)

1.240 (31.5)

1.380 (35.0)

1.500 (38.0)

1.610 (41.0)

Max

.490 (12.5)

.510 (13.0)

.550 (14.0)

.570 (14.5)

.590 (15.0)

.610 (15.5)

.650 (16.5)

.670 (17.0)

.710 (18.0)

Max

1.000 (25.4)

1.020 (26.0)

1.040 (26.5)

1.080 (27.5)

1.100 ((28.0)

1.120 (28.5)

1.140 (29.0)

1.180 (30.0)

1.220 (31.0)

Max

.630 (16.0)

.690 (17.5)

.750 (19.0)

.810 (20.5)

.870 (22.0)

.930 (23.5)

1.000 (25.4)

1.060 (27.0)

1.120 (28.5)

Table I: Dimensions (Continued)

Order

No.

Max

1.140 (29.0)

1.200 (30.5)

1.260 (32.0)

1.320 (33.5)

1.380 (35.0)

1.440 (36.5)

1.520 (38.5)

1.570 (40.0)

1.630 (41.5)

± .003 (.08)

.435 (11.0)

.623 (15.8)

.746 (18.9)

.871 (22.1)

.996 (25.3)

1.121 (28.5)

1.245 (31.6)

1.371 (34.8)

J Thread

ISO Metric

M12 X 1 - 6g

M15 X 1 - 6g

M18 X 1 - 6g

M22 X 1 - 6g

M25 X 1 - 6g

M28 X 1 - 6g

M31 X 1 - 6g

M34 X 1 - 6g

M37 X 1 - 6g

± .004 (.10)

.315 (8.00)

.531 (13.5)

.591 (15.0)

.709 (18.0)

.827 (21.0)

.945 (24.0)

1.063 (27.0)

1.181 (30.0)

1.299 (33.0)

Table III: Shrink Boot

Shell

Size

Shrink Boot

Part Number

770-001S1 04

770-001S1 06

770-001S1 07

770-001S1 08

770-001S1 09

Ferrule Quantity

(See Note 4)

Std.

Opt.

Table II: Material and Finish Options

Code

Material; Finish Description

Aluminum; electroless nickel

Aluminum; nickel - PTFE

Aluminum; CAD/O. D. over

electroless nickel

Aluminum; zinc nickel/O. D. over

electroless nickel

Aluminum; zinc nickel/black over

electroless nickel (RoHS)

Aluminum; zinc nickel over

ZRC

electroless nickel (RoHS)

Stainless steel; passivate

Stainless steel; electroless nickel

Material/Finish

Backshell, elbows, coupling

Aluminum alloy or

and gland nut, compression

CRES/Table II

ring and star

Tinel ring

Band

O-ring

Nickel-titanium

alloy/n.a.

CRES/Passivate

Silicone/n.a.

1.170 (29.7)

Max

Banding Nut

Notes:

Band

(601-040)

SYMBOL B

Banding Nut with Band

1. Assembly identified with manufacturer’s name,

part number and date code, space permitting.

2. For effective grounding, connector with

conductive finish should be used.

3. Glenair 600 Series Backshell Assembly Tools are

recommended for assembly and installation.

4. Star not supplied with Order Number 09. Drilled

star is available on order numbers 15-25 only. If

optional ferrule quantity per Table I is selected,

one split and one solid star will be supplied.

5. Over-travel coupling design provides self-

seating and self-locking functionality,

eliminating lock-wire requirements.

6. Ferrule kit sold separately.

687-764 ferrule and HST device kit

687-809 ferrule and sealing device kit

687-748 solder ferrule

687-841-01 HST flex device

Dimensions in inches (millimeters) and are subject to change without notice.

StarShield™ Zero Length Shield Termination Catalog

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

B-11

E-Mail: sales@glenair.com

StarShield™

Backshells

470-013

StarShield™ EMI/RFI Shield Termination Backshell
