Part Number

Search

8X2061

Description
Rocker Switch, DPDT, On-(on), Momentary, 0.01A, 5VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount,
CategoryMechanical and electronic products    switch
File Size439KB,3 Pages
ManufacturerNidec Copal Electronics
Download Datasheet Parametric Compare View All

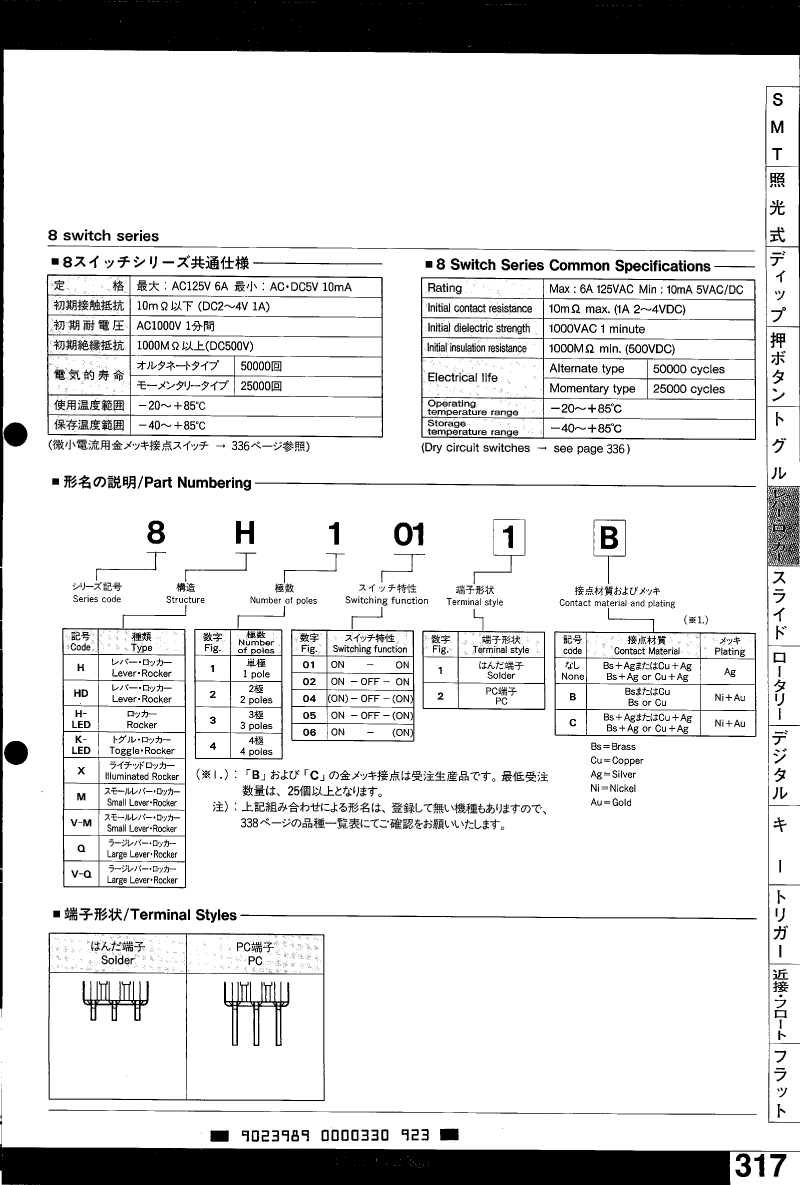

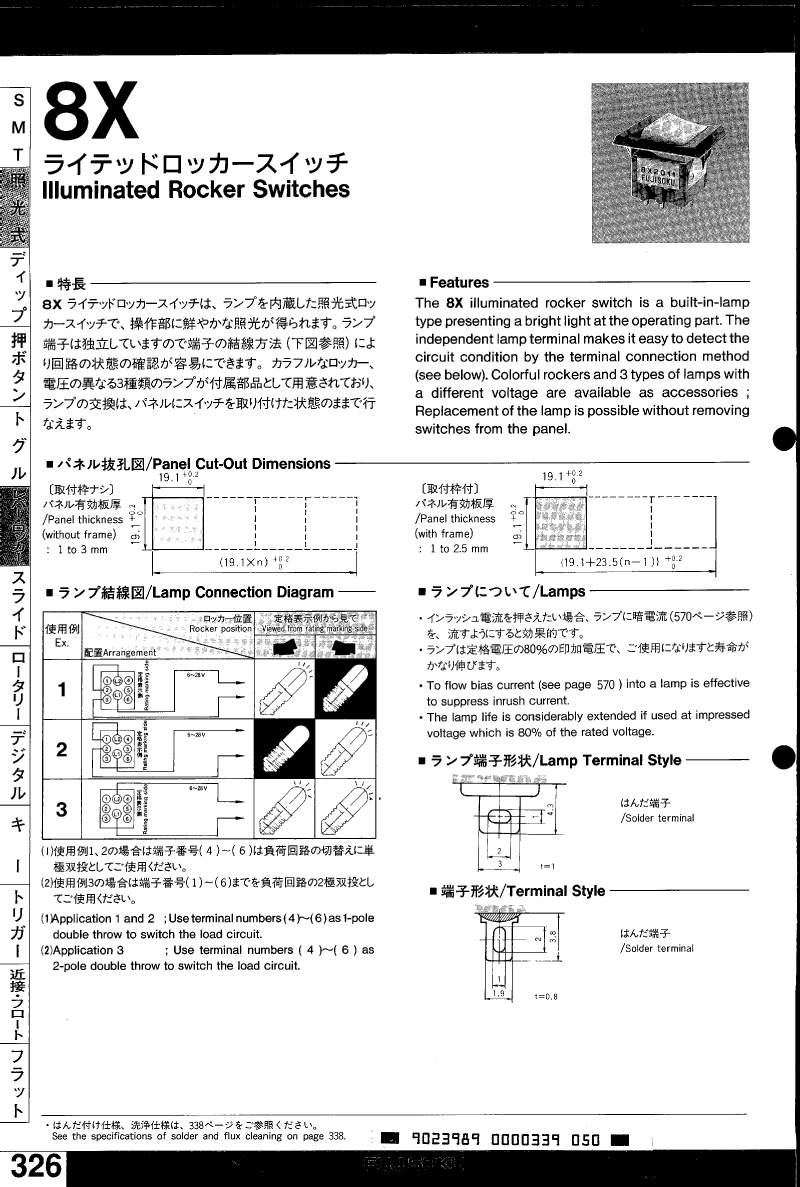

8X2061 Overview

Rocker Switch, DPDT, On-(on), Momentary, 0.01A, 5VDC, Solder Lug Terminal, Rocker Actuator, Panel Mount,

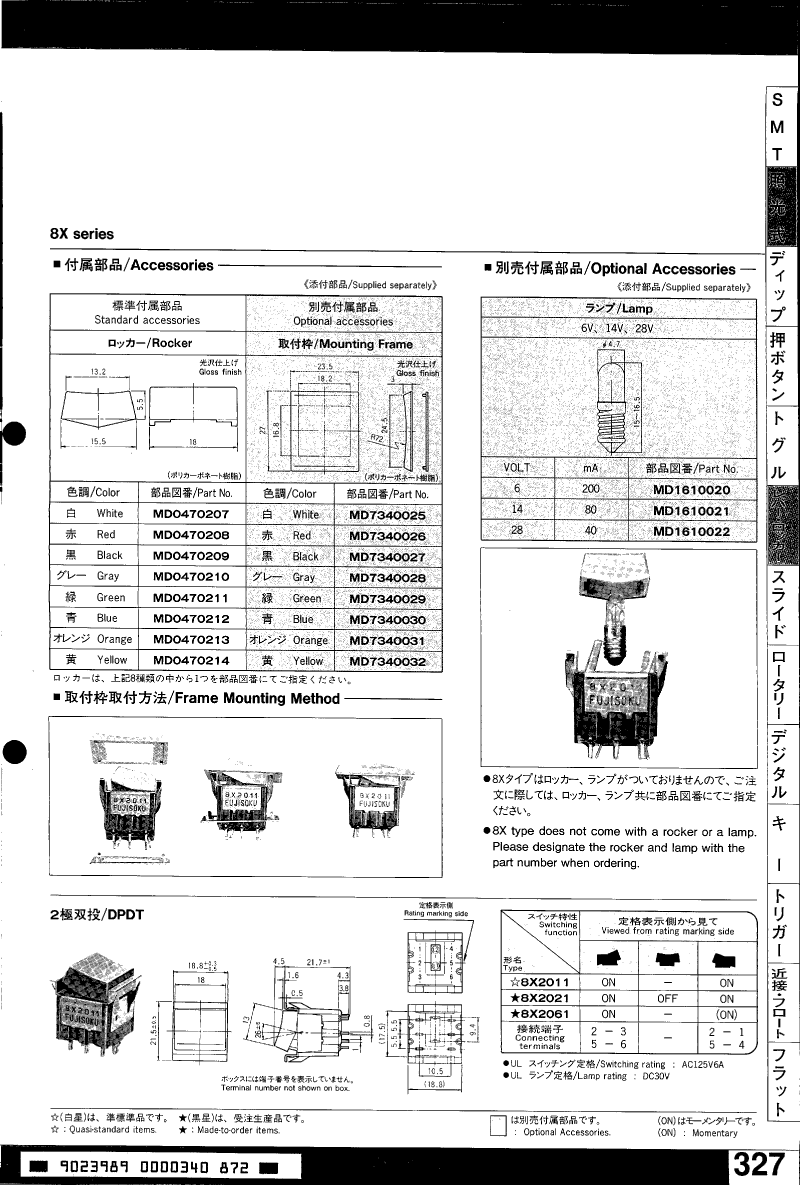

8X2061 Parametric

Parameter NameAttribute value
MakerNidec Copal Electronics
Reach Compliance Codeunknown
ECCN codeEAR99
Actuator angle26 deg
Actuator length0.197 inch
Actuator typeROCKER
body width17.5006 mm
Body length or diameter18.796 mm
Center contact platingSILVER
Contact (AC) maximum rated R load6A@125VAC
Maximum contact current (AC)6 A
Maximum contact current (DC)0.01 A
Contact (DC) maximum rated R load0.01A@5VDC
Contact functionON-(ON)
Contact resistance0.01 mΩ
contact timeBREAK-BEFORE-MAKE
Maximum contact voltage (AC)125 V
Maximum contact voltage (DC)5 V
Dielectric withstand voltage1000VAC V
Electrical life25000 Cycle(s)
End contact platingSILVER
Insulation resistance1000000000 Ω
Manufacturer's serial number8X
Installation featuresPANEL MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
SolderabilityHAND
surface mountNO
Switch actionMOMENTARY
switch functionDPDT
Switch typeROCKER SWITCH
Termination typeSOLDER LUG
WashabilitySOLVENT
