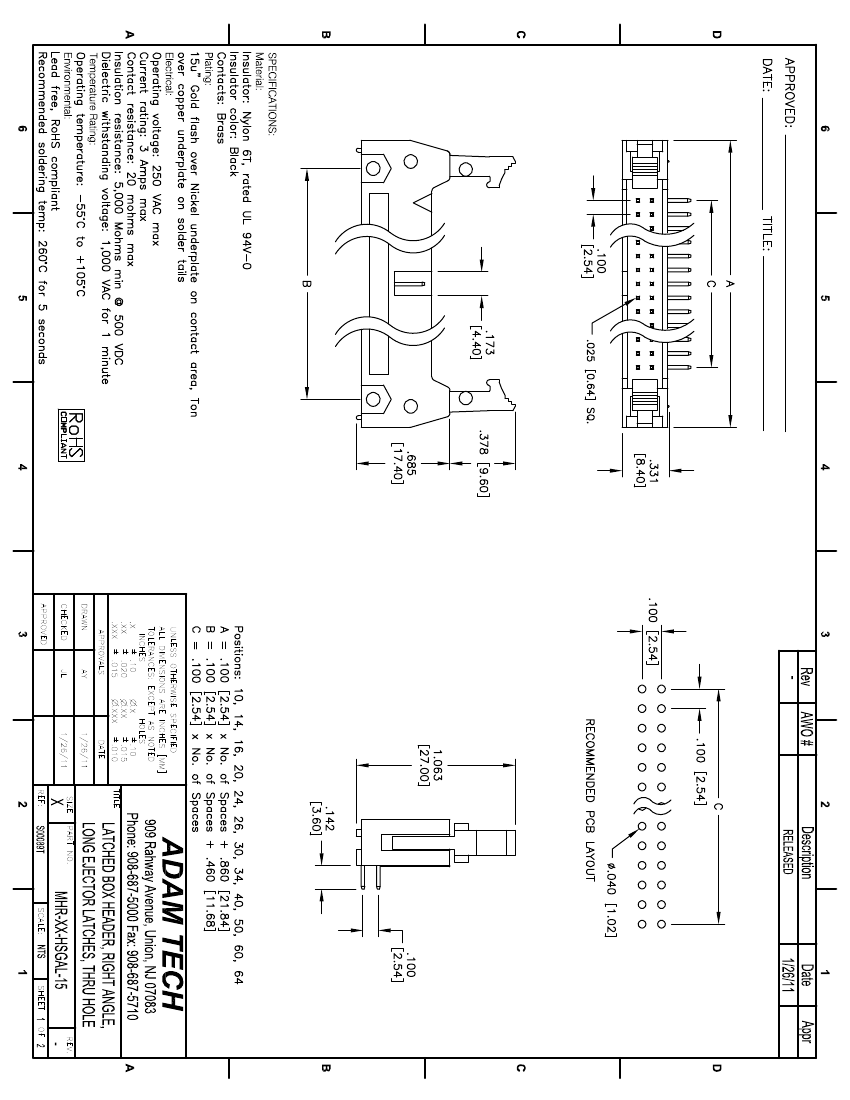

Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle
| Parameter Name | Attribute value |
| Maker | Adam Tech |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.331 inch |
| subject depth | 0.685 inch |
| body length | 3.26 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER COPPER |
| Contact point gender | MALE |
| Contact material | BRASS |
| contact mode | RECTANGULAR |
| Contact resistance | 20 mΩ |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| Durability | 500 Cycles |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | NYLON |
| Manufacturer's serial number | MHR |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Installation option 1 | LATCH & EJECT |
| Installation option 2 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 15u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal length | 0.142 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 50 |
| MHR-50-HSGAL-15 | MHR-60-HSGAL-15 | MHR-20-HSGAL-15 | MHR-26-HSGAL-15 | MHR-24-HSGAL-15 | |
|---|---|---|---|---|---|
| Description | Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle | Board Connector, 60 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle | Board Connector, 20 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle | Board Connector, 26 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle | Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT |
| body width | 0.331 inch | 0.331 inch | 0.331 inch | 0.331 inch | 0.331 inch |
| subject depth | 0.685 inch | 0.685 inch | 0.685 inch | 0.685 inch | 0.685 inch |
| body length | 3.26 inch | 3.76 inch | 1.76 inch | 2.06 inch | 1.96 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI |
| Contact completed and terminated | TIN OVER COPPER | TIN OVER COPPER | TIN OVER COPPER | TIN OVER COPPER | TIN OVER COPPER |
| Contact point gender | MALE | MALE | MALE | MALE | MALE |
| Contact material | BRASS | BRASS | BRASS | BRASS | BRASS |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ | 20 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V |
| Durability | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles | 500 Cycles |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK | BLACK | BLACK |
| insulator material | NYLON | NYLON | NYLON | NYLON | NYLON |
| Manufacturer's serial number | MHR | MHR | MHR | MHR | MHR |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch | 0.1 inch |
| Installation option 1 | LATCH & EJECT | LATCH & EJECT | LATCH & EJECT | LATCH & EJECT | LATCH & EJECT |
| Installation option 2 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Plating thickness | 15u inch | 15u inch | 15u inch | 15u inch | 15u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 3 A | 3 A | 3 A | 3 A | 3 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.142 inch | 0.142 inch | 0.142 inch | 0.142 inch | 0.142 inch |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 50 | 60 | 20 | 26 | 24 |
| Maker | Adam Tech | Adam Tech | Adam Tech | - | - |
