BF045-66-A-0250-0250-N-G

Description
Board Connector, 66 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator,
CategoryThe connector    The connector
File Size142KB，1 Pages
ManufacturerGlobal Connector Technology
Environmental Compliance
Download Datasheet Parametric Compare View All

BF045-66-A-0250-0250-N-G Overview

Board Connector, 66 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator,

BF045-66-A-0250-0250-N-G Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerGlobal Connector Technology
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.157 inch
subject depth0.039 inch
body length2.598 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedGold (Au) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Durability100 Cycles
maximum insertion force2.0016 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialNYLON
JESD-609 codee4
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.098 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts66
Evacuation force-minimum value.199882 N

Preview

Download Datasheet
H
Ø0.90
4.00
Number of
Contacts
6
8
10
12
Dimensions
A
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
40.0
42.0
44.0
46.0
48.0
50.0
52.0
54.0
56.0
58.0
60.0
62.0
64.0
66.0
68.0
70.0
72.0
74.0
76.0
78.0
B
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
40.0
42.0
44.0
46.0
48.0
50.0
52.0
54.0
56.0
58.0
60.0
62.0
64.0
66.0
68.0
70.0
72.0
74.0
76.0
78.0
80.0
G
2.00
2.00
2.00
14
16
18
20
22
24
26
Recommended PCB Layout
B ±0.35
F
A ±0.20
2.00
2.00
0.50 SQ. PIN
28
30
32
34
36
C
38
40
42
44
E
D
1.0
46
48
50
D
Specifications
规格
Material
物料
Contact
端子物料
: Copper Alloy
Insulator
绝缘½物料
:
Standard
标准物料
: Polyamide
聚酰胺
, Nylon 6T, UL 94-V0
Options
可选物料
:Polymer
聚合物
, LCP, UL 94-V0
52
54
56
Ordering Grid
BF045
XX
X
XXXX
XXXX
X
X
Request Samples
and Quotation
58
60
62
64
66
68
70
72
C
Electrical
电气
Current Rating
电流额定值
: 1 Amp Per Pin
Insulation Resistance
绝缘电阻值
: 1000 M
Ω
min
Contact Resistance
接触电阻值
: 20 m
Ω
max.
Dielectric Withstand Voltage
耐电压
: AC 500 V
Mechanical & Environmental
机械
&
环境
Operating Temperature
工½温度
: -40°C to +105°C
No. of Contacts
06 to 80
B
Soldering Process
可焊性
:
Nylon 6T (Standard) -
IR Reflow
回流焊
: 260°C for 10 sec.
Wave
波峰焊:
230°C for 5-10 sec
Manual Solder
人工焊接
: 350°C for 3-5 sec
LCP (Option) -
IR Reflow
回流焊
: 260°C for 10 sec.
Wave
波峰焊:
250°C for 5-10 sec
Manual Solder
人工焊接
: 350°C for 3-5 sec
Mates with
配套之母座
(Subject to pin length
在端子长度适合的条件下
)
BF065 BF075 BF080 BF095 BF100
BF105 BF110 BF112 BF115 BF120
Contact Plating
A = Gold Flash All Over
(Standard)
B = Selective Gold Flash Contact Area/
Tin On Tail
C = Tin All Over
G = 10µ" Gold Contact Area/Tin On Tail
I = 30µ" Gold Contact Area/Tin On Tail
Dimension C
(1/100mm) (Post Length)
0250
=
2.50mm
(Standard)
Or specify Custom Post Length
eg 0300 = 3.00mm
Packing Options
G = Plastic Box
(Standard)
D = Tube
E = Tube with Cap
Insulator Material
N = Nylon 6T
(Standard)
L = LCP
Dimension D
(1/100mm) (Tail Length)
0250 = 2.50mm
(Standard)
Or specify CustomTail Length
eg 0300 = 3.00mm
74
76
78
80

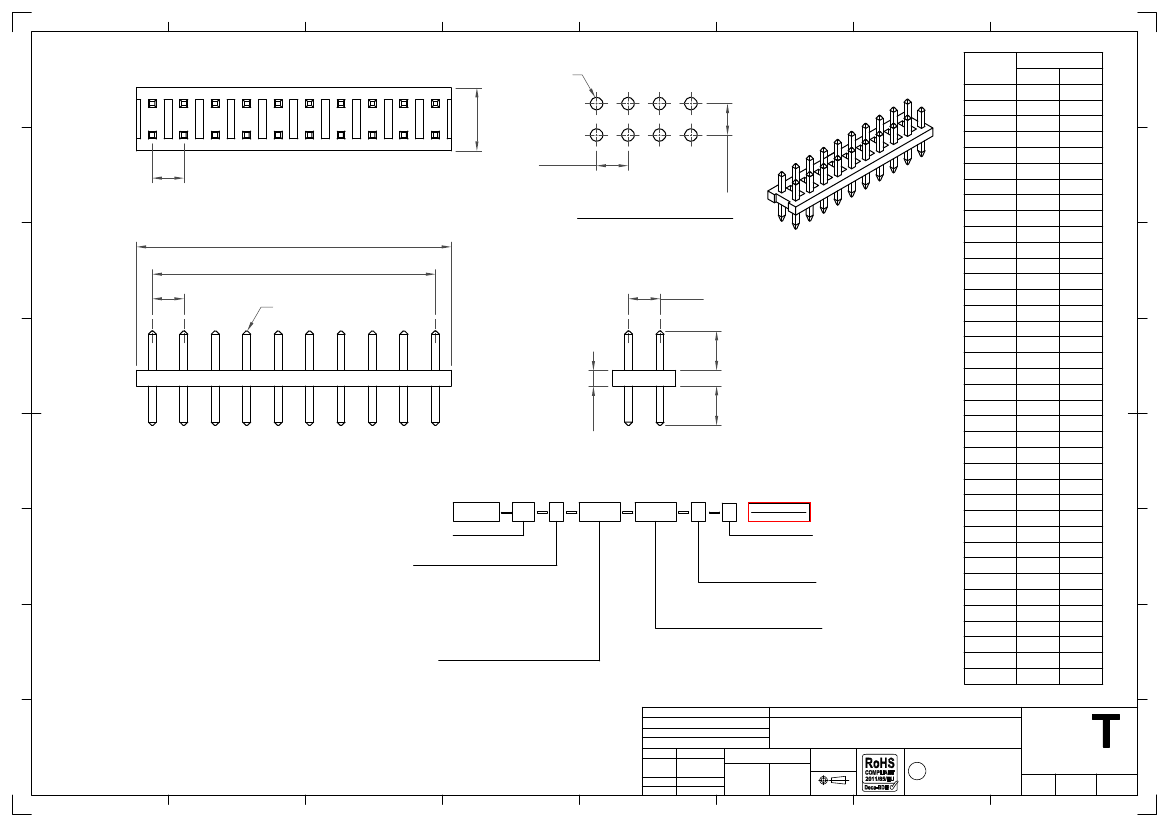

Part Number
Product Description
BF045
Drawing Date
A
31st October 2007
By
Detail
Revision
Date
CC
BF045
D PCN
D1
20/03/17
Length
2.00mm Pitch Pin Header,Dual Row, Through Hole,
Vertical,Low Profile
Tolerances
(Except as Noted)
Angle
1
2
3
4
5
X. ± 0.38
X.X° ± 2°
X.X ± 0.25
X.XX° ± 1°
X.XX ± 0.13
X.XXX° ± 0.5°
X.° ± 5°
Units:
Metric (mm)
C
7
3rd Angle Projection
This drawing is confidential and
copyright of Global Connector
Technology, Ltd (GCT).
This drawing must not be copied
or disclosed without written
consent. E & OE
Global Connector Technology
GC
Drawn By
LYH
www.gct.co
Not to
Scale
Sheet No.
1/1
6
8
