CCL-SM9-FREQ2-C-2-4-3-R datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CCL-SM9-FREQ2-C-2-4-3-R

CCL-SM9-FREQ2-C-2-4-3-R: DescriptionParallel - 3Rd Overtone Quartz Crystal, 44MHz Min, 100MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size162KB，1 Pages; ManufacturerCal Crystal Lab Inc / Comclok Inc; Websitehttps://www.transko.com; Environmental Compliance

Download Datasheet Parametric View All

CCL-SM9-FREQ2-C-2-4-3-R Overview

Parallel - 3Rd Overtone Quartz Crystal, 44MHz Min, 100MHz Max, ROHS COMPLIANT, CERAMIC, SMD, 2 PIN

CCL-SM9-FREQ2-C-2-4-3-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cal Crystal Lab Inc / Comclok Inc
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	50 ppm
JESD-609 code	e4
load capacitance	20 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	100 MHz
Minimum operating frequency	44 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L7.0XB5.0XH1.7 (mm)/L0.276XB0.197XH0.067 (inch)
Series resistance	100 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

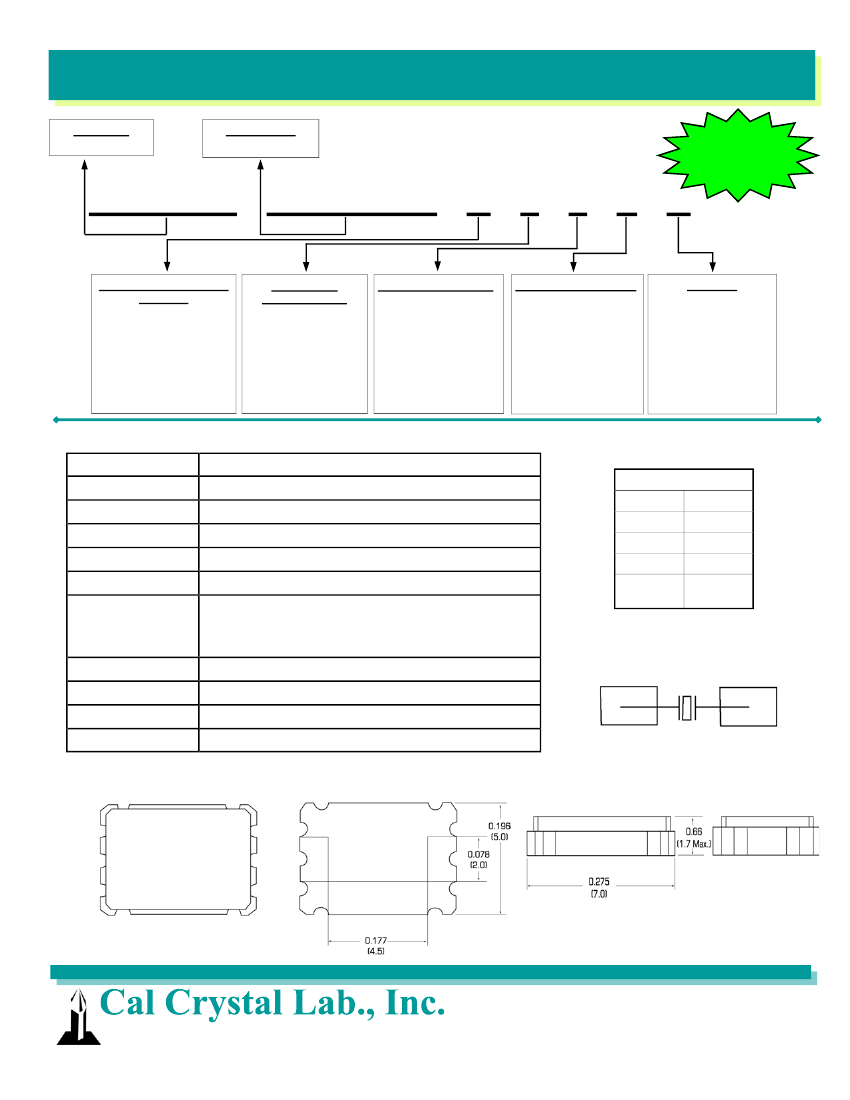

Ceramic 7.0 X 5.0 SMD Crystal

PACKAGE

Ceramic SMD

FREQUENCY

Customer Specified

CCL-SM9 Series

Part Number Guide

RoHs

Compliant

CCL-SM9 - 10.000MHz - B - 2 - 5 - F - R

TOLERANCE/STABILITY

vs. TEMP

B ..... 50ppm / 100ppm

C ..... 50ppm / 50ppm

D ..... 25ppm / 100ppm

E ..... 25ppm / 50ppm

F ..... 25ppm / 25ppm

H ..... 10ppm / 25ppm

J … Customer Specified

OPERATING

TEMPERATURE

1 .... 0

C to +70

2 ....-10

C to +60

3 ....-20

C to +70

4 ....-40

C to +85

5 ....Customer Specified

LOAD CAPACITANCE

S ... Series

3 ... 30 pF

4 ... 20 pF

5 ... 18 pF

X ... Customer Specified

MODE OF OPERATION

F ........Fundamental

3.........3

Overtone

OPTIONS

R... RoHS Compliant

T ... Tape & Reel

Electrical Specifications

Frequency Range

Standard Frequencies

Mode

Frequency Tolerance

Temperature Tolerance

Storage Temperature

ESR

9.000 MHz ~ 100.000 MHz

9.0 ~ 40.0MHz - Fundamental, 40.0 ~ 100.000MHz - 3

O.T.

Fundamental & 3

Overtone AT cut

±50ppm @ 25

C, Optional Tolerances Available

±50ppm 0 C to +70 C, Extended Temperatures Ranges Available

-55

C ~ +125

9.0MHz ~ 10.000MHz > 80Ω Max

10.000MHz ~ 13.000MHz > 60Ω Max

13.000MHz ~ 44.000MHz > 50Ω Max

44MHz ~ 100.000MHz > 100Ω Max

5pF Max.

Series Resonance, 16pF, 20pF, 30pF std.

10µW ~ 100µW , 100µW Correlation

±5ppm Max. (25

C ±3

C)/ (1

year)

Package Data

Item

Lid

Base

Sealing

Terminal

Plating

Package

Metal

Ceramic

Seam-weld

Gold

Shunt Capacitance

Load Capacitance

Drive Level

Aging

Mechanical Specifications

Comclok

10.000Mhz

Unit : mm

15302 Bolsa Chica Street, Huntington Beach, CA 92649

Ph: 714-991-1580 / 800-333-9825 Fax: 714-491-9825

www.calcrystal.com

e-mail: sales@calcrystal.com

Ver. 2.2 0806
