A01D-14-B-G-D-1-G: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug,; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerDon Connex Electronics Co., Ltd.

Download Datasheet Parametric View All

A01D-14-B-G-D-1-G Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug,

A01D-14-B-G-D-1-G Parametric

Parameter Name	Attribute value
Maker	Don Connex Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.366 inch
body length	0.773 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A01D
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	14

Preview

Download Datasheet

View All

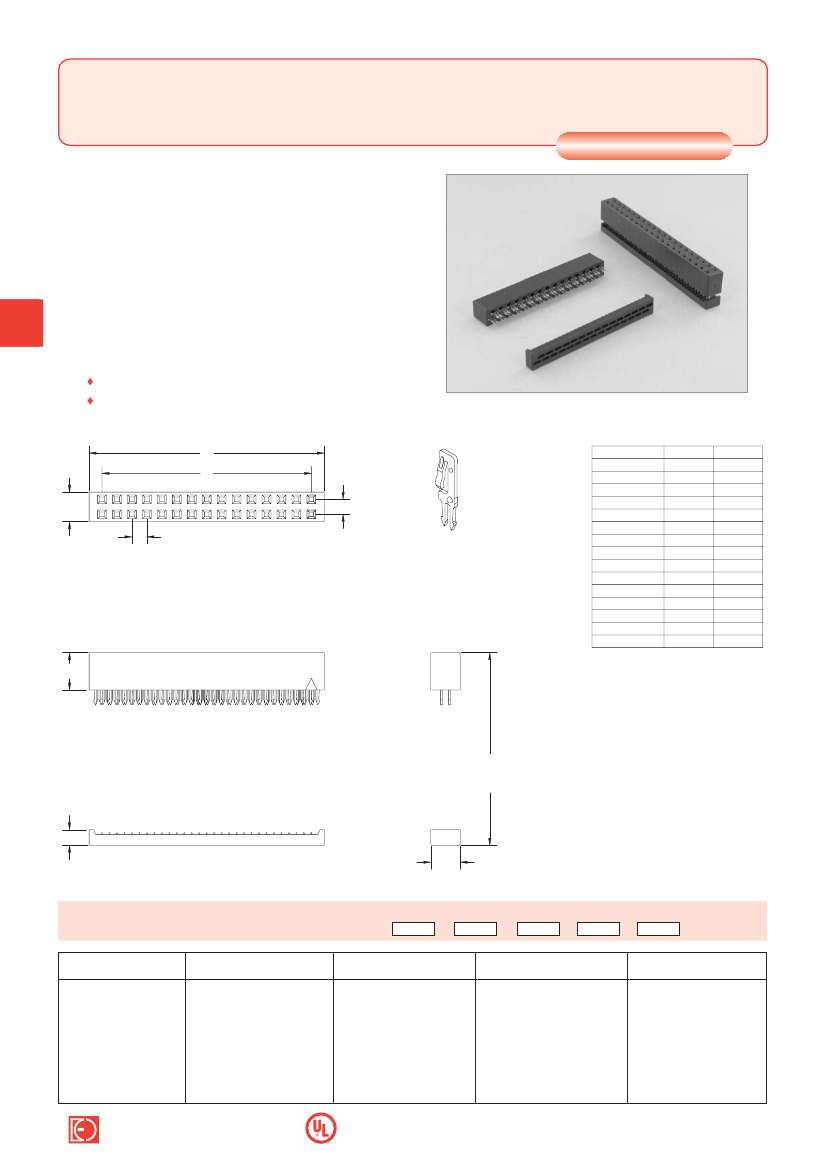

A01d

SPECIFICATIONS

Material

Contact : Phosphor Bronze

LOW PROFILE SHRUNK IDC SOCKET

PITCH: 2.54mm

Insulator : PBT, glass reinforced, rated UL 94V-0

Electrical

Current Rating : 1 Amp

A

Contact Resistance : 30 m

Ω

max.

Insulation Resistance : 3000 M

Ω

min.

Dielectric Withstanding Voltage : 500V AC for 1minute

Operating Temperature : -40

℃

to +105

℃

Terminated with L01-1.27mm pitch flat ribbon cable.

Mating Suggestion : C88, C88a & C88b series.

A

B

5.0

2.54

POSITION

6

8

10

12

14

16

20

24

26

30

34

40

50

60

64

A

9.48

12.02

14.56

17.10

19.64

22.18

27.26

32.34

34.88

39.96

45.04

52.66

65.36

78.06

83.14

B

5.08

7.62

10.16

12.70

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

60.96

73.66

78.74

6.4

(9.3)

TERMINATED

HEIGHT

2.7

5.0

HOW TO ORDER:

1.NO. OF CONTACT

06 08 10 12 14

16 20 24 26 30

34 40 50 60 64

A01d -

1

-

2

-

3

-

4

-

5

- G (RoHS)

2.CONTACT MATERIAL

B: PHOSPHOR BRONZE

3.CONTACT PLATING

T: TIN PLATED

S: SELECTIVE

G: GOLD FLASH

A: 5u'' INCH GOLD

B: 10u'' INCH GOLD

C: 15u'' INCH GOLD

D: 30u'' INCH GOLD

Connector: E163339

Flat cable : E162690

Wiring Harnesses: E312257

4.SPECIAL FUNCTION

D: W/O STRAIN RELIEF

W/O BAR

5.INSULATOR COLOR

1. BLACK

6

DON CONNEX

ELECTRONICS CO., LTD.

TEL:886 2-86483356 FAX:886 2-86485885

E-mail: info@donconnex.com.tw
