3201S-04G2: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size103KB，2 Pages; ManufacturerInterconnect Systems Inc

Download Datasheet Parametric Compare View All

3201S-04G2 Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

3201S-04G2 Parametric

Parameter Name	Attribute value
Maker	Interconnect Systems Inc
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.2 inch
subject depth	0.1 inch
body length	0.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	3201S
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	250 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

Comm Con Connectors: Print Preview Page

http://www.commcon.com/main/htmlPreview.html?page=5-1

Use this browser's print function to print this entire page, then close this window.

Catalog Page 5-1

.100"

Header

Double Row

Straight

Hi Temperature Plastic

Thru Hole

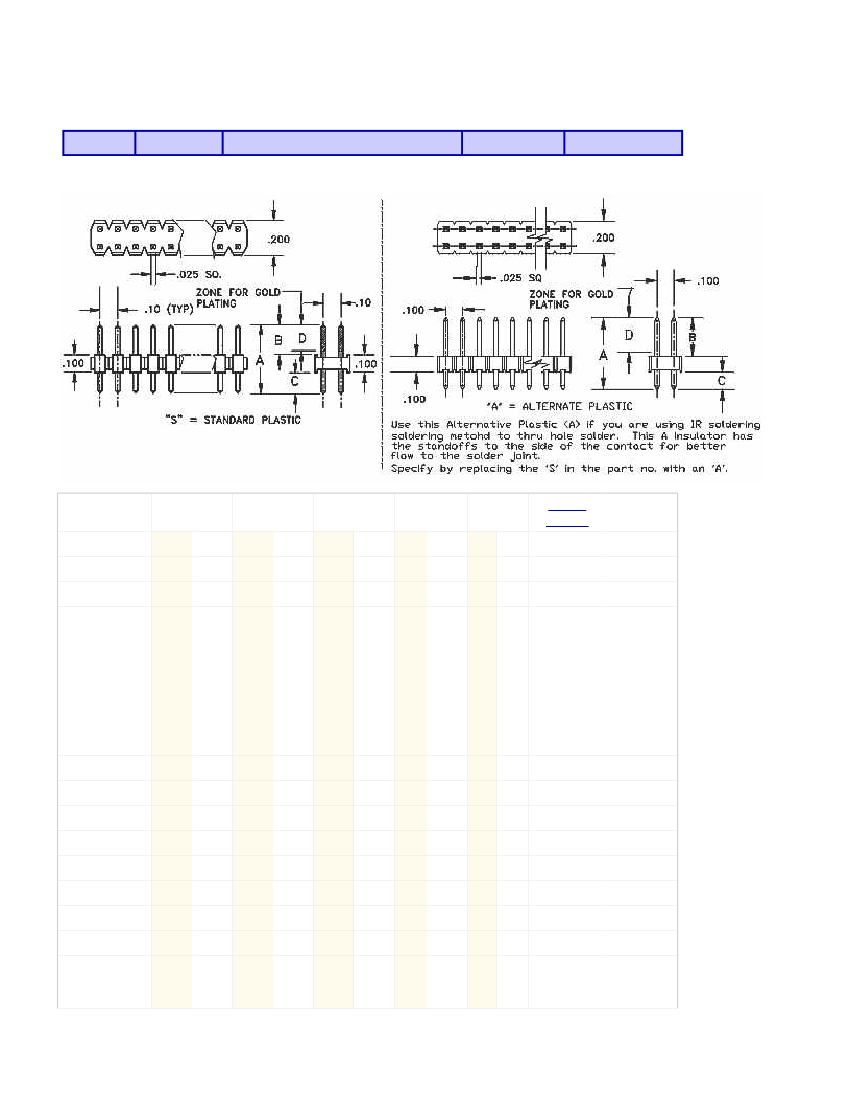

.100" Center, .025" Square Pin, Double Row Straight Header

Base Part

Number

3200S 3200A

3248S 3248A

3201S 3201A

3202S 3202A

3203S 3203A

3204S 3204A

3230S 3230A

3206S 3206A

3239S 3239A

3218S 3218A

3231S 3231A

3219S 3219A

3207S 3207A

3240S 3240A

3209S 3209A

3232S 3232A

3227S 3227A

3210S 3210A

Inch

Plating

Options

Number of

Positions

Inch mm Inch

G2 : G1 : T

2-80

8.38 0.330 2.92 0.115 2.92 0.115 2.92 0.115

8.38 0.330 2.36 0.093 3.48 0.137 2.36 0.093

10.92 0.430 5.84 0.230 2.54 0.100 5.59 0.220

11.56 0.455 5.97 0.235 3.05 0.120 5.84 0.230

13.59 0.535 7.49 0.295 3.56 0.140 7.49 0.295

13.59 0.535 8.08 0.318 2.97 0.117 7.87 0.310

13.59 0.535 5.84 0.230 5.21 0.205 5.84 0.230

16.13 0.635 5.84 0.230 7.75 0.305 5.84 0.230

16.13 0.635 10.16 0.400 3.43 0.135 5.84 0.230

16.13 0.635 8.08 0.318 5.51 0.217 5.84 0.230

16.13 0.635 10.67 0.420 2.92 0.115 5.84 0.230

18.67 0.735 8.08 0.318 8.05 0.317 5.84 0.230

18.67 0.735 5.84 0.230 10.29 0.405 5.84 0.230

18.67 0.735 12.70 0.500 3.43 0.135 5.84 0.230

21.21 0.835 5.84 0.230 12.83 0.505 5.84 0.230

21.21 0.835 8.08 0.318 10.59 0.417 5.84 0.230

21.21 0.835 15.24 0.600 3.43 0.135 5.84 0.230

23.75 0.935 5.84 0.230 15.37 0.605 5.84 0.230

1 of 2

11/15/99 10:28 AM

3201S-04G2 Related Products

	3201S-04G2	3201S-10G2
Description	Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle
Maker	Interconnect Systems Inc	Interconnect Systems Inc
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
body width	0.2 inch	0.2 inch
subject depth	0.1 inch	0.1 inch
body length	0.2 inch	0.5 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
Insulation resistance	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON
Manufacturer's serial number	3201S	3201S
Plug contact pitch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	250 °C	250 °C
Minimum operating temperature	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm
Plating thickness	10u inch	10u inch
Rated current (signal)	3 A	3 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.1 inch	0.1 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	4	10
