METALLIZED POLYCARBONATE FILM CAPACITORS
HERMETICALLY SEALED - ROUND TUBULAR
METALLIZED POLYCARBONATE
SELF-HEALING, HIGH RELIABILITY
HIGH STABILITY
LOW CAPACITANCE CHANGE OVER WIDE TEMPERATURE RANGE
HIGH VOLUMETRIC EFFICIENCY
PRECISION CIRCUITS REQUIRING LOW LOSSES, LIGHT DUTY, LOW
FREQUENCY ENERGY DISCHARGE, COUPLING AND DECOUPLING
STYLE “L1”
ROUND HERMETICALLY SEALED TUBE
ULTIMATE IN MOISTURE RESISTANCE
COMPRESSION TYPE GLASS ENDSEALS POSSESS EXTRAORDINARY
IMMUNITY TO VIBRATION, PRESSURE AND TEMPERATURE CHANGES
ENCASEMENT-TUBULAR BRASS, ELECTRO-TINNED
Metallized polycarbonate capacitors in hermetically sealed cases are available in many styles. Please contact factory
or representative.
SPECIFICATIONS
CONSTRUCTION:
Metalized Polycarbonate capacitors are available only in extended foil (non-inductive)
construction.
PACKAGING:
Round Hermetically sealed tubular style, non-magnetic metal tube, with compression glass end seal,
axial copperweld leads.
LEADS:
Copperweld (steel, coated with 30% copper by weight and tinplated with 60-40 Sn-Pb) is standard and may
be soldered or welded in circuit assembly.
TEMPERATURE RANGE:
May be operated at rated DC voltage from -55°C to 125°C without derating voltage.
ELECTRICAL (NON-DESTRUCTIVE) TEST:
1.
2.
3.
Capacitance shall be measured at or referred to 1000 ± 20 Hz at 25 ± 5°C for capacitance values up to and
including 1.0 uf. Capacitance values greater than 1.0 MFD shall be measured at 60 ± 6 Hz.
Ref: MIL-STD-202E, Method 305.
Dissipation factor shall be measured as described for capacitance and shall not exceed 0.3% to 1 MFD,
0.5% greater than 1 MFD. Typical values throughout the temperature range, are given on curves.
Insulation resistance shall be measured as follows:
50-100V at 25°C 25,000 MEG/MFD, need not exceed 50,000 Megohms.
200V + at 25°C 50,000 MEG/MFD, need not exceed 100,000 Megohms.
Ref: MIL-STD-202E, Method 302.
Dielectric Strength: Capacitors shall withstand specified DC test potential for 1 minute through a limiting
resistance of 1 Ohm/Volt.
Terminal to Terminal -- 150% of DC Rating.
Terminal to Case -- 200% of DC Rating.
Ref: MIL-STD-202E, Method 301.
Dielectric Absorption: Shall not exceed 0.2% when tested to MIL-C-19978D.
Ref: MIL-C-19978D
4.
5.
ENVIRONMENTAL TESTS:
1.
2.
Vibration: Capacitors will meet or exceed the requirements of MIL-STD-202E, Method 204.
Moisture Resistance: Capacitors will meet or exceed the requirements of MIL-STD-202E. Method 103B,
condition B, with 500 VDC or rated voltage applied, whichever is less.
Electromagnetic Integrated Solutions
8061 Avonia Road
●
Fairview
●
Pennsylvania
●
16415
Phone: (814) 474-1571
●
Email: eisSales@apitech.com
●
Web: http://eis.apitech.com
3.
4.
Life Test: Will withstand 140% of the Rated DC Voltage at 125°C for 250 hours with not more than 1 failure
in 12 units.
Lead Pull Test: The leads on these capacitors shall withstand a steadily applied axial pull of 5 lbs. for one
minute.
CUSTOM DESIGN
Available on short notice -- special shapes, values, characteristics, combination sections and networks. Non-metallic
cases or fabricated steel and brass with glass-to-metal seals. Engineering service is expert and prompt.
APPLICATIONS
Metallized polycarbonate capacitors in Style "L" hermetically sealed tubular cases offer the user the ultimate in
insulation resistance. These capacitors will meet the environmental requirements of MIL-C-39022C and moisture
resistance per MIL-STD-202E, Method 106D.
Metallized polycarbonate capacitors combine the reliability of self-healing action with high dielectric strength and
insulation resistance of polycarbonate film.
Metallized polycarbonate capacitors are designed primarily for DC application -- blocking, coupling, decoupling,
bypass DC line filtering - where RF and audio components are small in comparison to DC rating. However, they have
been successfully used in AC power applications such as power factor correction and AC line filtering.
Metallized polycarbonate capacitors operate at all temperatures from -55°C to + 125°C.
APPLICATION GUIDE: [AC VOLTAGE RATING, -55˚C to +125˚C. AMBIENT]
VOLTAGE
EQUIVALENT VAC [RMS] RATING AT
RATING
60 Hz
400 Hz
50V
N/A
N/A
100V
63 VAC
45 VAC
200V
160 VAC
95 VAC
400V
200 VAC
170 VAC
600V
240 VAC
190 VAC
(AC voltage assumed to be pure sine wave)
1000 Hz
N/A
40 VAC
80 VAC
140 VAC
160 VAC

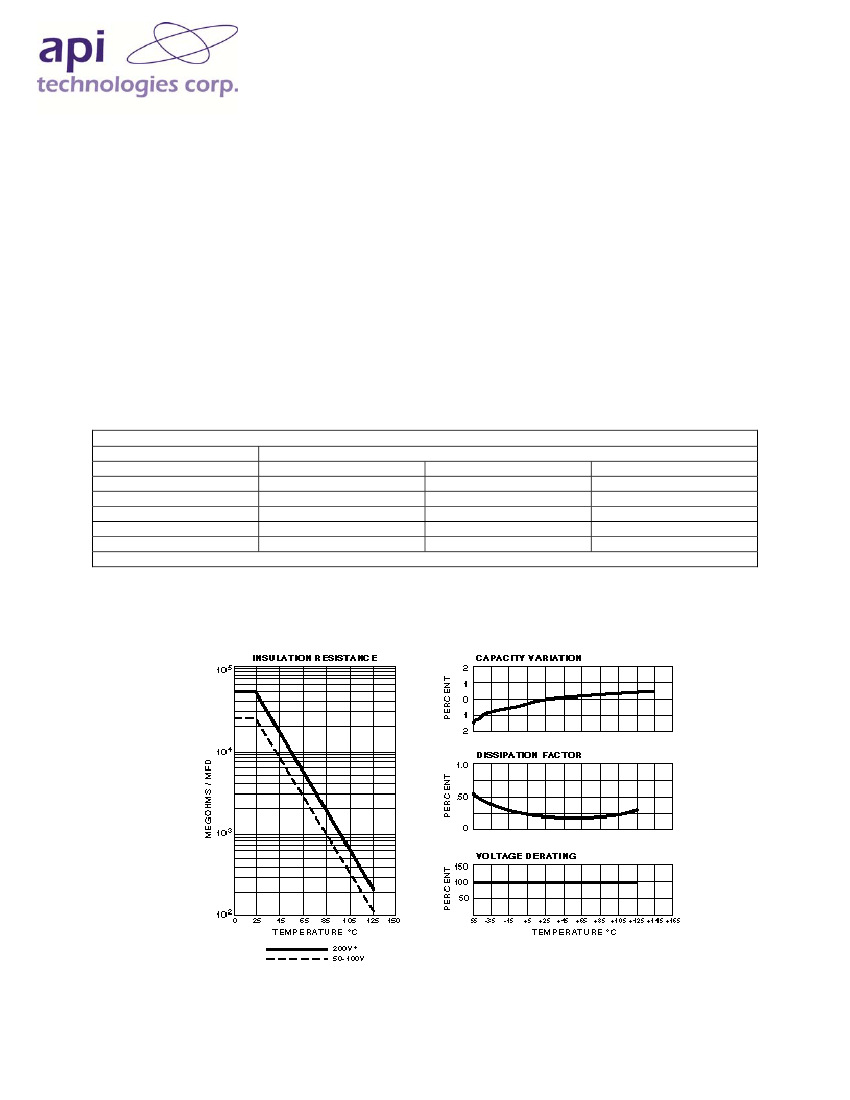

TYPICAL TEMPERATURE CHARACTERISTICS
Electromagnetic Integrated Solutions
8061 Avonia Road
●
Fairview
●
Pennsylvania
●
16415
Phone: (814) 474-1571
●
Email: eisSales@apitech.com
●
Web: http://eis.apitech.com
RL1, DL1, BL1 SERIES – SPECIFICATIONS
PART NUMBER KEY
EXAMPLE
Z
Code
Metallized
Polycarbonate
L
Case Style
Hermetically
Seal Tube
1
Shape
Cylindrical
A
Voltage
A-50
B-100
C-200
E-400
G-600
104
Capacity
In Picofarads the first
2 digits indicate
significant figures, the
3
rd
indicates number
of zeroes to follow
K
Tolerance
± 20% = Bank
± 10% = K
± 5% = J
± 3% = H
± 2% = G
± 1% = F

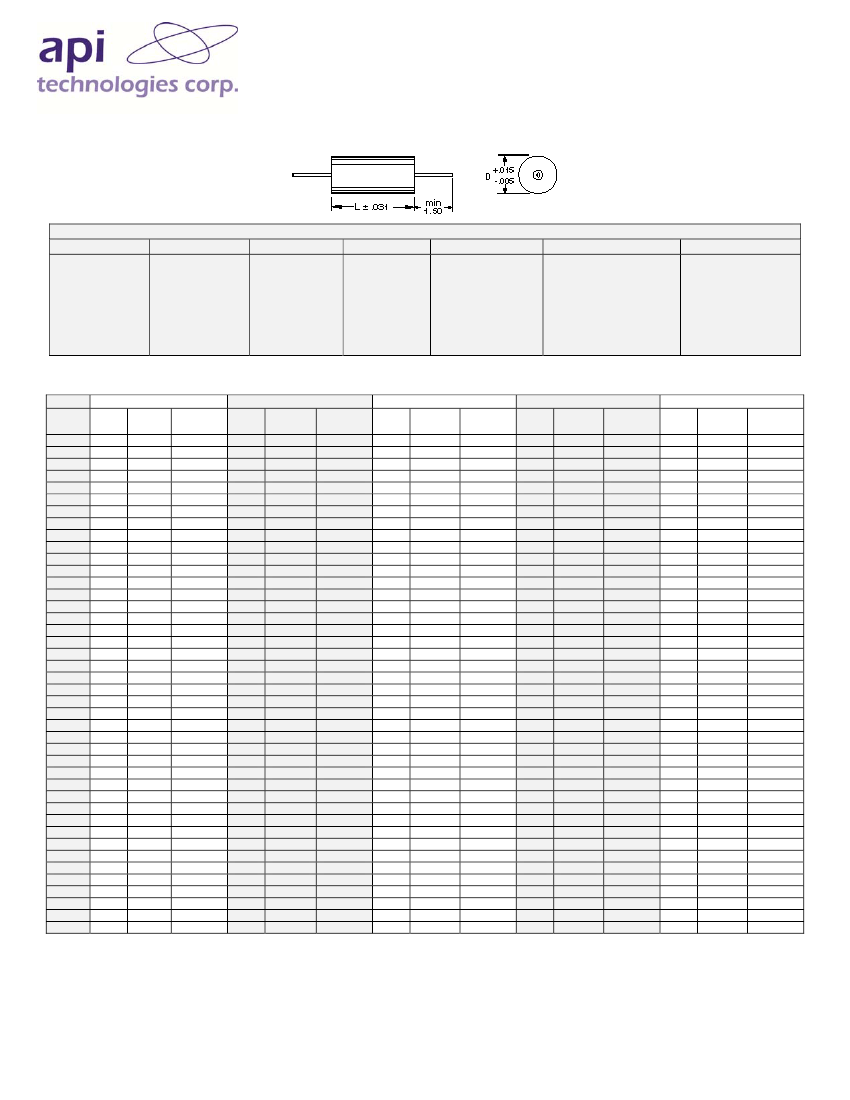

Dimensions:
*50 VDC
MFD
.0010
.0012
.0015
.0018
.0022
.0027
.0033
.0039
.0047
.0056
.0068
.0082
.010
.012
.015
.018
.022
.027
.033
.039
.047
.056
.068
.082
.10
.12
.15
.18
.22
.27
.33
.39
.47
.56
.68
.82
1.0
1.5
2.0
3.0
4.0
5.0
Dia.
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.155
.195
.195
.195
.195
.195
.195
.195
.195
.235
.235
.235
.235
.235
.312
.312
.312
.312
.400
.400
.400
.400
.400
.500
.500
.500
L
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
9/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
11/16
13/16
15/16
15/16
15/16
1-1/8
1-5/16
Part
No.
RL1A102
RL1A122
RL1A152
RL1A182
RL1A222
RL1A272
RL1A332
RL1A392
RL1A472
RL1A562
RL1A682
RL1A822
RL1A103
RL1A123
RL1A153
RL1A183
RL1A223
RL1A273
RL1A333
RL1A393
RL1A473
RL1A563
RL1A683
RL1A823
RL1A104
RL1A124
RL1A154
RL1A184
RL1A224
RL1A274
RL1A334
RL1A394
RL1A474
RL1A564
RL1A684
RL1A824
RL1A105
RL1A155
RL1A205
RL1A305
RL1A405
RL1A505
**50 – 100 VDC
Part
Dia.
L
No.
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.235
.235
.235
.235
.235
.312
.312
.312
.312
.312
.312
.312
.312
.400
.400
.400
.400
.500
.562
.562
.670
.670
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
13/16
13/16
13/16
13/16
13/16
13/16
13/16
15/16
15/16
1-1/8
1-1/8
1-1/8
1-1/8
1-5/16
1-5/16
1-5/16
1-5/16
1-13/16
1-9/16
1-3/16
DL1B102
DL1B122
DL1B152
DL1B182
DL1B222
DL1B272
DL1B332
DL1B392
DL1B472
DL1B562
DL1B682
DL1B822
DL1B103
DL1B123
DL1B153
DL1B183
DL1B223
DL1B273
DL1B333
DL1B393
DL1B473
DL1B563
DL1B683
DL1B823
DL1B104
DL1B124
DL1B154
DL1B184
DL1B224
DL1B274
DL1B334
DL1B394
DL1B474
DL1B564
DL1B684
DL1B824
DL1B105
DL1B155
DL1B205
DL1B305
DL1B405
DL1B505
**50 – 200 VDC
Part
Dia.
L
No.
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.235
.235
.235
.312
.312
.312
.312
.312
.312
.312
.312
.400
.400
.400
.500
.500
.500
.500
.500
.500
.562
.562
.670
670
.750
1.00
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
13/16
13/16
13/16
13/16
13/16
15/16
15/16
15/16
1-1/8
15/16
1-1/8
1-1/8
1-5/16
1-5/16
1-5/16
1-5/16
1-9/16
1-9/16
1-13/16
1-13/16
1-9/16
BL1C102
BL1C122
BL1C152
BL1C182
BL1C222
BL1C272
BL1C332
BL1C392
BL1C472
BL1C562
BL1C682
BL1C822
BL1C103
BL1C123
BL1C153
BL1C183
BL1C223
BL1C273
BL1C333
BL1C393
BL1C473
BL1C563
BL1C683
BL1C823
BL1C104
BL1C124
BL1C154
BL1C184
BL1C224
BL1C274
BL1C334
BL1C394
BL1C474
BL1C564
BL1C684
BL1C824
BL1C105
BL1C155
BL1C205
BL1C305
BL1C405
BL1C505
400 VDC
Dia.
.195
.195
.195
.195
.195
.195
.195
.195
.195
.195
.235
.235
.235
.235
.235
.235
.235
.312
.312
.312
.312
.312
.312
.400
.400
.400
.500
.500
.562
.562
.562
.670
.670
.670
.750
.750
.750
1.00
1.00
600 VDC
Part
No.
BL1E102
BL1E122
BL1E152
BL1E182
BL1E222
BL1E272
BL1E332
BL1E392
BL1E472
BL1E562
BL1E682
BL1E822
BL1E103
BL1E123
BL1E153
BL1E183
BL1E223
BL1E273
BL1E333
BL1E393
BL1E473
BL1E563
BL1E683
BL1E823
BL1E104
BL1E124
BL1E154
BL1E184
BL1E224
BL1E274
BL1E334
BL1E394
BL1E474
BL1E564
BL1E684
BL1E824
BL1E105
BL1E155
BL1E205
L
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
13/16
13/16
13/16
13/16
13/16
13/16
15/16
15/16
1-1/8
15/16
1-1/8
1-5/16
1-5/16
1-5/16
1-5/16
1-9/16
1-9/16
1-9/16
1-9/16
1-13/16
1-13/16
1-13/16
2-1/16
1-13/16
2-1/16
Dia.
.195
.195
.195
.195
.195
.195
.195
.235
.235
.235
.235
.235
.312
.312
.312
.312
.312
.312
.400
.400
.400
.400
.400
.500
.500
.500
.500
.562
.562
.670
.670
.670
.670
.750
.750
1.00
1.00
1.00
L
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
5/8
13/16
13/16
13/16
13/16
13/16
13/16
13/16
15/16
1-1/8
15/16
15/16
1-1/8
1-1/8
1-5/16
1-1/8
1-1/8
1-5/16
1-5/16
1-5/16
1-9/16
1-9/16
1-9/16
1-13/16
1-13/16
2-1/16
2-1/16
1-13/16
1-13/16
2-5/16
Part
No.
BL1G102
BL1G122
BL1G152
BL1G182
BL1G222
BL1G272
BL1G332
BL1G392
BL1G472
BL1G562
BL1G682
BL1G822
BL1G103
BL1G123
BL1G153
BL1G183
BL1G223
BL1G273
BL1G333
BL1G393
BL1G473
BL1G563
BL1G683
BL1G823
BL1G104
BL1G124
BL1G154
BL1G184
BL1G224
BL1G274
BL1G334
BL1G394
BL1G474
BL1G564
BL1G684
BL1G824
BL1G105
BL1G155
Higher values or voltages are available.
*50 VDC units also available in B and D material.
**100 VDC units also available in B material.
Electromagnetic Integrated Solutions
8061 Avonia Road
●
Fairview
●
Pennsylvania
●
16415
Phone: (814) 474-1571
●
Email: eisSales@apitech.com
●
Web: http://eis.apitech.com
WIRE LEADS
CASE DIA.
.195
.235 THRU .312
.400 THRU 1.0
STYLE W ONLY
A.W.G
#24
#22
#20
#22
LEADS DIA.
.020
.025
.032
.025
Electromagnetic Integrated Solutions
8061 Avonia Road
●
Fairview
●
Pennsylvania
●
16415
Phone: (814) 474-1571
●
Email: eisSales@apitech.com
●
Web: http://eis.apitech.com
京公网安备 11010802033920号
EEWORLD
