MAGNUM
®
Series A5000 & Series CB5000
Single Row Terminal Blocks

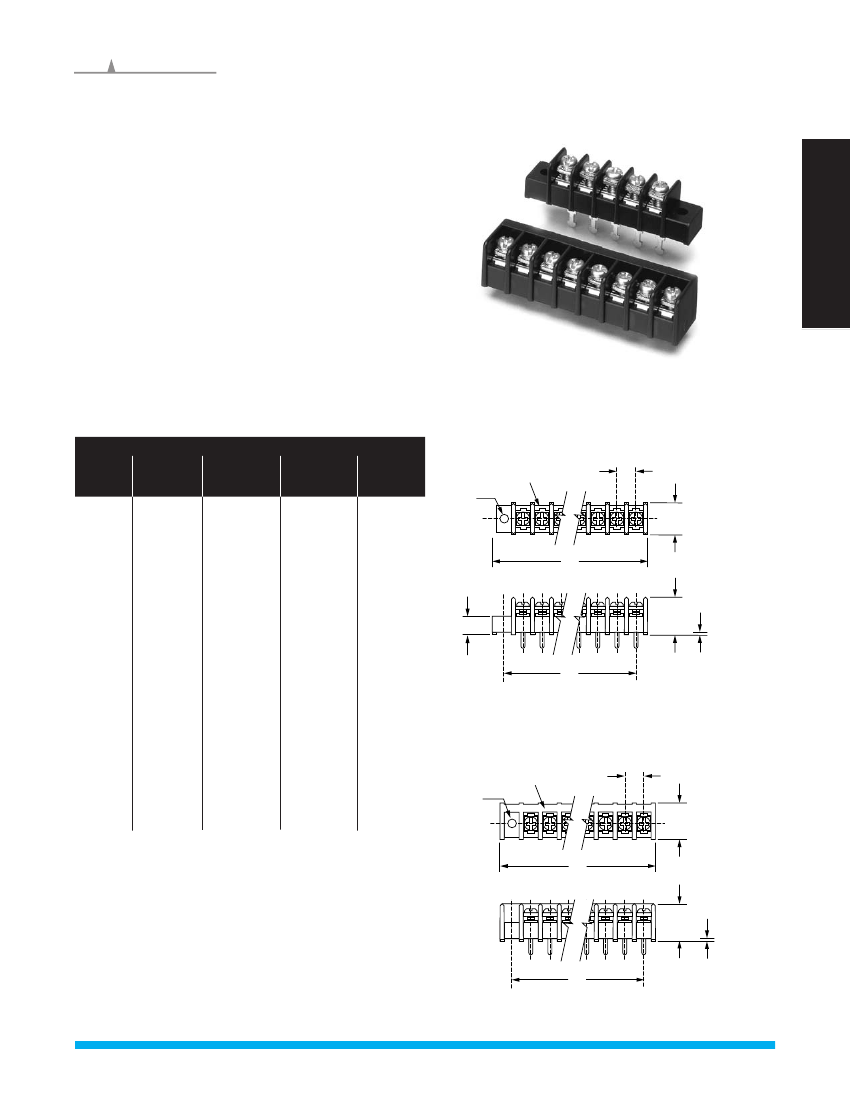

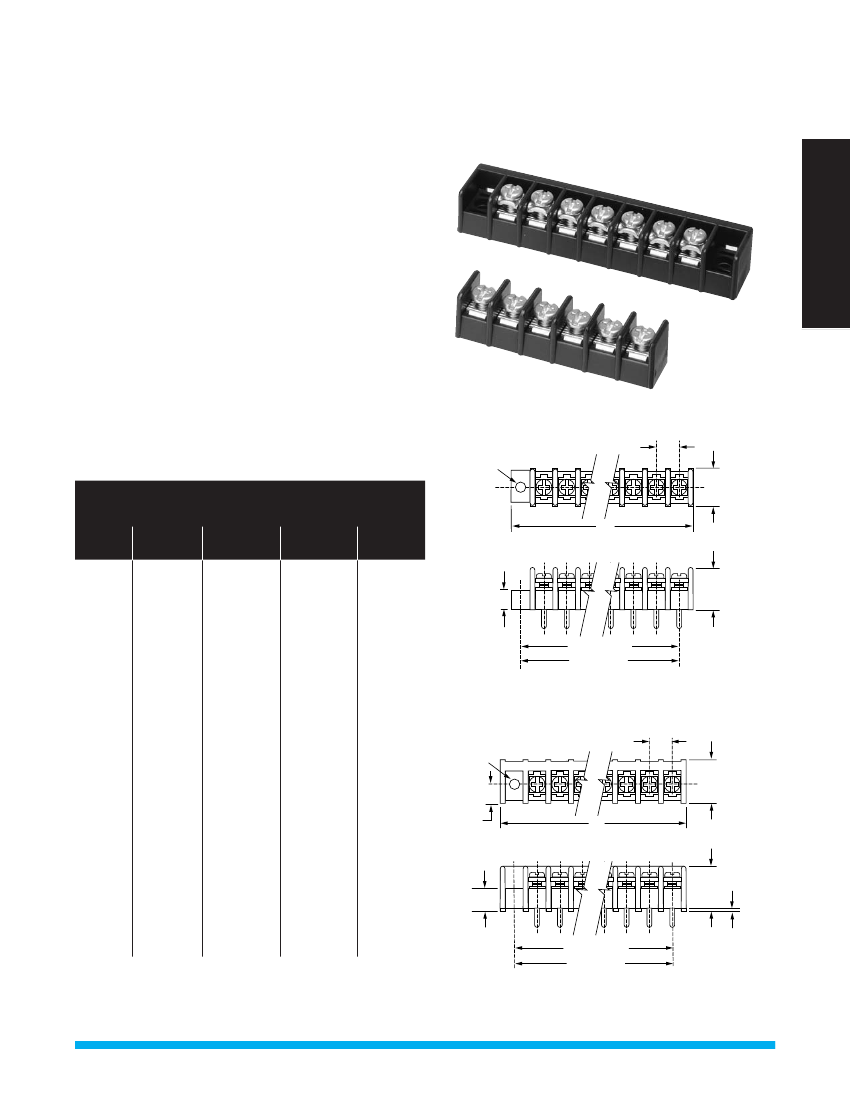

SPECIFICATIONS
Rating:
10A, 300V*
Center Spacing:
.250” (6.35 mm)
Wire Range:
#16-30 AWG CU
Screw Size:
#3-48 zinc plated philslot SEMS screws, wire-
ready standard
Torque Rating:
4 in-lbs.
Distance Between Barriers:
.20” (5.08 mm)
Recommended PCB Hole Diameter:
.062” (1.57 mm)
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Molded Material:
Black, UL Rated 94V0 Thermoplastic
Breakdown Voltage:
1600V rms
Agency Information:
UL/CSA; CE Certified
* Max. rating shown; some options may be rated lower – consult factory.
A50110507
Single & Double Row
Filtered Connectors
CB50220807
Euro-MAG Series
PCB – Spring Clamp
A5000 Series
MOUNTING ENDS
A
B
Mount
Overall
Centers
Length
.75
1.00
1.25
1.50
1.75
2.00
2.25
2.50
2.75
3.00
3.25
3.50
3.75
4.00
4.25
4.50
4.75
5.00
5.25
5.50
5.75
6.00
6.25
6.50
6.75
7.00
7.25
1.06
1.31
1.56
1.81
2.06
2.31
2.56
2.81
3.06
3.31
3.56
3.81
4.06
4.31
4.56
4.81
5.06
5.31
5.56
5.81
6.06
6.31
6.56
6.81
7.06
7.31
7.56
BARRIER ENDS
A
B
Pole
Overall
Centers
Length
.25
.50
.75
1.00
1.25
1.50
1.75
2.00
2.25
2.50
2.75
3.00
3.25
3.50
3.75
4.00
4.25
4.50
4.75
5.00
5.25
5.50
5.75
6.00
6.25
6.50
6.75
7.00
7.25
.56
.81
1.06
1.31
1.56
1.81
2.06
2.31
2.56
2.81
3.06
3.31
3.56
3.81
4.06
4.31
4.56
4.81
5.06
5.31
5.56
5.81
6.06
6.31
6.56
6.81
7.06
7.31
7.56
.12
(3.0)
dia.
#3-48
screw
.250
(6.35)
.43
(10.9)
B
Poles
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Base & Rail Mount
Connectors
Mount End
Barrier End
.50
(12.7)
.025
(.64)
Barrier End
.25
(6.35)
Mount End
A
CB5000 Series
#3-48
screw
.12
(3.0)
dia.
.250
(6.35)
.50
(12.7)
Power Distribution Blocks
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
B
Mount End
Barrier End
.50
(12.7)
WIRE MANAGEMENT PRODUCTS
.025
(.64)
Mount End
A
Barrier End
1
MAGNUM
®

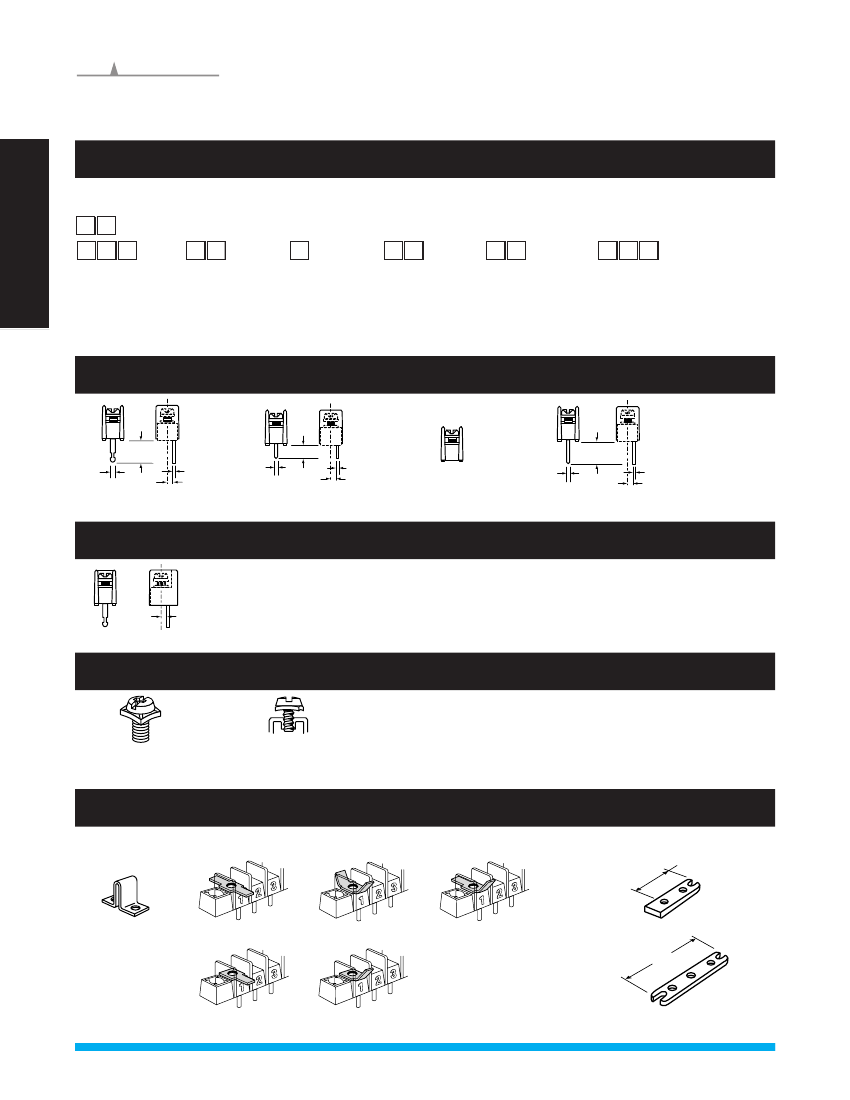

Part Numbering System
Single & Double Row
Filtered Connectors
Series
Terminal Style
Base/End
Poles
Screw Options
Options
A 5
C B 5
A5
- standard barrier
CB5
- closed barrier
01
02
03
04
- handwired
- printed circuit
- non feed-thru
- wire wrap tail
1
- mount end
2
- barrier end
02
to
30
02
to
28
on mount
end base
07
- steel SEMS
std. wire ready
C1
to
C8
- .110” QC
L1
to
L6
marking options (pg 22)
LT1
to
LT6
marking options (CB5 only-pg 22)
OJ
- over barrier jumper
S1
- single solder lug/flat
S2
- double solder lug/flat (A5 only)
Inches (Millimeters)
Euro-MAG Series
PCB – Spring Clamp
Terminal Styles
.40
(10.2)
.10
(2.54)
.025
(.64)
.12
(3.0)
.045
(1.14)
.17
(4.3)
.025
(.64)
.045
(1.14)
.50
(12.7)
.025
(.64)
.12
(3.0)
.12
(3.0)
01
Handwired
02
Circuit Board
03
Non Feed-Thru
04
Wire Wrap Tail
CB5 Terminal Exit Options
Base & Rail Mount
Connectors
Inches (Millimeters)
.12
(3.0)
Exit Rear
(std.)
Screw Options
Wire ready screws standard on all terminal styles
Power Distribution Blocks
07
Steel SEMS
Zinc Plated
07
Standard
Wire Ready
Hardware Options
Jumpers
(Bulk ordering part numbers are in parentheses.)
Solder Lugs
Quick Connects
Blade Width .110” (For other orientations, contact factory.)
.56 (14.3)
WIRE MANAGEMENT PRODUCTS
OJ12
C1 (5C1) *
C2 (5C2) *
C4 (5C4) *
S1 (5S1)
1.12 (28.4)
C7 (5C7)
* N/A on CB5 Series.
C8 (5C8)
S2 (5S2)
2
Series A1000 & Series CB1000
Single Row Terminal Blocks
Single & Double Row
Filtered Connectors
SPECIFICATIONS
Rating:
20A, 150V
Center Spacing:
.325” (8.26 mm)
Wire Range:
#14-22 AWG CU
Screw Size:
#6-32 zinc plated philslot wire-ready screws
with a #2 driving recess.
Torque Rating:
9 in-lb.
Base:
Standoffs are standard on CB1000 Series
for easy flux washing.
Distance Between Barriers:
.26” (6.6 mm)
Recommended PCB Hole Diameter:
.070” (1.78 mm)
Operating Temperature:
105°C (221°F) max., -40°C
(-40°F) min.
Molded Material:
Black, UL Rated 94V0 Thermoplastic
Breakdown Voltage:
1600V
Agency Information:
UL/CSA; IEC Compliance;
CE Certified
CB10210707
A102206
Euro-MAG Series
PCB – Spring Clamp
A1000 Series
.325
(8.26)
.15
(3.8)
dia.
Poles
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
MOUNTING
ENDS
ONLY
A
C
Mount Ctrs.
Length
.98
1.30
1.63
1.95
2.28
2.60
2.93
3.25
3.58
3.90
4.23
4.55
4.88
5.20
5.53
5.85
6.18
6.50
6.83
7.15
7.48
7.80
8.13
8.45
8.78
9.10
9.43
9.75
10.08
10.40
10.73
11.05
11.38
1.37
1.69
2.02
2.34
2.67
2.99
3.32
3.64
3.97
4.29
4.62
4.94
5.27
5.59
5.92
6.24
6.57
6.89
7.22
7.54
7.87
8.19
8.52
8.84
9.17
9.49
9.82
10.14
10.47
10.79
11.12
11.44
11.77
BARRIER &
MOUNTING
ENDS
B
Pole Ctrs.
.33
.65
.98
1.30
1.63
1.95
2.28
2.60
2.93
3.25
3.58
3.90
4.23
4.55
4.88
5.20
5.53
5.85
6.18
6.50
6.83
7.15
7.48
7.80
8.13
8.45
8.78
9.10
9.43
9.75
10.08
10.40
10.73
11.05
11.38
BARRIER
ENDS
ONLY
C
Length
.72
1.04
1.37
1.69
2.02
2.34
2.67
2.99
3.32
3.64
3.97
4.29
4.62
4.94
5.27
5.59
5.92
6.24
6.57
6.89
7.22
7.54
7.87
8.19
8.52
8.84
9.17
9.49
9.82
10.14
10.47
10.79
11.12
11.44
11.77
.50
(12.7)
C
Mount End
Barrier End
Base & Rail Mount
Connectors
.25
(6.4)
.50
(12.7)
A
Mount Centers
B
Pole Centers
Mount End
Barrier End
CB1000 Series
.15
(3.8)
dia.
.325
(8.26)
.60
(15.2)
Power Distribution Blocks
.25
(6.4)
C
Mount End
Barrier End
.27
(6.9)
.52
(13.2)
WIRE MANAGEMENT PRODUCTS
A
Mount Centers
B
Pole Centers
Mount End
Barrier End
.025
(.64)
* Dimensions in inches. To convert to millimeters, multiply by 25.4.
3
MAGNUM
®

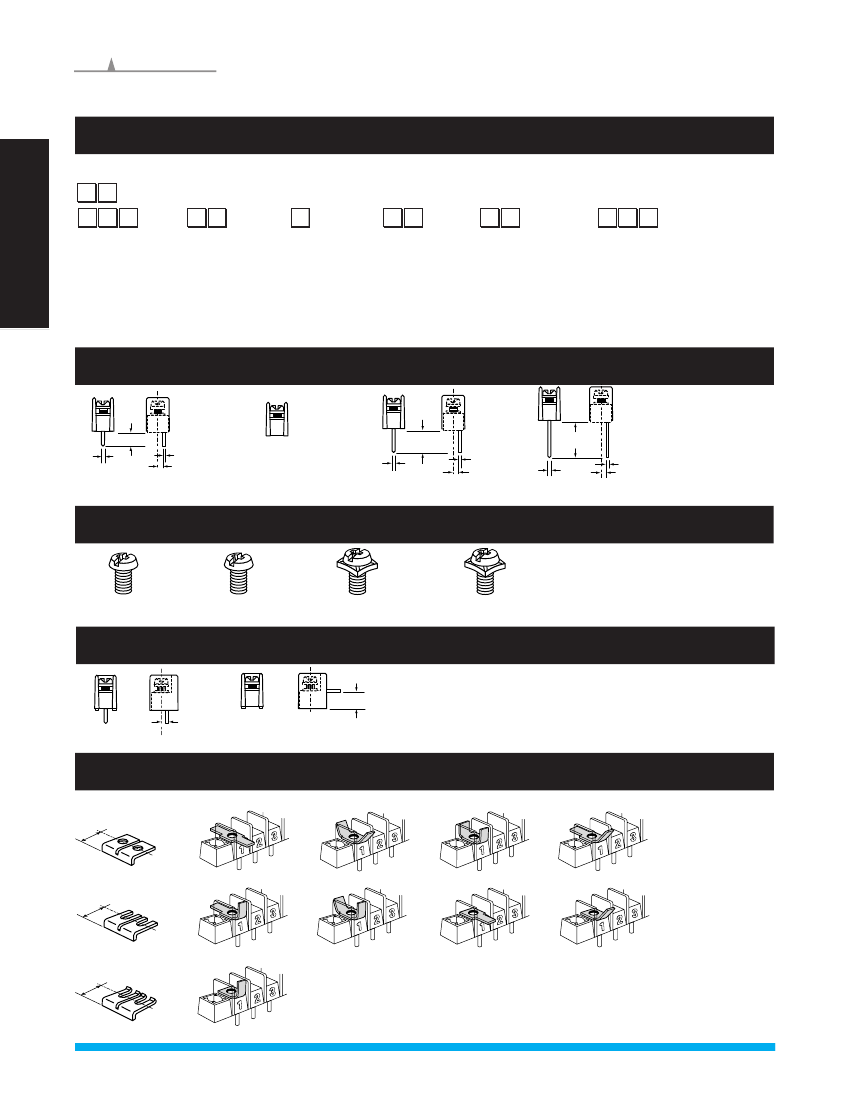

Part Numbering System
Series
Single & Double Row
Filtered Connectors
Terminal Style
Base/End
Poles
Screw Options
Options
A 1
C B 1
A1
- standard barrier
CB1
- closed barrier
02
03
04
07
- printed circuit
- non feed-thru
- wire wrap tail
- extended pin
1
- mount end
2
- barrier end
02
to
36
02
to
34
on mount
end base
Blank - std. screws
AB
&
DR
- angle mts. (A1 only-pg 5)
03
- stainless steel
B1
to
B9
- .187” QC (all positions)
04
- nickel brass
EB
- exit back terminals on CB1 w/07 screw
07
- steel SEMS &
option only
washer (not
JA, JB
&
JC
- barrier jumpers
available with
L1
to
L6
marking options (pg 22)
hardware options)
LT1
to
LT6
marking options (CB1 only-pg 22)
CA
- standard captive screw
MP
&
MT
- mounting plates (pg 5)
07CA
- SEMS captive
R26
&
R45
- right angle bends (A1 only-pg 5)
Inches (Millimeters)
Covers
- (pg 23)
Terminal Styles
Euro-MAG Series
PCB – Spring Clamp
.16
(4.1)
.055
(1.40)
.032
(.81)
.055
(1.40)
.35
(8.9)
.14
(3.6)
.032
(.81)
.14
(3.6)
.055
(1.40)
.54
(13.7)
.0
(.8
.14
(3.6)
02
Printed Circuit
03
Non Feed-Thru
04
Wire Wrap Tail
07
Extended Pin
Screw Options
Wire ready screws standard on all terminal styles
Base & Rail Mount
Connectors
Standard
Zinc Plated Steel
03
Stainless Steel
04
Brass Nickel Plated
07
Steel SEMS Zinc Plated
CB1 Terminal Exit Options
.275
(6.98)
.14
(3.6)
Inches (Millimeters)
Exit Rear (std.)
Power Distribution Blocks
EB
Exit Back
(Bulk ordering part numbers are in parentheses.)
Hardware Options
Jumpers
.33 (8.4)
Quick Connects
Blade Width B = .187”. (For other orientations, contact factory.)
JA (JA1-XX)
.33 (8.4)
B1 (1B1) *
B2 (1B2) *
B3 (1B3) *
B4 (1B4) *
WIRE MANAGEMENT PRODUCTS
JB (JB1-XX)
.33 (8.4)
B5 (1B5) *
B6 (1B6) *
B7 (1B7)
B8 (1B8)
* N/A on CB1 Series.
JC (JC1-XX)
B9 (1B9)
4
Series A1000 & CB1000
Single Row Terminal Blocks
Single & Double Row
Filtered Connectors
Mounting Options

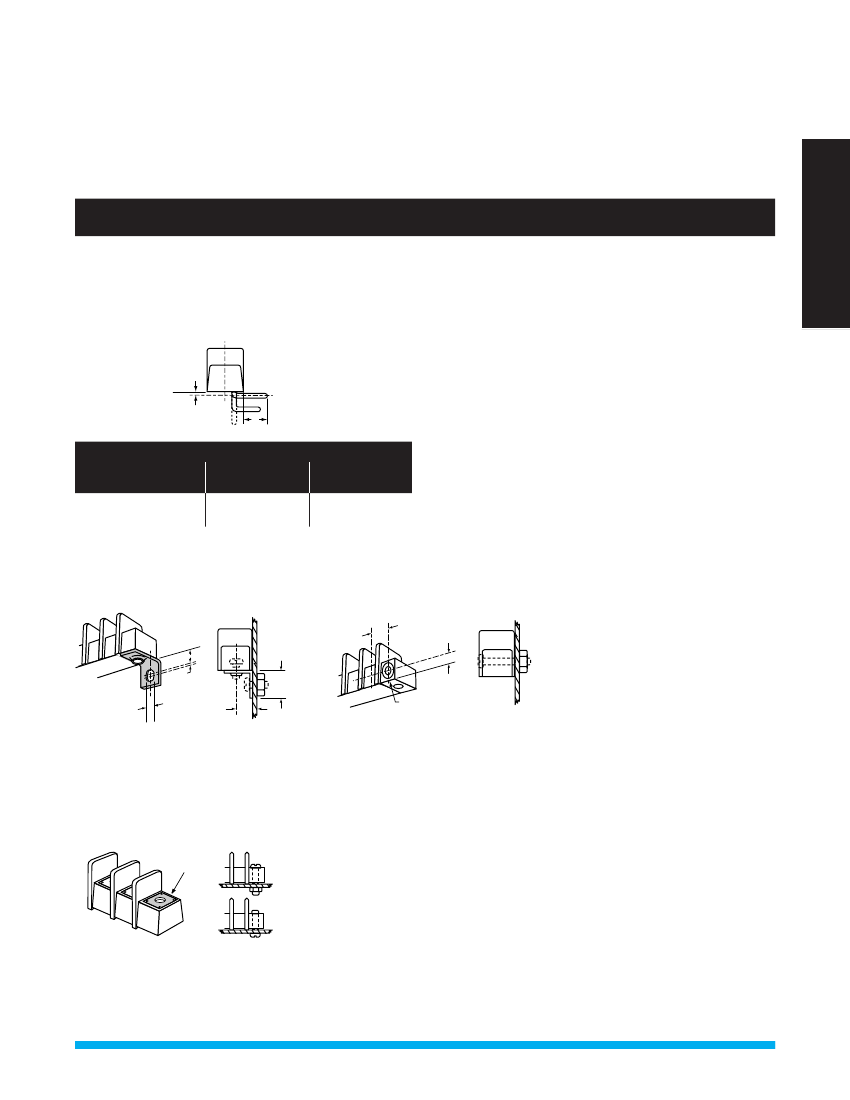

Right Angle Bends (A1 only)
Right angle terminals are offered on the A1000 Series. Configurations are
defined in these dimensions: X = pin extension beyond the block base;
Z = length from block base to centerline of the terminal tip. Standard bends
consist of the X and Z dimensions shown in the chart. Specify by adding the
selected Bend Option Code to the terminal part no.
Inches (Millimeters)
Bend
Option
Code
R26
(04 terminal only)
R45
(07 terminal only)
Dimensions in inches. To convert to millimeters, multiply by 25.4.
Angle Brackets
(A1 only)
.250
.04
.150
Option AB
Angle brackets enable block to be fastened
at right angles to normal mount position.
Bulk part no.
1AB.
Mounting Plates
MOUNTING
PLATE
Options MP & MT
MP
Metal inserts with .150” dia. hole
accept
#6 screw.
MT
Metal inserts with tapped
hole accept #6-32 screw.
Bulk Part Nos.
1MP
&
1MT.
;
;;
;
;
X
Z
Euro-MAG Series
PCB – Spring Clamp
X
(minimum)
.14
.33
Z
.09
.09
Base & Rail Mount
Connectors
Drilled Right Angle
(A1 only)
.325
.12
.450
.320
.144 HOLE
w/.312 C' BORE
Option DR
Counterbored holes across mount ends of
block enable fastening with two screws at
right angles to normal mount position.
Power Distribution Blocks
MP
MT
WIRE MANAGEMENT PRODUCTS
5
